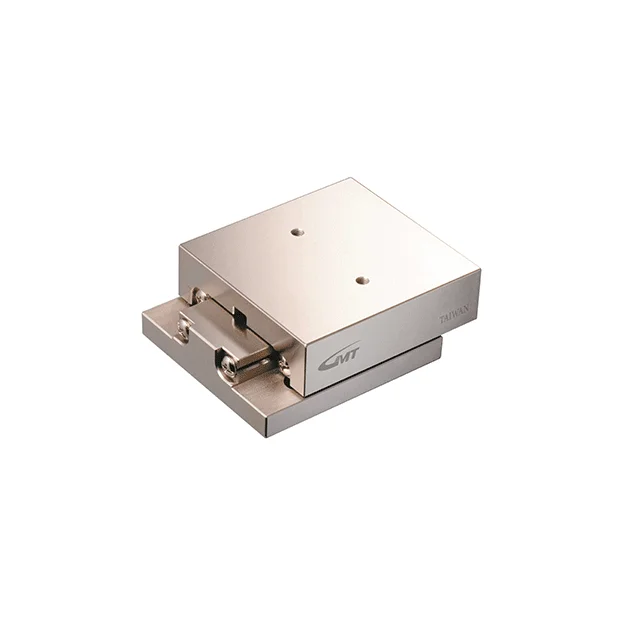

♦ Crossed Roller Slide Table

Table is composed of GMT crossed roller type slide rail set, V-grooved, crossed rollers matched with assembly plane in high accuracy processing, and base; installed with limit mechanism between two ends of table, is small type of limit stroke linear motion product in high rigidity. Performance as high accuracy and low friction, apply to electric parts used in automatic installation equipment and optical gauge.


♦ Slide Table Unit Selection Procedure

 1. Select unit width and length.

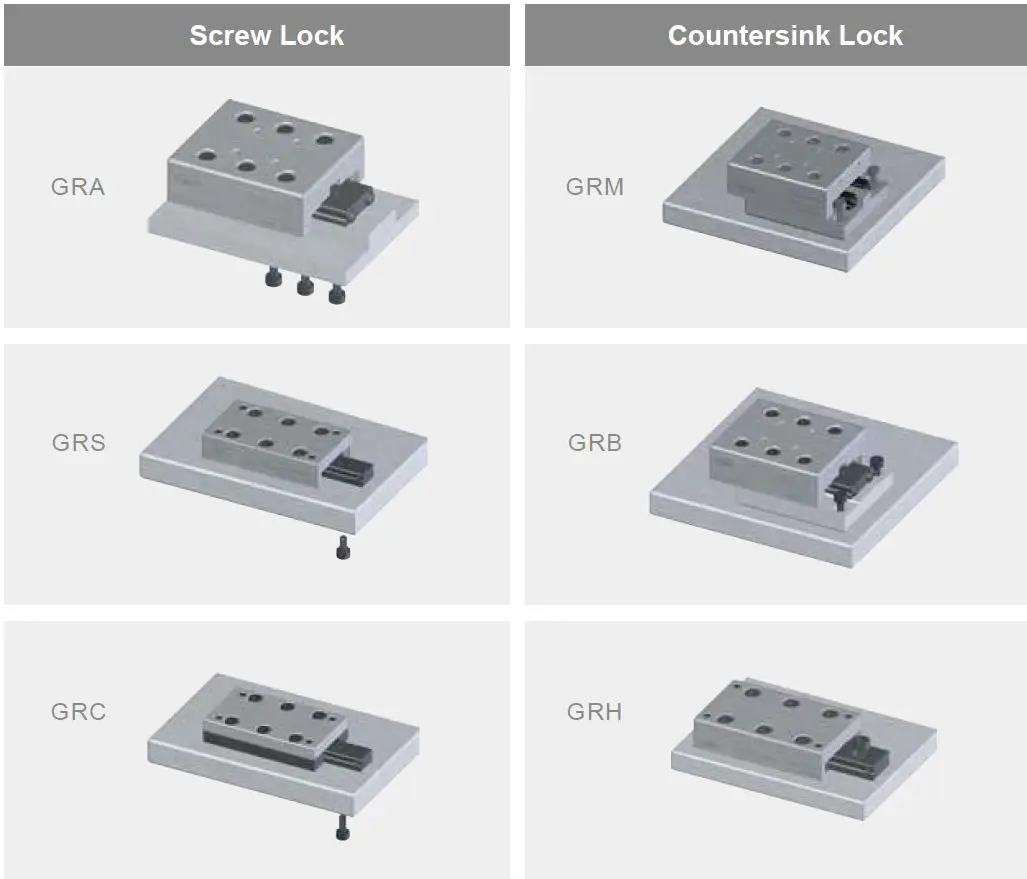

2. Select model per installation.

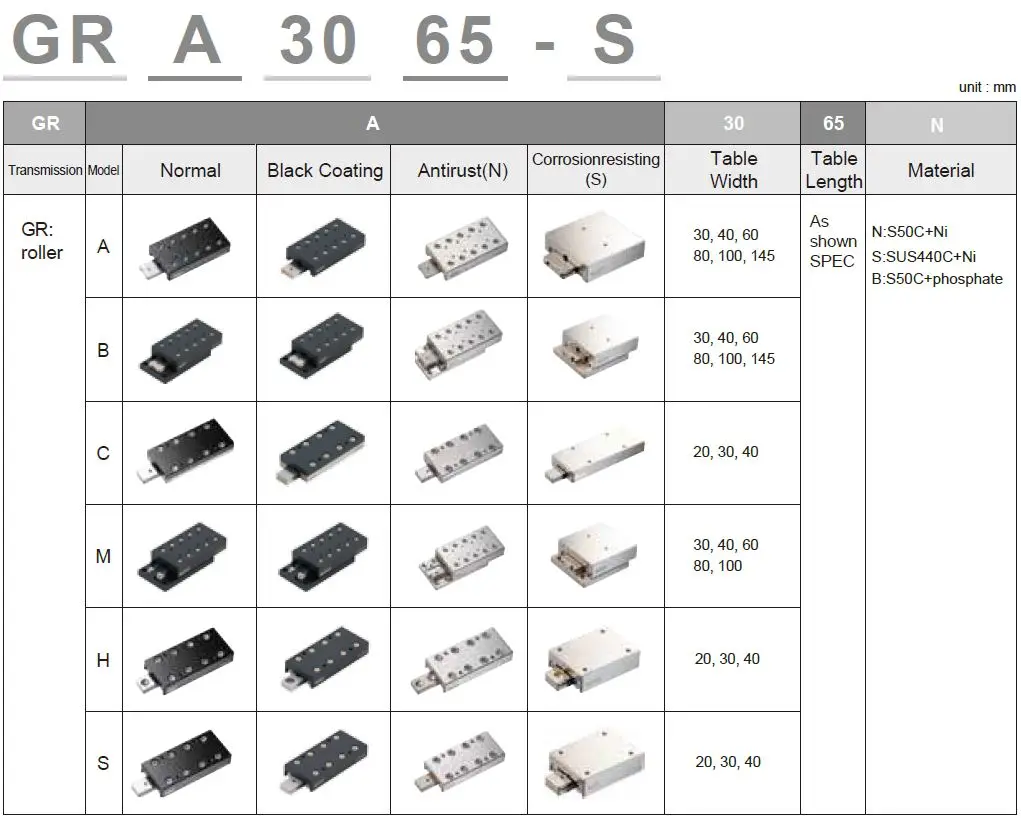

3. Acquire model no. from catalogs.
4. Select standard, antirust or corrosion-resisting per environment request.


♦ Slide Table Property

 * High Accuracy：In order to perform function of GMT Slide Table entirely, all assembly planes of table and base are processed in precise grinding to get linear motion in high accuracy.
* Low Friction：Low friction because of non-circulation. Stable performance in whether low speed or high speed.
* High Rigiditym, Space Saving：Besides high load capacity and high rigidity of roller guide in GMT linear motion table, space saving design is also considered at same time.
* No Demand of Adjustment：Accuracy and preload would be matched perfectly to use directly without heavy adjustment.
* Easy Installation：Standardized assembly holes of unit and base are easy to lock and secure with screw only to have linear motion in high accuracy.




Model No.
GRB

Table Size_W (mm)
30
Table Size_L (mm)
25
35
45
55
65
75
85

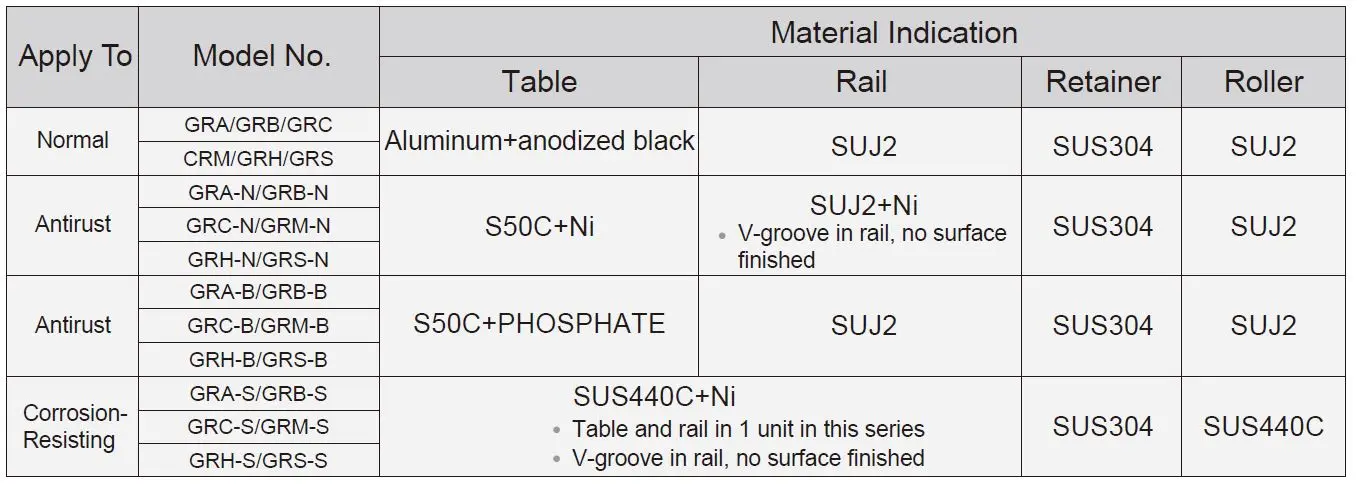

Material
Table

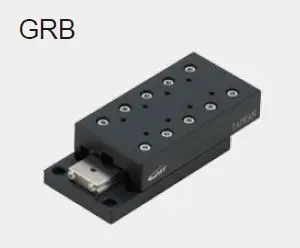

GRB：Aluminum Alloy + Black Anodized，Normal

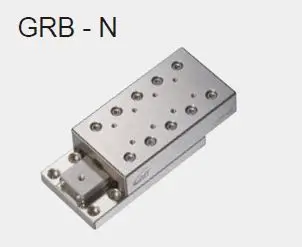

GRB - N：S50C + Ni，Antirust

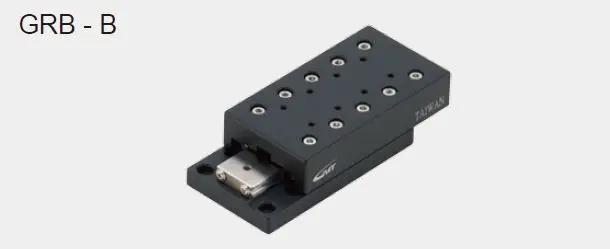

GRB - B：S50C + Phosphate，Black Coating

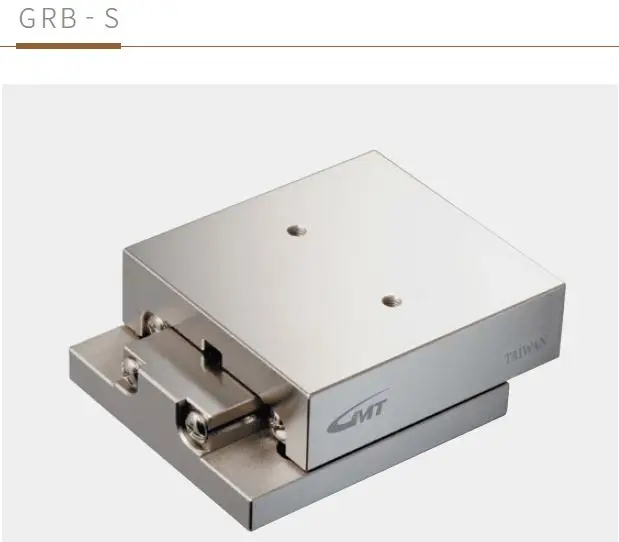

GRB - S：SUS 440C + Ni，Corrosion - Resisting
* GRB - S Series table and rail in 1 unit, V-groove in rail doesn't have surface finished
Rail
GRB：SUJ 2
GRB - N：SUJ 2 + Ni
GRB - B：SUJ 2
Retainer
SUS 304

Roller
GRB：SUJ 2
GRB - N：SUJ 2
GRB - B：SUJ 2
GRB - S：SUS 440C
Max. Stroke (mm)
12
18
25
32
40
45
50
Roller Dia. (mm)
Ø 1.5
Basic Dynamic Load Rating (C) (N)
379
523
657
783
903
1131
1240
Basic Static Load Rating (Co) (N)
576
865
1153
1441
1729
2306
2594
Allowable Load (Fu) (N)
192
288
384
480
576
769
865
Static Rated Moment
MR (N・m)
2.6
3.9
5.2
6.5
7.8
10.4
11.7
MP (N・m)
1.2
2.6
4.6
7.2
10.4
18.4
23.3
MY (N・m)
1.4
3
5.2
7.9
11.2
17.3
22
Weight (Kg)
Normal
0.04
0.06
0.07
0.09
0.1
0.12
0.14
Antirust
0.09
0.12
0.16
0.19
0.23
0.27
0.3
Corrosion - Resisting
0.09
0.12
0.16
0.19
0.23
0.26
0.3
Table Moving Accuracy (µm)
Center Parallelism
2
Side Parallelism
4
5


Model No.
GRB

Table Size_W (mm)
40
Table Size_L (mm)
35
50
65
80
95
110
125
Material
Table
GRB：Aluminum Alloy + Black Anodized，Normal
GRB - N：S50C + Ni，Antirust
GRB - B：S50C + Phosphate，Black Coating
GRB - S：SUS 440C + Ni，Corrosion - Resisting
* GRB - S Series table and rail in 1 unit, V-groove in rail doesn't have surface finished
Rail
GRB：SUJ 2
GRB - N：SUJ 2 + Ni
GRB - B：SUJ 2
Retainer
SUS 304

Roller
GRB：SUJ 2
GRB - N：SUJ 2
GRB - B：SUJ 2
GRB - S：SUS 440C
Max. Stroke (mm)
18
30
40
50
60
70
80
Roller Dia. (mm)
Ø 2
Ø 3
Basic Dynamic Load Rating (C) (N)
895
2901
2901
4338
3640
5005
5005
Basic Static Load Rating (Co) (N)
1170
4567
4567
7611
6089
9133
9133
Allowable Load (Fu) (N)
390
1522
1522
2537
S：2591
2030
3044
3044
Static Rated Moment
MR (N・m)
7
42.6
42.6
71
56.8
85.2
85.2
MP (N・m)
3.1
22.8
22.8
63.4
40.6
91.3
91.3
MY (N・m)
3.9
26.6
19
57.1
45.7
98.9
83.7
Weight (Kg)
Normal
0.1
0.16
0.18
0.25
0.27
0.34
0.36
Antirust
0.2
0.29
0.36
0.46
0.53
0.63
0.69
Corrosion - Resisting
0.2
0.29
0.36
0.46
0.52
0.63
0.69
Table Moving Accuracy (µm)
Center Parallelism
2
3
Side Parallelism
4
5

6


Model No.
GRB

Table Size_W (mm)
60
Table Size_L (mm)
55
80
105
130
155
180
205
Material
Table
GRB：Aluminum Alloy + Black Anodized，Normal
GRB - N：S50C + Ni，Antirust
GRB - B：S50C + Phosphate，Black Coating
GRB - S：SUS 440C + Ni，Corrosion - Resisting
* GRB - S Series table and rail in 1 unit, V-groove in rail doesn't have surface finished
Rail
GRB：SUJ 2
GRB - N：SUJ 2 + Ni
GRB - B：SUJ 2
Retainer
SUS 304

Roller
GRB：SUJ 2
GRB - N：SUJ 2
GRB - B：SUJ 2
GRB - S：SUS 440C
Max. Stroke (mm)
30
45
60
75
90
105
130
Roller Dia. (mm)
Ø 3
Basic Dynamic Load Rating (C) (N)
2901
4338
5646
6268
7462
8603
9157
Basic Static Load Rating (Co) (N)
4567
7611
10655
12178
15222
18266
19789
Allowable Load (Fu) (N)
1522
2537
3552
4059
5074
6089
6596
Static Rated Moment
MR (N・m)
42.6
71
99.5
113.7
142.1
170.5
184.7
MP (N・m)
22.8
63.4
124.3
162.4
253.7
365.3
428.8
MY (N・m)
26.6
57.1
115.4
172.5
266.4
350.1
445.2
Weight (Kg)
Normal
0.31
0.46
0.61
0.76
0.9
1.05
1.2
Antirust
0.65
0.96
1.27
1.57
1.87
2.18
2.47
Corrosion - Resisting
0.65
0.95
1.25
1.55
1.85
2.15
2.45
Table Moving Accuracy (µm)
Center Parallelism
2
3
Side Parallelism
5
6

7


Model No.
GRB

Table Size_W (mm)
80
Table Size_L (mm)
85
125
165
205
245
285
325
Material
Table
GRB：Aluminum Alloy + Black Anodized，Normal
GRB - N：S50C + Ni，Antirust
GRB - B：S50C + Phosphate，Black Coating
GRB - S：SUS 440C + Ni，Corrosion - Resisting
* GRB - S Series table and rail in 1 unit, V-groove in rail doesn't have surface finished
Rail
GRB：SUJ 2
GRB - N：SUJ 2 + Ni
GRB - B：SUJ 2
Retainer
SUS 304

Roller
GRB：SUJ 2
GRB - N：SUJ 2
GRB - B：SUJ 2
GRB - S：SUS 440C
Max. Stroke (mm)
50
75
105
135
155
185
215
Roller Dia. (mm)
Ø 4
Basic Dynamic Load Rating (C) (N)
6617
9097
10264
12492
14612
16646
18612
Basic Static Load Rating (Co) (N)
9357
14035
16375
21053
25732
30410
35089
Allowable Load (Fu) (N)
3119
4678
5458
7018
8577
10137
11696
Static Rated Moment
MR (N・m)
124.8
187.1
218.3
280.7
343.1
405.5
467.8
MP (N・m)
87.3
196.5
267.5
442.1
660.4
922.4
1228.1
MY (N・m)
76.4
180.1
286.6
466.7
690.5
957.9
1187.2
Weight (Kg)
Normal
0.84
1.25
1.65
2.06
2.46
2.87
3.27
Antirust
1.72
2.55
3.37
4.18
5
5.83
6.64
Corrosion - Resisting
1.7
2.52
3.34
4.14
4.95
5.77
6.57
Table Moving Accuracy (µm)
Center Parallelism
2
3
4
Side Parallelism
5
6
7

8


Model No.
GRB

Table Size_W (mm)
100
Table Size_L (mm)
110
160
210
260
310
360
410
510
Material
Table
GRB：Aluminum Alloy + Black Anodized，Normal
GRB - N：S50C + Ni，Antirust
GRB - B：S50C + Phosphate，Black Coating
GRB - S：SUS 440C + Ni，Corrosion - Resisting
* GRB - S Series table and rail in 1 unit, V-groove in rail doesn't have surface finished
Rail
GRB：SUJ 2
GRB - N：SUJ 2 + Ni
GRB - B：SUJ 2
Retainer
SUS 304

Roller
GRB：SUJ 2
GRB - N：SUJ 2
GRB - B：SUJ 2
GRB - S：SUS 440C
Max. Stroke (mm)
60
95
130
165
200
235
265
350
S：365
Roller Dia. (mm)
Ø 6
Basic Dynamic Load Rating (C) (N)
13923
16592
21596
26285
30744
35024
39160
45141
Basic Static Load Rating (Co) (N)
21053
26316
36842
47369
57895
68421
78948
84600
Allowable Load (Fu) (N)
7018
8772
12281
15790
19298
22807
26316
28200
Static Rated Moment
MR (N・m)
315.8
394.7
552.6
710.5
868.4
1026.3
1184.2
1269
MP (N・m)
252.6
394.7
773.7
1279
1910.5
2668.4
3552.6
4568.4
MY (N・m)
221.1
434.2
828.9
1207.9
1823.7
2565.8
3434.2
4441.5
Weight (Kg)
Normal
1.72
2.53
3.34
4.13
4.95
5.75
6.56
8.17
Antirust
3.51
5.15
6.79
8.39
10.04
11.64
13.28
16.52
Corrosion - Resisting
3.48
5.1
6.72
8.31
9.95
11.53
13.16
16.52
Table Moving Accuracy (µm)
Center Parallelism
3
4

Side Parallelism
6
7
8



Model No.
GRB

Table Size_W (mm)
145
Table Size_L (mm)
210
310
410
510
610
Material
Table
GRB：Aluminum Alloy + Black Anodized，Normal
GRB - N：S50C + Ni，Antirust
GRB - B：S50C + Phosphate，Black Coating
GRB - S：SUS 440C + Ni，Corrosion - Resisting
* GRB - S Series table and rail in 1 unit, V-groove in rail doesn't have surface finished
Rail
GRB：SUJ 2
GRB - N：SUJ 2 + Ni
GRB - B：SUJ 2
Retainer
SUS 304

Roller
GRB：SUJ 2
GRB - N：SUJ 2
GRB - B：SUJ 2
GRB - S：SUS 440C
Max. Stroke (mm)
130
180
350
450
550
Roller Dia. (mm)
Ø 9
Basic Dynamic Load Rating (C) (N)
46991
61165
67898
80829
87562
S：87073
Basic Static Load Rating (Co) (N)
72741
101838
116386
145482
160030
S：160031
Allowable Load (Fu) (N)
24247
33946
38795
48494
53343
S：53344
Static Rated Moment
MR (N・m)
1745.8
2444.1
2793.3
3491.6
3840.8
S：3840.7
MP (N・m)
1697.3
3326.7
4345.1
6789.2
7807.6
S：8214.9
MY (N・m)
1527.6
3564.3
4073.5
6449.7
6958.9
S：8588.3
Weight (Kg)
Normal
6.75
10.03
13.21
16.48
19.75
Antirust
13.23
19.62
25.88
32.26
38.64
Corrosion - Resisting
13.11
19.44
25.65
31.97
38.22
Table Moving Accuracy (µm)
Center Parallelism
3
4
Side Parallelism
7
8










Company Profile










Established in 1994, GMT Global Inc started business in precision mold components manufacturing and selling in the early days to fix painful points for customers based on initial believe persistently. Prior to a decade further, the managing director, Mr. Tony Chen, realized needs of mold market got weak while massive mold builders moved out of Taiwan, the timing to make change. Thus, the company began to develop automation use components, as well as supplied good profit OEM parts for semi-conductor facilities. However, in consideration for company’s growth in the future, Tony decided to create the brand GMT, to sell own designed and produced products, urged the company move on a completely new road,in 2006, when GMT brand name was born.
From then on, GMT dedicated itself to develop innovated products, optimize manufacture procedure and improve machining technologies; those were implemented to management of offering technical profession to serve customers.

Capabilities of development and innovation accumulated in decades, the company engaged to high precision application of automatic inspection in smart phone industry in 2015. The case example after the company’s change performed itself in automation industries with the preparation of technical abilities and capability for Industrial 4.0. First consolidating capacity for parts and components, then, upgrading to modularization and systematic integration, thereby maintaining its place as the most competitive firm on the market.

Recent virus impacts on management of enterprises. GMT stay tune of the company goal, and take place of training to employees for knowledge improvement, and development constantly by implement of Lean Manufacturing, SPC (Statistic Process Control), OKR (Object Key Result) those management tools for stepping forward to future.


ISO 9001-2015
CE Verification of Certificate
Model Name: AX, CX, GK series
CE Verification of Certificate
Model Name: AR series


2015 Taiwan SMEs Innovation Award



Taiwan Excellence Award 2022
Model: Linear Stepper Stage GSMX60/GSMX80/GSMX120
Taiwan Excellence Award 2022
Model: Rotary Swing Module GBR-S1/GBR-S2


Taiwan Excellence Award 2022
Model: Rotary Gripper Module GEAR-P2
Taiwan Excellence Award 2022
Model: Miniature Ultra-Rigid Alignment Stage
GAS00-160VC1


Taiwan Excellence Award 2020
Model: Precision Electric Cylinder GECB/GECC
Taiwan Excellence Award 2020
Model: Motorized Goniometer Stage GECB/GECC


Taiwan Excellence Award 2019
Model: Six-axis Optical Fiber Alignment Stage Module
GECB/GECC
Taiwan Excellence Award 2019
Model: Miniature Actuator GIR


Taiwan Excellence Award 2015
Model: Precision XXY Positioning Stage – Ultra-rigid Type –Electric-magnetic Type GAS00-350SC
Taiwan Excellence Award 2015
Model: Precision XXY Positioning Stage –Ultra-Rigidity – Pneumatic Type GAS00-350AC


Taiwan Excellence Award 2015
Model: Motorized X Axis Lightweight Long-path (Direct-drive Stage) CXV60
Taiwan Excellence Award 2015
Model: XY-axis Equidirectional Operation MYCP-A


Taiwan Excellence Award 2015
Model: Manual X-axis Ultra-high-resolution-Precision Direct-drive Stage MX764-AC-SHR
Taiwan Excellence Award 2015
Model: Anti-creep Slide Rail GRVG / GRVGS


FAQ


1. Are you the manufacture or distributor?
GMT is the manufacture located in Taiwan. We have subsidiaries in China, Germany, and our own distribution channels able to offer rapid technical support.

2. What kind of certificate have your company been approved?
GMT has been ISO 9001 certified since decades and got approval of constant survey according updated criteria officially.

3. Can you provide your certifications?
Yes, please leave your requirements, our specialist will get back to you as soon as possible.

4. Do you offer after-sales service?
Yes, we will have specialist to help you to resolve your questions. Any questions, please leave your message, our specialist will get back to you as soon as possible.

5. Can I customize products?
Yes, please leave your specific requirements, our specialist will get back to you as soon as possible.

6. What is your Minimum Order Quantity and pricing?
The MOQ for each product is different, if you need further information, please leave your message, our specialist will get back to you as soon as possible.

7. May I have a copy of your catalog?
Yes, please have more information through our official website: https://www.gmt.tw/, and kindly have QR code for our official website for your reference as below.

8. How long will it take to ship to my country?
It based on your location, if you have more questions, please leave your message, our specialist will get back to you as soon as possible.




We Recommend

New Arrivals

New products from manufacturers at wholesale prices

4.7017 s.
