Zhitong 20000 liter 304/316L stainless steel storage water tank big capacity OEM

Product Overview

Description



Product details

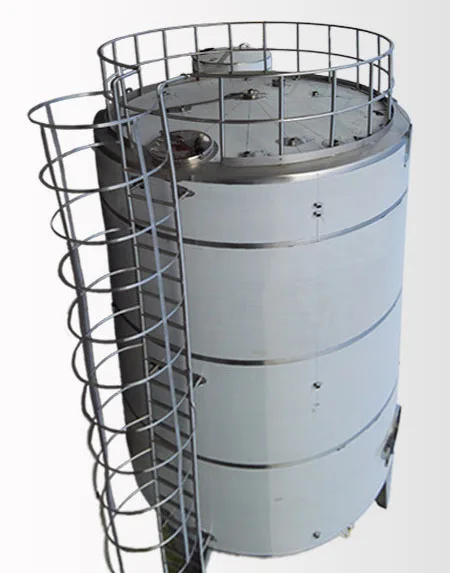

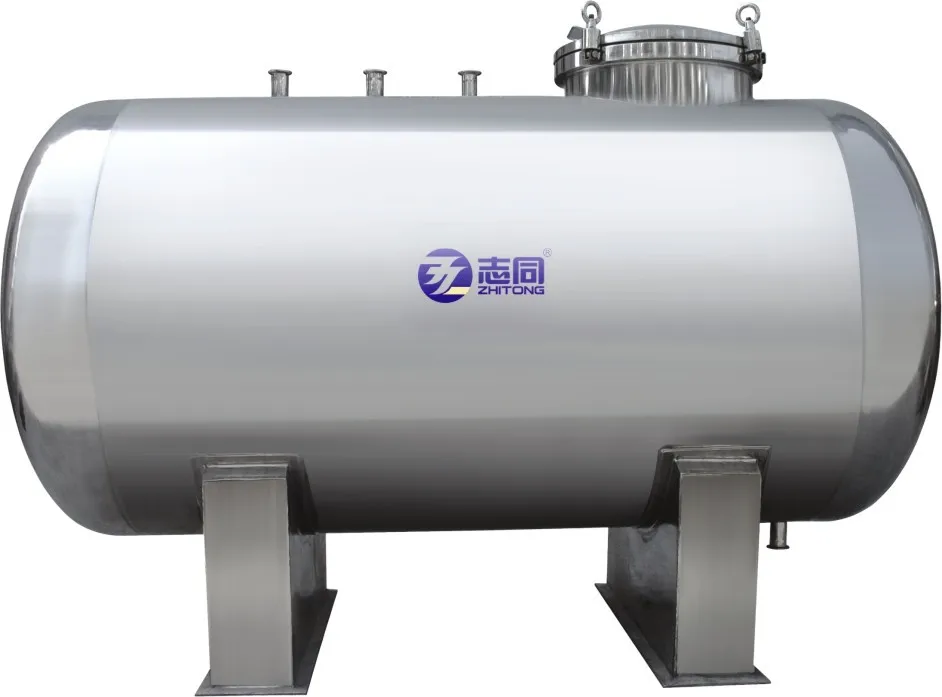

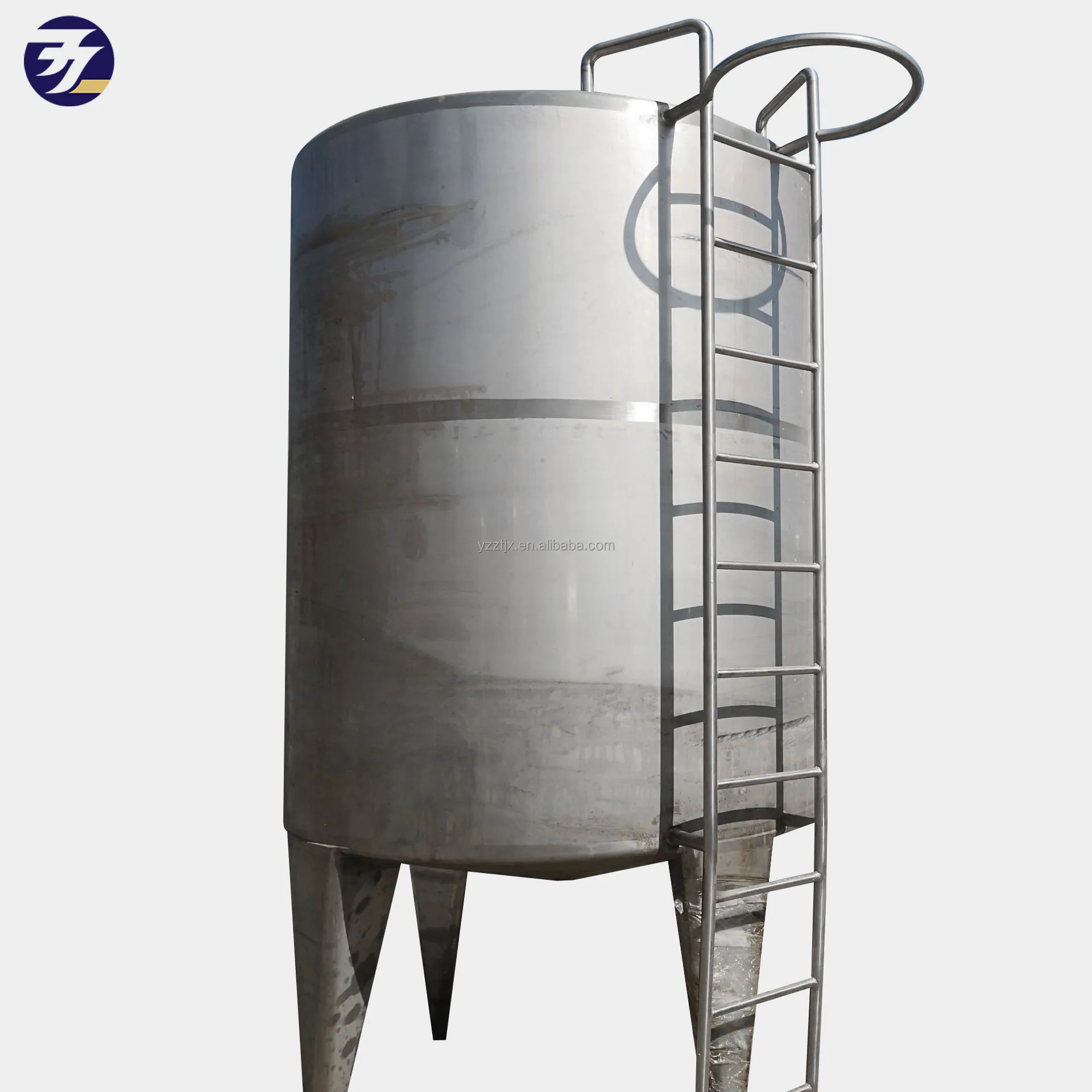

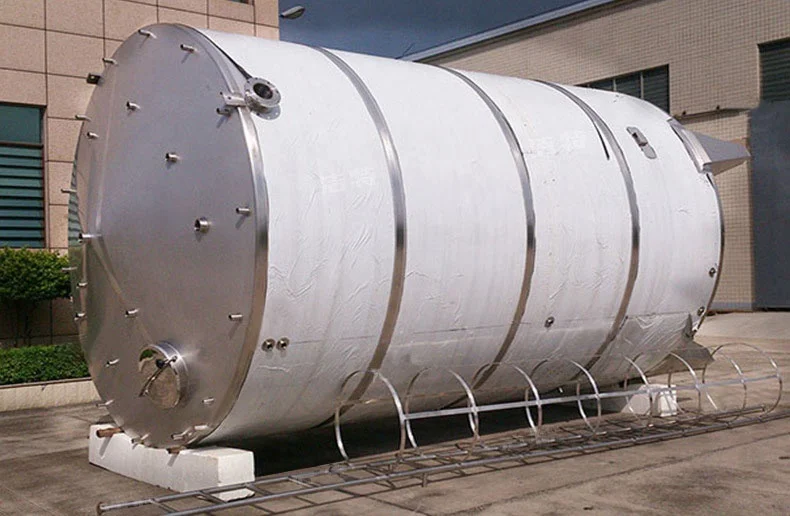

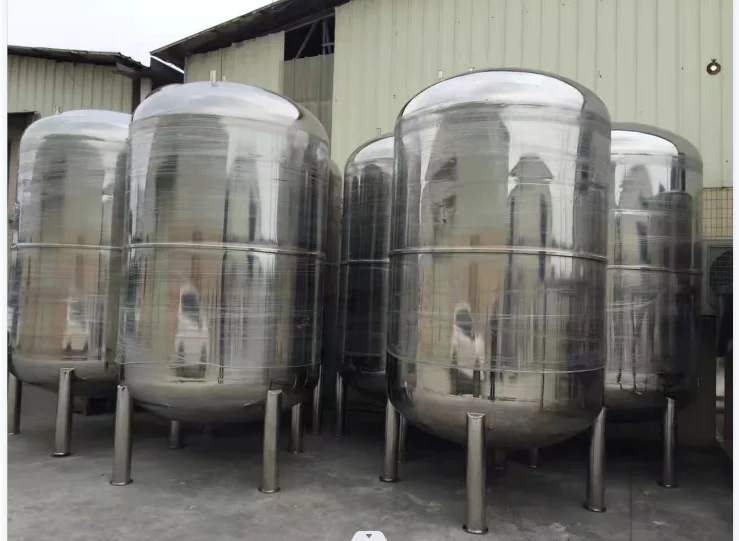

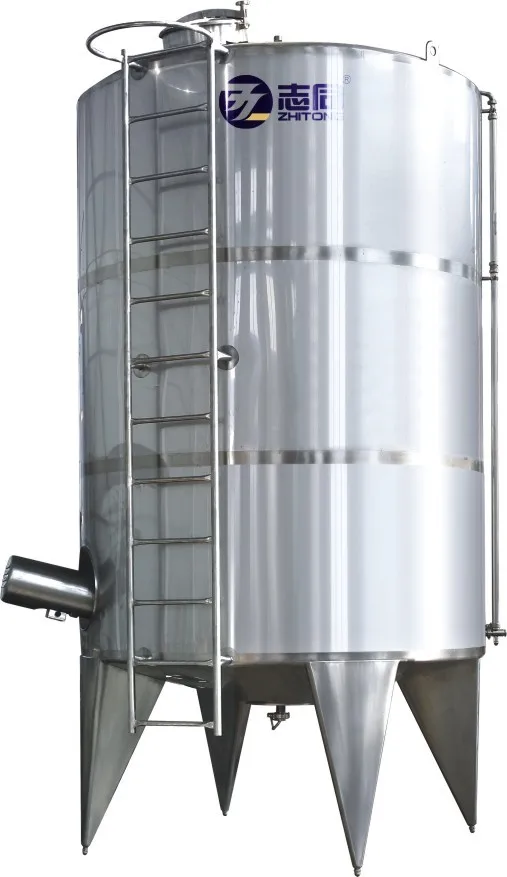

20000 liter 304/316L stainless steel water storage tank big capacity OEM

Specification

According to storage capacity,the storage tanks are classified into tanks of 100-15000L.For storage tanks with storage capacity of more than 20000L,it is suggested to use outdoor storage tanks.The storage tank is made of SUS316L or 304-2B stainless steel and has good heat preservation  performance.The accessories are as follows:inlet and outlet,manhole,thermometer,liquid level indicator,high and low liquid level alarm,fly and insect prevention spiracle,aseptic sampling vent,meter,CIP cleaning spraying head.



Mixing tank Carrier furnace series

Nominal capacity	Electric thermal power	Inner pot diameter	φ mm Jacket diameter	Speed reducer model	n/kw Motor	Mixing rotation speed(r.p.m)
50	4 x 2 kw	φ 400	φ 600	BLD 0.8-1	1450/0.8	60-100
100	6 x 2 kw	φ 500	φ 700	BLD 1.1-1	1450/1.1	60-100
300	6 x 4 kw	φ 800	φ 1000	BLD 2.2-2	1450/2.2	60-100
500	9 x 4 kw	φ 90	φ 1100	BLD 3-2	1450/3	60-100
1000	12 x 4 kw	φ 1200	φ 1400	BLD 4-3	1450/4	60-100
2000	15 x 5 kw	φ 1400	φ 1600	BLD 4-3	1450/4	60-100
3000	15 x 6 kw	φ 1600	φ 1800	BLD 5.5-3	1450/5.5	60-100
5000	16 x 7 kw	φ 2000	φ 2200	BLD 5.5-3	1450/5.5	60-100





Guangzhou/Yangzhou Zhitong Machinery Co., Ltd. is a producer and seller specialized in research, development, production of cosmetic, food and distribution of cosmetic, food and pharmaceutical machinery, storage tanks, etc. With a registered capital of RMB 3 million Yuan and a land area of 13,200 m2, our company is a member of China Chemical Industrial Machinery Association. We have complete machining equipment, perfect process flow, powerful technical srength, excellent product development and dedign capability as well as rich production experience. Our company has been certificated to ISO9001:2000 international quality management system. Thanks to our excellent product quality and good afeter-sales service, our products have been exported far to USA, European Union, Asia, Southest Asia and other countries and areas.

1  Q: Are you a factory or trading company?

     A: We are a factory.



2  Q: How long is the warranty period?

      A: All of our products have one year warranty.



3  Q: What's the main market of your company?

     A:  We have customers all over the world.



4  Q: What's your delivery time and payment terms?

     A:  Normally, it need about 10-30 days. The exact time depends on your comoany quality. The payment terms always 70% deposits, 30% to be paid before shipment.



5  Q: Can we visit your machine operation in your company?

     A:  Welcome to our factory to see the machine operation.



6  Q: Where's your factory located? How can we visit there?

     A:  We are in Yangzhou industry Zone. Jiangsu province, China. You can take the plane to zhenjiang airport and we will pick you up there.
