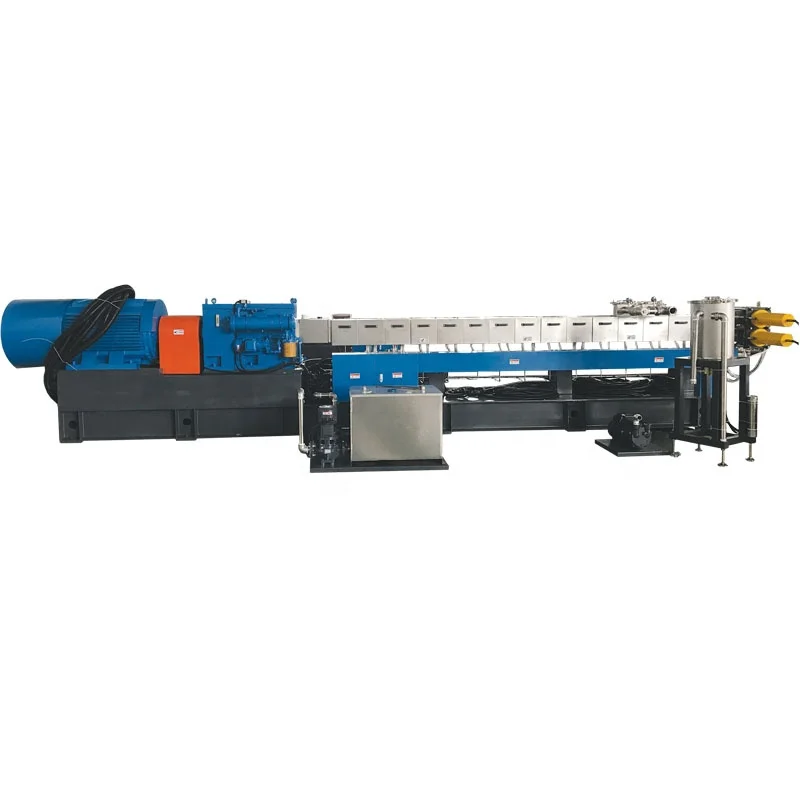

Pellet Granulator Machine Plastic Pelleting Twin Screw Extruder
- Category: >>>
- Supplier: Nanjing Jieya Extrusion Equipment Co. Ltd.
Share on (11000004912591):
Product Overview
Description
Products Description
PP with Titanium Dioxide /TiO2 Filler Masterbatch Twin Screw Compounding Palstic Extruder with Facotory Price
JIEYA also provides twin screw compounding extruders for filler masterbatch, which are concentrates of Caco3, talc or BaSO4 in a polymer base.
Features:
* High torque gear box-self made
Torque rating grade: 9≤T/A3≤13.5, high torque gear box, high grade domestic main components, NSK/INA brand bearings.
Imported gear box and safety clutch are optional, which can further improve the performance of machines.
* Screw-self made
Specification: diameter from φ20 toφ133 / accept custom-made
Screw elements combined with spline shaft, with closely intermeshed design and block type, they can be easily exchanged to suit
different material.

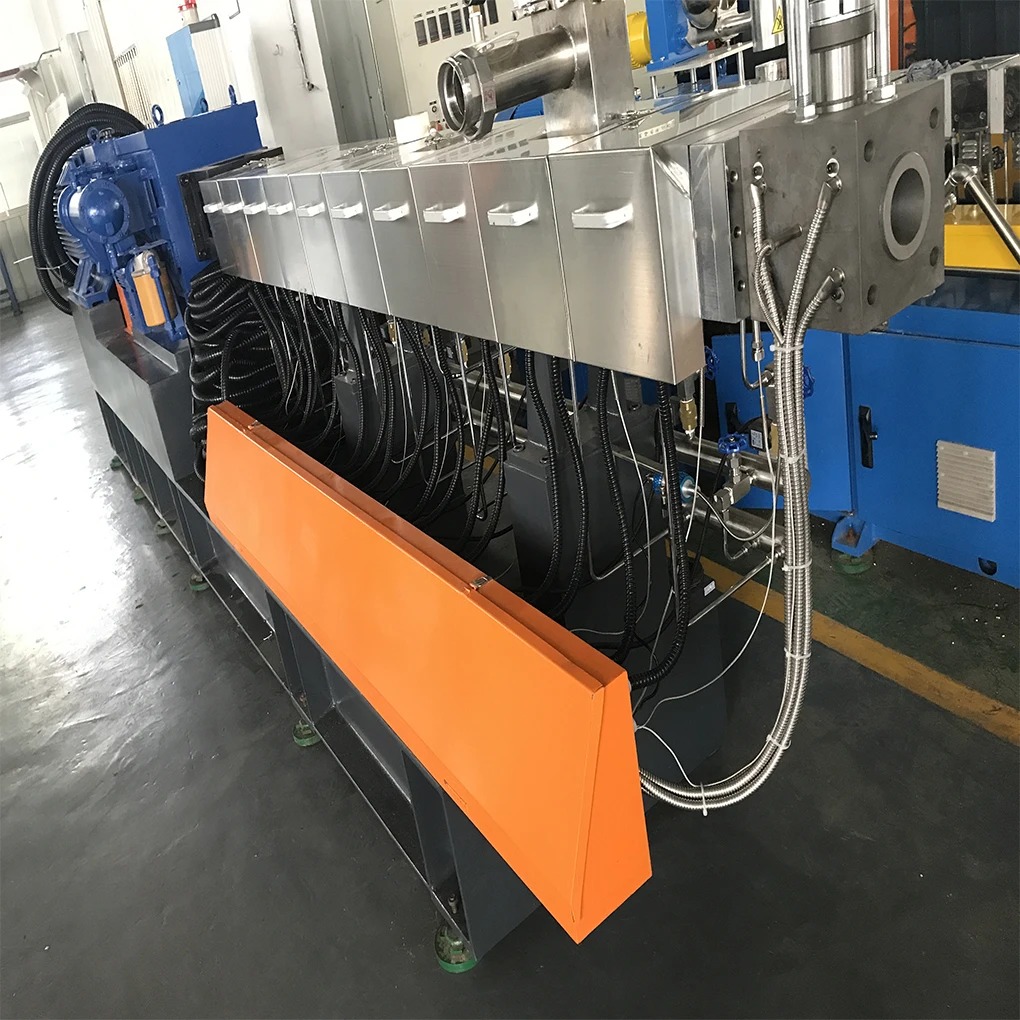

* Barrel-self made
Precision grade can reach to IT 6. It is benefit for energy reduction and block type design makes it possible for various
combination.
Barrel body is made of 45# steel excellent steel forged machining and abrasion resistant bimetal liners a-101, liner is embedded
for barrels, which hardened to HRC 60-62.
Torque rating grade: 9≤T/A3≤13.5, high torque gear box, high grade domestic main components, NSK/INA brand bearings.
Imported gear box and safety clutch are optional, which can further improve the performance of machines.
* Screw-self made
Specification: diameter from φ20 toφ133 / accept custom-made
Screw elements combined with spline shaft, with closely intermeshed design and block type, they can be easily exchanged to suit
different material.
* Barrel-self made
Precision grade can reach to IT 6. It is benefit for energy reduction and block type design makes it possible for various
combination.
Barrel body is made of 45# steel excellent steel forged machining and abrasion resistant bimetal liners a-101, liner is embedded
for barrels, which hardened to HRC 60-62.
Parameters
Model | Screw Diameter (mm) | L/D | Screw RPM | Main Motor KW | Torque Grade T/N3 | Output kg/h |
HT-26 | 26 | 32-68 | 300-900 | 7.5-22 | 11.2 | 30-80 |
HT-36 | 35.6 | 32-68 | 300-900 | 18.5-55 | 10.9 | 60-200 |
HT-42 | 41.2 | 32-68 | 300-900 | 30-90 | 11.6 | 100-300 |
HT-50 | 50.5 | 32-68 | 300-900 | 55-160 | 11.8 | 200-600 |
HT-63 | 62.4 | 32-68 | 300-900 | 110-315 | 12.3 | 350-1000 |
HT-72 | 71 | 32-68 | 300-900 | 160-450 | 11.8 | 600-2000 |
HT-85 | 81 | 32-68 | 300-900 | 220-630 | 11.2 | 800-2500 |
HT-95 | 93 | 32-68 | 300-900 | 355-900 | 11.8 | 1200-3000 |
HT-135 | 133 | 32-68 | 300-900 | 1000-3000 | 12 | 3500-10000 |
Details Images

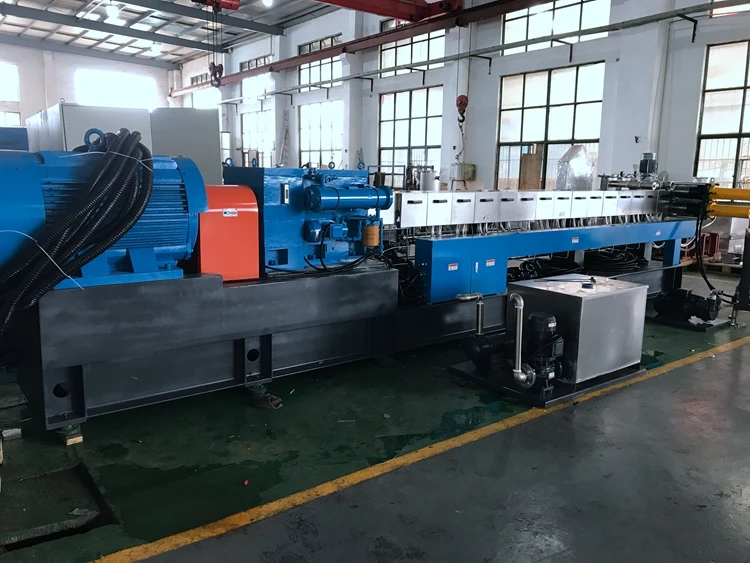

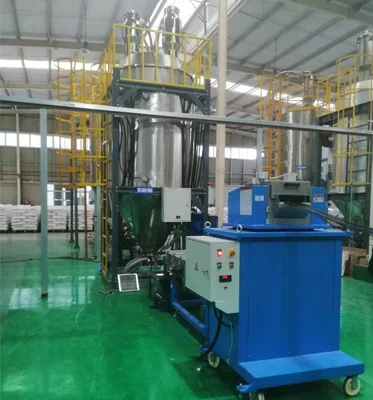

PROJECT: * Polymer base+talc

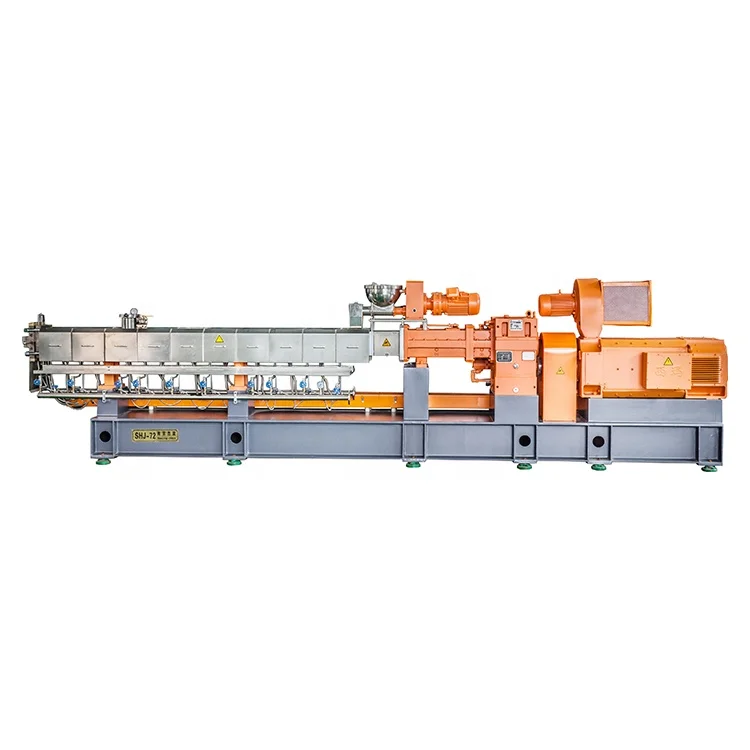

Model: HT-72 twin screw extruder
Raw material: PP+20%Talc+additives
Output: 500-800kg per hour
Raw material: PP+20%Talc+additives
Output: 500-800kg per hour
Company Profile
CHINA LEADING TWIN SCREW COMPOUNDING EXTRUDERS MANUFACTURER WITH 17+ YEARS EXPERIENCE
Production Process
Exhibition
Our Service
Before sale: Mid-sales service: After sale service:
* Introducing products & applications in details
* Planning economic and practical equipment program
* Offering testing service
* Planning economic and practical equipment program
* Offering testing service
* Planning and design the equipment in the workshop, proposing public engineering specifications
* Communicating with customers for project progress at anytime
* Discussing with customers about the needs: technological conditions, screw segment combination, barrel permutation etc.
* Communicating with customers for project progress at anytime
* Discussing with customers about the needs: technological conditions, screw segment combination, barrel permutation etc.
* Supplying installation, test, local technician training
* Establishing a detailed customer files
* Plenty spare parts, ready to deliver spare parts all the time.
* Supplying the new products' adjusting service
* Establishing a detailed customer files
* Plenty spare parts, ready to deliver spare parts all the time.
* Supplying the new products' adjusting service
FAQ
Q1: Are you a factory or trading company?
A: We are factory located in Nanjing with 17+ years experience and export license.
Q2:Where is your factory located? How can I visit there?
A: Our address: No.337 East Zhening Road, Zhetang Town, Lishui District, Nanjing, Jiangsu Province, China. You can take high speed bullet train to Nanjing South Railway Station or take a plane to Nanjing Lukou Airport. And we will arrange to pick you up. Nanjing JIEYA warmly welcome your visiting!
Q3: Is your product can be assured ?
A: Our extruders has passed ISO9001 and CE certificates.
Q4:If we show you our layout of factory, can you help to design the whole process line?
A :Yes, our professional engineers and technical employee can help you to arrange the layout and installation of whole process line based on your requirement.
Q5:What’s the payment terms?
A:30% advance payment by T/T and 70% balance payment shall be paid before shipment.
A: We are factory located in Nanjing with 17+ years experience and export license.
Q2:Where is your factory located? How can I visit there?
A: Our address: No.337 East Zhening Road, Zhetang Town, Lishui District, Nanjing, Jiangsu Province, China. You can take high speed bullet train to Nanjing South Railway Station or take a plane to Nanjing Lukou Airport. And we will arrange to pick you up. Nanjing JIEYA warmly welcome your visiting!
Q3: Is your product can be assured ?
A: Our extruders has passed ISO9001 and CE certificates.
Q4:If we show you our layout of factory, can you help to design the whole process line?
A :Yes, our professional engineers and technical employee can help you to arrange the layout and installation of whole process line based on your requirement.
Q5:What’s the payment terms?
A:30% advance payment by T/T and 70% balance payment shall be paid before shipment.
