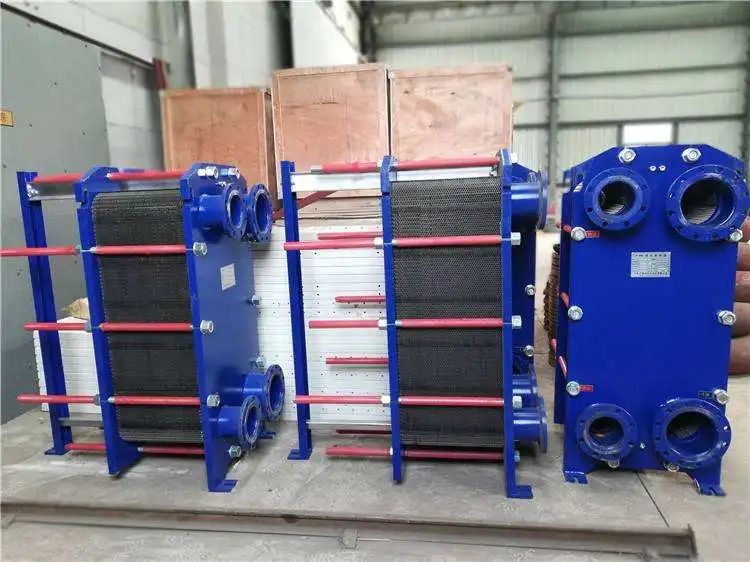

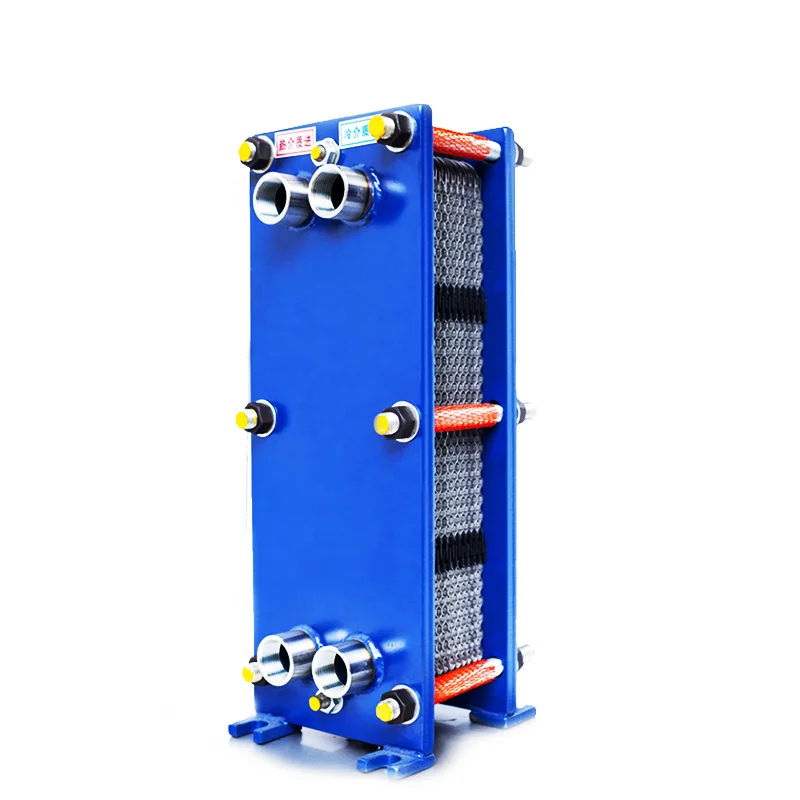

Swimming Pool Heat Exchanger with EPDM Gasket Plate Type Heat Exchanger For Marine Engine
- Category: >>>
- Supplier: Gansu Nuochen Petrochemical Complete Equipment Co. Ltd.
Share on (11000004930325):
Product Overview

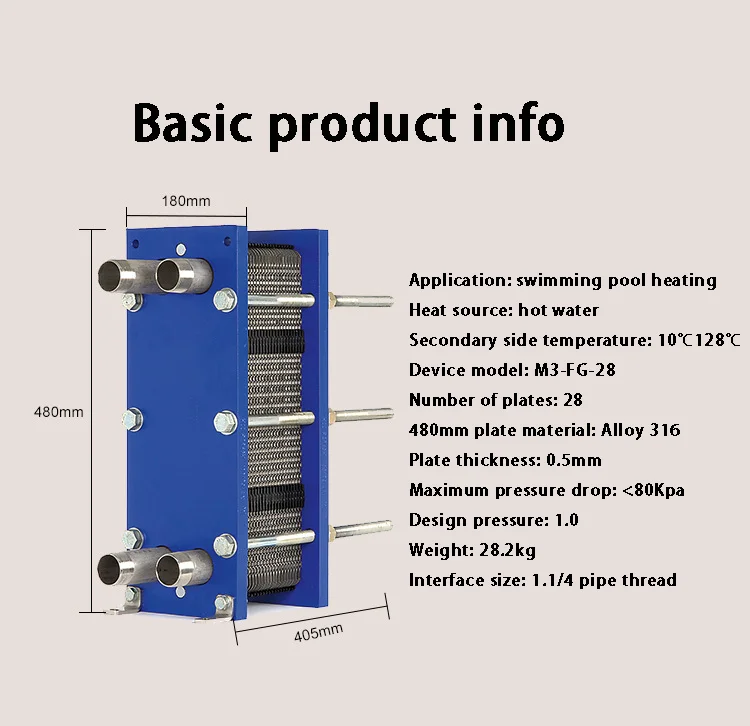

Description
Product Details
Material Parameters
Plate material | Suitable for fluid |
stainless steel(SUS304.316) | stainless steel(SUS304.316) |
TI，T-Pd | Sea water, salt water and salt chemicals |
20Cr,18Ni6Mo(254SMO) | Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution |
Ni | High temperature, high concentration caustic soda |
HASTELLOY（C276，D205，B2G） | Concentrated sulfuric acid, hydrochloric acid and carbonic acid |
Gasket material | Temperature range （℃） | Corrosion resistance |
NBR | -20~110 | It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution. |
HNBR | -20~165 | It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution. |
EPDM | -50~150 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc. |
H-EPDM | -20~165 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc. |
S-EPDM | -20~130 | Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc. |
Viton | -40~180 | Excellent corrosion resistance. It is suitable for high concentration inorganic acid-base and polar chemical medium, mineral oil, silicone oil and silicone resin, animal and vegetable oil, chain hydrocarbon (propane, butane, mineral oil, etc.), hydrocarbon chloride, fuel, non gas resistant substance, etc. |
Chloroprene rubber(CR) | -50~100 | It is resistant to dilute non oxidizing acid and alkali. |
Silicon | -65~230 | Corrosion resistant to dilute acid, alkali and brine. |
Compressed fiber（AFM34 SIL-4400） | 260 | Oil, water and vapor (up to 160 ℃), gas, salt solution, fuel, ethanol, organic / inorganic acids, refrigerants, hydrocarbons. |
PTFE | -200~260 | It has excellent corrosion resistance. Except molten metal lithium, sodium, potassium, chlorine trifluoride, oxygen trichloride at high temperature and liquid fluorine with high flow rate, it can resist all chemical media (including concentrated nitric acid and aqua regia). |
Application Scenarios
