Tobee Effluent Handling
$12,600
Full inspection high quality well circulation water motor pump
- Category: >>>
- Supplier: JAPAN COMMUTATOR CO. Ltd.
Share on (11000004955279):
Product Overview
Description
Products Description
Product Applications

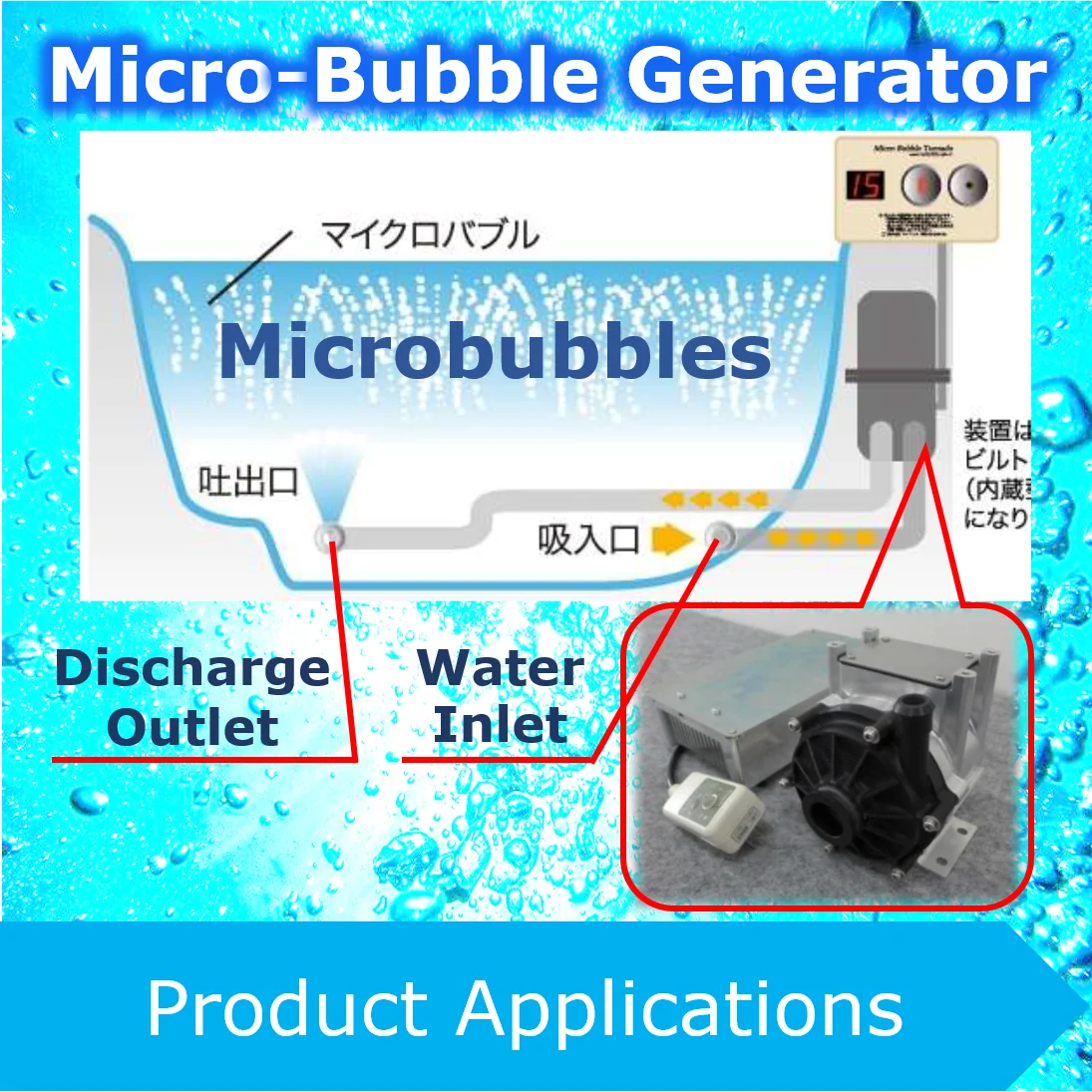

Micro-Bubble Generator

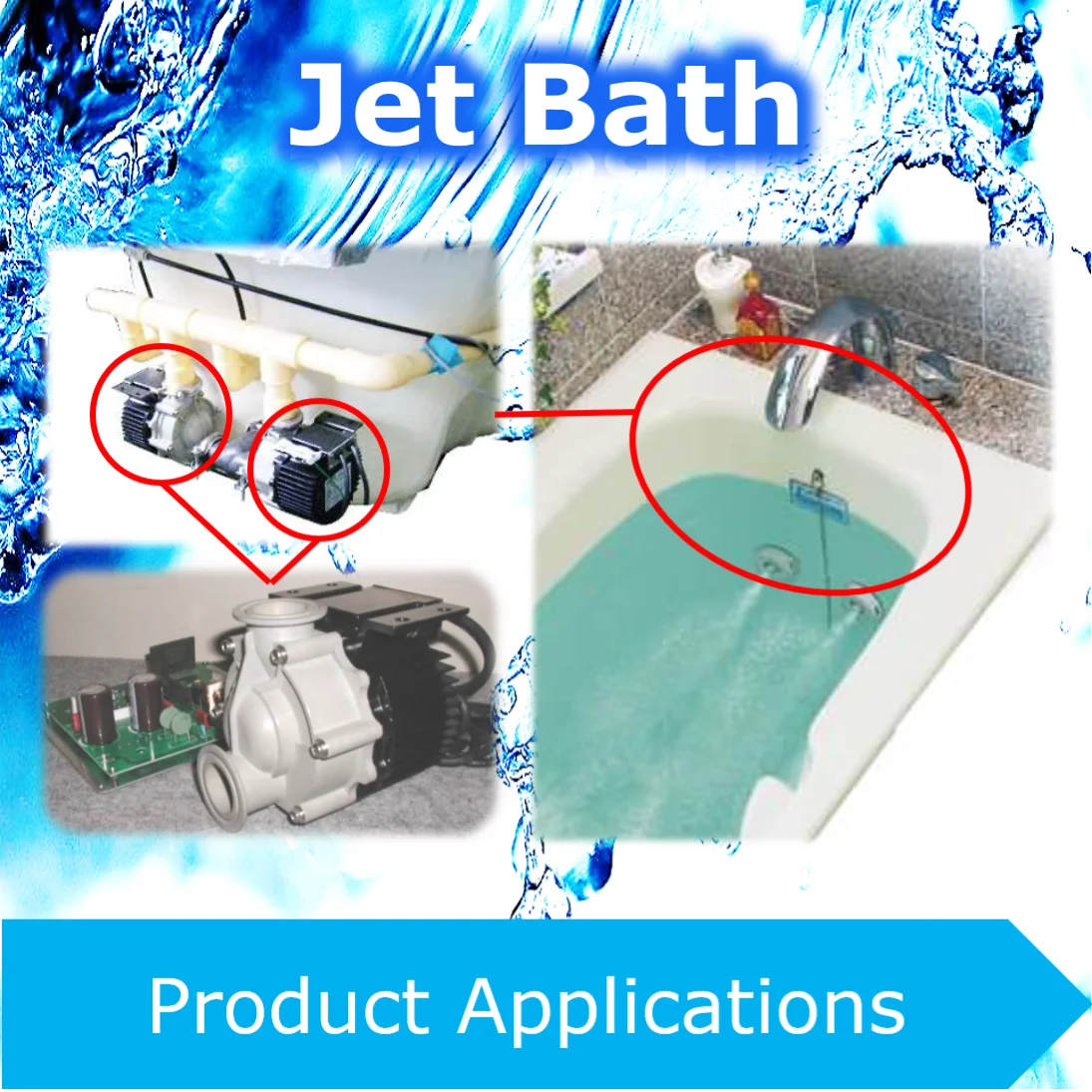

Jet Bath
Micro-Bubble Generator
Jet Bath

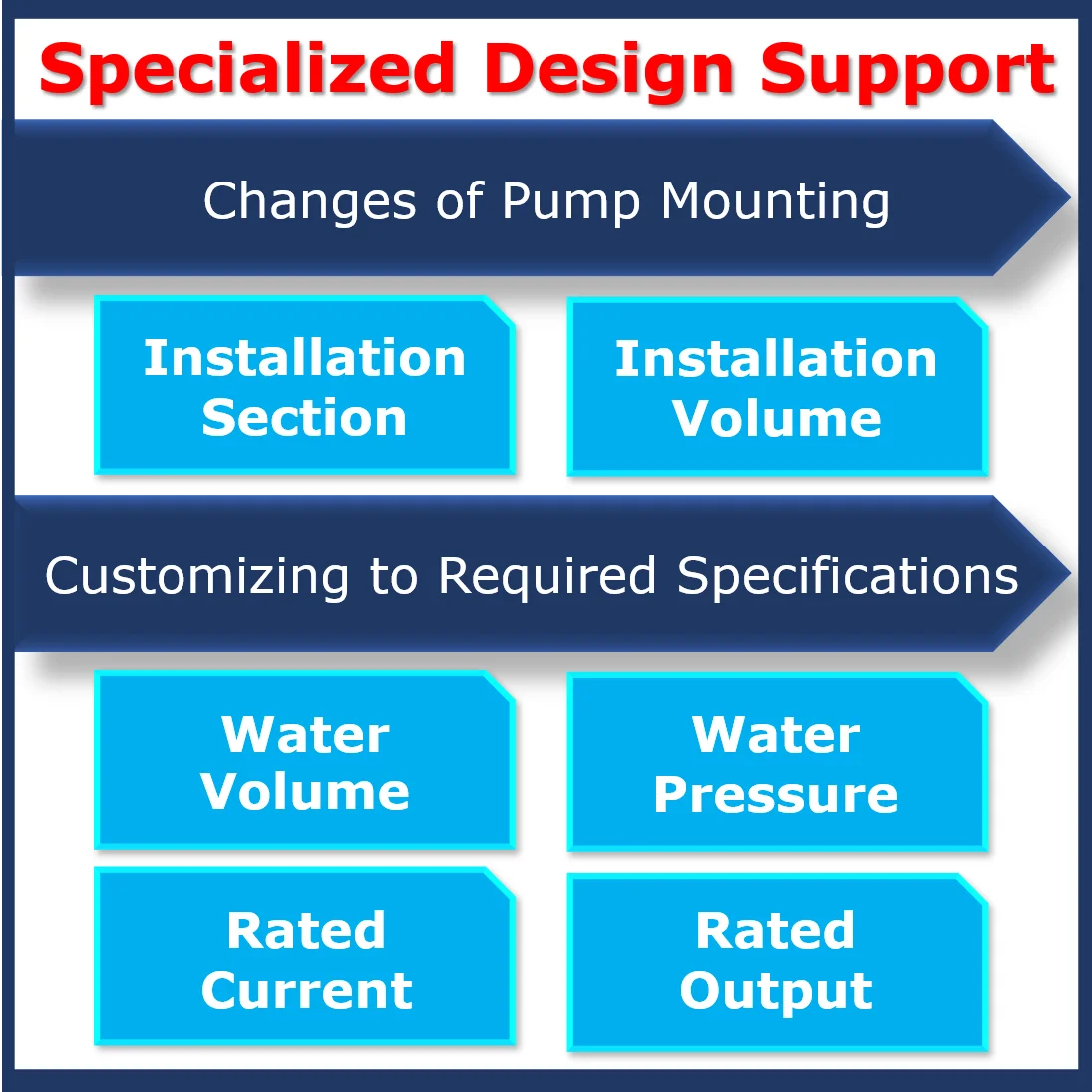

We develop, design, and manufacture pumps which meet customer requirements with dedicated design supports.
Product Processing
Our machining processes include cutting, shaft cutting, press working, welding, and resin molding.

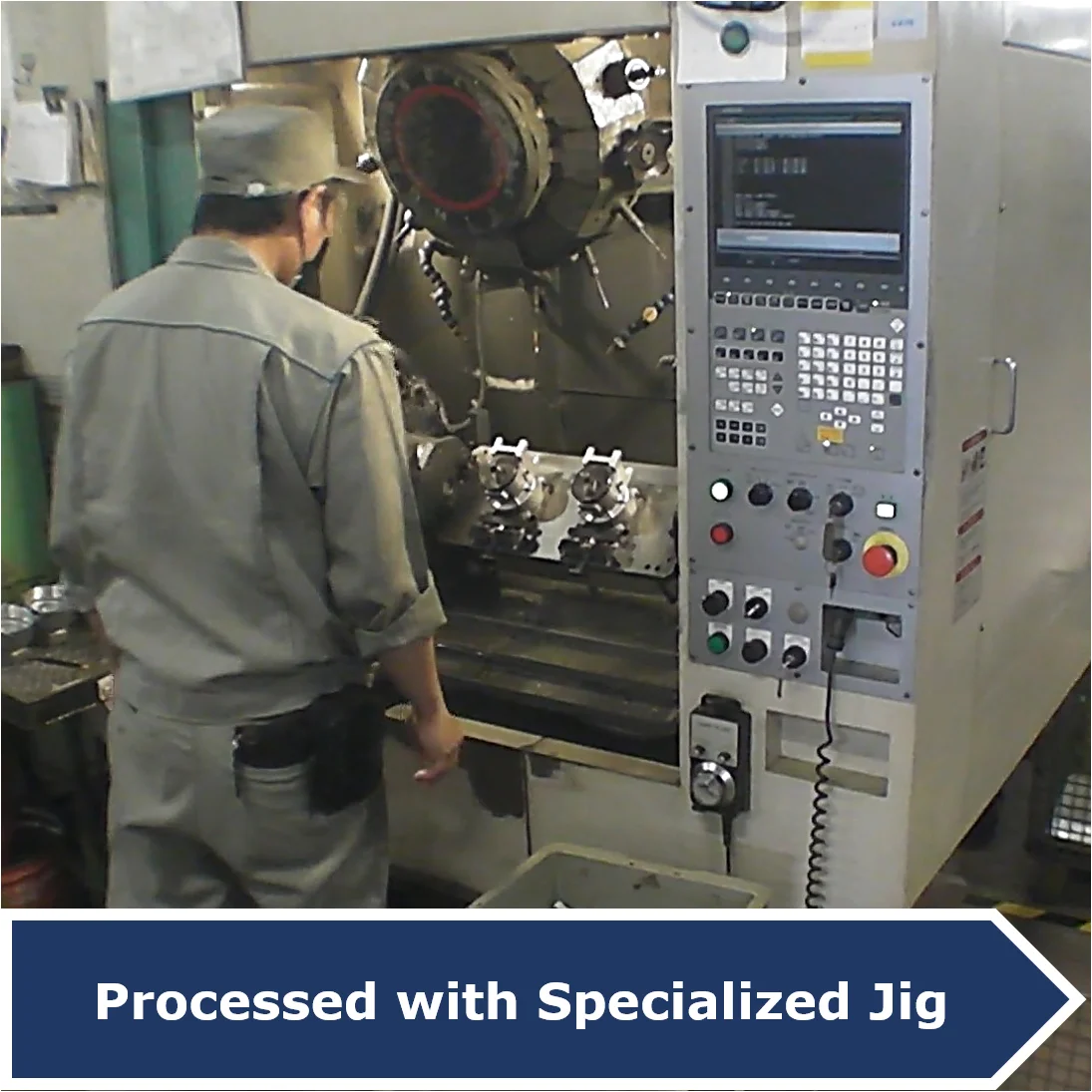

Our machining with CNC lathes and machining center enables high-precision process by using special jigs for parts.
Impellers used for pumps are machined simultaneously on the front and back by a specialized gear cutting machine.
According to the number of units required and the specifications, the production system is arranged by line, batch or cell.
Quality Control
Machining accuracy is controlled by 3D measuring instrument, surface roughness measuring instruments, roundness measuring machine, projector measuring instruments (image measurement).
Electric current test and characteristic test with Through water conducted to all finished products.
All test results are recorded electronically in our management system.
Conducting various tests which include performance, leakage and insulation withstand voltage, then after the final inspections, barcodes and product nameplates are generated only to the product inspected, so that no product is shipped out without passing the inspections.
All test results are recorded electronically in our management system.
Conducting various tests which include performance, leakage and insulation withstand voltage, then after the final inspections, barcodes and product nameplates are generated only to the product inspected, so that no product is shipped out without passing the inspections.

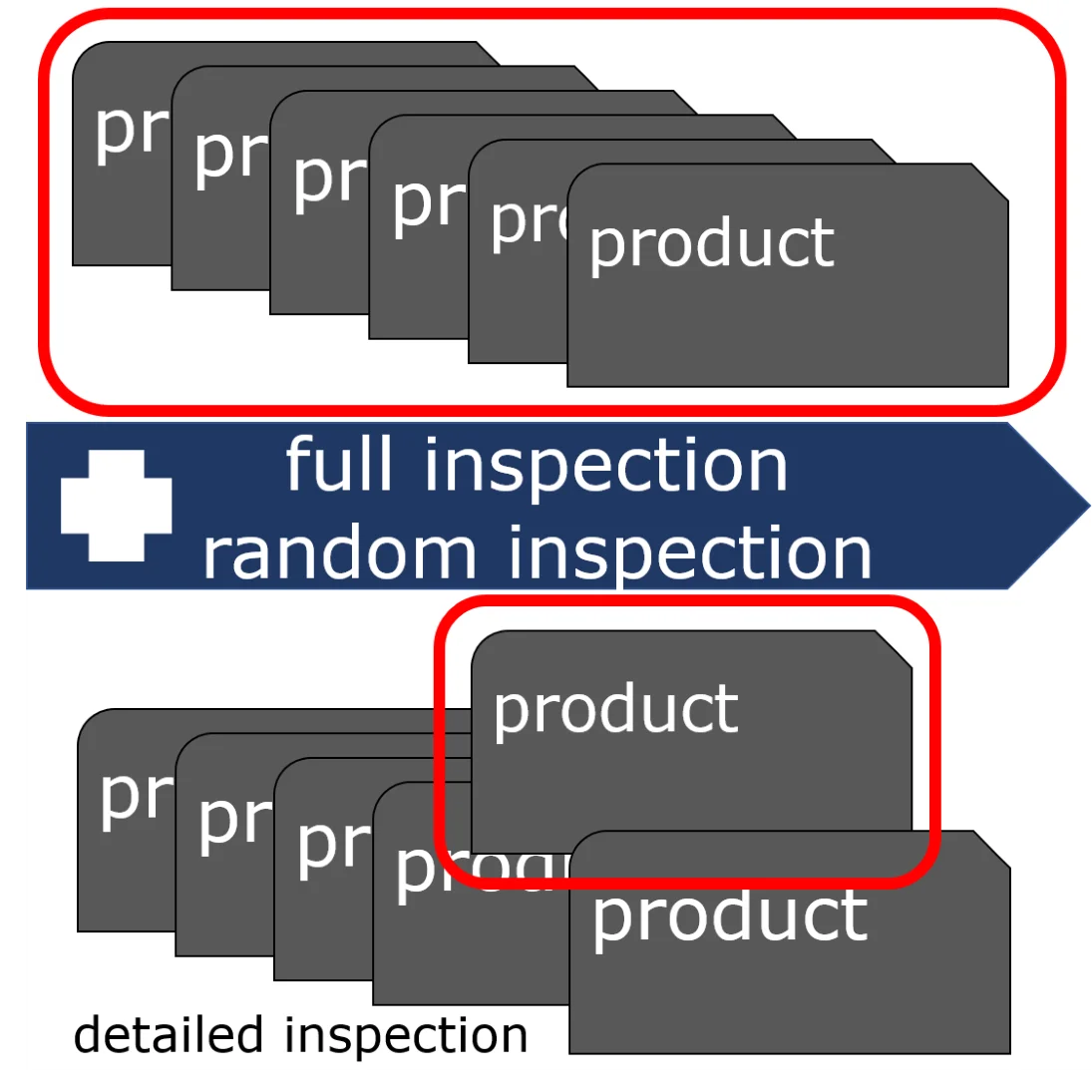

In addition to 100% inspection, all products go through random inspection by each production lot for performance, characteristics, screw tightening torque, and then shipped out under strict quality control.
Specifications | ||
Series | 20PB-M Series | |
Model | DC Brushless Canned Pump | |
Pressure | 30 m | |
Flow Rate | 17 L/min | |
Output | 300 W | |
Power Consumption | 380 W | |
Power | AC100 V (Primary) | |
Suction Diameter | 22.2-R3 Quick Fastener | |
Discharge Diameter | Φ19mm Hose Fitting | |
Dimension | D118mm×W120mm×H140mm | |
Weight | 2.7 kg | |
Product Usage
"DC Brushless Canned Pumps" are used by water heater manufacturers for hot water circulation and equipment drainage.
They are cold/hot water circulation pumps with low noise, low vibration, and controllable rotation.
They are cold/hot water circulation pumps with low noise, low vibration, and controllable rotation.
