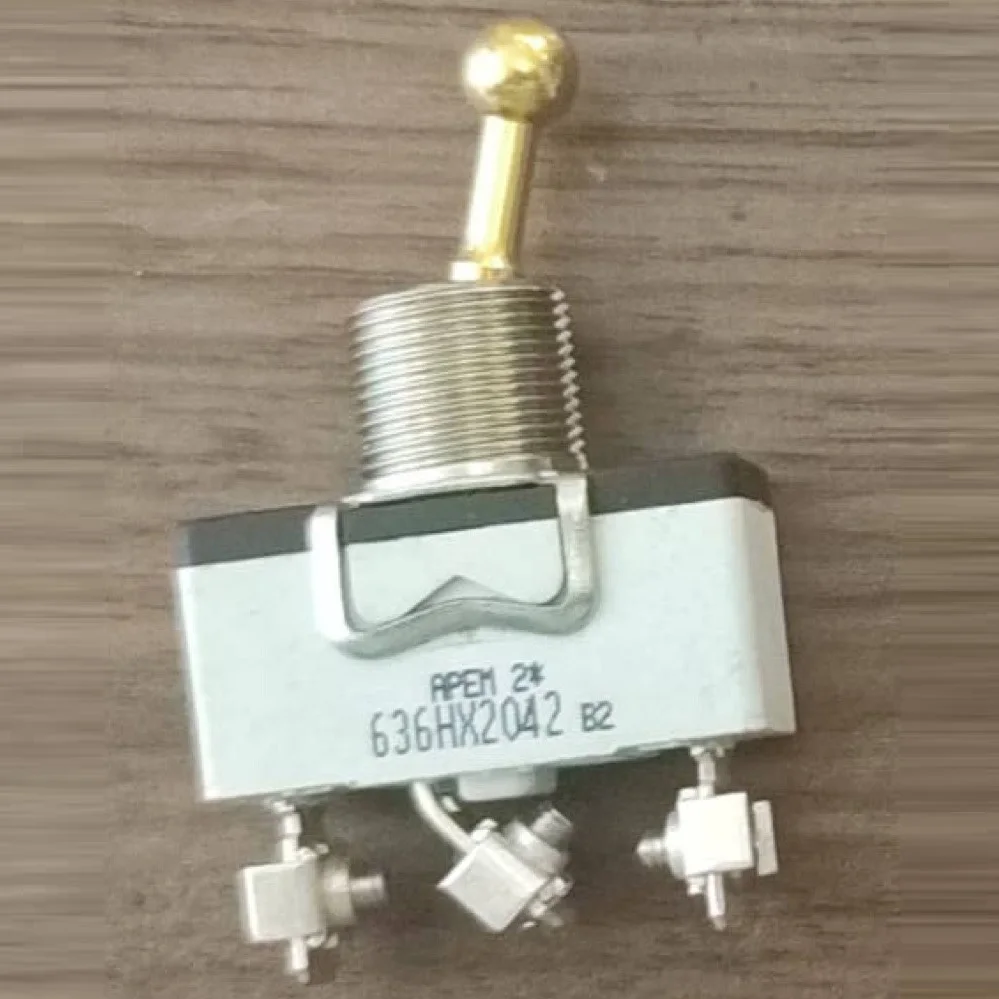

Single Pole Double Throw APEM2 MOM ON IDEC Electronics toggle switch 635HX2042

Product Overview

Description

Single Pole Double Throw APEM2 MOM - ON IDEC Electronics toggle switch 635HX2042
Construction: Terminal and contact support are manufactured from a single piece of metal.
The contacts are resistance-welded to the terminal for increased mechanical strength.
Robust mechanism
High current/voltage rating
APEM6 Insulated or metal lever
UL, CSA and NF-VDE (EN 61058-1) approved
Circuit : SPDT
Switch function : (ON)-ON
ACTUATOR : round Metal lever
TERMINALS : screw terminals
Front panel sealing
Panel cut : 12.2 mm dia.
· Max. current/voltage ratings : 15 A 250 VAC; 5 A 24 VDC;
· Peak current : 30 A max. during 1/2 sine, 250 VAC
· Initial contact resistance : 10 mΩ max.
· Insulation resistance : 1,000 MΩ min. at 500 VDC
· Dielectric strength :
2000 Vrms 50 Hz min. between terminals
2500 Vrms 50 Hz min. between terminals and frame
· Electrical life : 10,000 cycles at full load
· Torque : 1.50 Nm (1.10 Ft.lb) max. applied to nut
· Panel thickness : 4.5 mm (.177) max. between 2 nuts
· Operating temperature : -20 °C to +55 °C (-4 °F to +131 °F)
· Case material: polyester UL94-V0
· Actuator : - 600H : brass, nickel plated
· Bushing : brass, nickel plated
· Contact material : silver/nickel alloy
Dimensions : 30 x 15 x 54 mm
635HX2042
636HX2042
639HX2042
