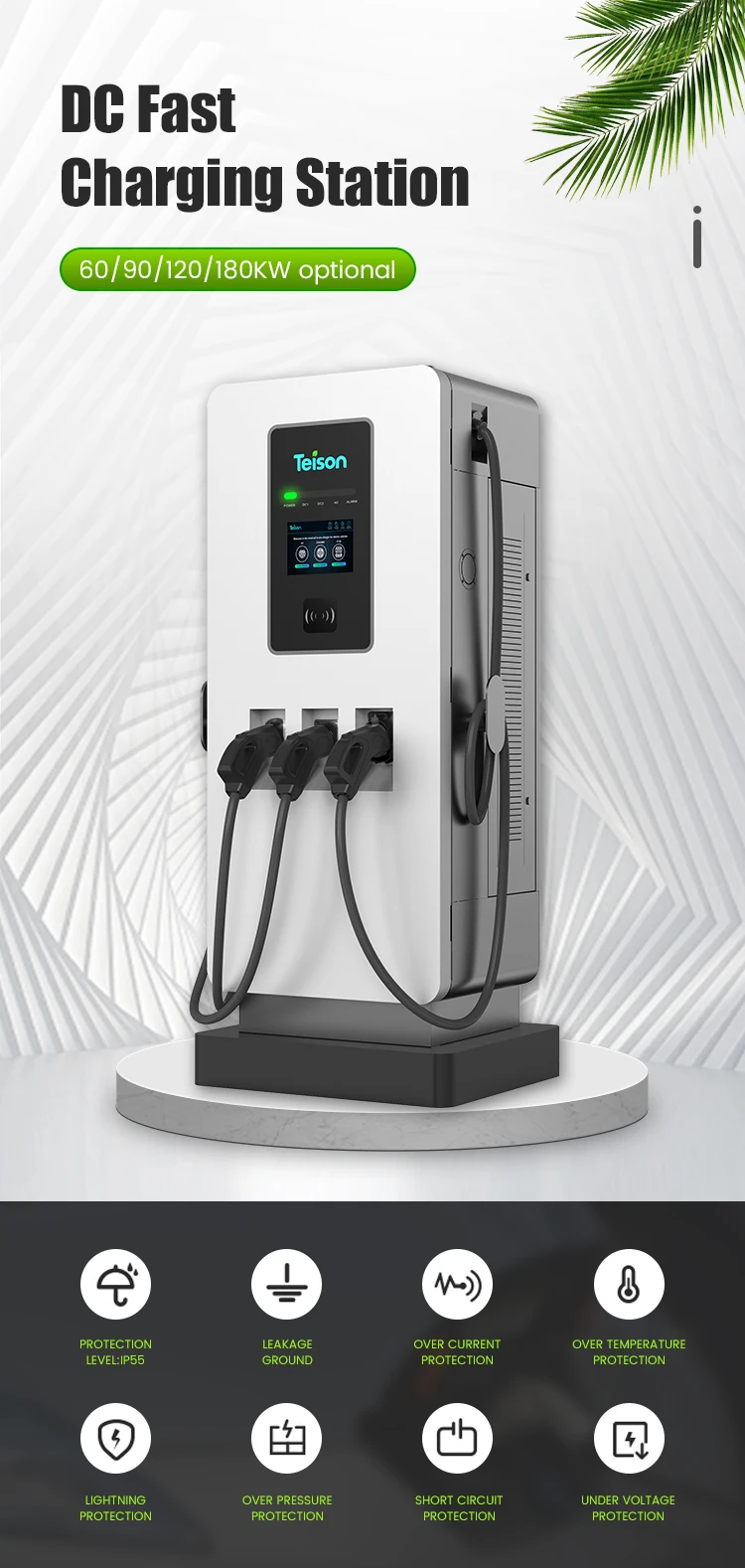

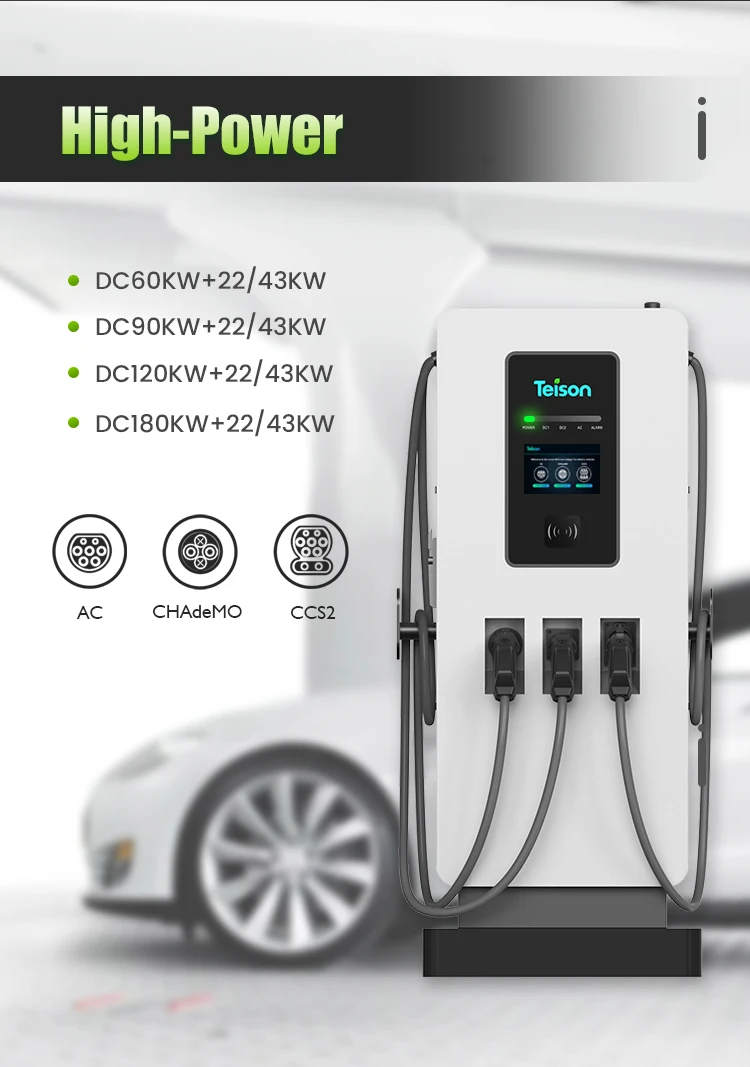

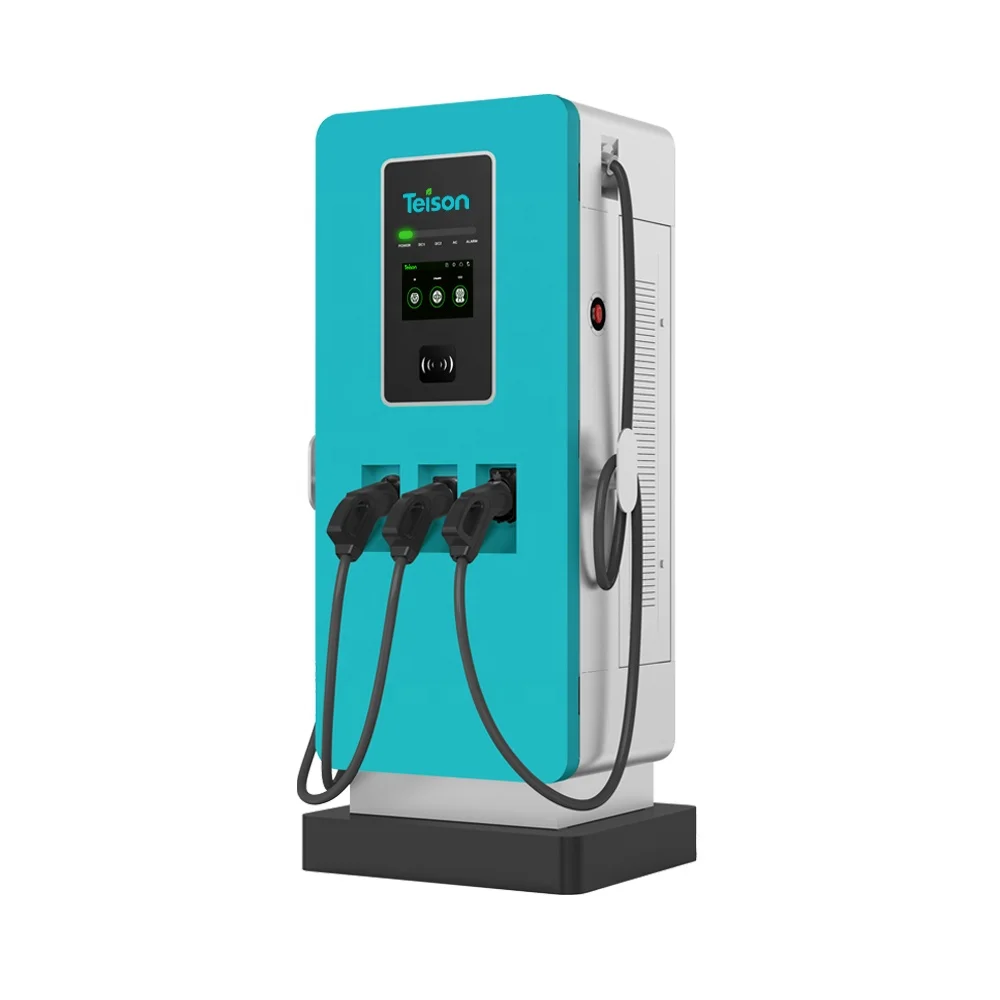

Teison 60KW DC ev charger fast charging station dual guns chademo CCS1/2
- Category: >>>
- Supplier: Teison Energy Technology Co. Ltd.
Share on (11000005038846):
Product Overview
Description
Details Images
Product Features
Specification
Input | Rated supply voltage | 400v AC±10%(3P+N+PE) |
Ground system type | T or TN (both with PE) | |
Maximum rated capacity | 110kVA | |
Maximum rated current | 159A | |
Power factor | 99% | |
Maximum effcency | >95% | |
THD | <5% | |
Frequency | 45-65Hz | |
Output | Charging method | Mode3, Mode 4 |
Available sockets | CHAdeMO, CCs2,GB,Type2 | |
Maximum AC output power (type 2) | 43KW | |
Rated AC output voltage(Type 2) | 400V AC± 10% | |
Rated AC output current(Type 2) | 63A | |
The DC output rated power (CCS) | 60Kw | |
DC output rated voltage (CCS) | 150~1000v Dc | |
DC output rated current (CCS) | 200A | |
DC output rated power (CHAdeMO) | 30-120 kw | |
Rated DC output voltage (CHAdeMO) | 150-600v DC | |
Maximum DC output current (CHAdeMO) | 200A | |
The DC output rated power (GB) | 60Kw | |
DC output ated voltage (GB) | 150-750VDC | |
Maximum DC output current (GB) | 250A | |
Mechanical data | Dimensions (L"W"H) | 650*510*1600mm |
Charging cable length | 4M | |
weight | 360 kg | |
IK protection level | K1o | |
Shell material | galvanized steel | |
Pollution level | PD3 | |
environmental data | IP protection level | IP55 |
Operating temperature | -25~50℃ | |
Storage temperature | -30~70℃ | |
Humidity | 0- 95% (non-condensing) | |
Elevation Up to | 2000m | |
Cooling | Forced-air cooling | |
Connection to the power supply | Permanent | |
Indoor/outdoor installation | Indoor/Outdoor | |
other information | Fixed or detachable installation | Fixed |
Electric shock protectionprotection measures | Class1 | |
Measuring accuracy | RCBO.MCB,SPD | |
Electrical protection included | MID certified Level 0.5) | |
Network Interface | thernet WFI, 3g/4g LTE as optional) | |
HM | 7-inch touchable screen | |
Emergency stop button | Supported | |
Supported languages | English, Spanish Italian, and French others on request | |
LED status | Green, Red, Blue | |
OCPP protocol | 1.6J-son | |
Standard | IEC61851-1,IEC61851-21-2,IEC61851-23,IEC61851-24 | |
Certificate | CE |
