Product Overview

Description

class 2 transform 120v ac 60hz 12v 24v 12 v 24 36 48 volt led transformer led light transformers for outdoor landscape lighting

Junction box design power supply 60w 100w 150w 200w 300w 320w waterproof led driver with UL cUL Class P ELV CE ENEC GS Certs.

The KSPOWER brand - H series triac dimmable LED driver 300 Watt 24Volt is one black color, universal AC input voltage range from 100V-277VAC constant voltage led driver certified to meet UL cUL and CE GS safety approvals. The led dimmable power supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 environment Protection Rating for indoor or outdoor use, the H series phase-cut dimmable led power supply provide 5 years warranty and outstanding led dimming peformance.

FEATURES:

− Universal AC input voltage 100-277VAC

− Efficiency up to 90%

− Built-in active PFC function

− Single channel & constant voltage mode and PWM style output

− Protection: OCP, OVP, SCP, OTP

− Limited Power Source

− UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

− Function options:

1. Non-dimmable

2. Triac/Phase-cut Dimmable

3. 4 in 1 dimmable (0-10V,1-10V,PWM,resistance)

4. 5 in 1 dimmable (0-10V,1-10V,TRIAC,PWM,resistance)

− Typical lifetime > 50000 hours

− 5 years warranty

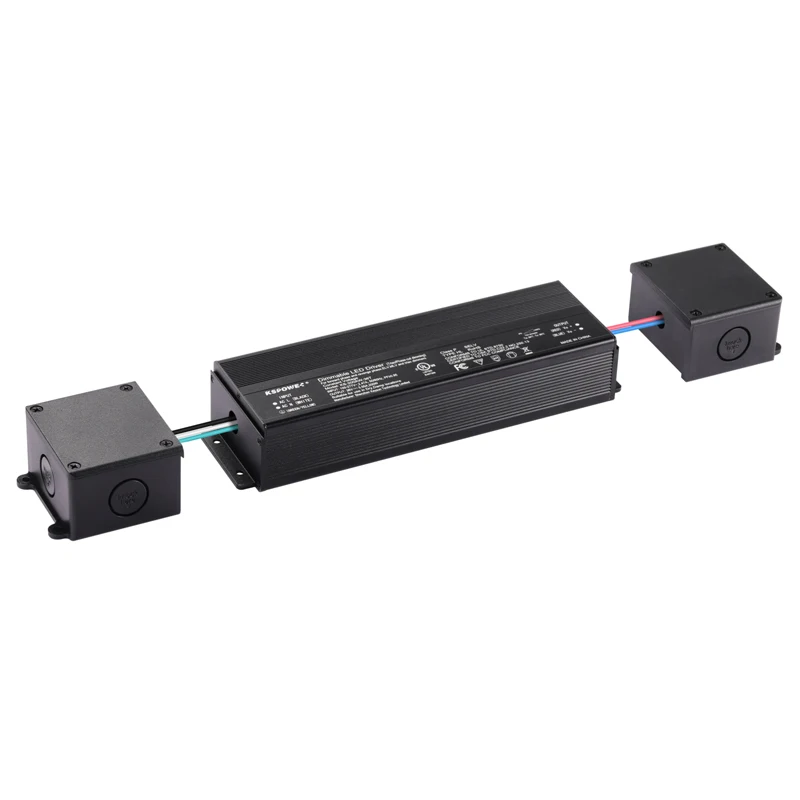

− Available with or without integrated Junction Box

− IP65 Rated Enclosure for Indoor and Outdoor Use

− Wiring Compartments with Knock-Outs for Clean and Easy Installation

SPECIFICATION:

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC, full load
Output Voltage	VDC	24VDC	36VDC	48VDC
Rated Current	A	12.5A	8.33A	6.25A
Rated Power	300W
Ripple & Noise (max.)	200mVp-p	250mVp-p	250mVp-p	250mVp-p
Dimenion	258*68*41mm(L*W*H)

DIMENSION DRAWING:



PACKAGE



Package	Piece/Carton	Dimension/Carton	Dimension/Brown Box	Piece Weight	Gross Weight/Carton
OEM package	15pcs	40x 40x 16.5cm	382 x 74 x 45mm	1.47kg	22kg





OUR SERVICES

• Our sample delivery time is 3 days.


• Our warranty is 3 years.


• Our product defect rate is 3%.More than 3% of defective products will be refilled.



• OEM&ODM, any your custo mized lightings we can help you to design and put into product.


• Distributoership are offered for your unique design and some our current models,Protection of your sales area, ideas of design and all your private informatio.


• Your inquiry related to our products or prices will be replied in 24hrs.Well-trained and experienced staffs to answer all your enquires in fluent English.


• The delivery time of 100-500PCS is 7 workdays, the delivery time of 500-1000PCS is 10 workdays, the delivery time of 1000-2000PCS is 12 workdays, and the delivery time of 5000PCS is 20 workdays.
