Teison AC 32A 3 phase portable ev home electric car charger wallbox ip65
- Category: >>>
- Supplier: Teison Energy Technology Co. Ltd.
Share on (11000005083649):
Product Overview
Description
Product Description
Specification
Model | TS-PEC-002-16A/32A |
Votlage | 230V AC±15%/380V AC±15% |

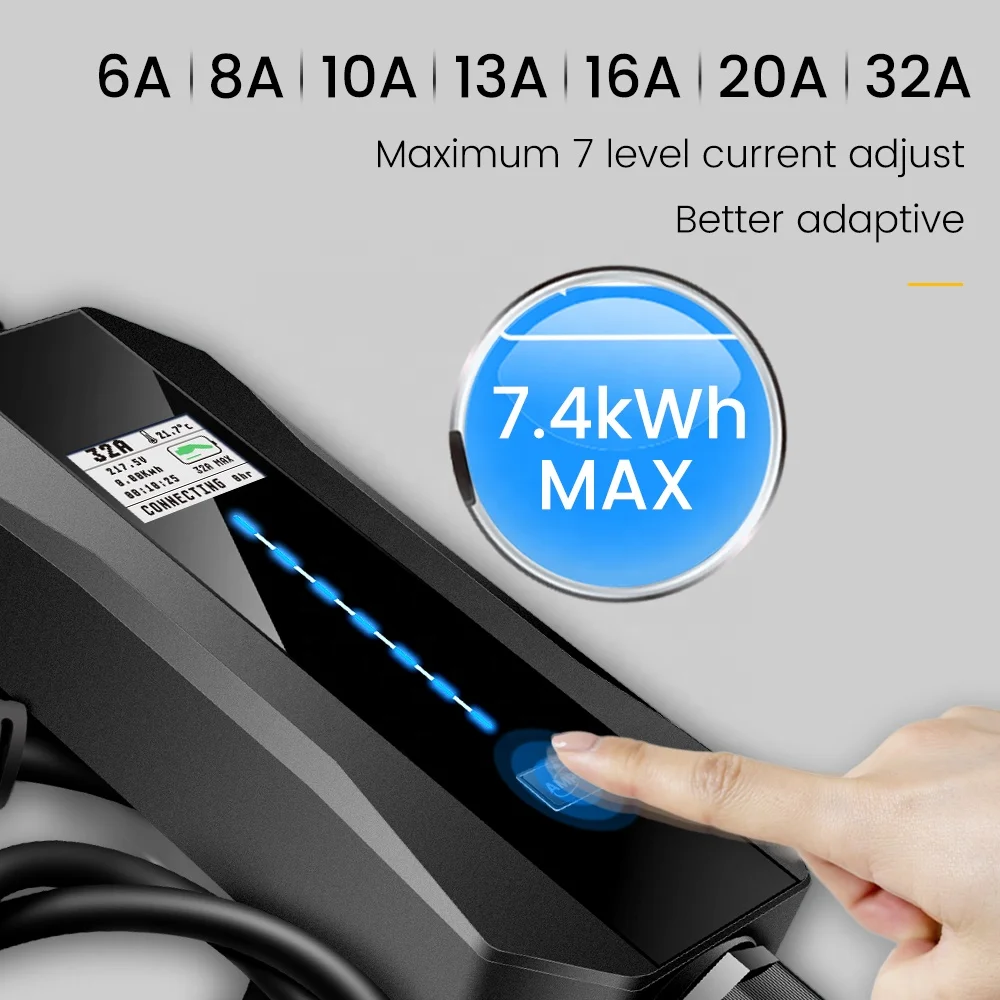

Max Output Curent | 32A(6/8/10/13/16/20/32A Optional) |
Max Output Power | 3.5kw/7kw/11kw/22kw |
Cable Speification | 3*2.5mm²+2*0.5mm²/3*6mm²+2*0.5mm²/5*2.5mm²+2*0.5mm²/5*6mm²+2*0.5mm² |
Frequency | 50/60 Hz |
Residual curent protection | 30mA or 30mA +DC6mA |

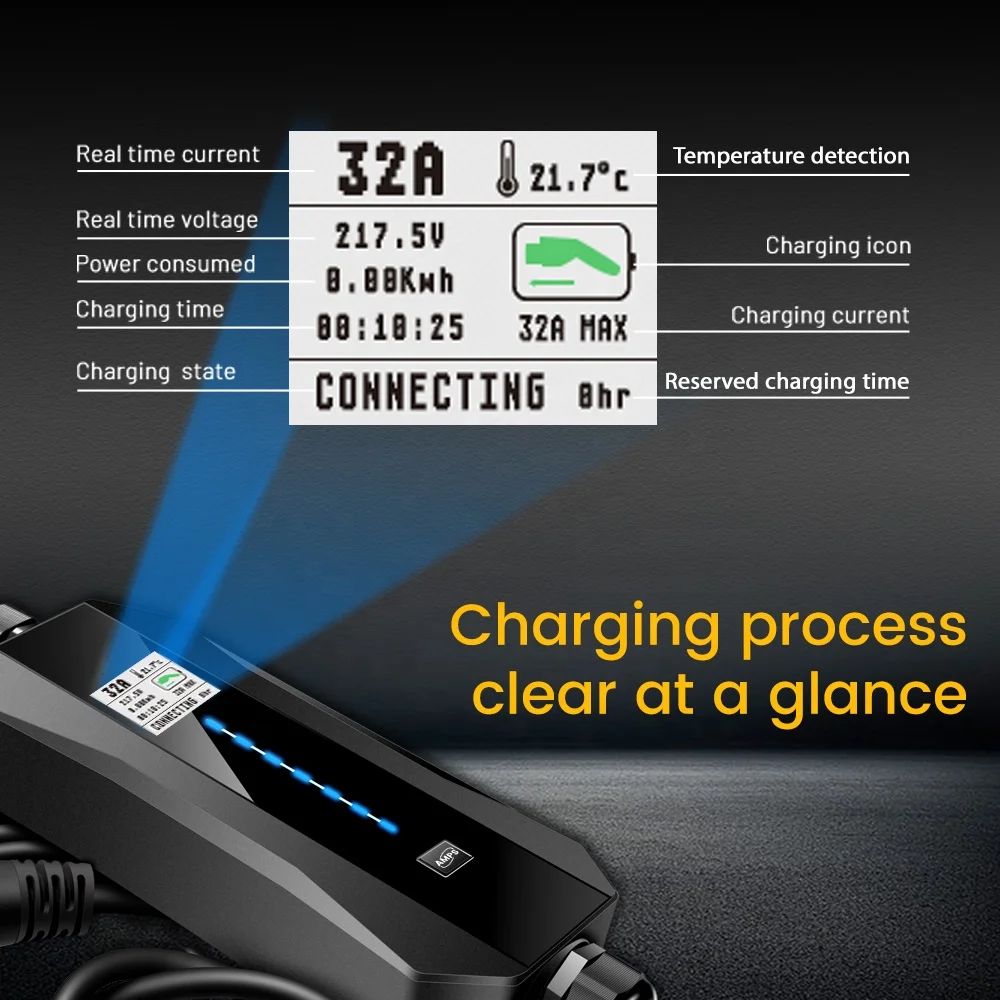

Display | 1.8"LCD |
LED Indicator | LED Light bar |
Instillation Method | Wall-mount/carry-on Optional |

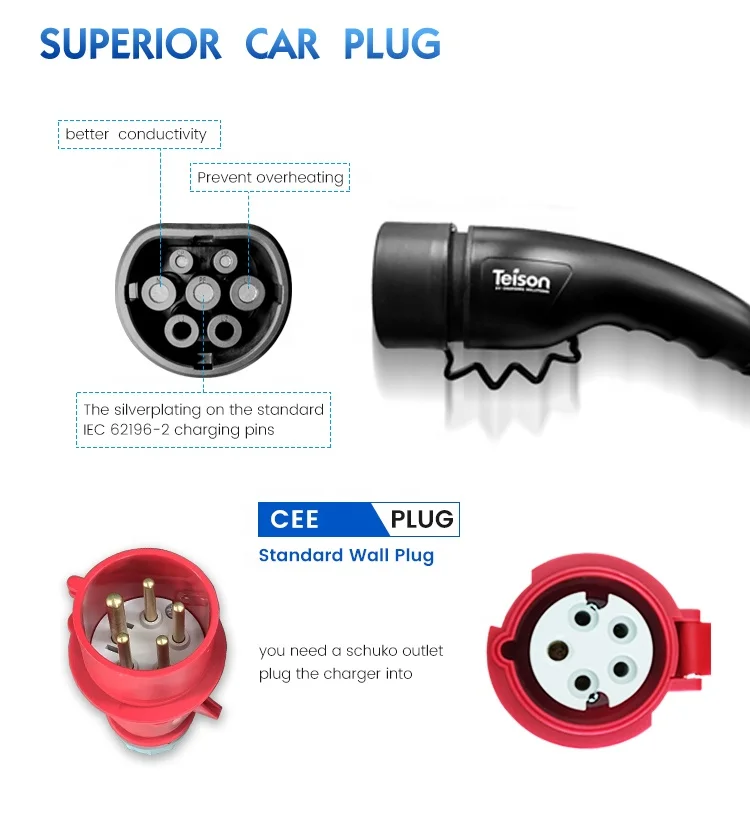

Charging Outlet | TYPE1/2+5M charging cable |
Safety Standard | IEC/EN 62752:2016 |
Mutiple Protection | Over/Under voltage protection,Surge protection,Over temperature protection,Over current protection,leakage Protection,Short crcult protection,EFT Protection |
Warranty | 1 year |

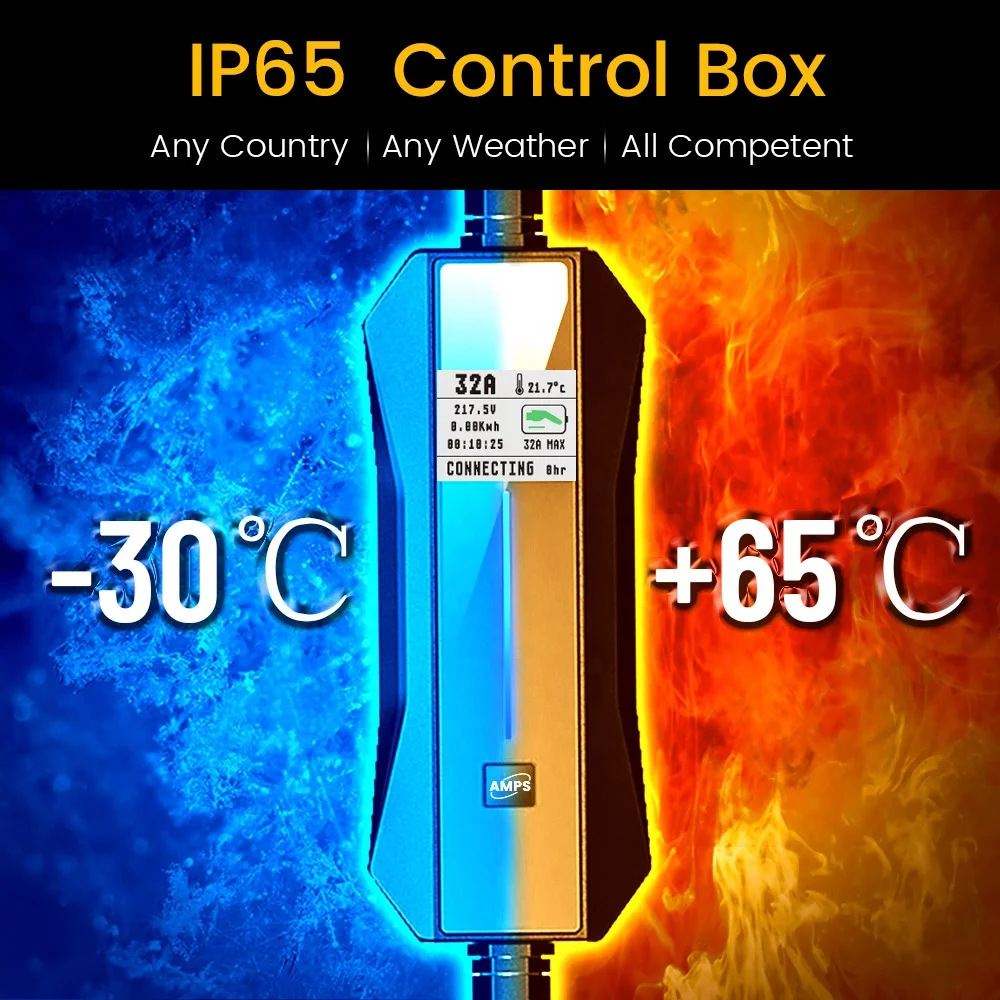

Protection Level (control box) | IP65 |
Temperature detection function | Yes (check the temp.of PCB and show it on the screen) |
Product Size | 255*109*55mm |
Product weight (Net weignt) | ≤4KG |
Product Weight (Gross weight) | ≤4.5KG |
