2023 New Promotion Non Contact 0~30m Plane Radar Type Lake River Pipe Open Channel Level Sensor
- Category: >>>
- Supplier: Dongguan Hcbetop Technology Co. Ltd.
Share on (11000005101933):
Product Overview
Description

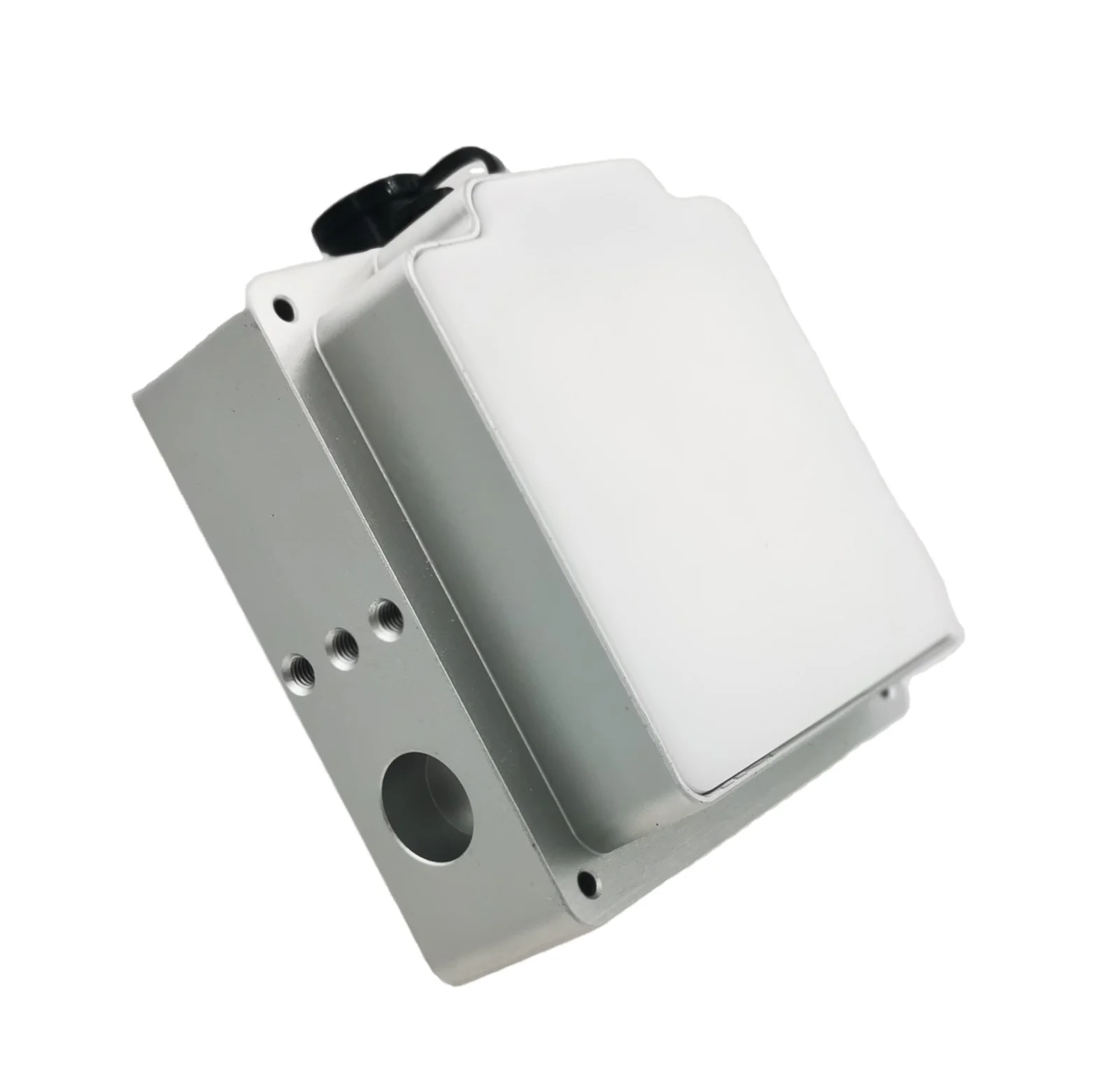

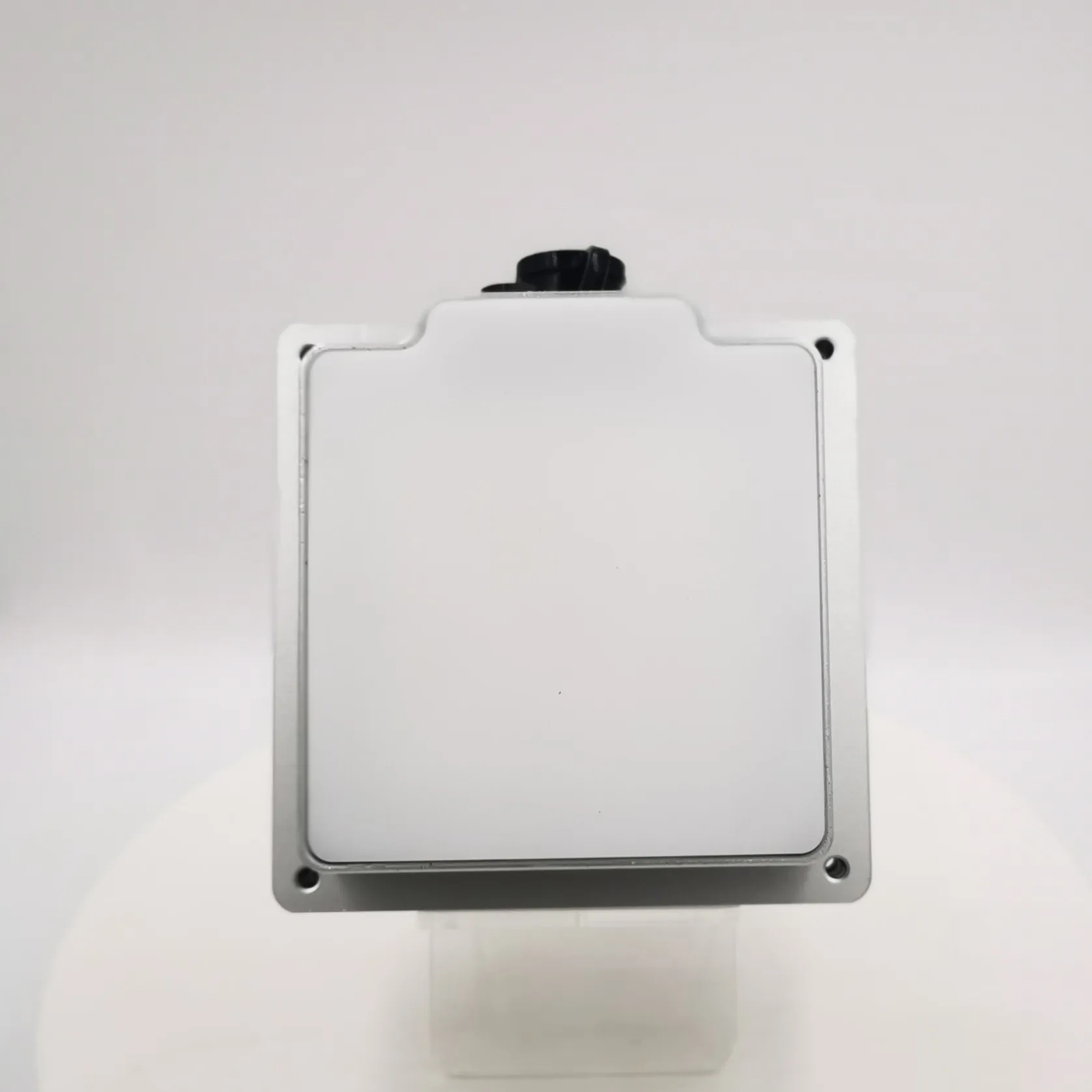

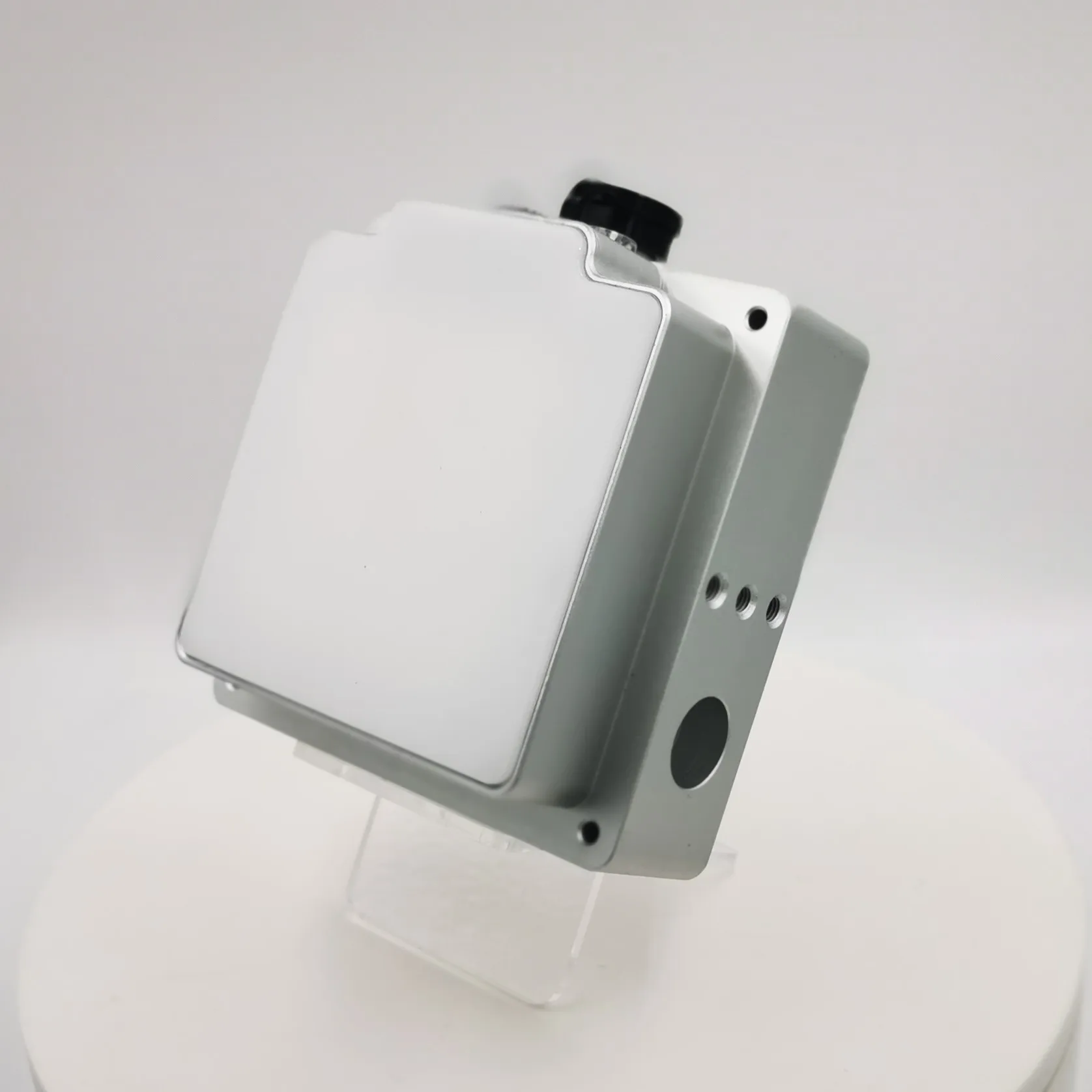

Radar Water Level Gauge
(High-frequency horizontal radar 24G)
Introduction
\tThis is product is utilizing Microwave to detect the depth. It is mainly used in detect the depth of ground water, reservoir, or waste water container, etc. As supervisor machine, our radar water level gauge can read the precise data of the water level.
\tOur product applies FMCW detect method which makes the data more precise and runs 24/7 stably. As they measure the depth without touching with liquid, they can work perfectly with the waste liquid tank or other complicate situation.
\tThis is product is utilizing Microwave to detect the depth. It is mainly used in detect the depth of ground water, reservoir, or waste water container, etc. As supervisor machine, our radar water level gauge can read the precise data of the water level.
\tOur product applies FMCW detect method which makes the data more precise and runs 24/7 stably. As they measure the depth without touching with liquid, they can work perfectly with the waste liquid tank or other complicate situation.
Feature:
1.High-frequency emission up to 26GHZ adopted.
2.FMCW detect method, work 24/7 3.Processing circuitry owns patent and error less than 1cm
4.Smaller blind zone make the nice detecting effective for small tank.
5.Shorter wavelength make the nice detecting effective for small particle material level meter.
6.Microprocessor and Echo Discovery echo wave process technology adopted make the product suitable for all kinds of complex condition.
7.Pulse working method adopted make the lower transmitting power rate for radar material level indicator. This product can be installed all kinds of metal or un-metal container,result no harm to human body and environment.
Application range
◆Water level monitoring for city flood and waterlogging in flood season,like lowland and waterspout.
◆Auxiliary water treatment working,like urban water supply and drainage monitoring.
Specification
Item | Description | |||
Measuring range | 0~30m | |||
Accuracy tolerance | 3mm | |||
Resolution | 1mm | |||
Respond Time | 2s, changeable | |||
Antenna | 11 °* 11°(Angle can customize) | |||
Measuring temp. | .- 40 degree to 70degree | |||
Emission frequency | 26GHz | |||
Emission power input (EIRP) | 20dBm | |||
Signal port | RS-485 | |||
Data format | 9600 (default),8,n,1; (baud rate can be adjusted) | |||
Working voltage | 6 ~ 24V DC | |||
Working currency | Max.22.5mA | |||
Level of Protection | IP67 |
1:Are you factory or only company?
We have factory to produce water monitoring product, such as bubble water level sensor, radar water level sensor, radar velocity sensor, radar flow meter, water-rain one-stop monitoring site, turbidimeter，urban prevent water-logging monitoring site etc.
2:Why we can choose you?
1)Reliable---we are the real company, we dedicate in win-win
2) Professional--We have been developing and manufacturing for more than 10 years.
3) Factory.---we have factory,so have compective price.
3:How about the price?Can you make it cheaper?
The price depends on the item your demand(Shape,size quantity)
Final quotation accoring to receving full description of the item you want.
We have factory to produce water monitoring product, such as bubble water level sensor, radar water level sensor, radar velocity sensor, radar flow meter, water-rain one-stop monitoring site, turbidimeter，urban prevent water-logging monitoring site etc.
2:Why we can choose you?
1)Reliable---we are the real company, we dedicate in win-win
2) Professional--We have been developing and manufacturing for more than 10 years.
3) Factory.---we have factory,so have compective price.
3:How about the price?Can you make it cheaper?
The price depends on the item your demand(Shape,size quantity)
Final quotation accoring to receving full description of the item you want.
