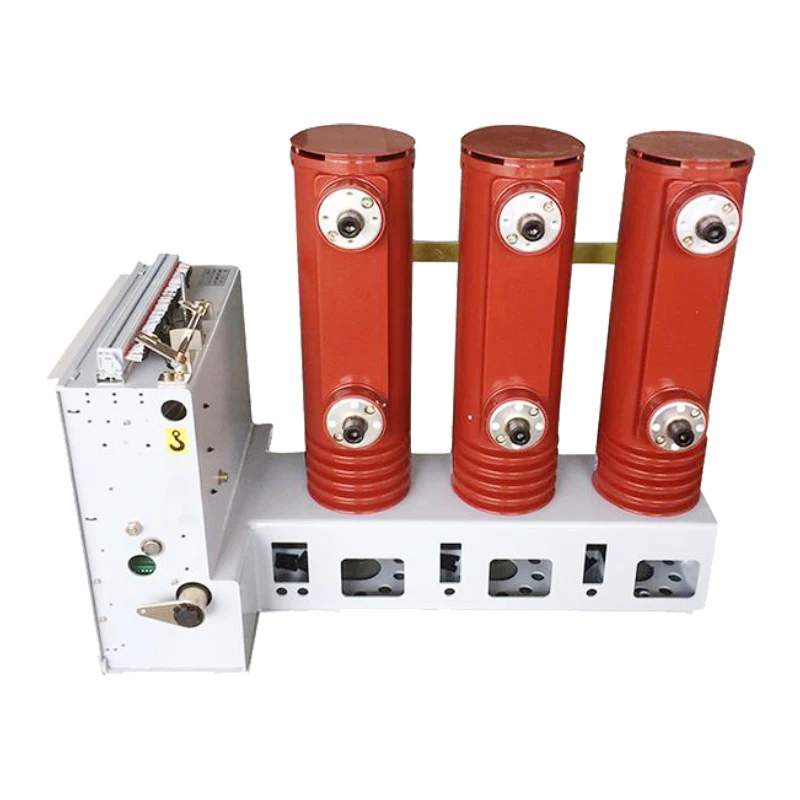

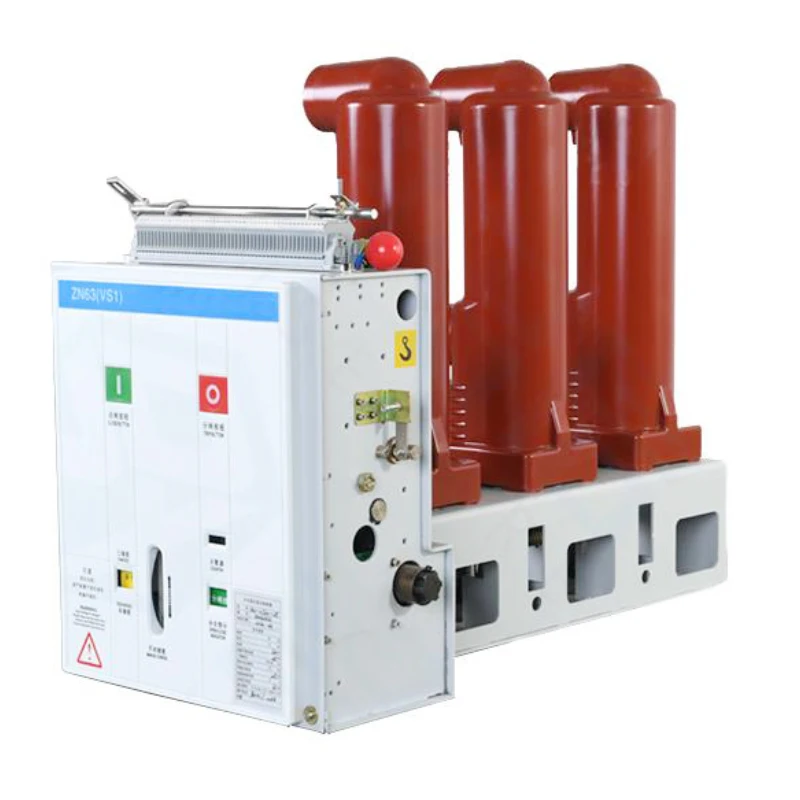

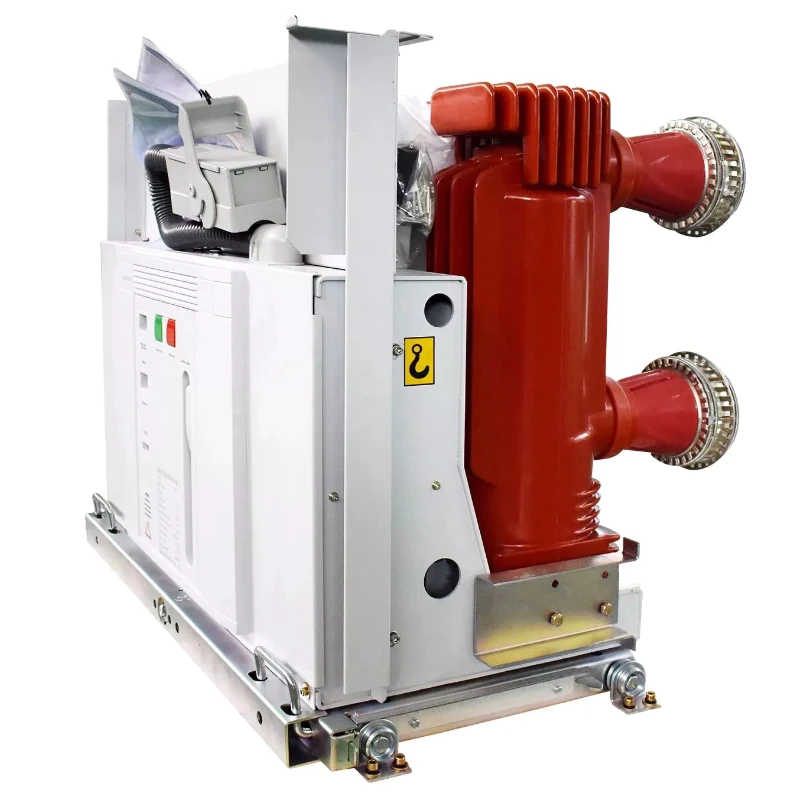

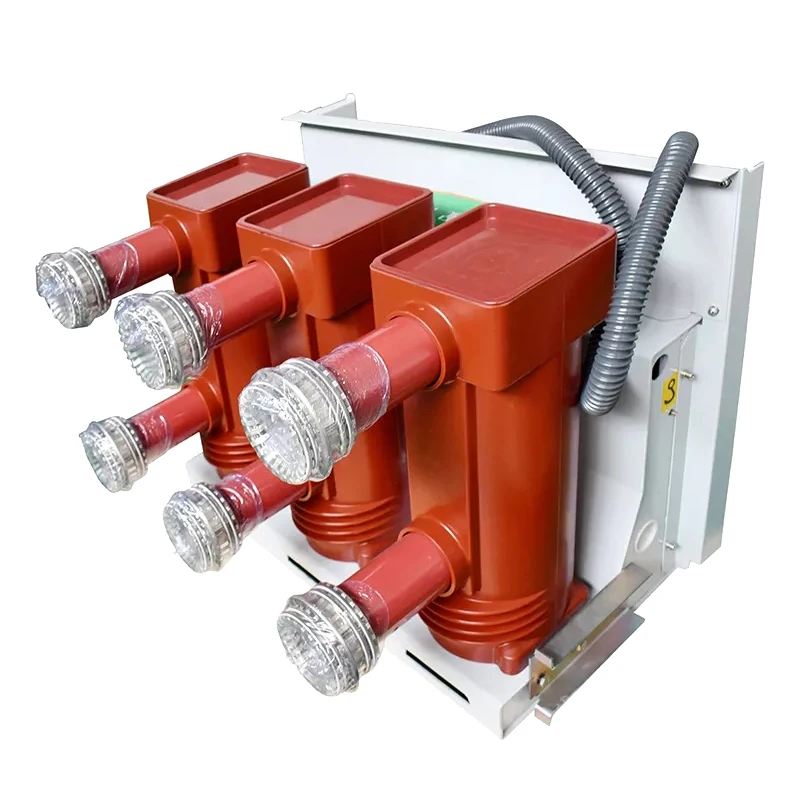

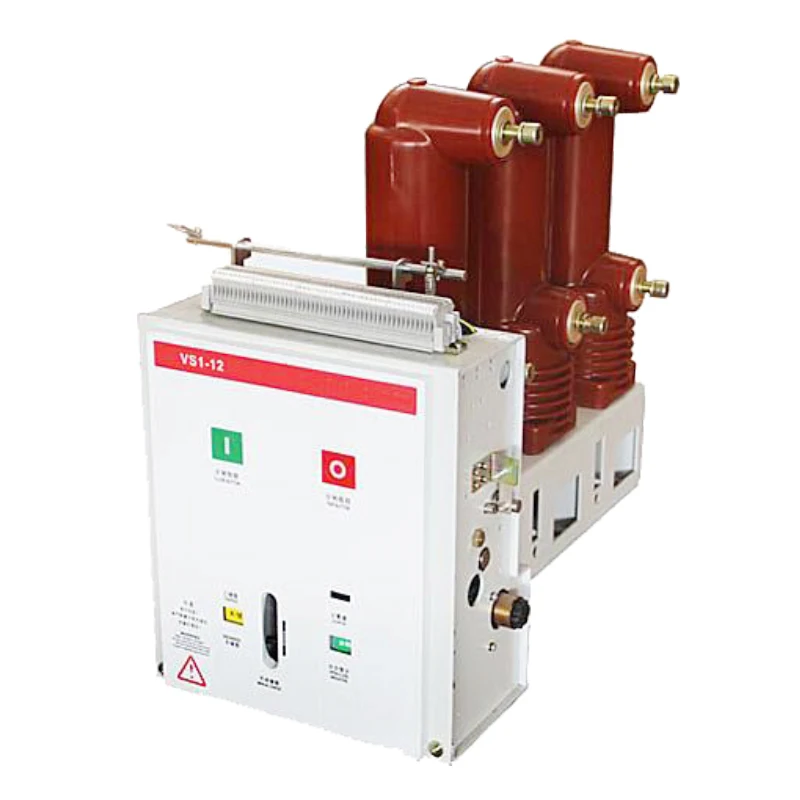

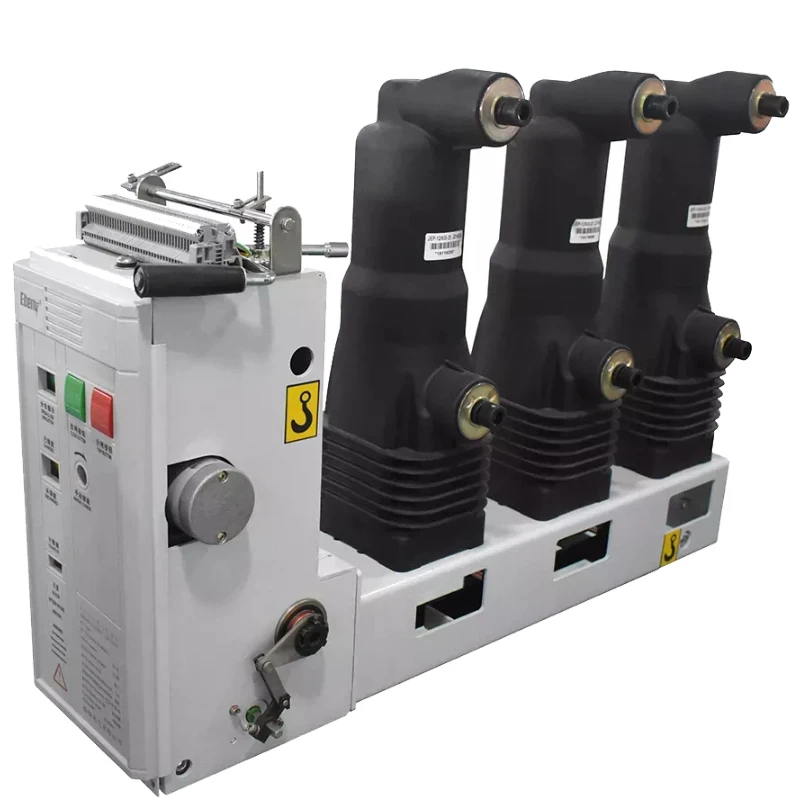

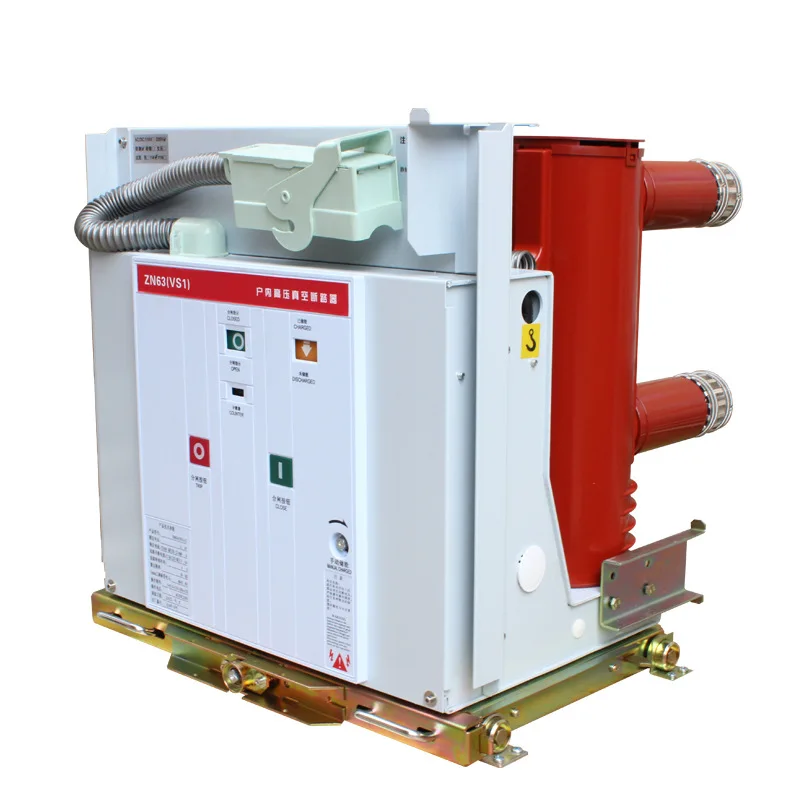

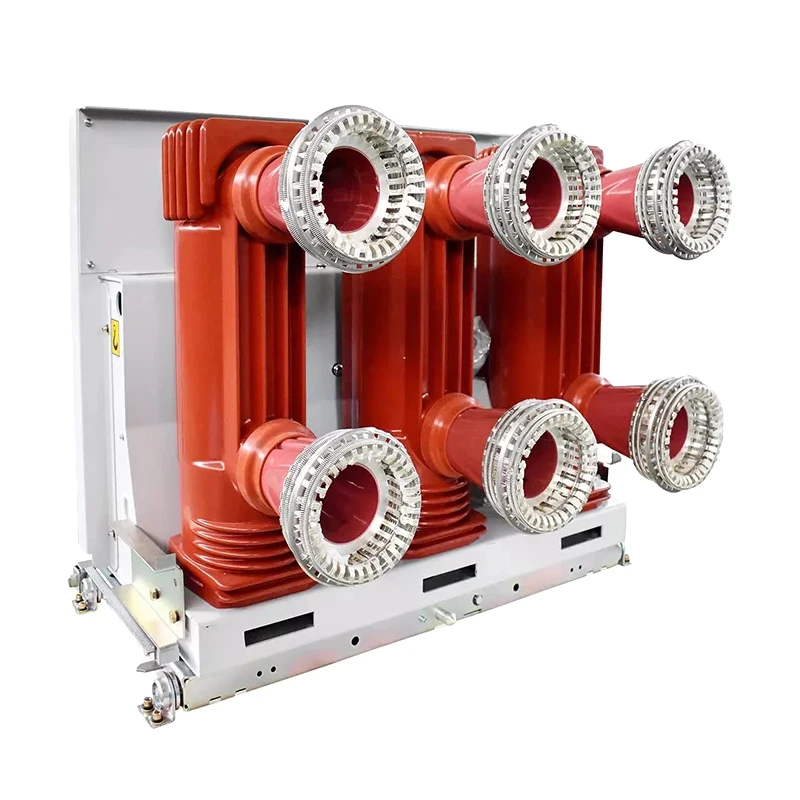

Vacuum Circuit Breaker Kampa ZN63(VS1) 12 24KV 630a VCB manufacturers High Voltage
- Category: >>>
- Supplier: Yuyao Yanaike Pneumatic Component Factory
Share on (11000005171024):
Product Overview
Description

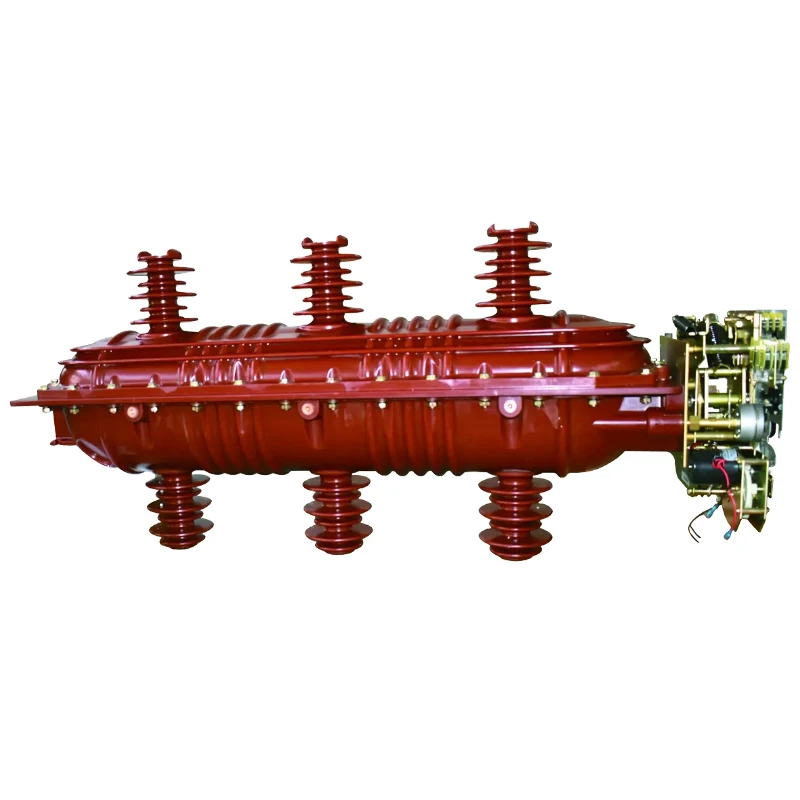

Vacuum Circuit Breaker Vacuum Automatic Circuit Recloser Remote Control Vacuum 24 KV Circuit Breaker Automatic Recloser
1.Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.
Adopt solid insulation structure, use of advanced solid epoxy sealing technology, the first time, the vacuum interrupter. A
leading electrical circuit. insulation and other support to become an integrated combination of solid seal pole. Successfully
Advantages
Simple structure
Adapt ultra low resistance type vacuum interrupter
Adapt optimization and modular spring operating mechanism
Suitable for occasions with frequent operation
Free maintenance and long service life

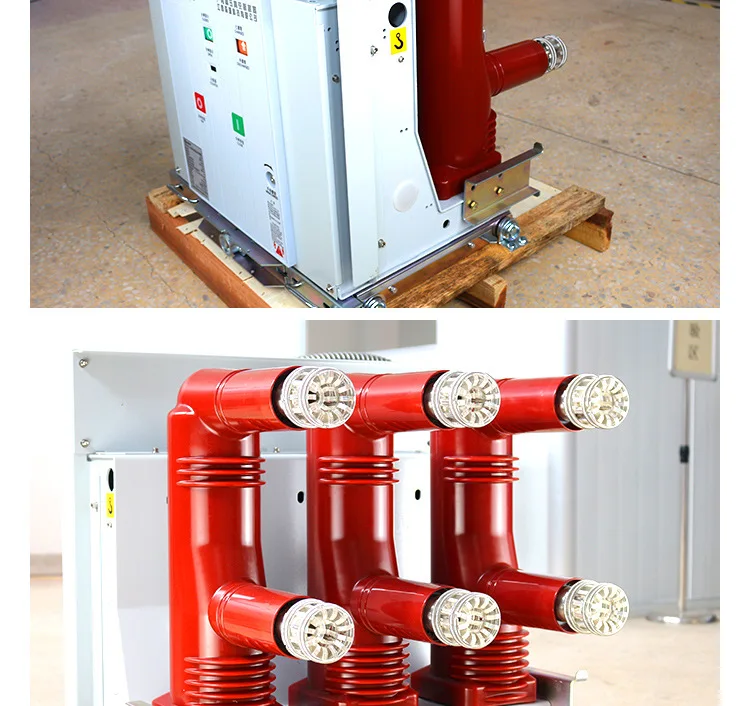

High reliable performanceDetails Images
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.
Adopt solid insulation structure, use of advanced solid epoxy sealing technology, the first time, the vacuum interrupter. A
leading electrical circuit. insulation and other support to become an integrated combination of solid seal pole. Successfully
Advantages
Simple structure
Adapt ultra low resistance type vacuum interrupter
Adapt optimization and modular spring operating mechanism
Suitable for occasions with frequent operation
Free maintenance and long service life
High reliable performanceDetails Images
Rated Parameters
Table 1. Technical parameters of ZN63A(VS1)-12/24kV high voltage ac vacuum circuit breaker
No. | Item | unit | Parameter | |||
1 | Rated Voltage | kV | 12 | 24 | ||
2 | Rated Frequency | Hz | 50/60 | |||
3 | Rated lightning impulse withstand voltage(peak) | kV | 42 | 55 | ||
4 | Rated power frequency withstand voltage (1s)(Effective) | kV | 75 | 125 | ||
5 | Rated short-circuit breaking current | kA | 20,25,31.5,40 | |||
6 | Rated current | A | 630,1250,1600,2000,2500,3150 | |||
7 | Rated peak withstand current | kA | 50,63,80,100 | |||
8 | Rated short time withstand current | kA | 20,25,31.5,40 | |||
9 | Rated short circuit continuous time | s | 4 | |||
10 | Rated short-circuit on/off current | kA | 50,63,80,100 | |||
11 | Percentage of the dc component of the rated short-circuit breaking current | % | 35 | |||
12 | Rated operation sequence | O-0.3s-CO-180s-C | ||||
13 | Rated single/back-to-back capacitor bank breaking current | A | 630/400 | 630/400 | 630/400 | 800/400 |
14 | Rated short-circuit current breaking | times | 50 | 50 | 50 | 30 |
15 | Mechanical life | times | 10000 | |||
16 | Rated opening/closing operation voltage | V | AC/DC110 AC/DC220 | |||
17 | Rated voltage of energy storage motor | V | AC/DC110 AC/DC220 | |||
18 | Power frequency withstand voltage of secondary circuit | V | 2000 | |||

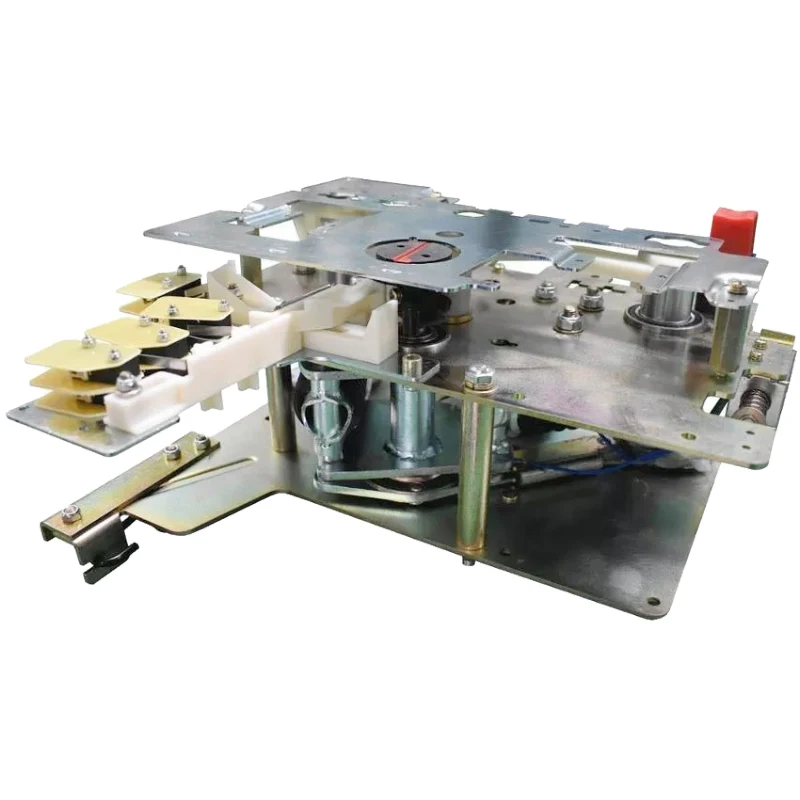

Table 2. Parameters for spring operation mechanism
No. | Item | unit | Parameter | |
1 | Rated operation voltage | Closing tripping coil | V | AC/DC110 AC/DC220 |
Opening tripping coil | ||||
2 | Working current | Closing tripping coil | A | 1.1 |
Opening tripping coil | ||||
3 | Power of energy-storage motor | W | 70,80 | |
4 | Working voltage of energy-storage motor | V | AC/DC220 | |
5 | Motor energy storage time | S | ≤15 | |
6 | Aux.contact | pair | 6NO,6 NC | |
Breaking capacity | AC/10A;DC/5A | |||
Rated Parameters
· In addition to meet the requirements of the design drawings, the assembled and adjusted circuit breakers shall also meet the requirements listed in table 3.
Table 3.Mechanical parameters after adjust the circuit breaker
