Tas5630 2.1 Class D 300w 150w 150w Digital Power Tone Adjust Amplifier Completed Board Assemble Board Refined Module Amplifier
- Category: >>>
- Supplier: Shenzhen rongxingtong Electronics Co. Ltd
Share on (11000005238828):
Product Overview
Description
Product Description
Specification
item | value |
Model Number | Tas5630 2.1 Class D |
Type | integrated circuit |
Place of Origin | original |
Brand Name | RXT |
Description | Tas5630 2.1 Amplifier |
Size / Dimension | 150*95mm |
Product Name | Tas5630 2.1 D classAmplifier |
style | Pcb Board Assembly |
Usage | Audio |
Working mode | Type D |
Static current | 65mA /Efficiency:88% |
weight | 405g |
Output power | 300W + 2 * 150W / 4 Ω 10% THD |
Frequency response | 20Hz to 20KHz |
Dynamic range | > 100 dB |
Working voltage | DC48V |
Product introduction
highest audio quality, it provides very low noise and output drivers. This application is optimized for the features of opa1632
designed for excellent gain bandwidth of 180mhz 50V / μ s and very fast conversion rate, A very low input noise of 1.3nv / √ Hz
further ensures maximum signal to noise ratio and dynamic range. The flexibility of fully differential structure makes it easy to
realize single ended full differential output conversion. Differential output reduces even harmonics and common mode noise
interference. Opa1632 provides high-performance ADC driver for high-performance audio pcm1804, It also provides a 300 DB power
supply from the conventional stereo class amplifier (THD class 300db) with a total power feedback of more than 300db for the class
of the conventional stereo amplifier, The efficiency of power stage is as high as 88%. Ti is the highest power class D amplifier
in Ti industry-
Product details:
All parts of this product are original genuine products, simple and pure in quality. Using high-quality original parts is not only
to guarantee the safety and quality, but also to ensure the actual performance to achieve the design goal.
Original tas5630, opa1632dr and tl072 are used
The main filter electrolytic capacitor adopts Nichicon brand with capacity of 470uf / 100V * 4 to ensure strong and continuous
power support.
The five ring metal resistance is selected as the resistance, and the five ring metal film resistance with accuracy of ± 1% is
used in the main circuit to ensure a good signal-to-noise ratio of the whole machine.
Fully shielded high current inductor is adopted to ensure the sound is clear and strong.
PCB adopts 1.6 mm thick double-sided plate, 2.0 ampere copper thickness, and tin spraying process to ensure good passing
performance of large and small current. First class PCB quality.
Basic performance parameters:
Working mode: Type D
Static current: 65mA
Efficiency: 88%
Output power: 300W + 2 * 150W / 4 Ω 10% THD
Frequency response: 20Hz to 20KHz
Dynamic range: > 100 dB
Signal to noise ratio: 100dB (A-weighted)
Working voltage: DC48V

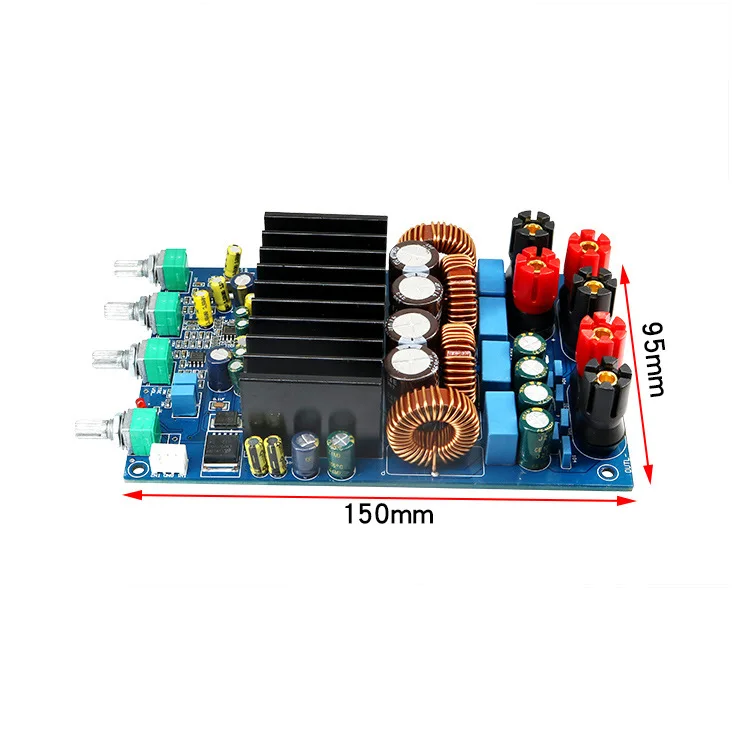

PCB size: 150 * 95mm
Potentiometer function: from left to right 1. Subwoofer Volume 2. Left and right channel treble 3. Left and right channel volume
4. Total volume
