Manufacturer car control panel climate control panel car ac control panel

Power supply

DC12V(DC9+1V-15+1V)

Power consumption

3W

Current

Max.400mA

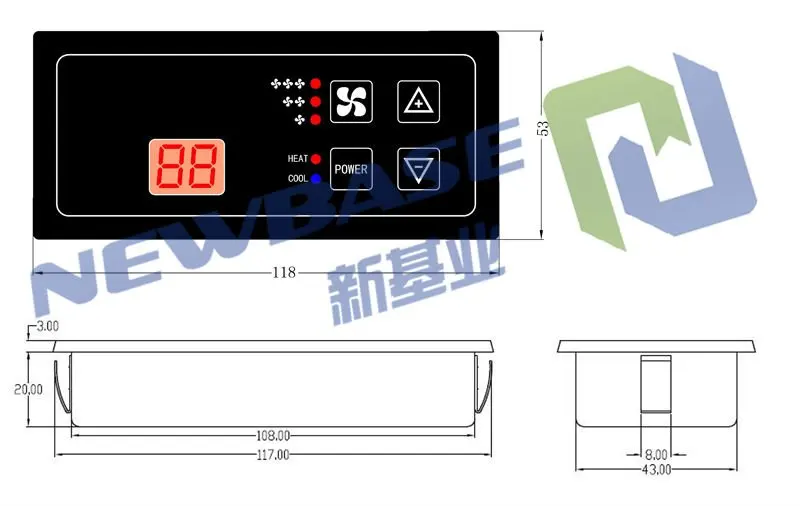

Dimensions

118X53X23mm

Input

1)ACC Power DC12V

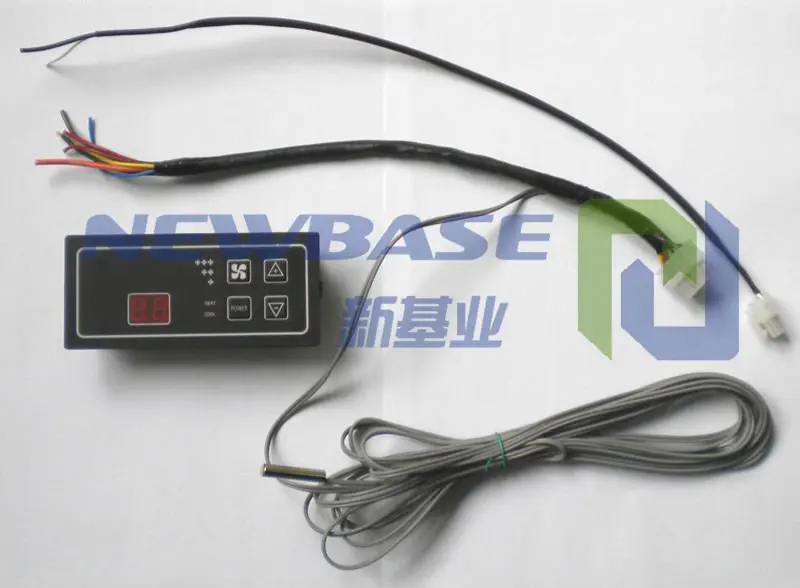

2)Temperature sensor (25°C,Rb=5K,B=3274)

3)Power check

4)Pressure switch

Output

1) Evaporate High (Max 0.4A)

2)Evaporate Middle (Max 0.4A)

3) Evaporate Low (Max 0.4A)

4) Compressor& Clutch(max 0.4A)

Display

2 segment

Ambient temperature

-30°C—80°C 5%-95%RH Non-condensing

Storage temperature

-10°C—70°C 5%-95%RH Non-condensing

Display precision

Dual digit display of set temp., accuracy 1°C; dual digit display of inside temp. accuracy 1°C

Temperature test standard

Temp. control based on the temp. of return air inlet, the defrost sensor controls defrost temp., defrost on at 2°C, defrost off at 4°C;

Connector

5569-10A ,5569-4A

Faceplate level

IP43

EMC level

EN50081&EN50082-2

Security level

Applied to EN61010-II, Pollution degree: II

Weight

350g
