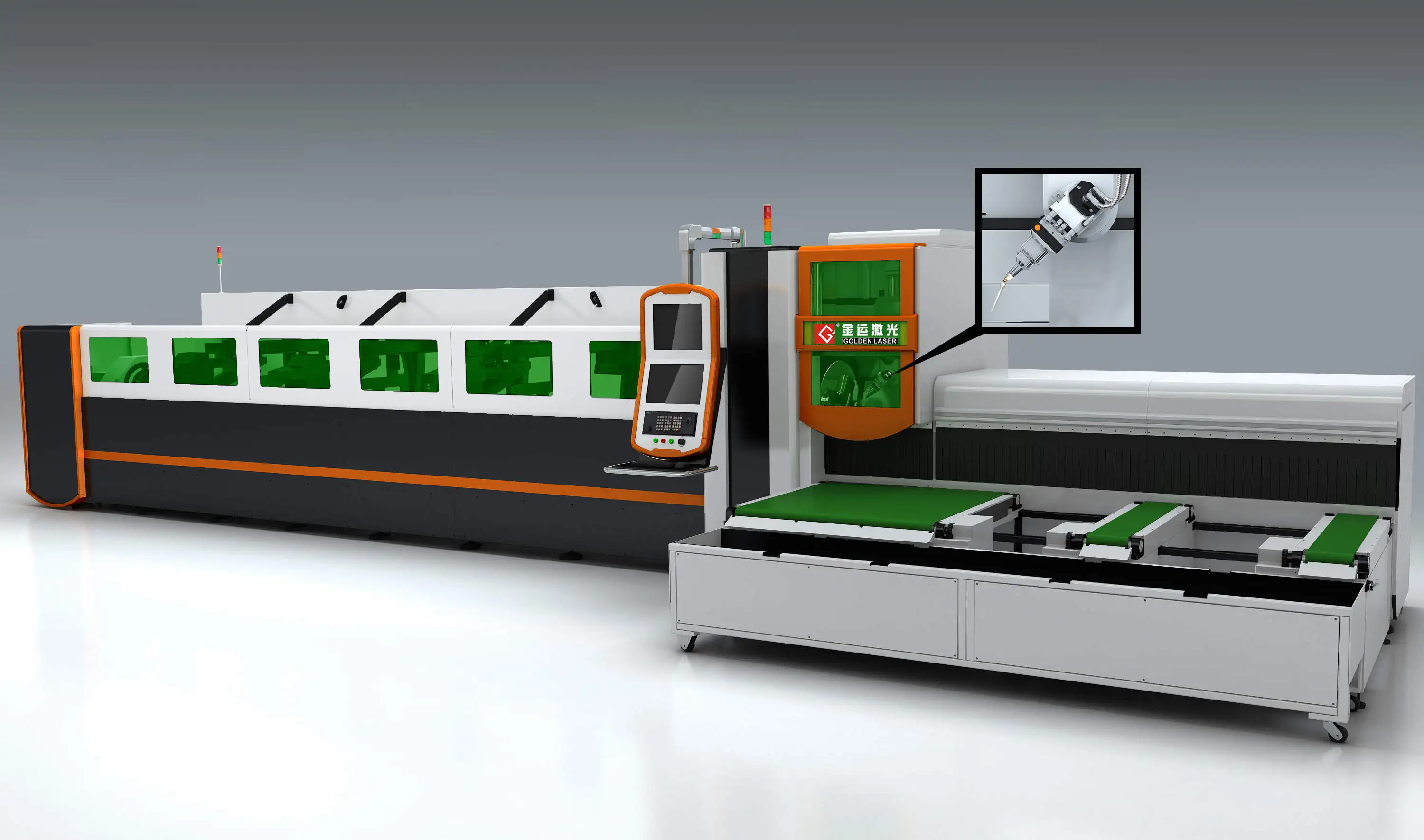

Laser Tube Cutting Machine with Bevel Cut 3D Laser Pipe Cutting Machine




Golden Laser's 3D 5-axis laser cutting machine matched imported laser rotary swivel head, especially applicable for angular cutting, 3D-laser processing of components. This 3D laser cutting machine has a swivel range/stroke +/- 135° (+/- 160°), making seamless splicing easier!
3D multi-axis laser tube cutting machine- Experience the unlimited possibilities of laser tube cutting!




Main Technical Parameters
Model number
P3580A-3D
Laser source
nLIGHT/ IPG fiber laser resonator
Laser power
3000W 4000W 6000W
CNC controller
Cypcut / Germany PA
Software
YASKAWA
Laser head
Germany LT ULTRA/ Golden Laser Brand
Pipe type
round, square, rectangular, oval, OB-type, C-type, D-type
triangle, etc (standard)
Angle steel, channel steel, H-shape steel,
L-shape steel, etc (option)
Pipe processing area
tube length 8000mm, tube diameter 20-350mm
Position accuracy
0.02mm
Position speed
Max 100m/min
Chuck rotate speed
Max 130r/min
Acceleration
1.0g


Detailed Images

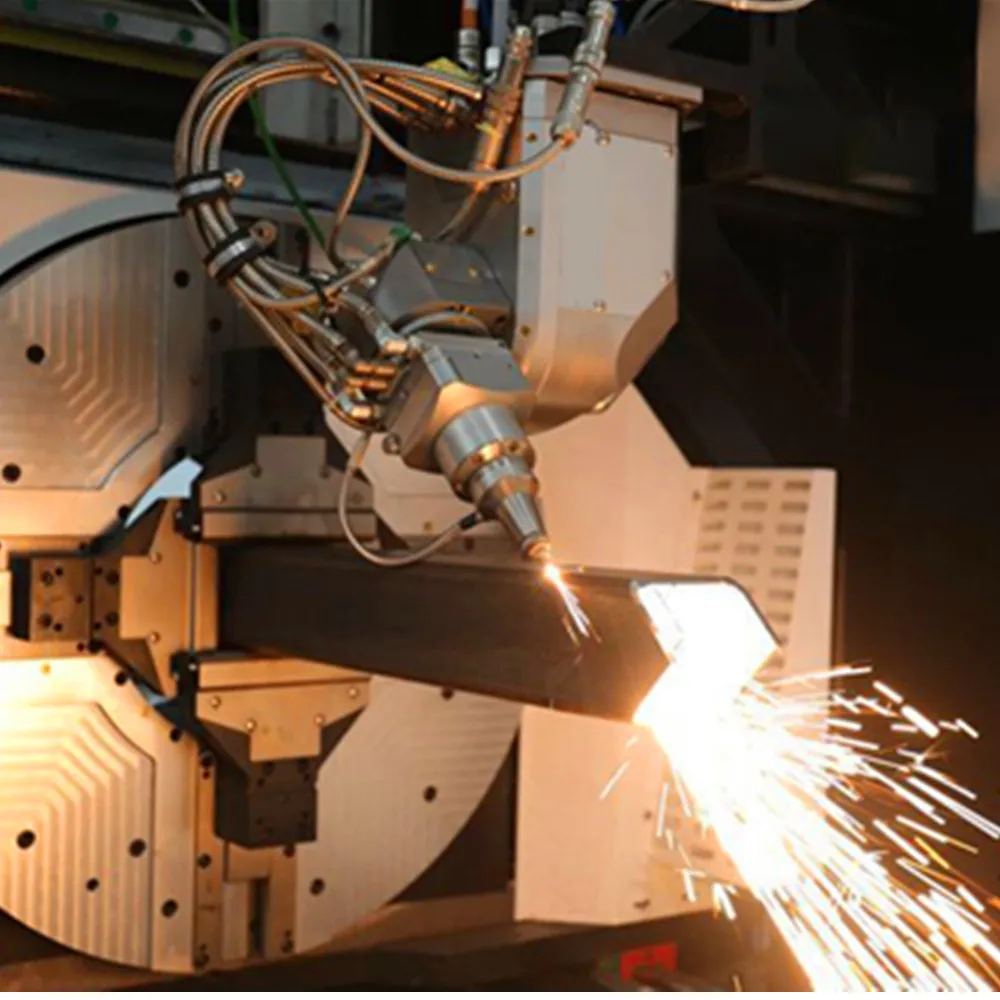

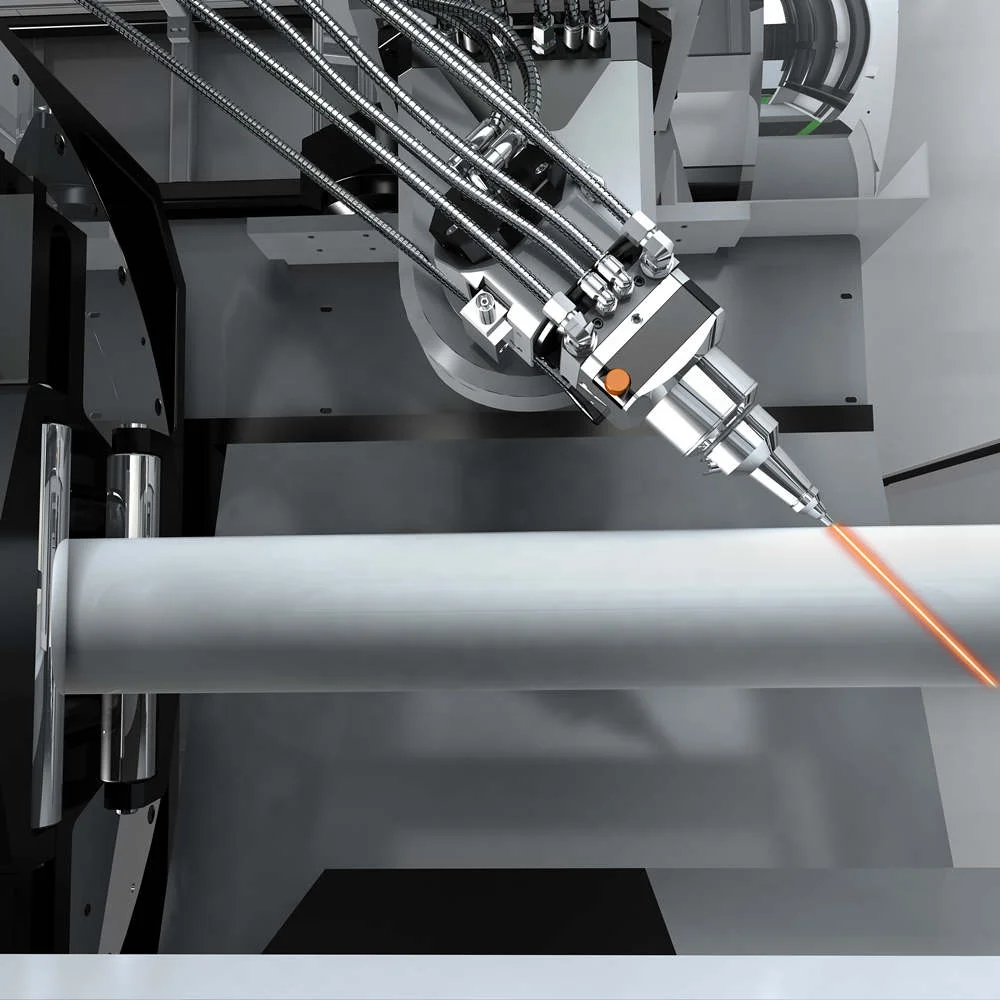

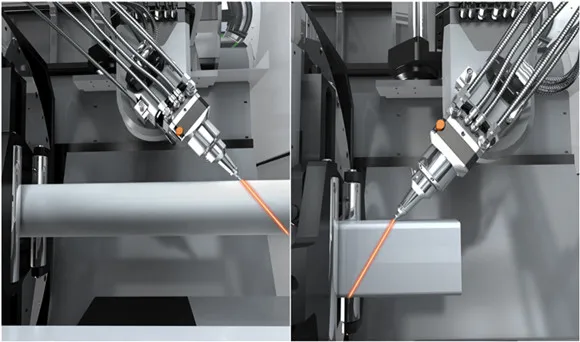

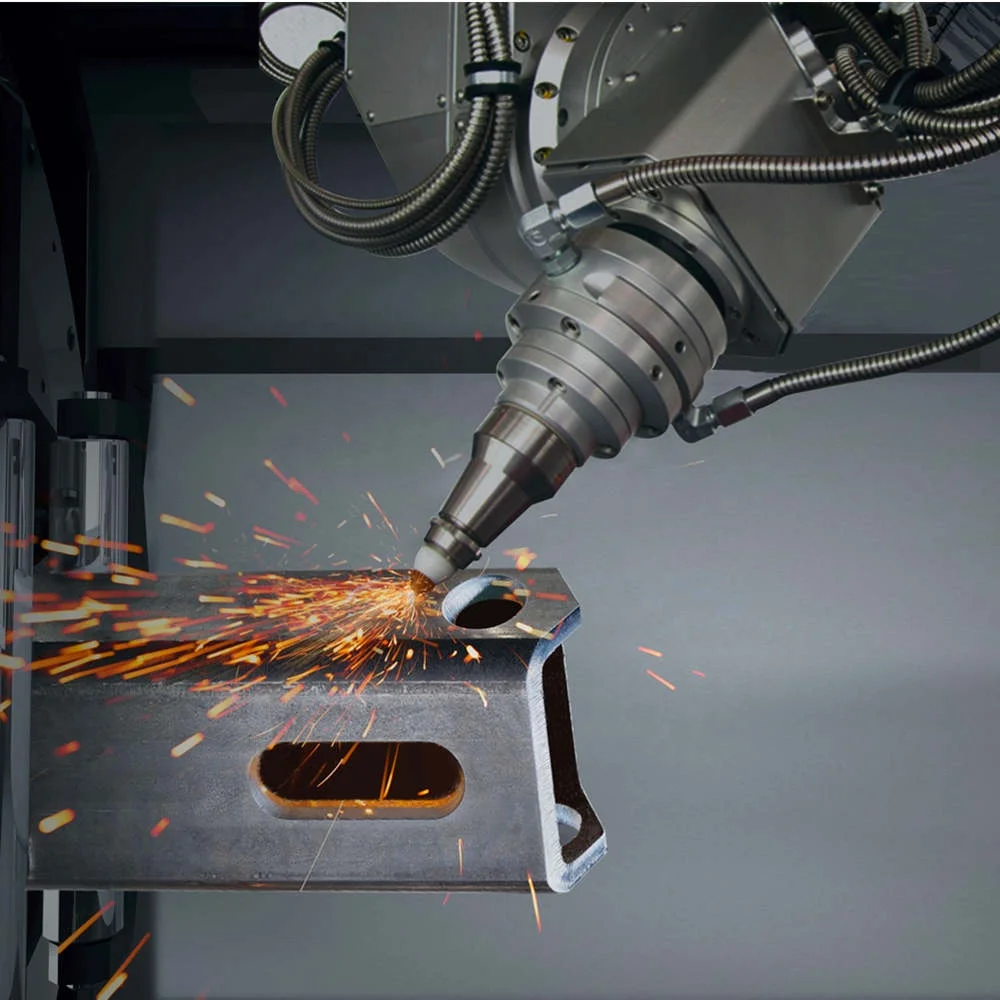

Bevel Cutting
The maximum angle of the swing angle axis is ±160°; the maximum operating speed is 170m/min. The bevel cutting option enables high-quality bevel cuts of up to 45°.

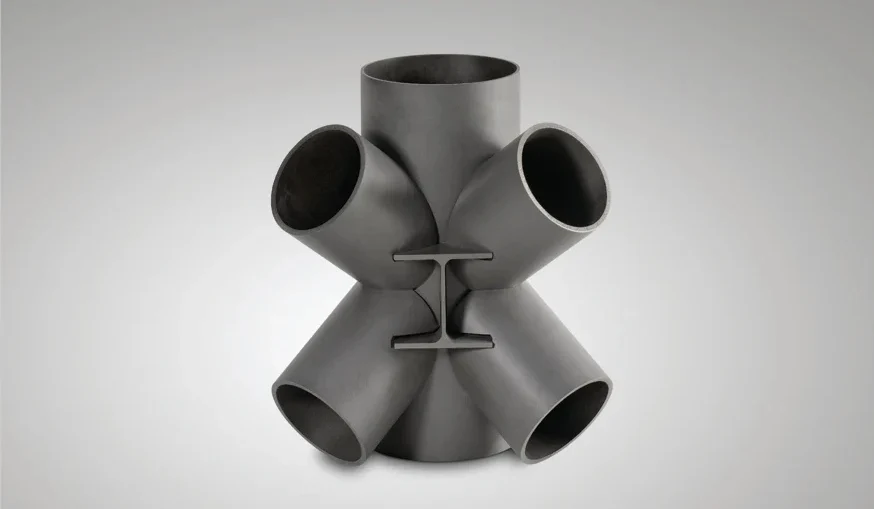

● Make it easier to cut irregular tubes, profiles and enable cutting workpieces to be seamlessly spliced.

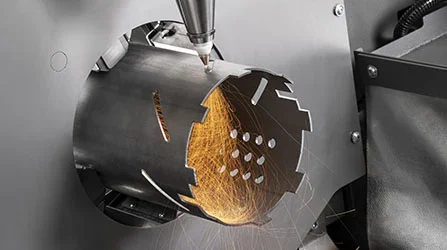

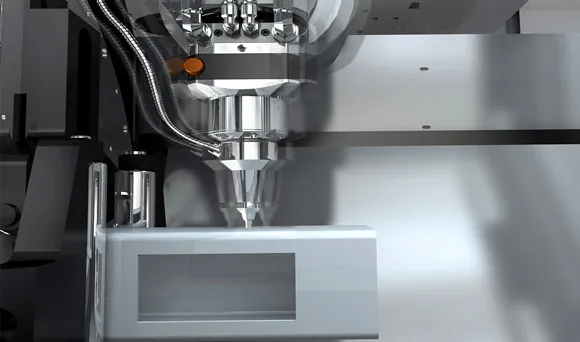

Rapid Cutting
The pipe does not need to be moved when cutting the contour with a small figure, only the cutting head swings for rapid cutting.

● This is a significant productivity advantage, especially in thinner materials.

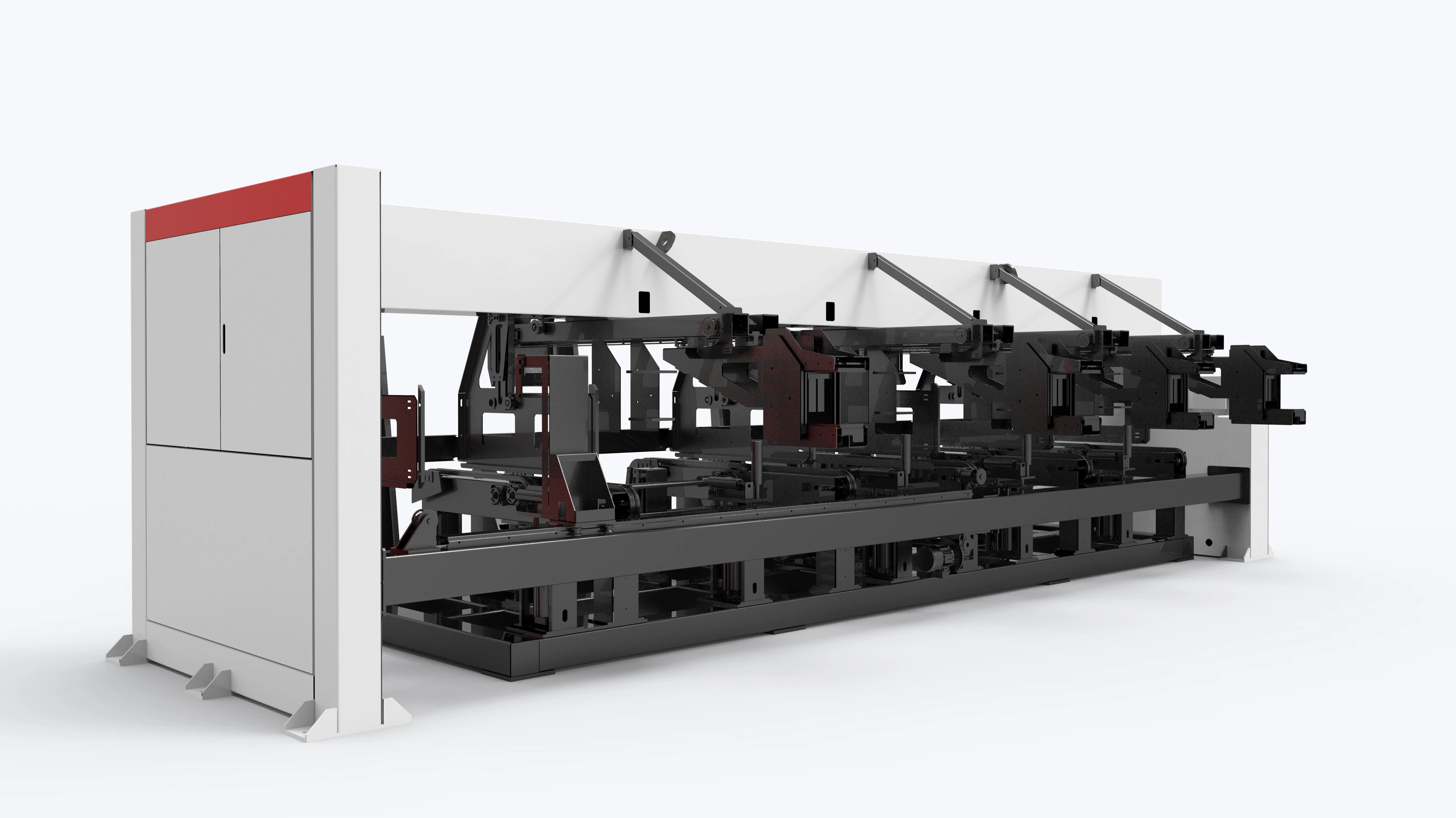

Automated Manufacturing
With an automatic bundle loader and unloader, you could decide the layout based on the available space, but above all, to meet your production requirements.

● Save labor but improve the tube processing efficiency. Simplify the processing procedure and realize the intelligent production mode of Industry 4.0.

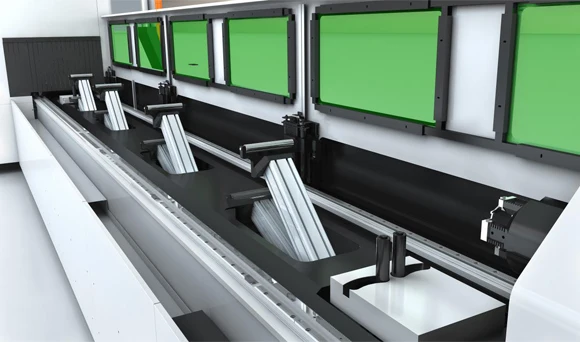

Floating Support System
When cutting, the floating support device will automatically adapt to changes in pipe rotation without interrupting the production cycle.

● More stable and high efficiency.


Pneumatic Chuck
High-speed pneumatic chuck, the maximum rotation speed is 120r/min. Thanks to the self-adaptive adjustment of the clamping force, the operation is more intelligent and simplified.

● Time-saving and increasing productivity.

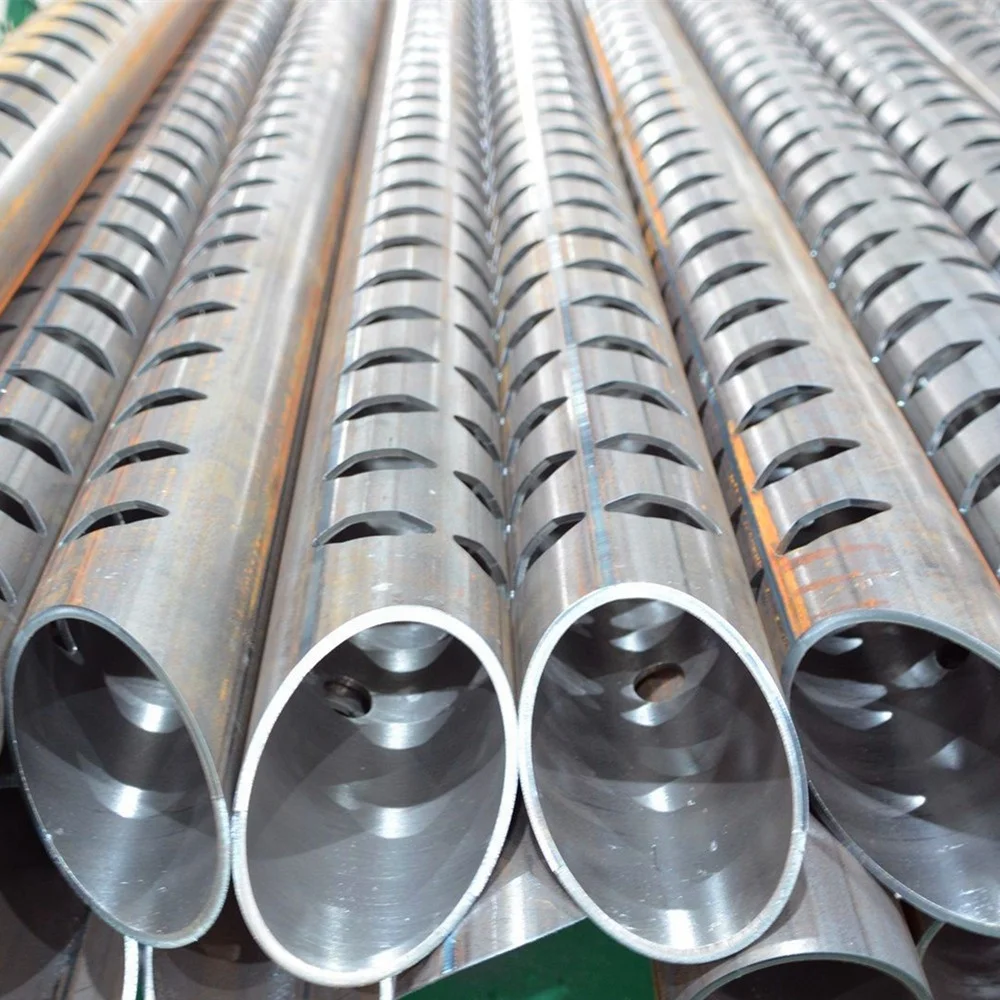

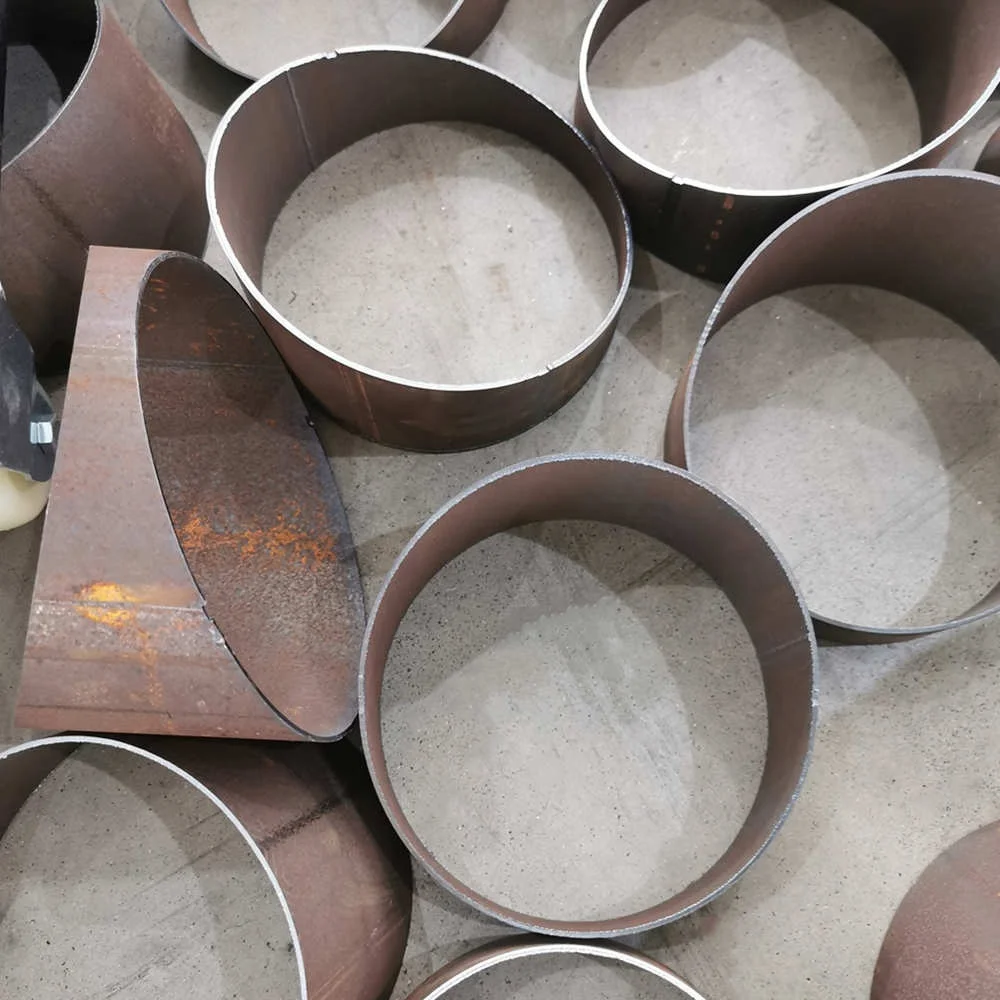

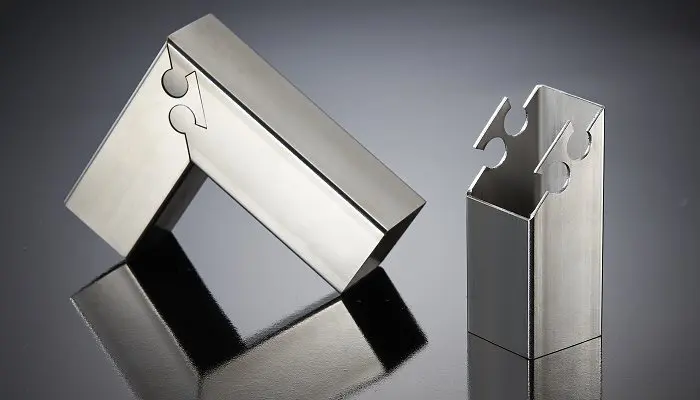

Sample Show

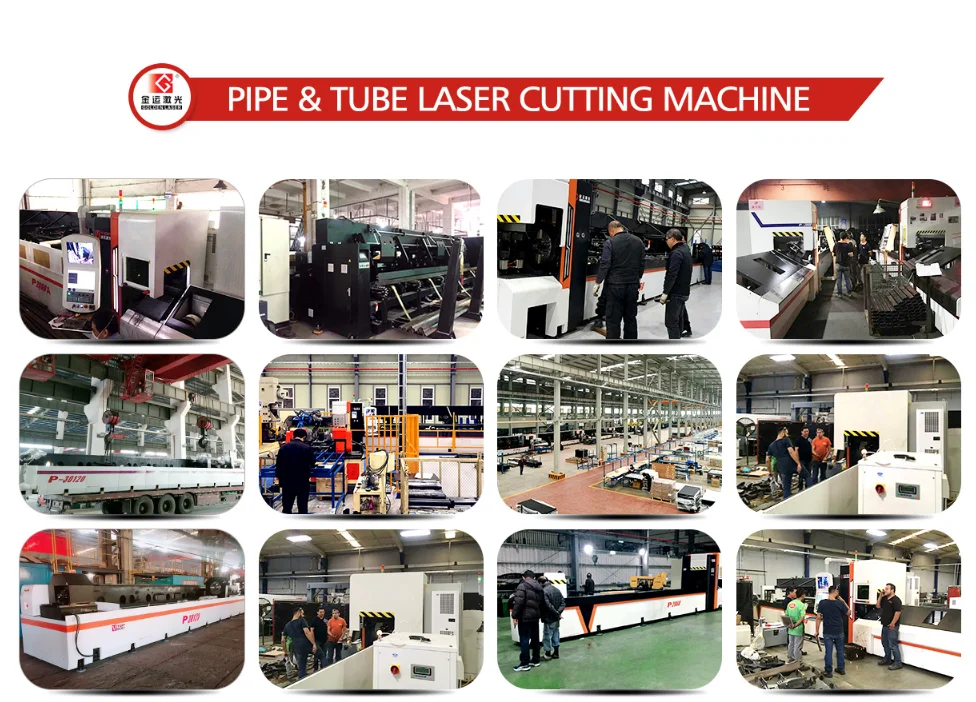

Customer Photo
