125W high lumens led street light
- Category: >>>
- Supplier: Beijing Bestpower Technology & Engineering Co. Ltd.
Share on (11000005282262):
Product Overview
Description
Product Details
Characteristics

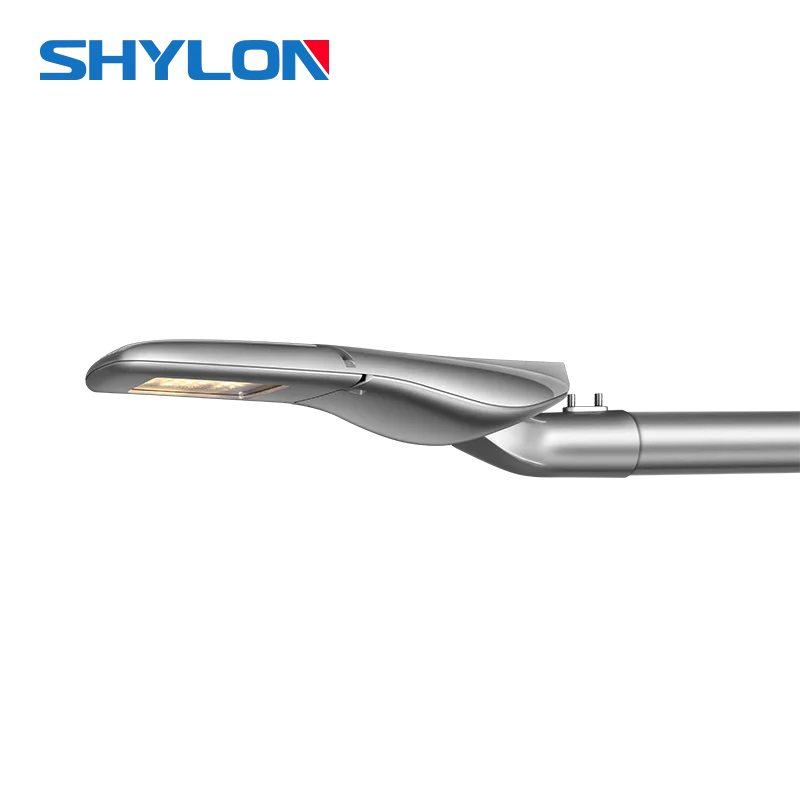

125W high lumens led street light
Housing
-High pressure die-casting aluminum housing;
-Double powder coating;
-5mm Clear tempered safety glass with high light transmittance;
Technical Data
-AC100-305V, 50/60Hz;
-High pressure die-casting aluminum housing;
-Double powder coating;
-5mm Clear tempered safety glass with high light transmittance;
Technical Data
-AC100-305V, 50/60Hz;
-Rated Power: 125W
-Power Factor:>0.95
-Surge Voltage>10KV
-Luminaire Efficacy: >140lm/W
-Color Temperature:3000K, 4000K, 5000K, 6000K
-Color Rendition Index: CRI>80
-Beam Angle: 120×50°,150×65°,150×60°, 140×30°, 148°
-Control Mode：turn on/off, PLC, ZigBee, Light Operated Control
-Working Temperature: -25℃--50℃
-IP66
Accessories
-Zigbee Wireless Control Module;
-PLC control Module;
-Thunder protection Module
-Anti bird device
-Power Factor:>0.95
-Surge Voltage>10KV
-Luminaire Efficacy: >140lm/W
-Color Temperature:3000K, 4000K, 5000K, 6000K
-Color Rendition Index: CRI>80
-Beam Angle: 120×50°,150×65°,150×60°, 140×30°, 148°
-Control Mode：turn on/off, PLC, ZigBee, Light Operated Control
-Working Temperature: -25℃--50℃
-IP66
Accessories
-Zigbee Wireless Control Module;
-PLC control Module;
-Thunder protection Module
-Anti bird device
Model | SL7501-M155 | SL7501-M125HE | SL7501-M80 | SL7501-C135 | |||
LED Brand | LUMILEDS | LUMILEDS | LUMILEDS | CREE | |||
LED Quantity | 48pcs | 70pcs | 32pcs | 48pcs | |||
Rated Power | 155W | 125W | 80W | 135W | |||
Input Voltage | AC100-305V, 50/60Hz | ||||||
Color Temperature | 3000K/4000K/5000K/6000K | ||||||
Beam Angle | 120*50°/150*65°/150*60°/140*30°/148° | ||||||
Control Mode | CC/PLC/Zigbee/Light-operated control | ||||||
Life Span | 50000H | 50000H | 50000H | 50000H | |||
Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | |||
Surge Voltage | >10KV | >10KV | >10KV | >10KV | |||
Protection Grade | IP66 | IP66 | IP66 | IP66 | |||
Ambient Temperature | -25℃-50℃ | -25℃-50℃ | -25℃-50℃ | -25℃-50℃ | |||

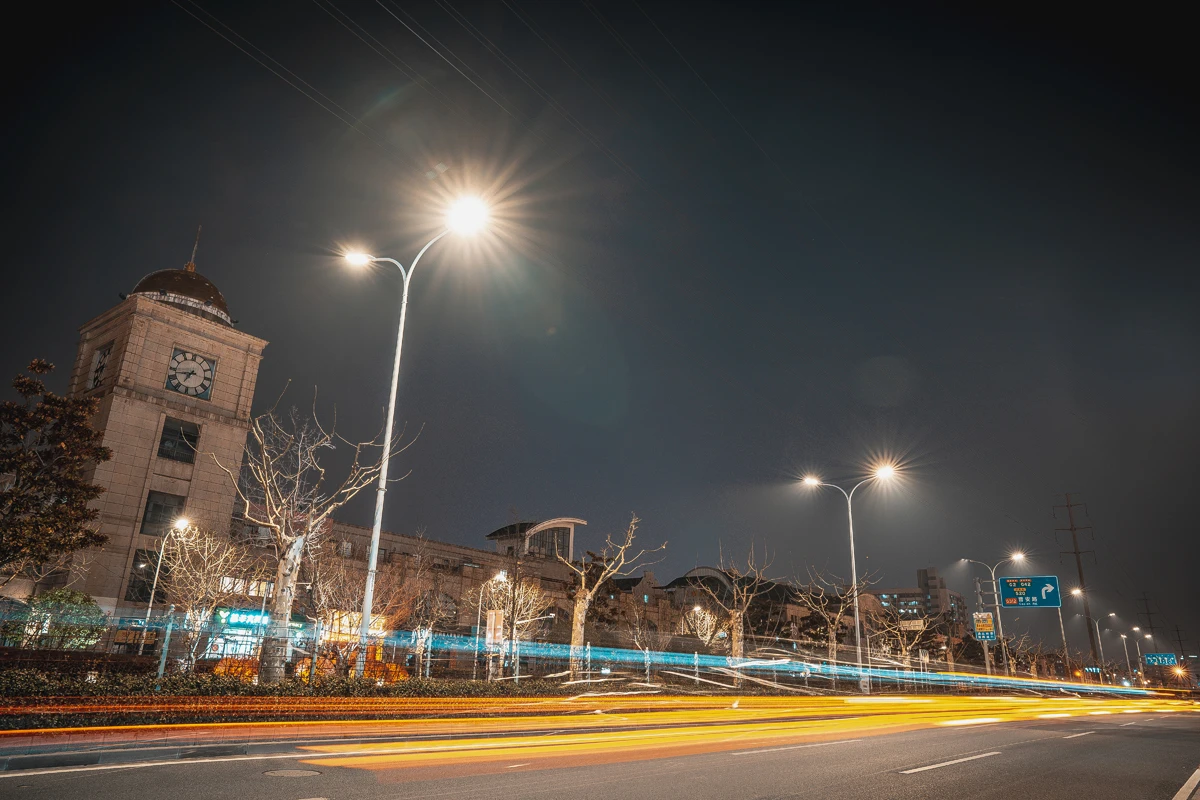

Project Reference

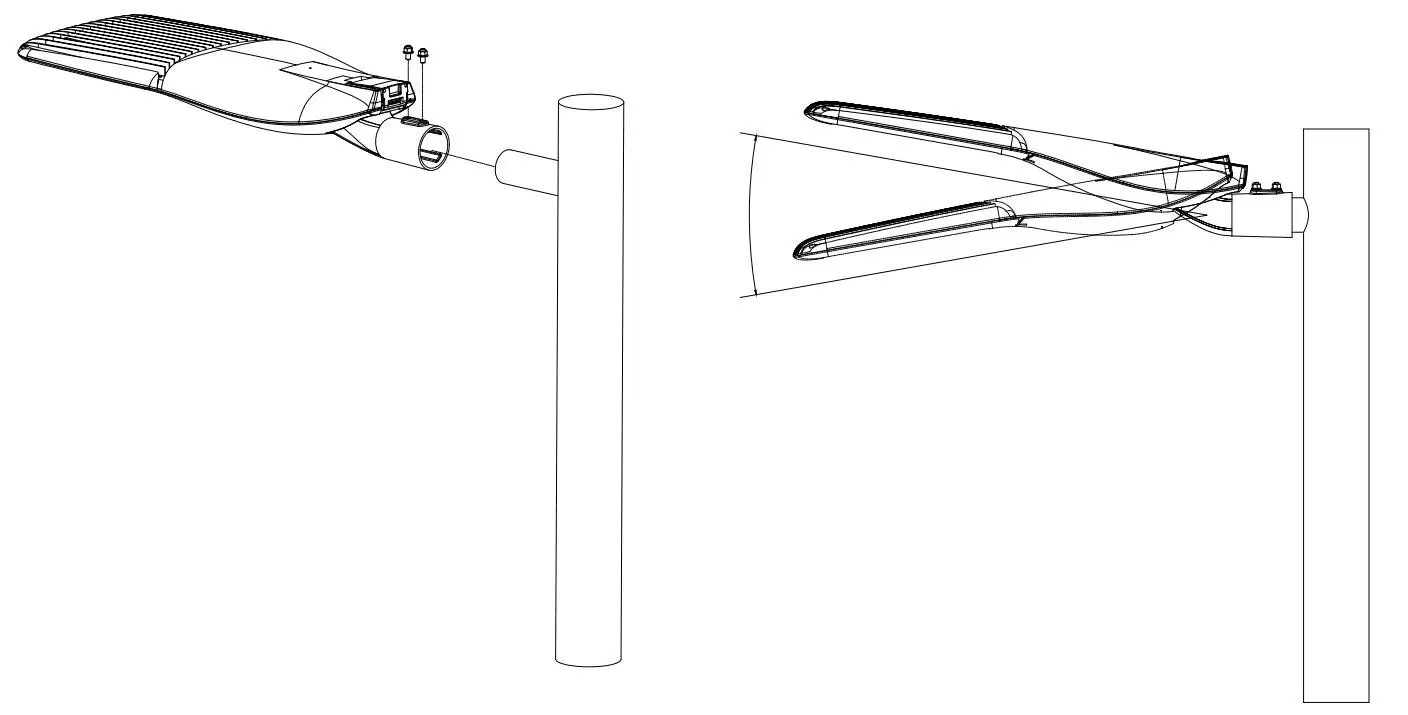

Installation Instructions
About Us
About Us
Shylon is professional in architectural lighting, using totally LED technology, dedicated to the design, production and marketing in outdoor lighting. “Valuable high quality” is our mission, and we consider light as a single unit, from the highpower LED to the high quality lens systems and control gear through to the creative challenges of a targeted design concept for each project, enables us to guarantee a consistently high quality of our products based on state of the cutting-edge LED technology.
Shylon factory covers an area of 33,000 m2, with total 96 employees, and production over 5,000 sets daily. Established
provincial-level standard testing center, Shylon owns distribution photometer, spectral protocol, optical detection apparatus .Shylon build a professional painting line in 2017, with 22 steps of processes to meet various requirements of clients. All products are tested in our laboratory to ensure that they meet the standards of performance, light quality and longevity. Focus of Shylon is given to open, win-win and international cooperation, ‘While our lights are developed and produced carefully, we keep an eye in the future by our team’. Let’s start our win- win cooperation right now!
Package and Delivery
1.standard paper packaging: inner boxes+ourter boxes+pallets;
2.Logo customization is available if there is a big quantity
3.Shipping mark is based on your request
4.DHL/FedEx/UPS/TNT/SF express are availabel.
2.Logo customization is available if there is a big quantity
3.Shipping mark is based on your request
4.DHL/FedEx/UPS/TNT/SF express are availabel.
5.Sample delivery: 3-7days;
Bulk order delivery: 10-15days.
