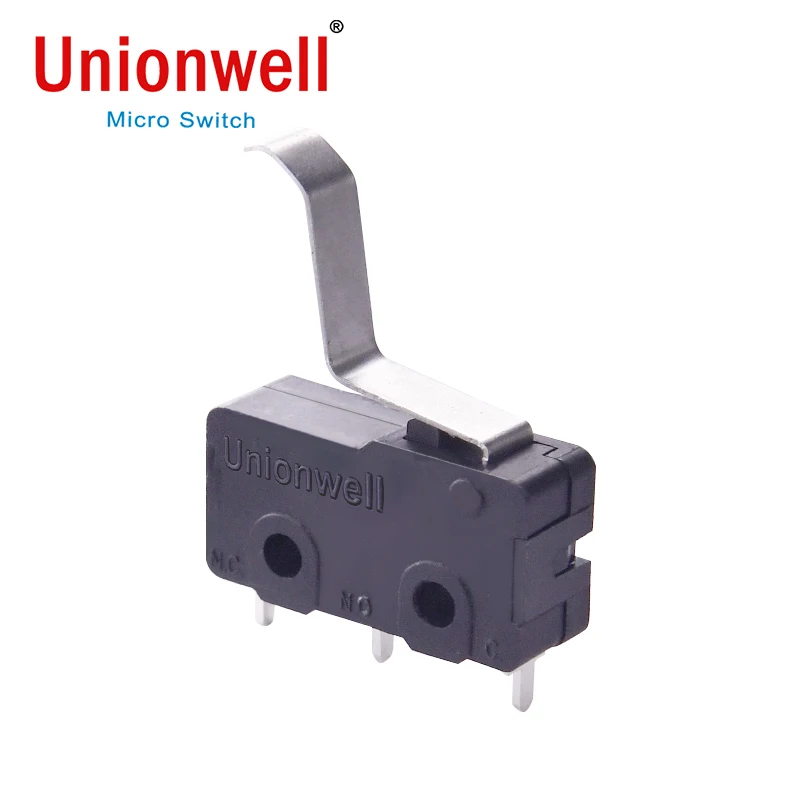

Unionwell hot selling 0.1A,5A 10A 125/250V 25T125 G605 Series Miniature electric Micro limit switch Button Gas Stoves

Product Overview

Description

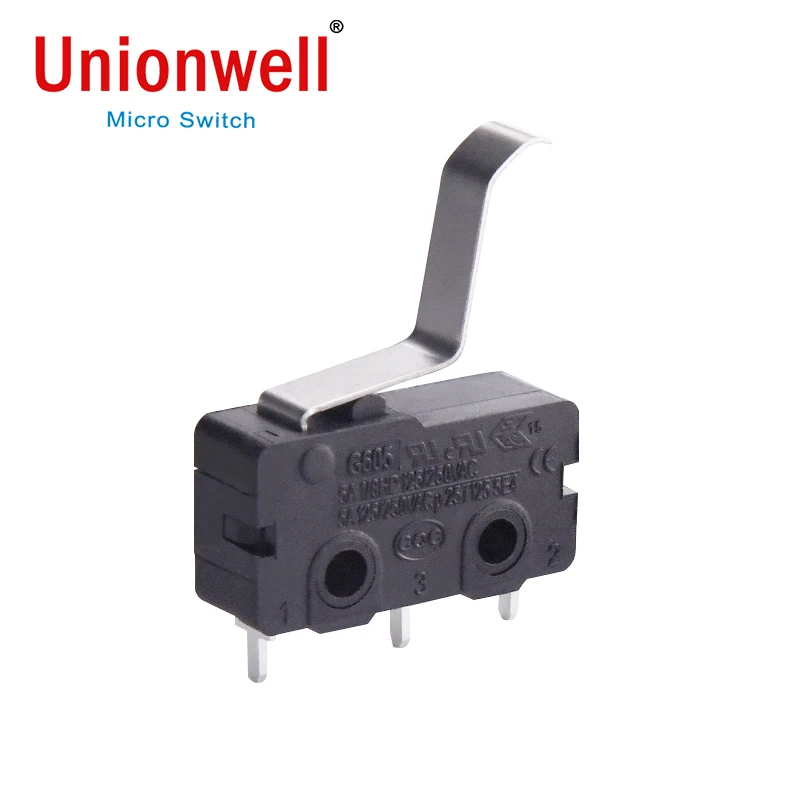

Unionwell G605 Series Miniature Micro switch Gas Stoves

Features

1. Small Compact Size


2. Accept 3A 250VAC


3. Long Life And High Reliability


4. Customized Green Plastic Cover Designs







Parameters





Rating	P1/P11/P12	ENEC:0.1A,125/250V  48VDC 5EA
		UL: 0.1A,125/250V  48VDC
		Gold Plated Contact Optional
	05/051/052	ENEC:5A,125/250VAC 5(3)A 125/250VAC 5A 30VDC
		UL: 5A, 1/8HP 125/250VAC
	10/101	ENEC:10(2)A,125/250VAC μ 25T125
		UL: 10.1A, 1/4HP 125/250VAC
		Note:250gf/Only with “OF “over “250gf”
	12	ENEC: 12(6)A,125/250VACμ 40T125
		UL: 12A,125/250VAC   Note:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
	Mechanical	120 cycles/minute
Contact Resistance(Initiative )		100mΩ Max
Insulation Resistance (at 500VDC)		100MΩ Min
Dielectric Strength		AC 1,000V RMS(50-60HZ)
Storage Temperature		-25℃~+125℃
Storage Humidity		85% RH Max
Service Life	Electrical	10,000-50,000 /cycles(Depend on part No.)
	Mechanical	1,000,000/cycles





























Business Partners





Q1. Are you a trading company or manufacturer?

A: Yes. We are a manufacturer specializing in switches over 30 years.



Q2. What is your MOQ?

A : Normally, MOQ=500pcs.



Q3. What’s the warranty time?

A: 1 - 2 years.



Q4. Could you offer us free samples?

A: Yes, free samples could be provided within 2-5 days.



Q5. What ‘s the lead time of mass production?

A : About 2-4 weeks.



Q6. What’s the capacity per month?

A :   Over 8 million pieces per month for micro switch series.

       Over 20 million pieces per month for keyboard switch series.



Q7. Where is your plant?

A:  Located in Huizhou city, Guangdong province, China.

     About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.



Q8 . Could you accept OEM or ODM?

A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
