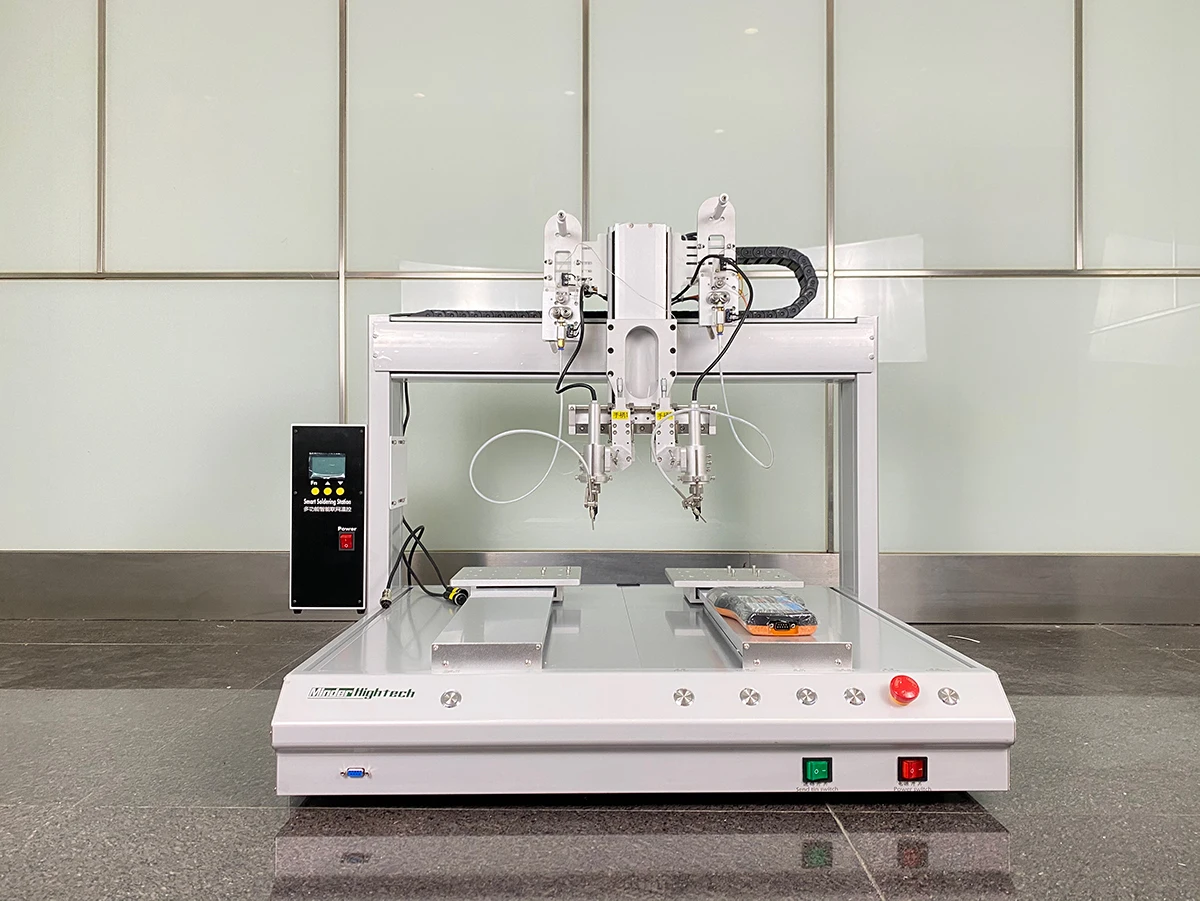

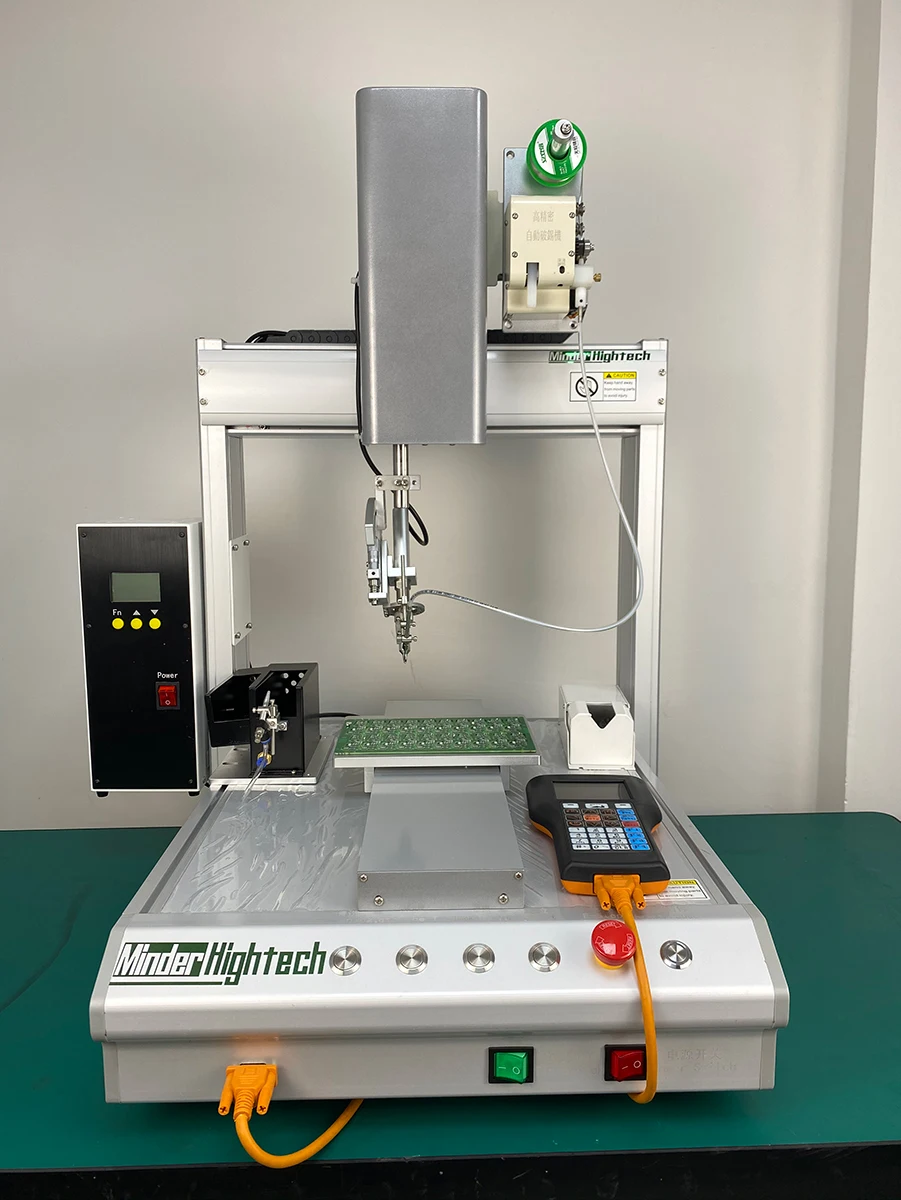

Wire Cable Connector Station Circuit Board Double Sided Pcb Welding Apollo Soldering Machine
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (11000005327879):
Product Overview
Description
We have a lot of series of products about soldering machine, if you want to know more about our products, please feel free to contact us, we will recommend suitable products to you with professional product knowledge.
Product Description
Applications
Automatically soldering robot for Auto Electronics, digital electronics, LCD, PCB, connector, RJ/45, FFC, FPCB, computer board, cable, speaker, wires, HDMI, LED, toy etc.
Specification
Model | MD-DH-T2211 | MD-DH-T3311 | MD-DH-T4311 | MD-DH-T5511 | MD-DH-T43311 | MD-DH-T44411 | MD-DH-T53311 | MD-DH-T54411 | |||||||
Stroke X | 200mm | 300mm | 400mm | 500mm | 400mm | 400mm | 500mm | 500mm | |||||||
Stroke Y1 | 200mm | 300mm | 300mm | 500mm | 300mm | 400mm | 300mm | 400mm | |||||||
Stroke Y2 | no | no | no | no | 300mm | 400mm | 300mm | 400mm | |||||||
Stroke Z | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | |||||||
Rotary R axis | with R axis (optional no R axis) | ||||||||||||||
Rated speed | 500mm/s (X-Y-Z) ,Max:1000mm/s | ||||||||||||||
Soldering Tip | Default 1 PC (optional 2 PCS) | ||||||||||||||
Tin thickness | 0.3-1.6mm | ||||||||||||||
Temperature | normal—500°C | ||||||||||||||

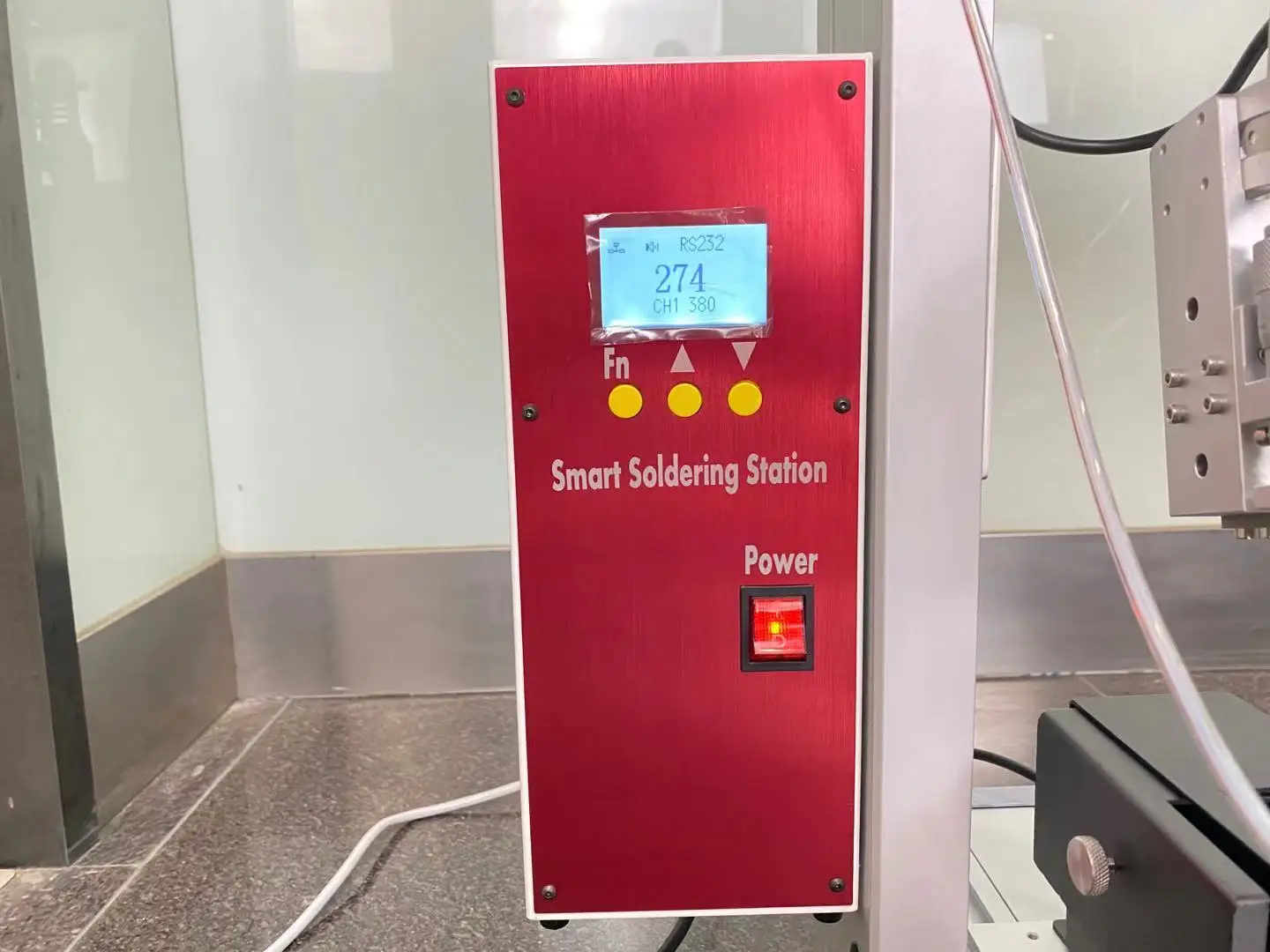

Heating | 150w, 5 second to 300°C | ||||||||||||||
Drive | Precision stepping motor/servo motor+synchronous belt/ball screw | ||||||||||||||
Motion mode | Point to point; line; circle | ||||||||||||||
Positioning Accuracy | +- 0.02(mm) | ||||||||||||||
Program | Control Teaching Box/PC | ||||||||||||||
External | RS232 | ||||||||||||||
Program storage | 100groups/1000points per group | ||||||||||||||
Power | 2*220V50Hz | ||||||||||||||
Air | 0.5Mpa | ||||||||||||||
Dimension L | 480mm | 580mm | 580mm | 780mm | 580mm | 680mm | 580mm | 680mm | |||||||
Dimension W | 420mm | 520mm | 620mm | 720mm | 520mm | 620mm | 720mm | 720mm | |||||||
Dimension H | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | |||||||
Weight | 50kg | 60kg | 70kg | 80kg | 75kg | 80kg | 80kg | 85kgv | |||||||
Features
1. Desktop type, can be placed on the production line.
2. Optional Full english marked machine body, to be international application.

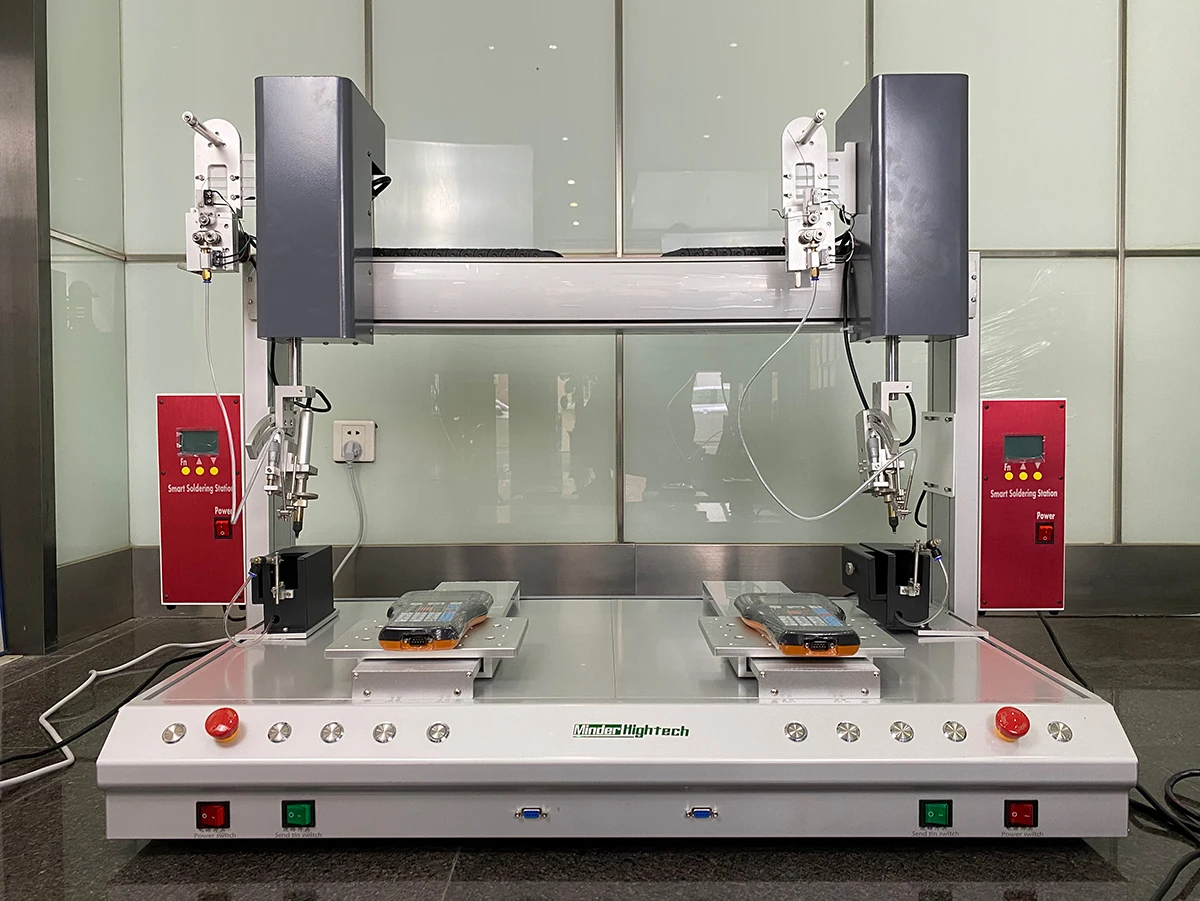

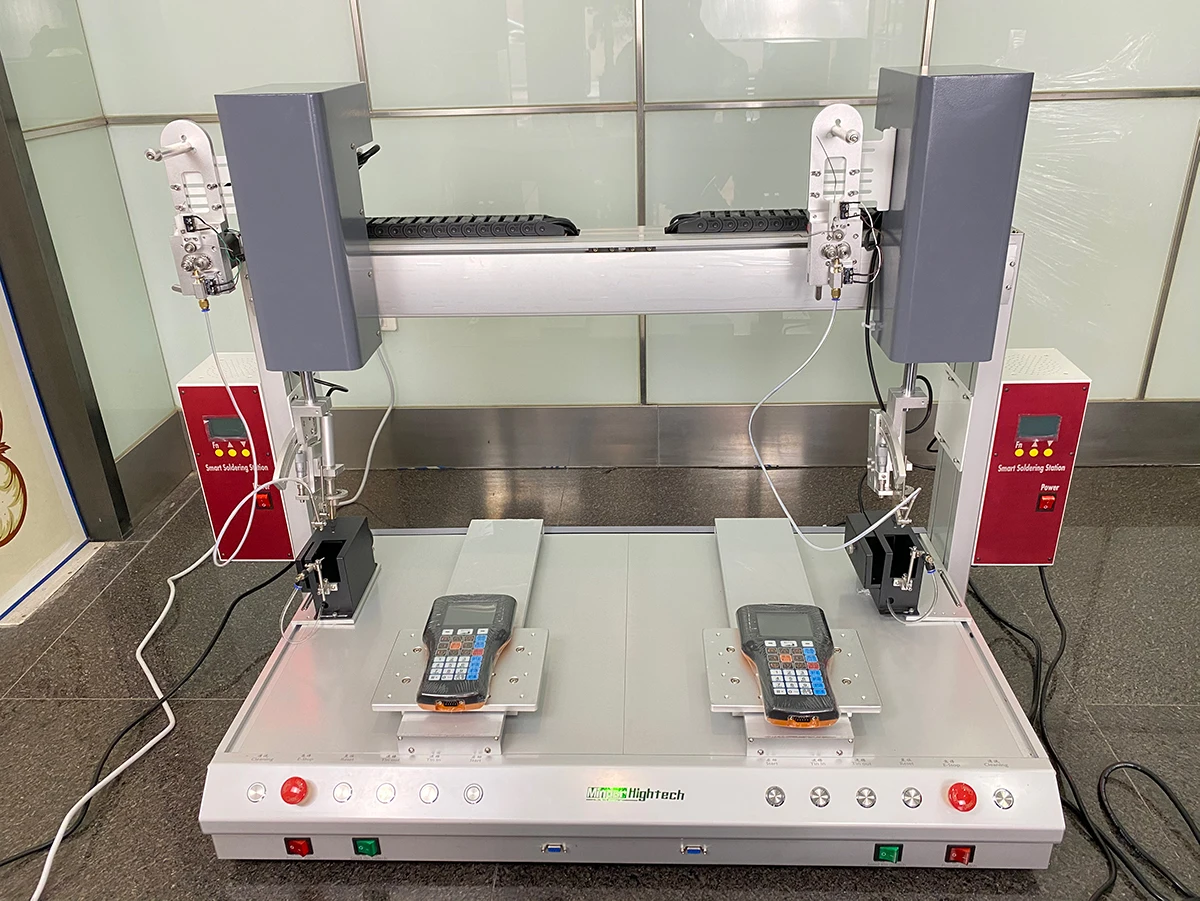

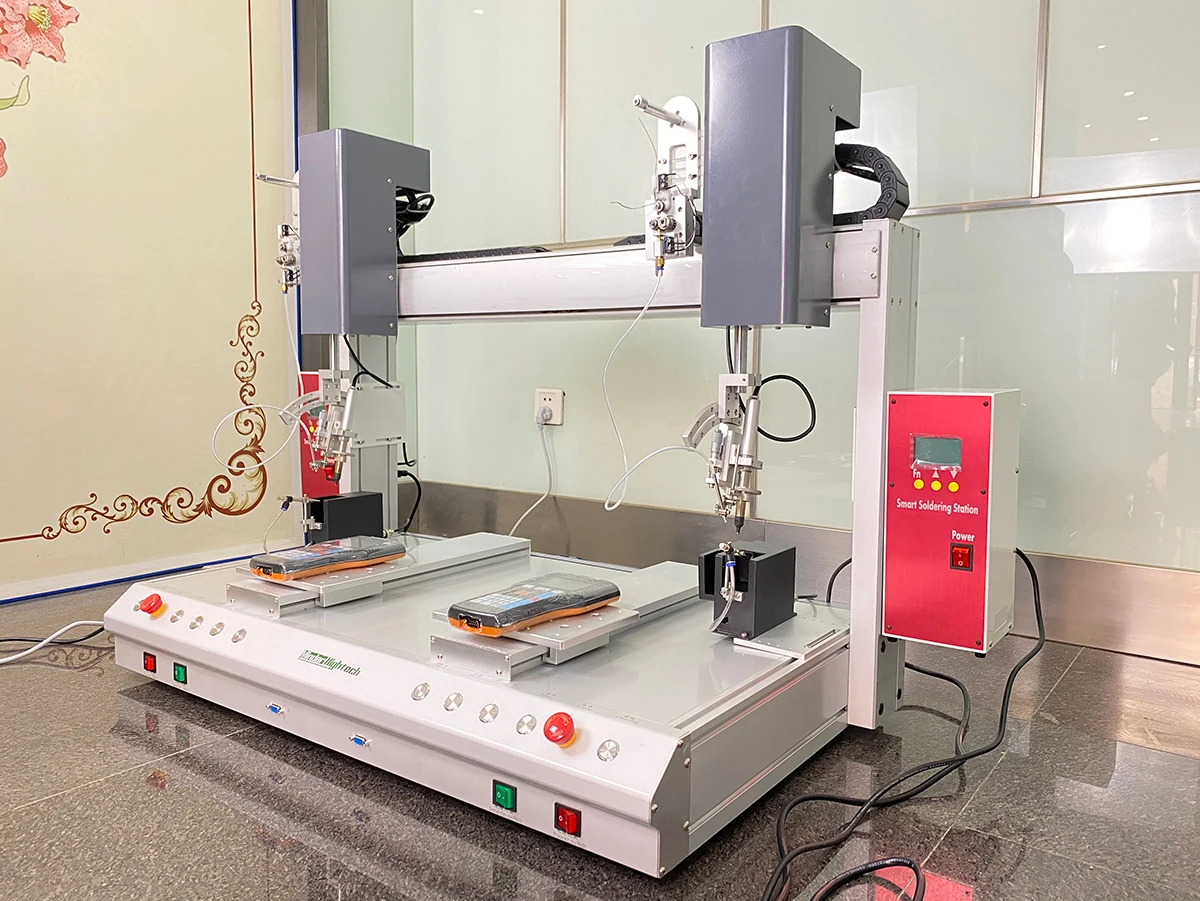

3. Double Y axis type, automatic working alternatively, saving the time of placing object.
4. Perfect soldering program, with spot/line/circle soldering function.

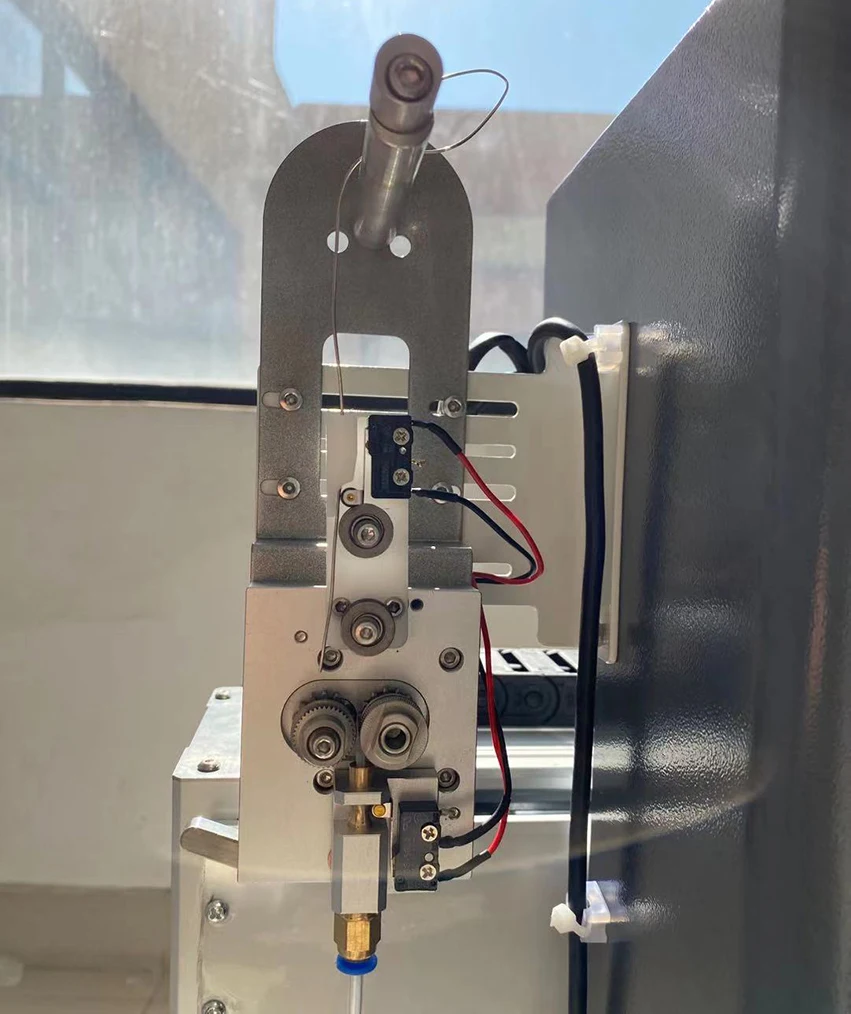

5. Can set the length of the Tin, pre-heat time, soldering time, height of backward.etc parameter.
6. With auto cleaning soldering tip function.
7. Interface both English and Chinese available.
8. Fixture and tooling available.
2. Optional Full english marked machine body, to be international application.
3. Double Y axis type, automatic working alternatively, saving the time of placing object.
4. Perfect soldering program, with spot/line/circle soldering function.
5. Can set the length of the Tin, pre-heat time, soldering time, height of backward.etc parameter.
6. With auto cleaning soldering tip function.
7. Interface both English and Chinese available.
8. Fixture and tooling available.

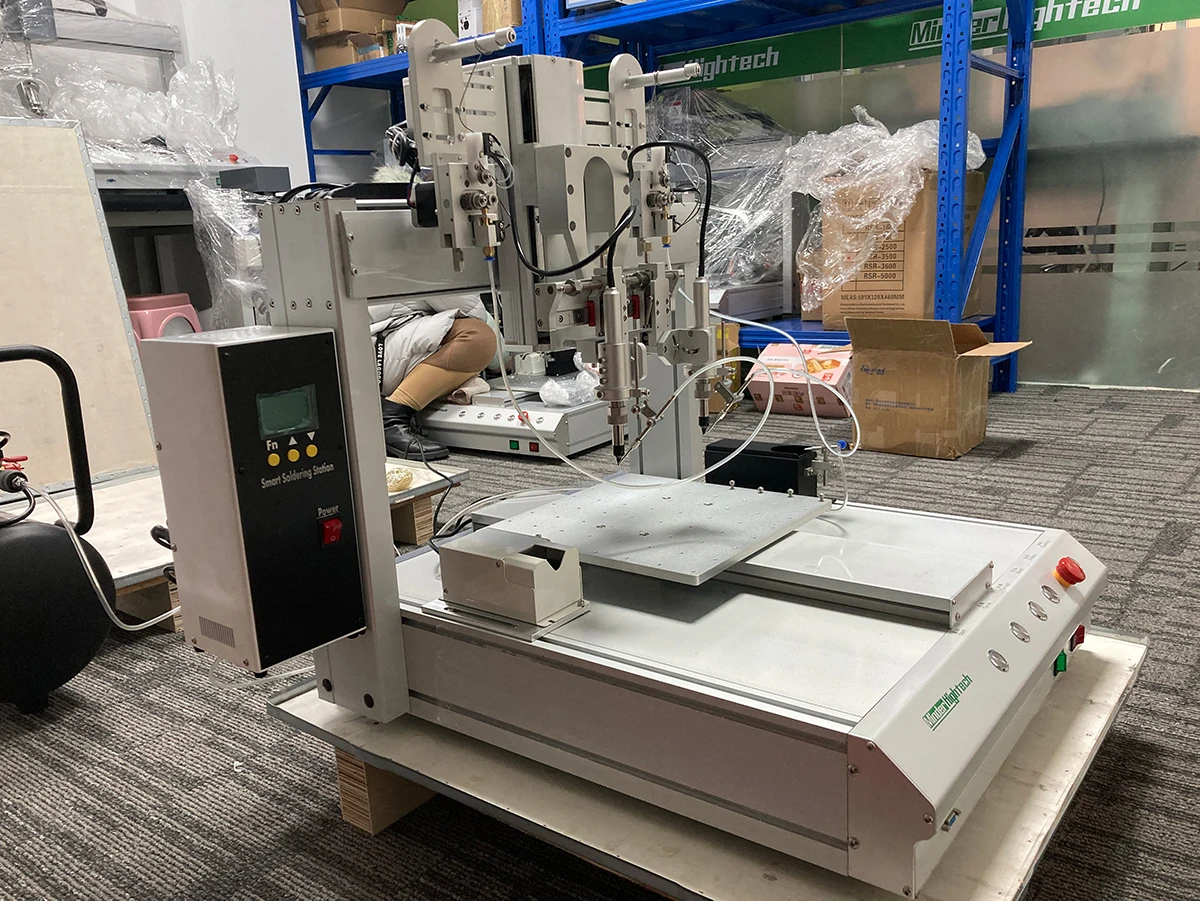

Packing & Delivery

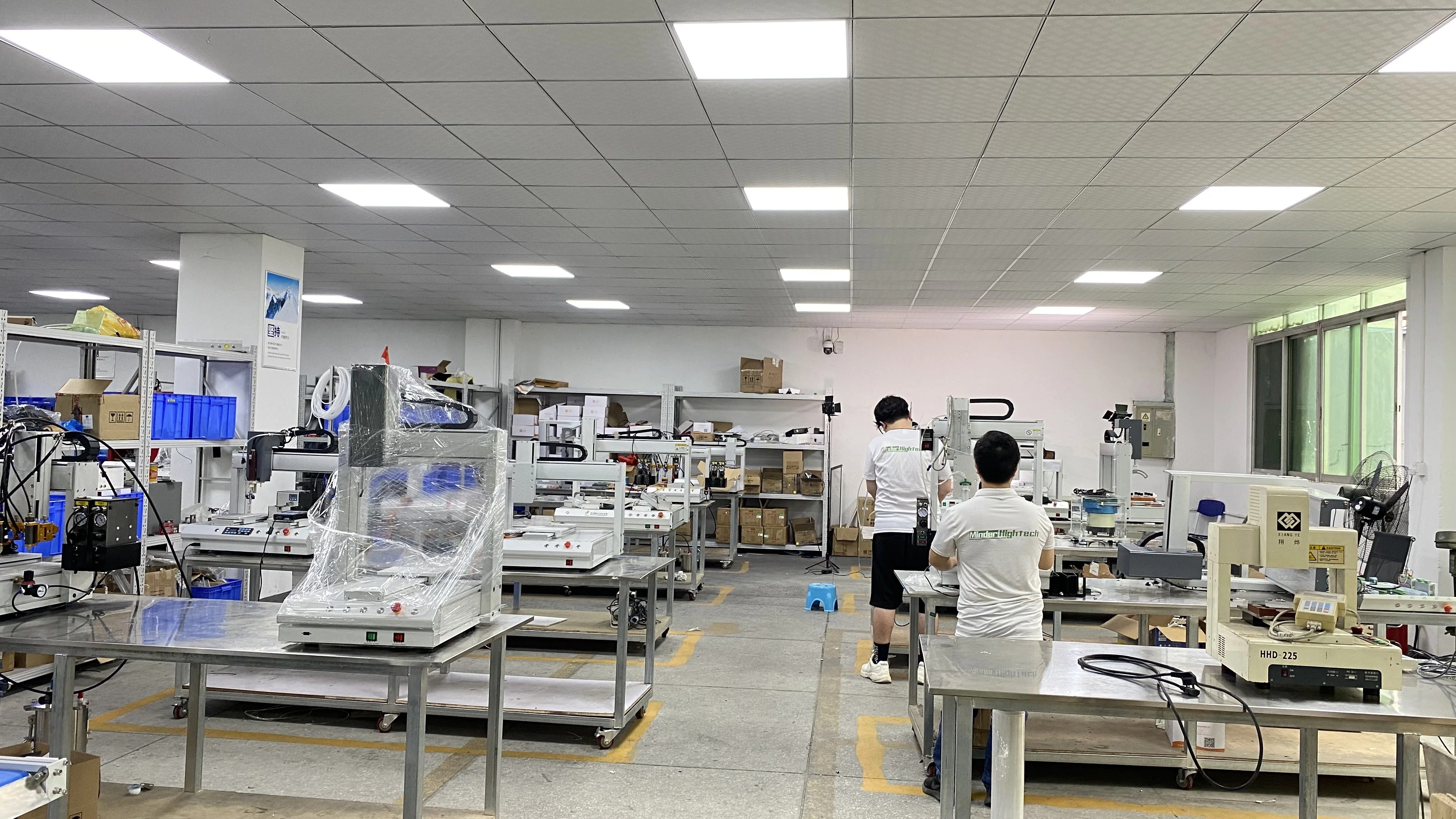

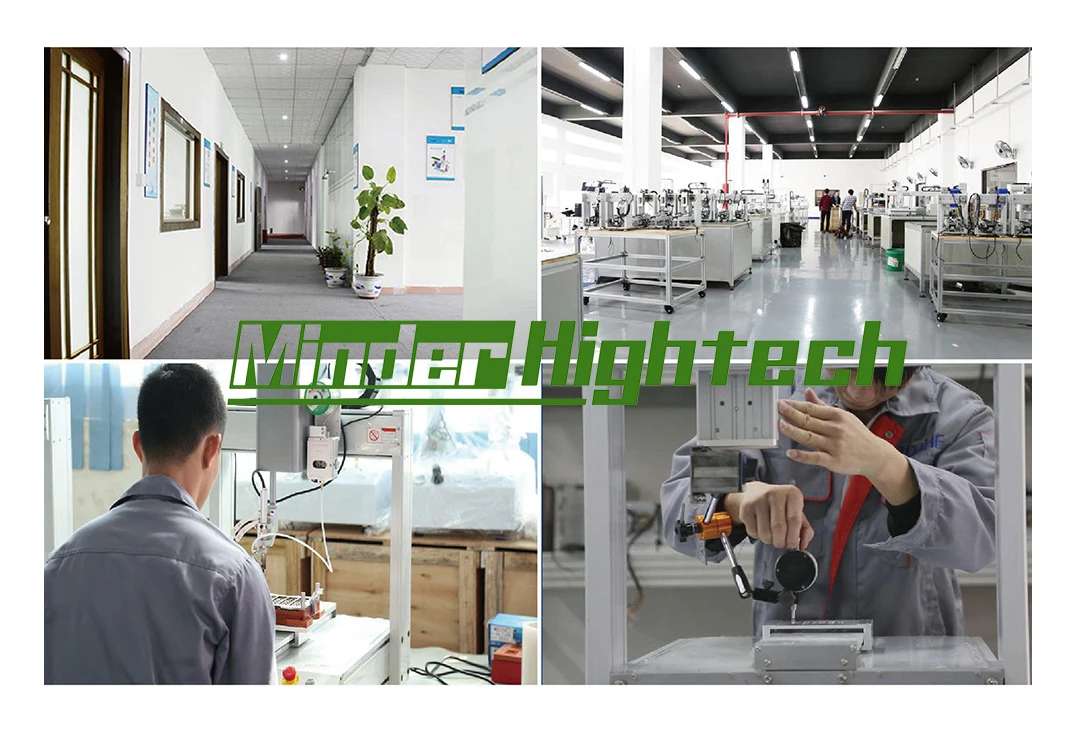

Our Factory
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(00.00%),Western Europe(00.00%),South
Asia(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South America(00.00%),Eastern Asia(00.00%),Northern Europe(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Soldering machine,Precision spot welding machine,Plasma cleaning machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
with ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2014,sell to North America(00.00%),Western Europe(00.00%),South
Asia(00.00%),Southeast Asia(00.00%),Mid East(00.00%),South America(00.00%),Eastern Asia(00.00%),Northern Europe(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Soldering machine,Precision spot welding machine,Plasma cleaning machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
with ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash;
Language Spoken:English,Chinese
Our services
1. Help customer analyze product project and provide welding solution.
2. Freely sample welding test.
3. Provide professional welding solution.
4. Skilled jig design services.
5. Provide shipping/delivery information checking service.
6. One year guarantee, all life maintain promise.
7. 24 hours feedback speed by email of others.
2. Freely sample welding test.
3. Provide professional welding solution.
4. Skilled jig design services.
5. Provide shipping/delivery information checking service.
6. One year guarantee, all life maintain promise.
7. 24 hours feedback speed by email of others.
