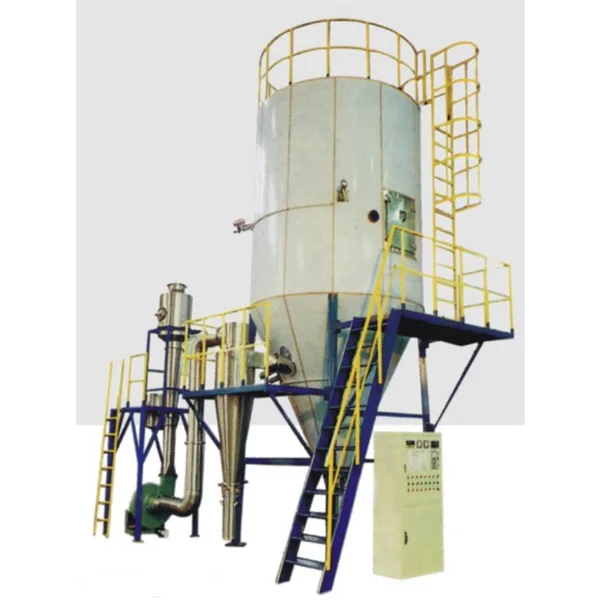

QPG Series Pharmaceutical spray dryer milk powder Air Stream Spray Dryer high efficiency spray dryer machine
- Category: >>>
- Supplier: Hangzhou Royal Pharmaceutical Equipment Co. Ltd.
Share on (11000005330337):
Product Overview
Description
ROYAL PHARM is strong producer and supplier for automizing Dryer, Spray dryer, Fluid bed dryer, Fluidized bed dryer, Vacuum dryer, Double conical revolving vacuum dryer, Box & Mesh Belt dryer, Vibration drying, Rotary Drum dryer, Spray drying granulator, Mixing & Grinding machine, Granulator and coater, Fluid-bed coater, Wet granulator, Pelletizer coater, Extrusion Granulator, Granulation coating machine, Film coating machine, Vacuum feeding machine, Cone mixer, Tablet making machine, Tablet press, Rotary tablet press machine, Vibrating Sieve and so on. We will supply to you the machine based on your special requirements.
Introduction.

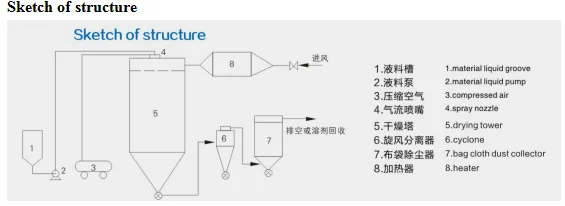

Principle of work
The clean air is heated and entered into the drying tower,the raw material inside the tower is automization and becomes mini liquid drops through nozzles of two or three liquids. The raw materials carry out heat exchange with the hot air rapidly to evaporate the moisture( solvent)in the raw materials. The moisture or solvent is discharged accompany with hot air, then got the powder product is.
The clean air is heated and entered into the drying tower,the raw material inside the tower is automization and becomes mini liquid drops through nozzles of two or three liquids. The raw materials carry out heat exchange with the hot air rapidly to evaporate the moisture( solvent)in the raw materials. The moisture or solvent is discharged accompany with hot air, then got the powder product is.
Features
◆ It is better for raw materials that are large inviscosity and grease.
◆ More varieties and wipe application in drying with lower temperature .
◆The nozzle is simple in structure,convenient in maintenance and lower cost in operation.
◆ It is better for raw materials that are large inviscosity and grease.
◆ More varieties and wipe application in drying with lower temperature .
◆The nozzle is simple in structure,convenient in maintenance and lower cost in operation.
Parameters/ Model | 5 | 25 | 50 | 100 | 150 | 200 | ||||||
△t=150℃~90℃ | 1.5 | 7.5 | 15 | 30 | 45 | 60 | ||||||
△t=200℃~100℃ | 2.5 | 12.5 | 25 | 50 | 75 | 100 | ||||||
△t=250℃~100℃ | 3.75 | 18.75 | 37.5 | 75 | 112.5 | 150 | ||||||
△t=300℃~100℃ | 5 | 25 | 50 | 100 | 150 | 200 | ||||||
△t=350℃~110℃ | 6 | 30 | 60 | 120 | 200 | 240 | ||||||
compressed air (m³/min) | 0.9 | 0.9 | 1.1 | 1.5 | 2.7 | 3.4 | ||||||
pressure of air (Mpa) | 0.4 | 0.6 | 0.7 | |||||||||
heat resource | electric，Electricity+ steam，Electricity+ steam,fuel,gas，Hot blast stove | |||||||||||
consumption of heating (10℃ KCal/h) | 1 | 5 | 10 | 20 | 30 | 40 | ||||||
power (Kw) | 0.75 | 4 | 7.5 | 11 | 15 | 18.5 | ||||||
Notes:1.If the power of equipment should be more than 200 type,it can be designed and manufactured in accordance with the requirements of customers. 2.The power of fan is suitable for standard flow chart.If add the cloth to remove dust or recover solvent,it should be increased. | ||||||||||||
