TSD Shenzhen Leading Manufacturer 3.5 inch 320*480 TFT LCD Display Module with CTP/RTP for PDA/POS/industrial device
- Category: >>>
- Supplier: Shenzhen Team Source Display Technology Co. Ltd.
Share on (11000005356784):
Product Overview
Description
SPEC
Size | 3.5 inch diagonal | LCD Type | a-si TFT, Transmissive, Normally black, IPS |
Resolution | 320*480 | Active Area | 48.96 (W) x 73.44(H) mm |
Interface | RGB/SPI/MCU | Outline Dimension | 53.76(W) x 84.18(H) x 2.1(D) |
Brightness | 380 nits | Pixel Arrangement | RGB-stripe |
Contrast | 700:1 | Pixel Pitch | 0.153 x 0.153 |
Driver IC | ili9488 | Backlight Type | 8 LEDs |
Viewing Angle | 80 80 80 80 Deg | Voltage for backlight | 3.2V (typ.) |
Transmittance | 2% | Touch Screen | CTP/RTP is optional |
Working Temp | -20/+70℃ | Surface Hardness | ≥6H |
Storage Temp | -30/+80℃ | Cover Lens | AG AR AF |
CTP Touch Input | 5/10 points | Customization | interface/FPC/TP/brightness |
Product

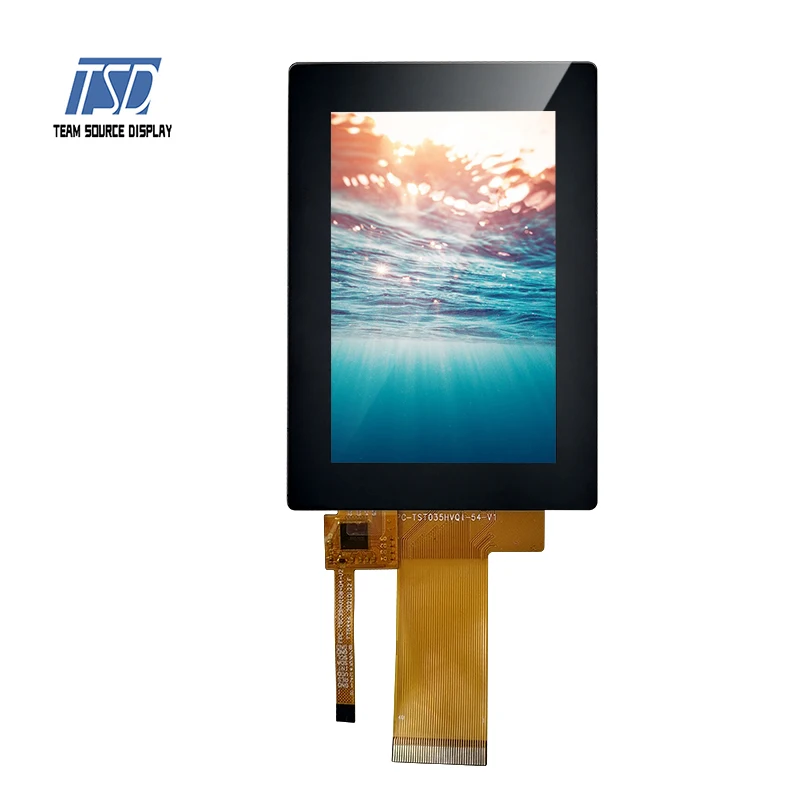

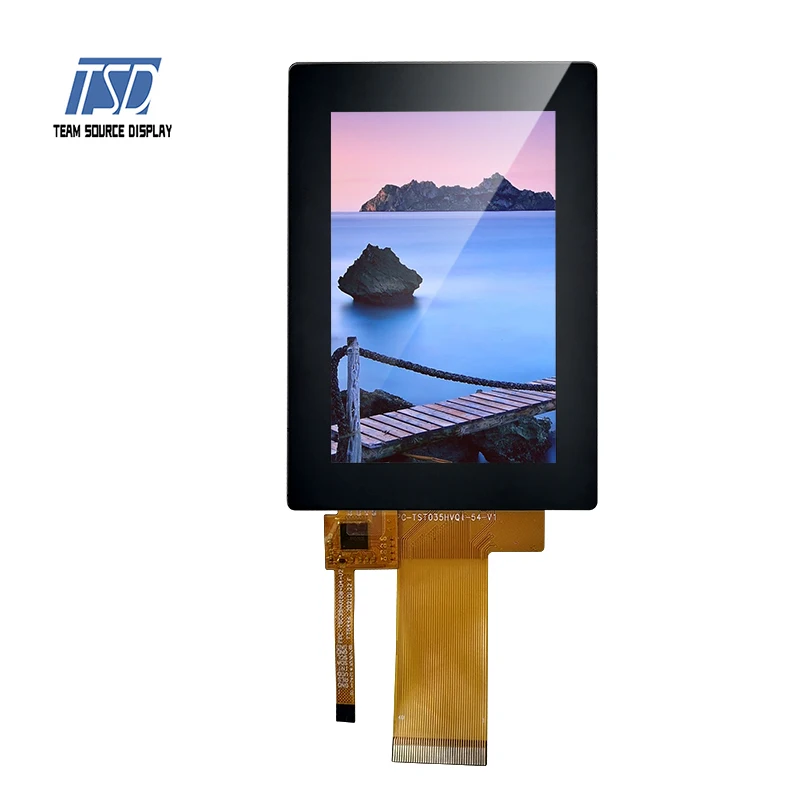

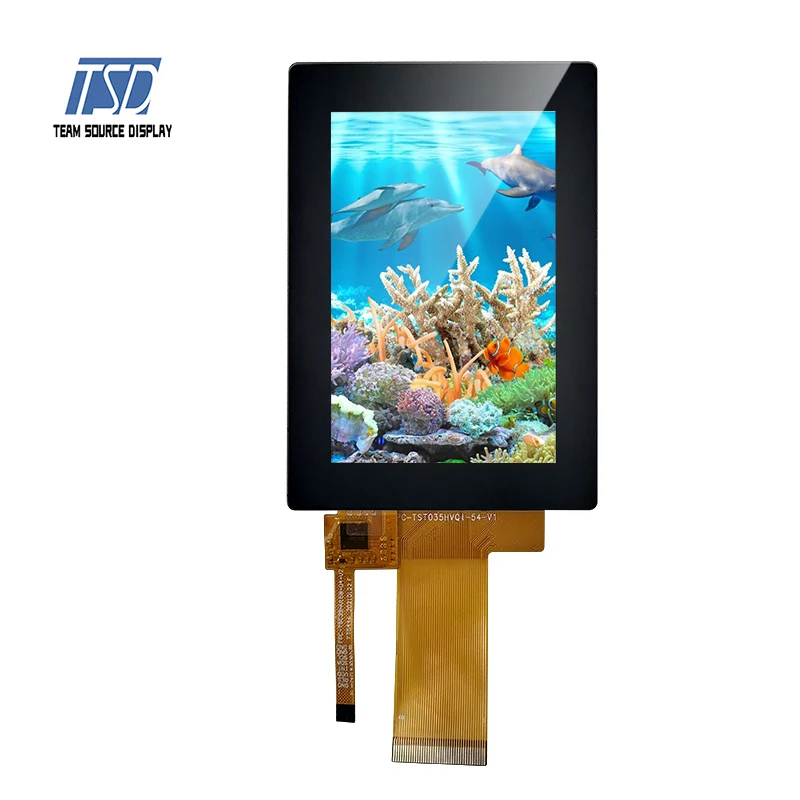

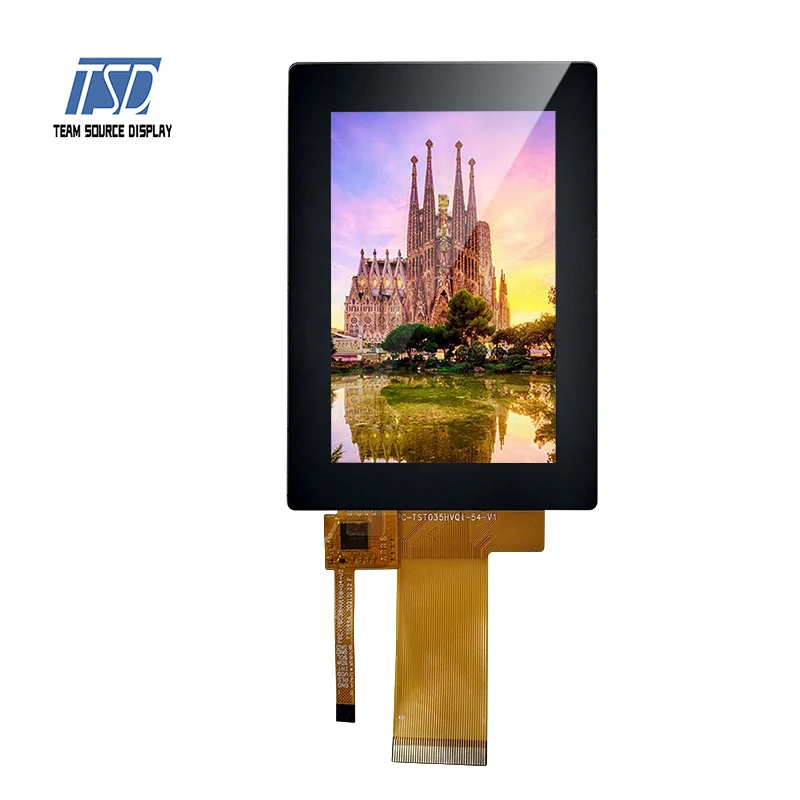

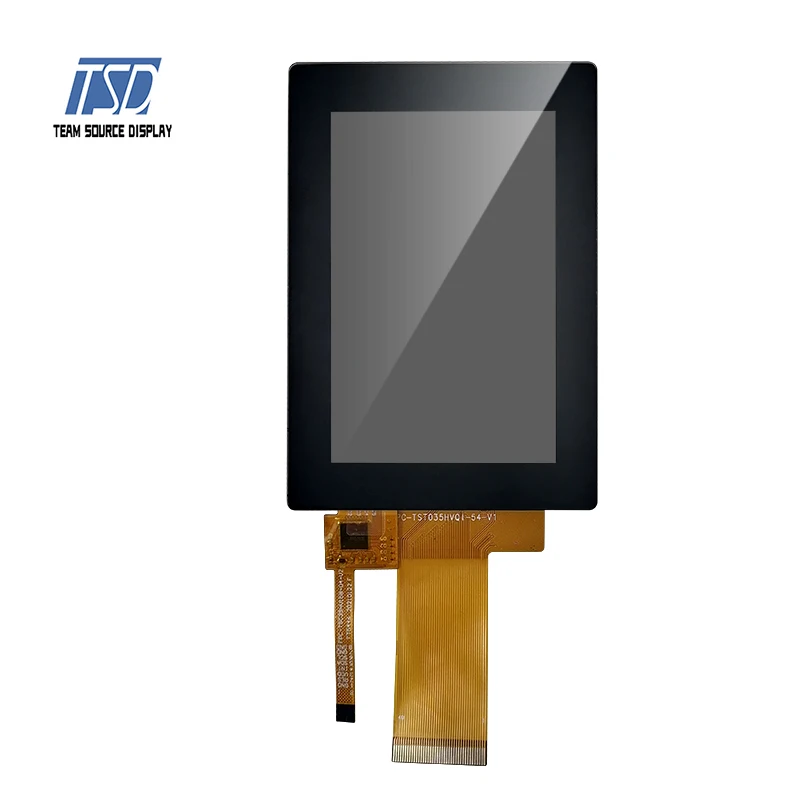

front view

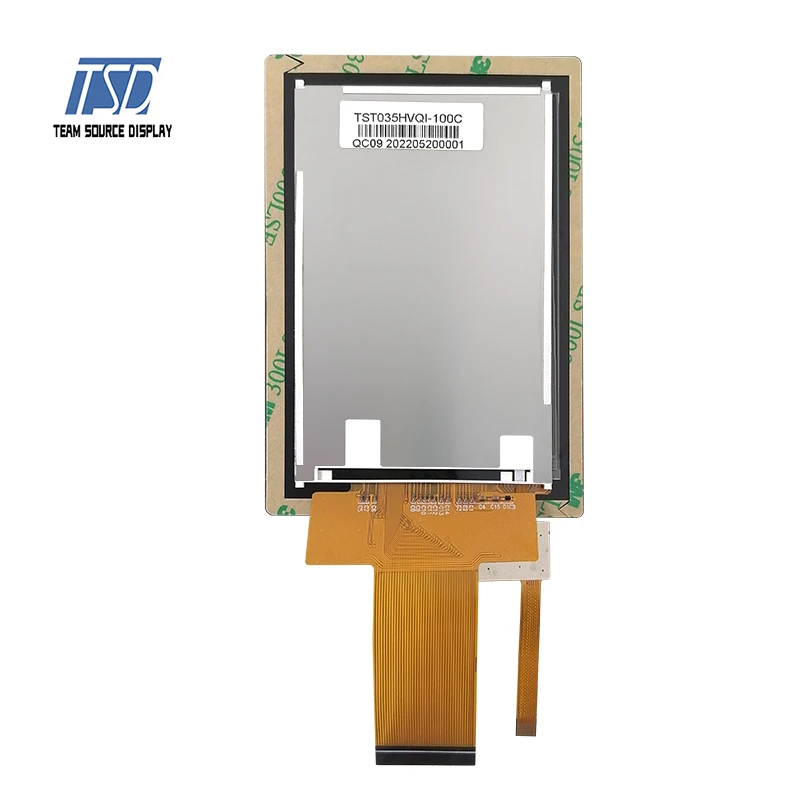

back view
Introduction
This standard 3.5 inch LCD module is suitable for PDA, pos machine and electronic game consoles and more on.
Type: a-si TFT, transmissive, normally black, IPS
Resolution: 320*480
Luminance: 380 nits
Active Area: 48.96 (W) * 73.44(H) mm
Outline Dimension: 84.18(W) * 53.76(H) * 2.1(D) mm
Interface: MCU /SPI /SPI+RGB
Viewing Direction: All o'clock 80 /80 /80 /80 Deg
Color Depth: 65K
Input Voltage: 2.8V
Backlight Voltage: 3.2V
Backlight Type: 8 LEDs
Surface Treatment: ≥6H
Driver IC: ili9488
Touchscreen: capacitive touch/resistive touch
CTP driver IC: FT5446DQS
Brand: TSD (Team Source Display)
Supplier Type: Leading LCD manufacturer in Shenzhen
Established: in 2004
Certificate: IATF 16949 / ISO 13485 / REACH / RoHS / ISO 9001
Factory Area: 12000+ m2
Employee: 155 members
Main Product: color TFT LCD, touch screen, cover lens, custom made, monochrome LCD display, HMI LCD display etc
3.5" Models
3.5 inch TFT Module Part No.
3.5 inch | Res | Interface | Luminance | Outline (mm) | Driver IC | Remarks |
TST035QVHS-46 | 320*240 | 24BIT RGB | 300 | 77x64x3.0 | ST7272A | / |
TST035QVHS-46B | 320*240 | 24BIT RGB | 700 | 77x64x3.2 | ST7272A | / |
TST035QVHS-46E | 320*240 | 24BIT RGB | 1000 | 77x64x3.2 | ST7272A | / |
TST350MLQZ-06 | 320*240 | RGB+SPI | 380 | 76.90x63.90x3.2 | SSD2119 | / |
TST035QVLS-80C | 320*240 | MCU+RGB+SPI | 300 | 76.90x63.90x3.2 | SSD2119 | with TP |
TST350MTQV-01B | 320*240 | RGB | 320 | 76.90x63.90x3.2 | NV3035 | / |
TST035QVIH-28B | 320*240 | RGB | 350 | 76.75x63.7x3.27 | HX8238-D | / |
TST035QVIH-78C | 320*240 | RGB | 320 | 76.9x63.9x3.27 | HX8238-D | with CTP/RTP |
TST035QVGS-43 | 240*320 | MCU 8 bit | 900 | 64.16x83.39x3.8 | ST7512 | mono |
TST350MTQI-02 | 240*320 | RGB 18 bit+SPI | 115 | 64.00x85.00x3.0 | ILI9341 | transflective |
TST350FPQI-02 | 320*240 | RGB 18 bit+SPI | 115 | 85.00x64.00x3.0 | ILI9341 | transflective |
TST035HVSI-41 | 320*480 | MCU/RGB | 320 | 54.48 x 84.7x2.3 | ILI9488 | / |
TST035HVSI-53 | 320*480 | MCU | 285 | 54.50x83.00x2.4 | ILI9488 | / |
TST035HVSI-29B | 320*480 | MCU | 210 | 54.50x83.00x2.4 | ILI9488 | / |
TST035HVQI-45 | 320*480 | MCU/SPI+RGB/SPI | 300 | 53.76x84.18x2.1 | ILI9488 | / |
TST035HVQI-54 | 320*480 | MCU/SPI+RGB/SPI | 480 | 53.76x84.18x2.1 | ILI9488 | / |

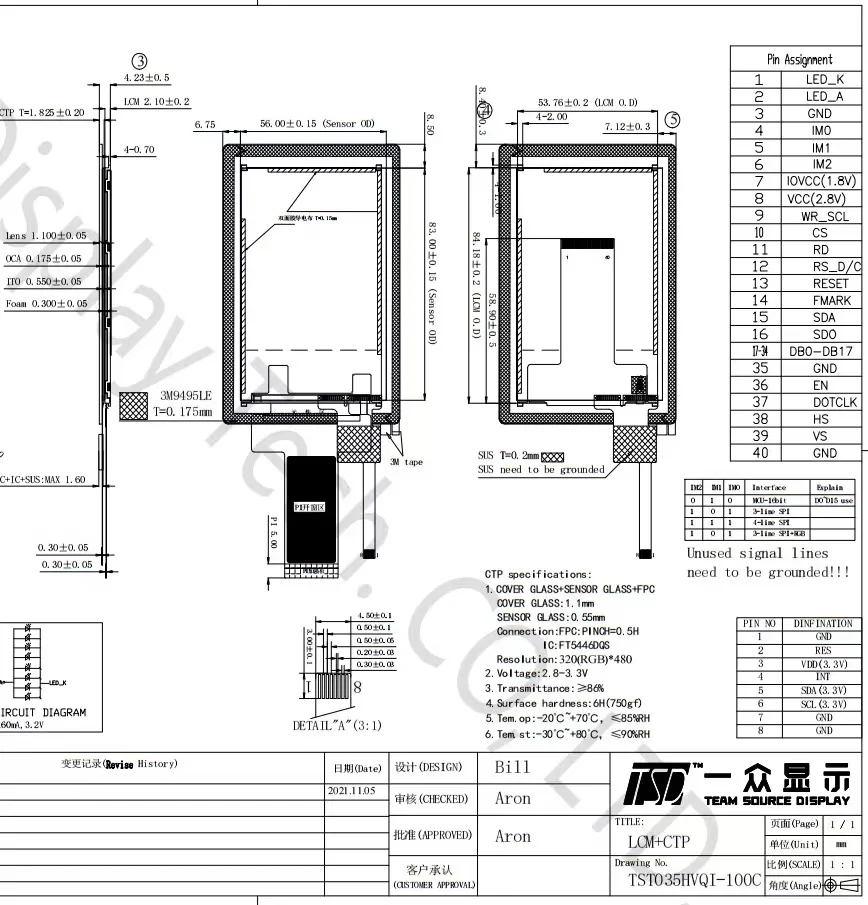

TST035HVQI-100C | 320*480 | MCU/SPI+RGB/SPI | 380 | 68x100x4.23 | ILI9488 | with CTP/RTP |
TST035HVSI-53 | 320*480 | MCU | 285 | 54.50x83.00x2.4 | ILI9488 | / |
TST035HVSI-84C | 320*480 | MCU | 220 | 68x100x2.4 | ILI9488 | / |
TST035WVBS-53 | 340*480 | 16 BIT RGB | 330 | 37.27x89x1.6 | ST7701S | / |
TST035WVBS-66 | 480*800 | MIPI | 380 | 51.16x87.35 | ST7701S | Working temp: -10 to 60℃ -20 to 70℃ -30 to 85℃ |
Still developing some other new models for different needs.
Factory
● Leading tft lcd manufacturer in SZ
● 18+ years R&D ability● 12000+ m2 factory area
● Work with top 500 companies
● ISO 9001/ ISO 14001
● ISO 13485 for medical device
● IATF 16949 for automotive display
● Europe local support
Established in 2004, Team Source Display main product is standard TFT lcd and custom made lcd for clients from home and abroad. Besides, we custom and manufacture touchscreen (CTP/RTP), backlight and driver board etc.
Our good-quality TFT lcd module are used in handheld device, smart home, automotive display, POS, ATM, industrial control, smartphone, medical display, IoT application and more on.
We work with top 500 companies such as ABB (Italy), and many big companies such as Sheinaider, Chery and Shunfeng -the biggest and leading express company in China. Product is REACH/RoHS/ISO 13485/IATF 16949 certified.
Warmly welcome to talk your needs for custom LCD project.
Factory Image

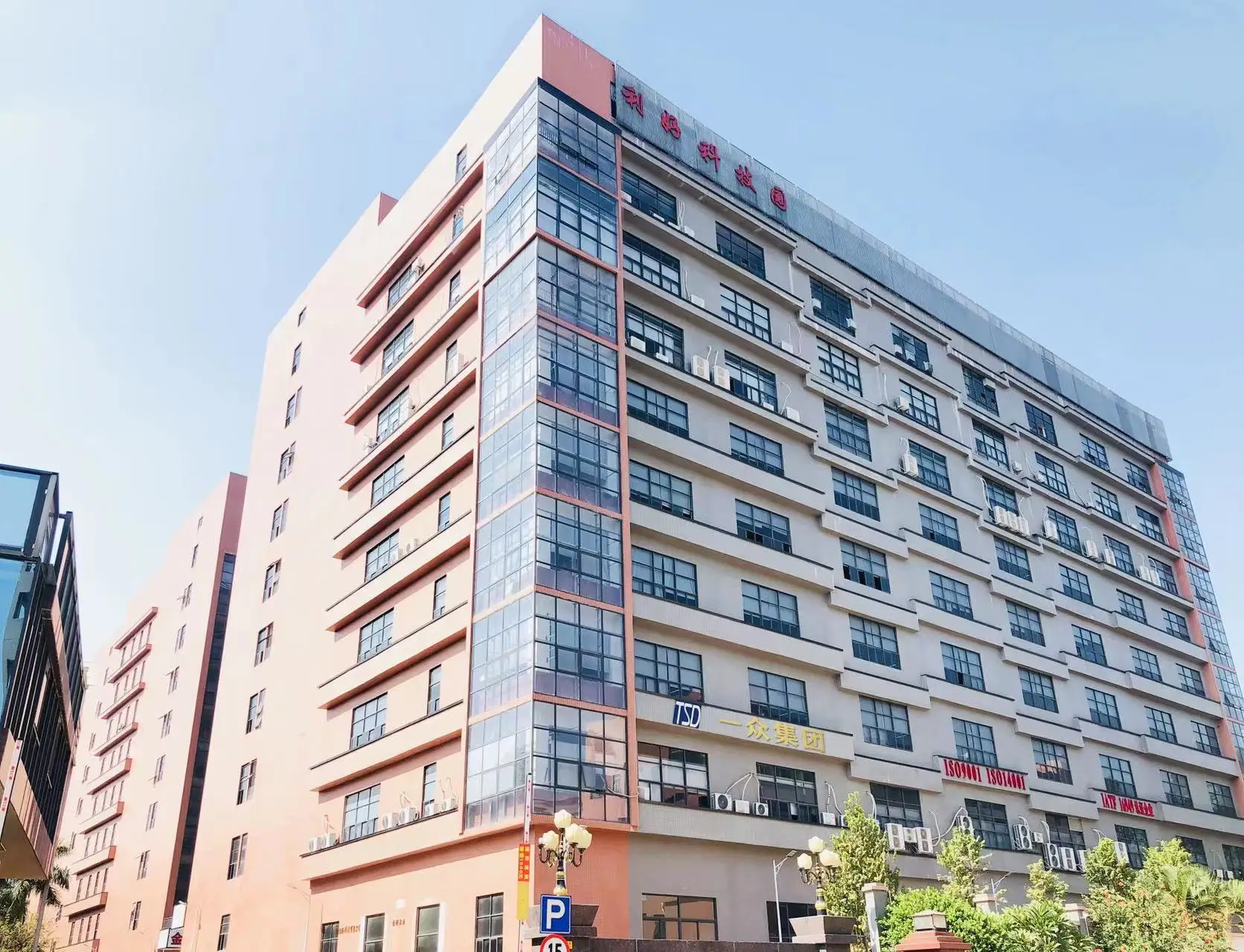

Factory Building

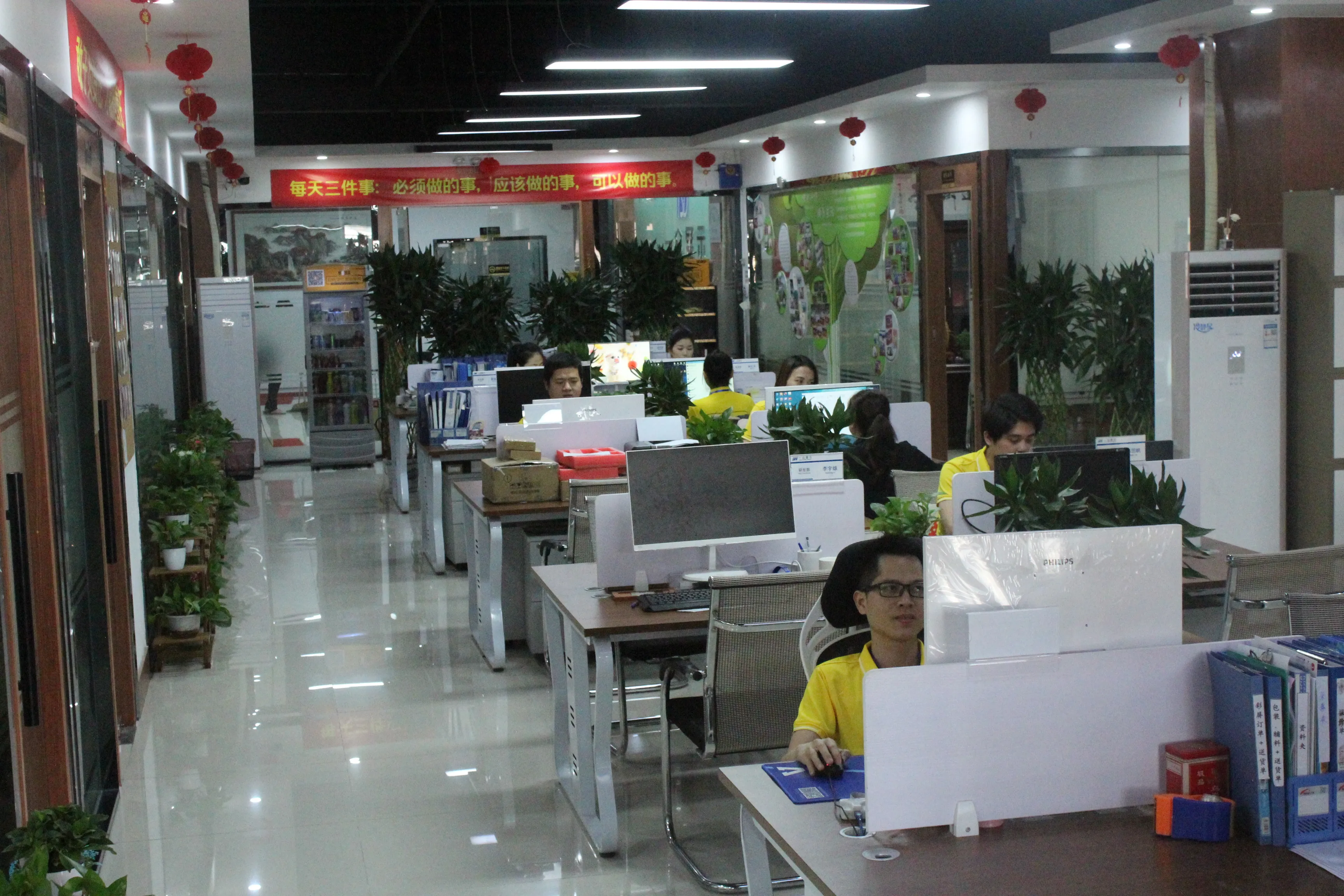

Reception Hall
Assemble Line
More

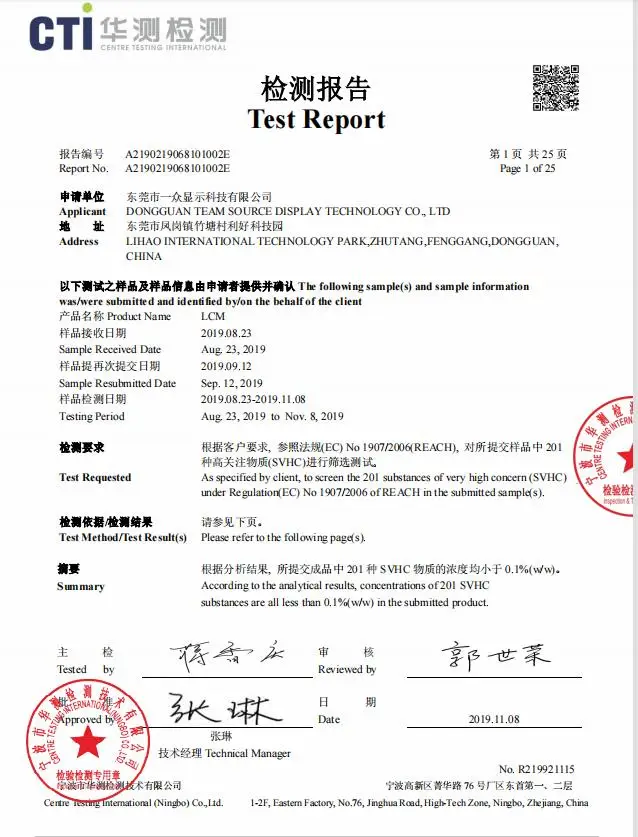

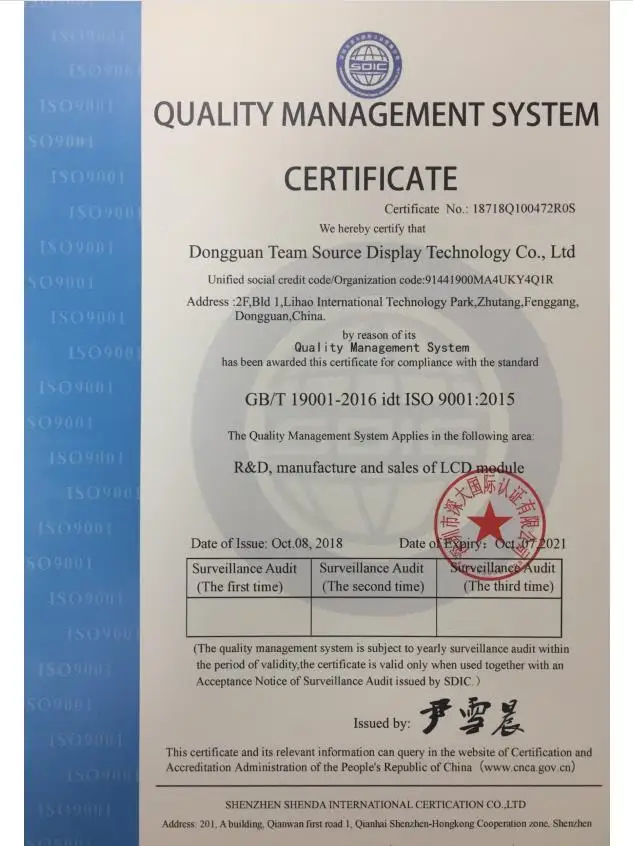

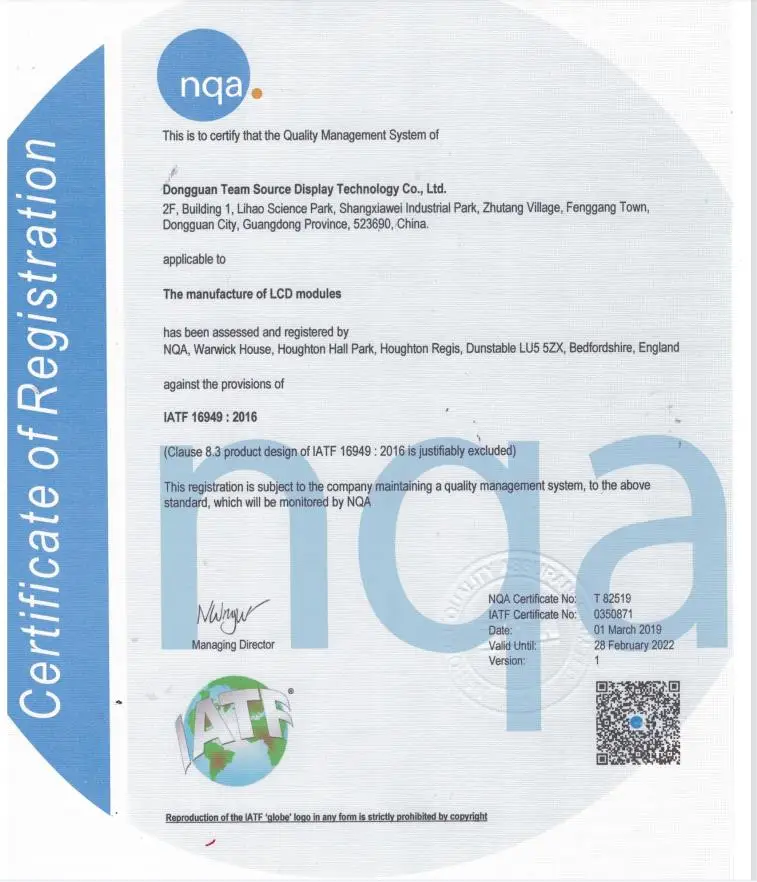

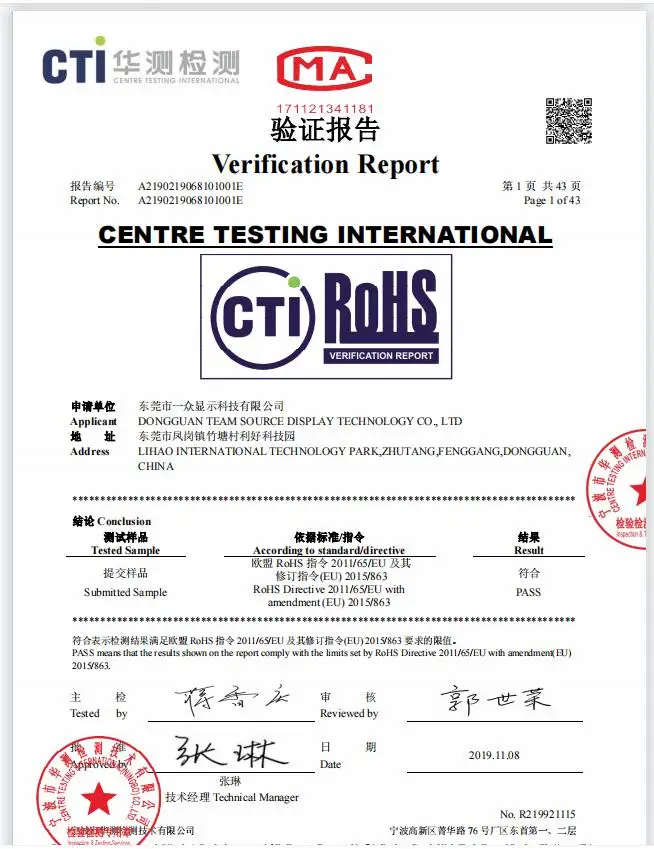

Certificate IATF 16949 / ISO 13485 / ISO 9001 / RoHS / REACH
Applications
PDA & tablet
POS
communication
medical display
smart home& white goods
automotive display
military
airplane
Also many other applications, such as marine display, industrial display, infotainment display, HMI etc
Cooperated Customers
FAQ
1. What's your product?
Our product includes TFT LCD, LCD modules, touch screen and related accessories, such as driver board etc, as well as custom-made
LCD solutions.
2. Are you manufacturer or trader?
We are the leading LCD manufacturer in China since 2004.
3. Do you have R&D abilities?
Yes, we have 10 professional engineers stand up for your project.
4. What certification do you have?
IATF 16949 / ISO 13485 / RoHS / REACH / ISO 9001 etc
5. What's your customization item?
The full custom made LCD solutions: size, interface, brightness, FPC, touchscreen, cover lens, HDMI Board, UART display.
6. What's your MOQ?
For stock item, MOQ is 1 piece.
For customed item, MOQ is 1000 pieces.
Our product includes TFT LCD, LCD modules, touch screen and related accessories, such as driver board etc, as well as custom-made
LCD solutions.
2. Are you manufacturer or trader?
We are the leading LCD manufacturer in China since 2004.
3. Do you have R&D abilities?
Yes, we have 10 professional engineers stand up for your project.
4. What certification do you have?
IATF 16949 / ISO 13485 / RoHS / REACH / ISO 9001 etc
5. What's your customization item?
The full custom made LCD solutions: size, interface, brightness, FPC, touchscreen, cover lens, HDMI Board, UART display.
6. What's your MOQ?
For stock item, MOQ is 1 piece.
For customed item, MOQ is 1000 pieces.
7. What's your delivery time for stock item?
Normally 3 days.
8. What's your delivery time for customization sample?
25-30 days.
9. What's your delivery time for mass production?
< 5,000 pieces: 20 days
< 20,000 pieces: 30 days
10. What is your production capacity?
8KK per month
11. Why choose TSD display?
Normally 3 days.
8. What's your delivery time for customization sample?
25-30 days.
9. What's your delivery time for mass production?
< 5,000 pieces: 20 days
< 20,000 pieces: 30 days
10. What is your production capacity?
8KK per month
11. Why choose TSD display?
● 18+ years R&D manufacturer
● 12000+ m2 factory area
● Work with top 500 companies
● ISO 9001:14001
● ISO 13485 for medical device
● IATF 16949 for automotive display
● Europe and North America local support
● 12000+ m2 factory area
● Work with top 500 companies
● ISO 9001:14001
● ISO 13485 for medical device
● IATF 16949 for automotive display
● Europe and North America local support
