Toothbrush Injection Molding Machine High Quality Automatic Plastic Toothbrush Cup Injection Molding machine

Product Overview

Description

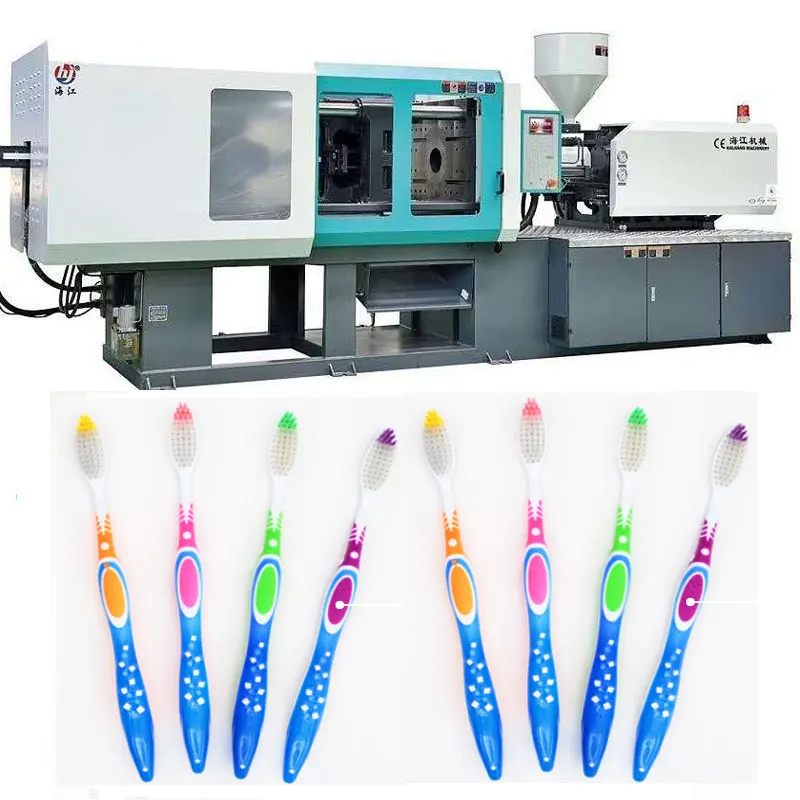

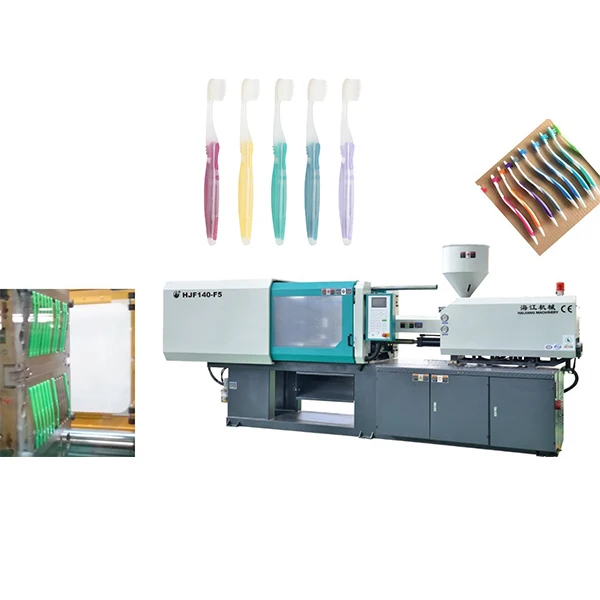

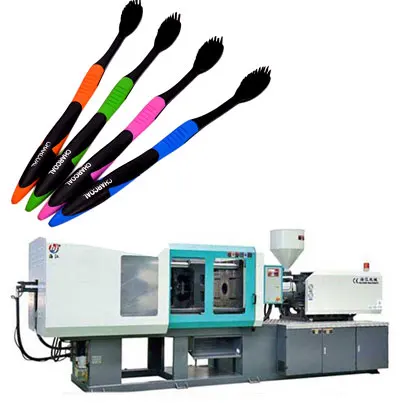

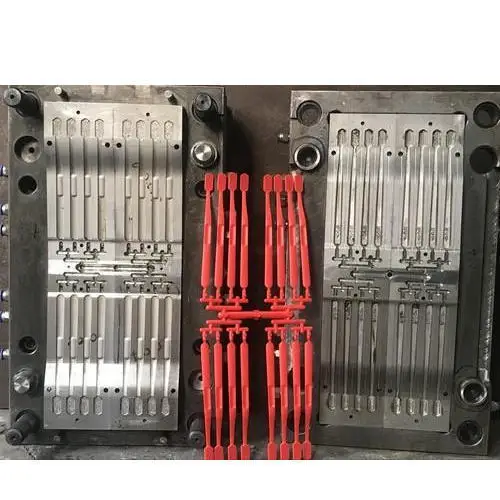

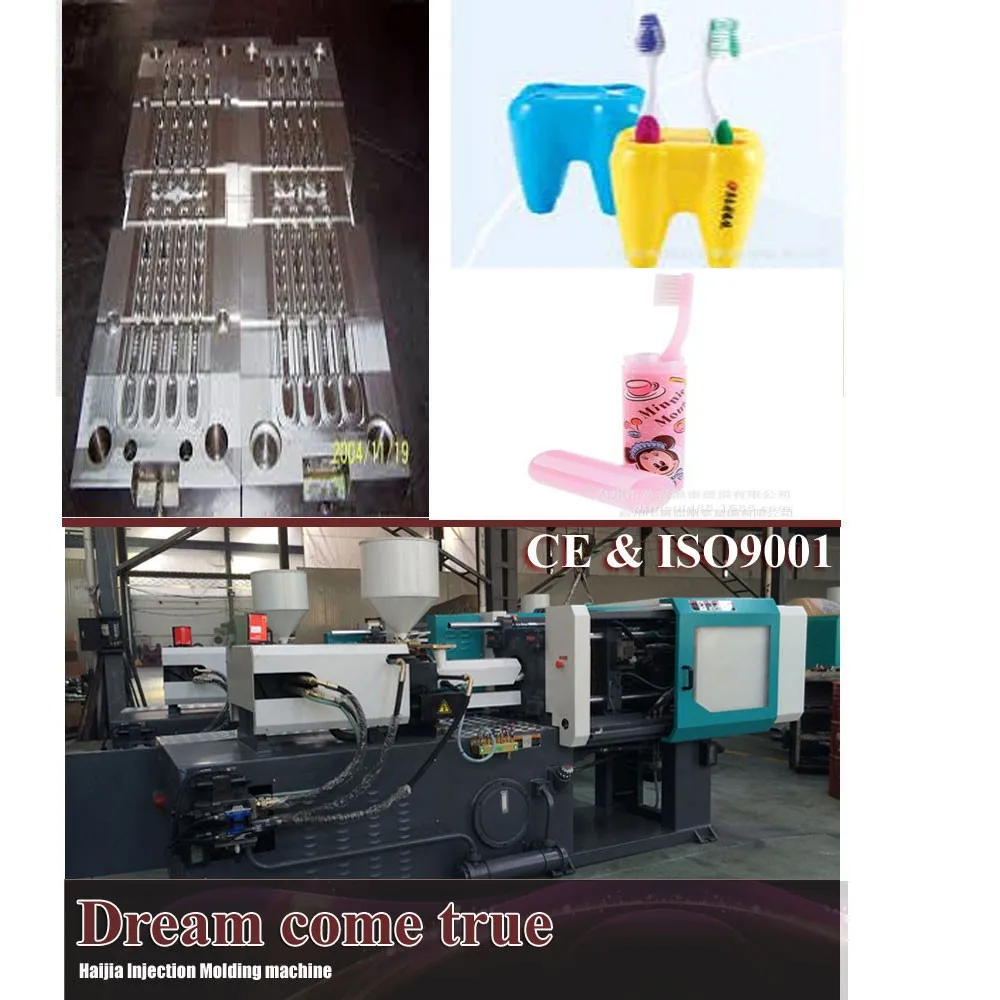

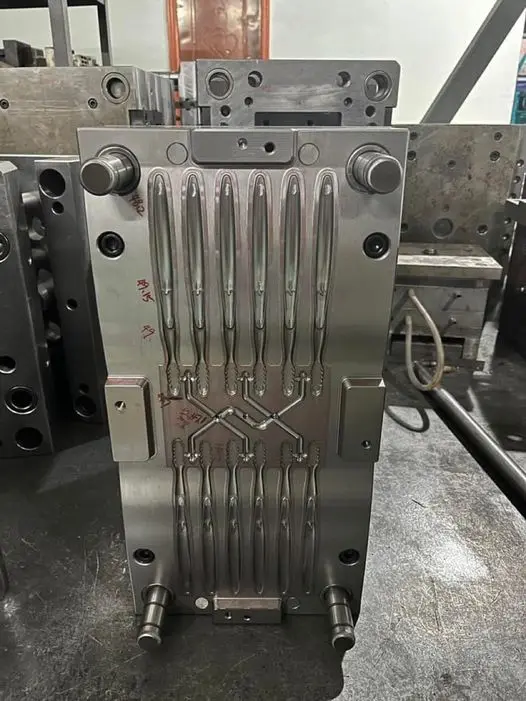

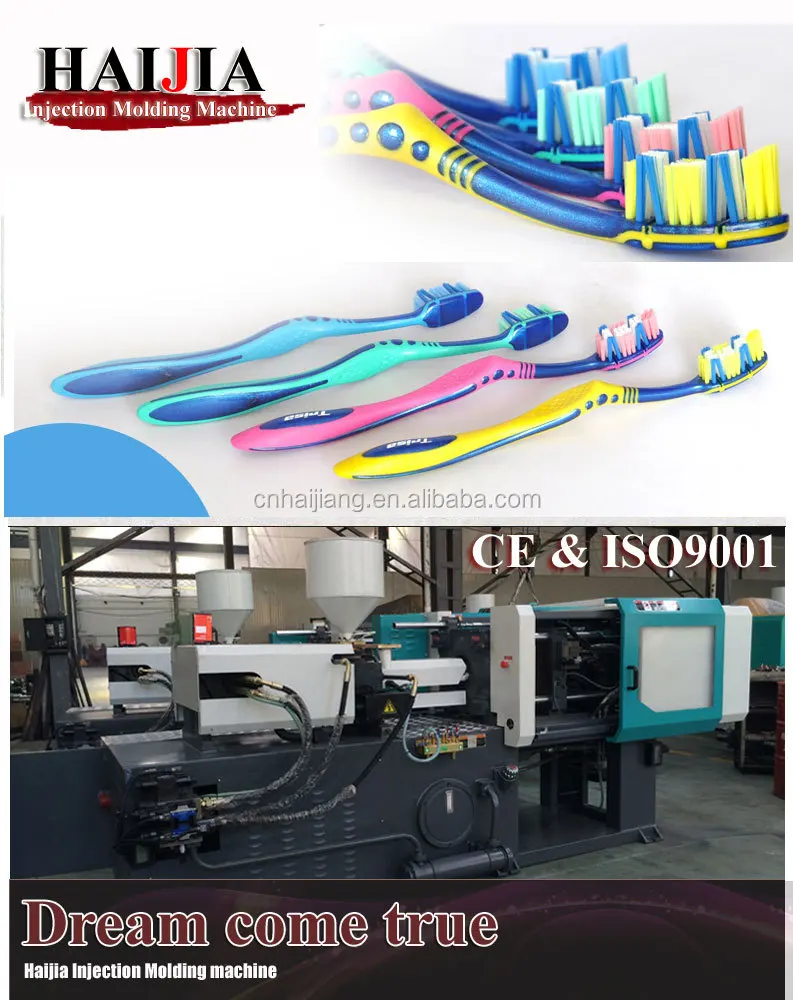

Toothbrush Injection Molding Machine High Quality Automatic Plastic Toothbrush Cup Injection Molding machine



I Description:

This machine is used for making toothbrush handles with one color.

II Main technical data

Model		Unit	HJV-400
Injection system	Screw diameter	mm	35
	Injection pressure	kg/cm	1209
	Max. shot weight(PS)	g	112
	Max. shot weight(PS)	OZ	3.9
	Injection rate	cm3/sec	173
	Number of temperature control	-	4
	Material hopper capacity	L	15
clamping system	Clamping force	tons	40
	Mold opening force	tons	8.3
	Upper plate size	mm	530 x 380
	Lower plate size		580 x 430
	Distance between the die-bar	mm	400 x 250
	Min. mold height	mm	160/220
	Opening stroke	mm	180
	Max. opening daylight	mm	320/380
	Ejector force	tons	1.1
	Ejector stroke	mm	39
Hydraulic and power system	Max. hydraulic pressure	kg/cm2	140
	Oil reservoir capacity	L	130
	Cooling water consumption	L/h	400-600
	Pump motor power	kW	5.5
	Barrel heating power	kW	3.5
	Total power	kW	9
Others	Machine weight	tons	1.2
	Machine dimension (L×W×H)	m	1.7×1.1×2.3

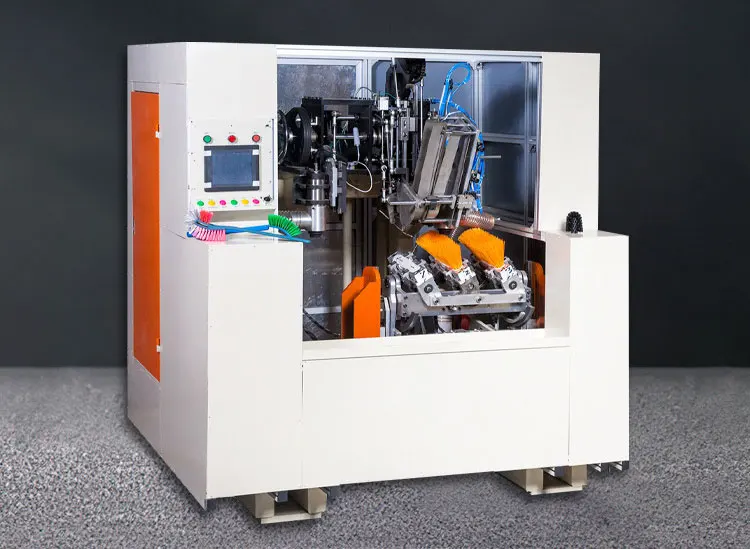

High Speed Toothbrush Hair Tufting Machine



I Description:

This machine is used for tufting toothbrush hair.



II Main technical data

Name	Data
Voltage	220V, single phage, 50Hz.
Brake motors	0.37kW
Transducer	750W
Rotate speed	750-800rpm
Suitable color number	2 colors
Servo motor power	0.4kW x 4
Machine dimension	1150 x 1050 x 1350mm
Machine weight	610kg



Toothbrush hair grinding machine



I Description:

This machine is used for grinding toothbrush hair to be radian.

II Main technical data

Parts name	Voltage	Power	Quantity
Cleaner	380V, 3phase, 50Hz.	3kW	1
Rotation Motor	380V, 3phase, 50Hz.	0.75kW	1
Turning motor	380V, 3phase, 50Hz.	0.75kW	1
Cutting hair motor	220V, single phase, 50Hz.	0.25kW	2
Grinding dish motor	220V, single phase, 50Hz.	0.09kW	6
Grinding speed	32pcs/min

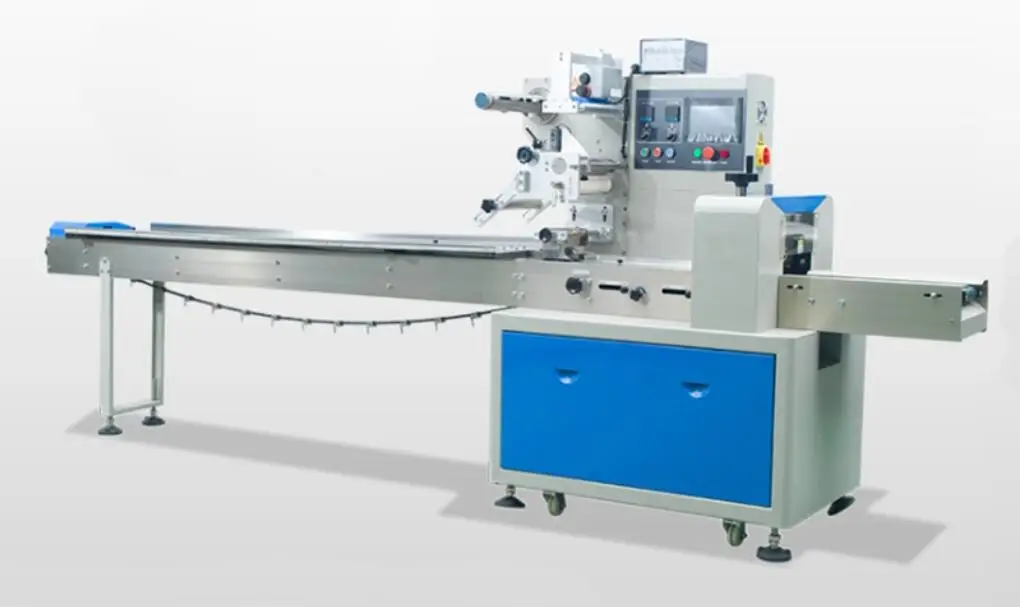

Automatic Toothbrush Packing Machine



I Description:



This machine is used for packing toothbrush, battery, food, toy and some paper plastics types.



Process: PVC uncoiling- PVC heating- Plastic bracket forming- servo traction- toothbrush feeding- paper card feeding automatic- heat conglutinating- plastic bracket cutting- PVC waste coiling- finishing



II Feature



1-      Toothbrush feeding is manual. If need feeding automatic, we can design according to requirements.

2-      Mechanical drive, servo traction, reasonable structure- simple operation.

3-      304 stainless steel cover, easy cleaning.

4-      PLC control system, frequency control, low noise and stable running

5-      Photoelectric control, automatic detection, operation safety.

6-      Paper card feeding automatic.

7-      Separate design, easy to disassemble



III Main technical data



Model	HJ-270
Max. size of paperboard	260 x 170mm( custom-made)
Max. size of PVC	280 x 0.25mm( custom-made)
Plastic bracket cutting speed	8-25 pcs/min
Stroke	30-180mm
Air pressure	0.5-0.8MPa
Air mass flow	≥0.6m³/min
Total power	8kW, 380V, 3phase, 5Hz.
Main motor power	1.5kW
Machine dimension	3500 x 700 x 1700mm
Machine weight	1800kg
Video link	https://youtu.be

HAIJIANG supply all kinds of injection molding machines from 50T to 3000T, including color chips making machine, energy saving injection molding machine, gears making machine, dual clear color injection molding machine, bakelite injection molding machine, PET preform injection molding machine, Fixed pump and variable pump injection molding machine, PVC fitting injection molding machine, screw barrel for injection molding machine etc.

1. HAIJIANG  for injection molding machine features:

→ bigger space between tie-bars

→ central-clamping structure

→ famous components

→ energy saving with servo motor

→ low noise, fast respons

→ high precision, Stable and super long life

→ T-Slot Platen

→ abundant Spare Parts

→ better price



Clamping Unit:

1.) Optimized Platen Design with high rigidity and enlarged space between tie bars

2.) Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds

3.) New ejection system design with longer ejection stroke, bigger space and better rigidity

4.) Hydraulic drivien gear-type mold height adjustion mechanism

5.) Relocation of mechanical safety interlock for easier operation

6.) linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.



Injection Unit:

1.) High Quality Linear Motion Guide ensure the smooth & accuracy of injection process

2.) High Speed & Pressure injection structure can improve the injection speed

3.) Twin nozzle cylinder ensures more even & stable structure

4.) Specilized screw barrel design for various appliance



Hydraulic System:

1.) The double proportional compound valve control system pressure & flow, highly sensitive & stable

2.) Imported high quality Pump, low in noise, long in lifespan & stable in performance

3.) World-famous servo hydraulic system optional, better performance in lower noise & energy saving

4.) The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision

5.) High performance hydraulic valve, less failure, fast switch, convenient maintenance

6.) Low pressure mold protect system, which is more suitable for the precise mould

7.) Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation



Electrical System:

1.) Control by double CPU, the system HMI use X86 300MHz technical grade display. The system employees a RISC 140MHz microprofessor, with high speed, noise-immunity, fan-less and lower power consumption, independent control structure improve the stablity of control

2.) 8.4" display screen with resolution 800*600, user friendly screen & optional choose of language

3.) Equiped with USB(2.0) port & ethernet(100-base T) ports

4.) 32 Points input & output, entendable and trouble spot can be replaced easily

5.) Linder transducer's resolution is 1/65535, more precise in control

6.) 120 technological parameters access can be stored & uploaded with an ordinary USB drives

7.) Injection End and temperature tracking is curve display, dynamic recorder parameter is modified, dynamic warningis exhibited, all these make the operation more convenient.



Servo Controller Part:

1.) High Precise Control The servo system can control the machine's pressure, speed & location precisely, make sure that the error of  accurate repeatability precision for the shot measurement is <0.3%

2.) High sensitive response Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, HJS series is more faster in speed with shorter cycle time and high efficient in production

3.) Low noise Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop

4.) Energy Saving Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% energy, and achieve first-class energy efficency

5.) Water cooling saving The system condition prevent high pressure uploading without any power output, leads to the water cooling saving
