Industrial USB joystick HF45R10U multi axis non contact Hall effect finger controller in stock

Product Overview

Description

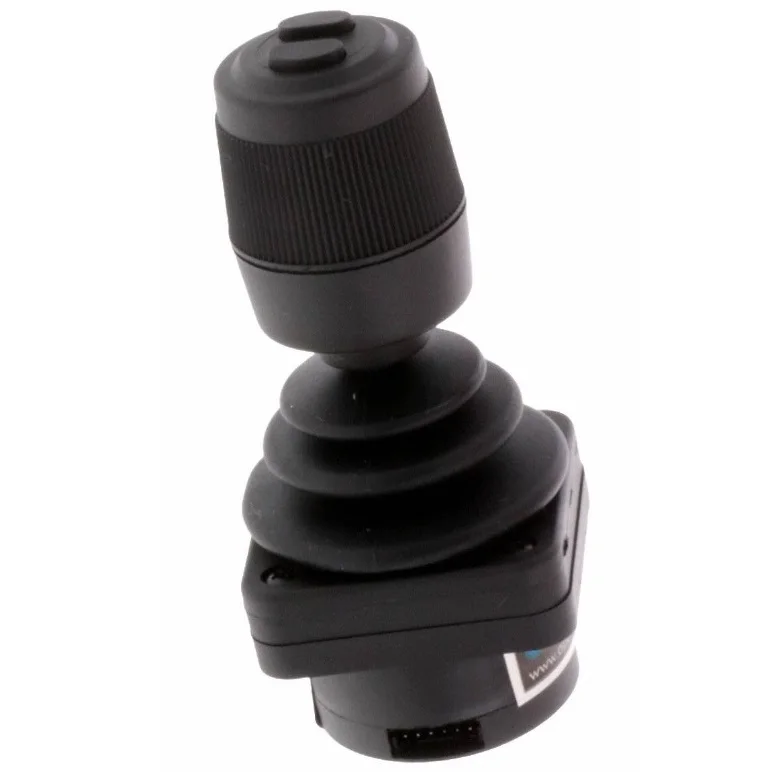

Industrial USB joystick HF45R10U multi-axis non-contact Hall effect finger controller in stock

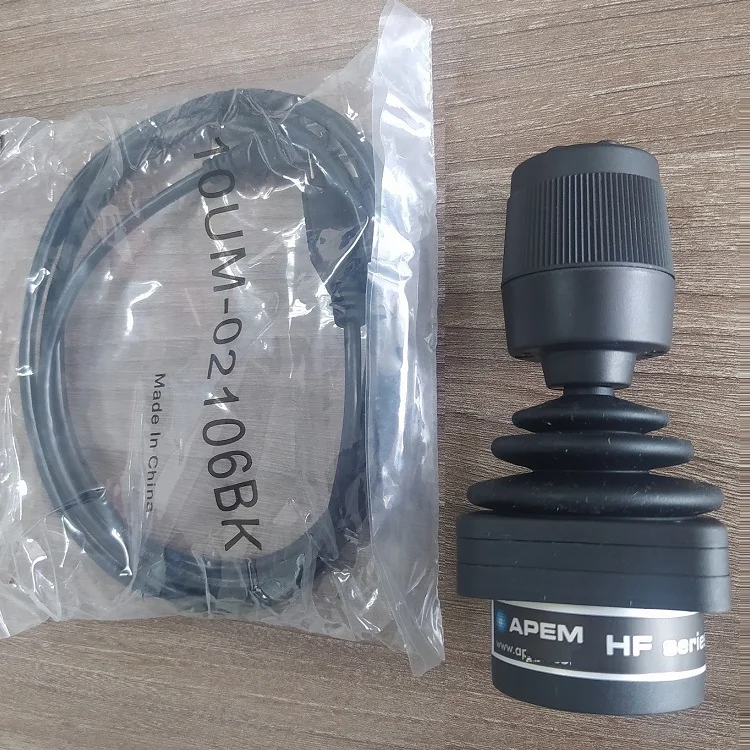

The APEM HF Series CH PRODUCTS joystick is a contactless, multi-axis controller providing long life finger positioning control.
A compact, low-profile joystick utilizing non-contact Hall effect technology, the HF Series joystick is designed
for low operating force, clean environment applications requiring enduring accuracy and precision.
Main features
1, 2 & 3 axis configurations
CAN bus J1939 and CANopen options
USB 2.0 HID interface option
Dual sensors for redundancy
Voltage regulator, 24V supply option
Connectorized housing
Electrical specifications
Sensor: Hall effect, single or dual
Supply Voltage Range: 5VDC±0.01VDC
Supply Current: 50mA max (3 axis)
Reverse Polarity Max: -10VDC
Transient Overvoltage Max: 16VDC
Ratiometric Output Voltage: 0V-5V
Output Current: 8mA
Output Load: 1K ohm min
Output Impedance: 2Ω
General specification
Break Out Force: 1.3N (0.3lbf)
Operating Force: 2.8N (0.63lbf)
Maximum Applied Force: 200N (45.00lbf)
Mechanical Angle of Movement: 36 ° (18 ° from center)
Expected Life: 5 million

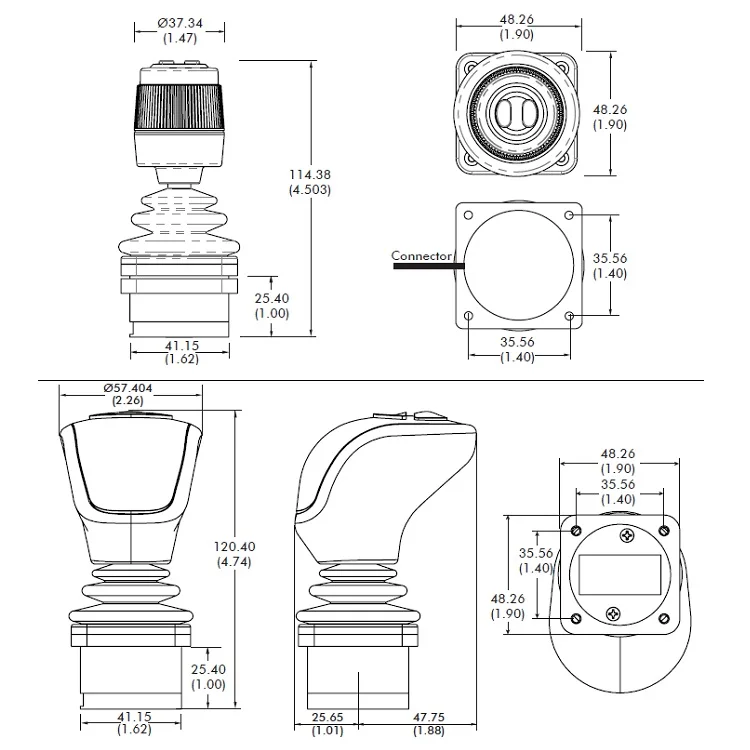

Package Size: 5.75” x 4.50” x 3.25”
Lever Action: Single spring, omnidirectional
Environmental specifications
Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
Sealing (IP): Up to IP67
EMC Immunity Level (V/M): EN61000-4-3
EMC Emissions Level: EN61000-6-3:2001
ESD: EN61000-4-2
Output linearity: ±200mV
Dual output interlinearity (X/Y): ±400mV
Dual output interlinearity (Z): ±600mV
mechanical specifications
Break Out Torque: 0.09Nm (0.80lbf in)
Operating Torque: 0.121Nm(1.07lbf in)
Maximum Allowable Torque: 2.50Nm(22.13lbf in)
Handle Action: Spring centering, rotational
Expected Life: 5 million

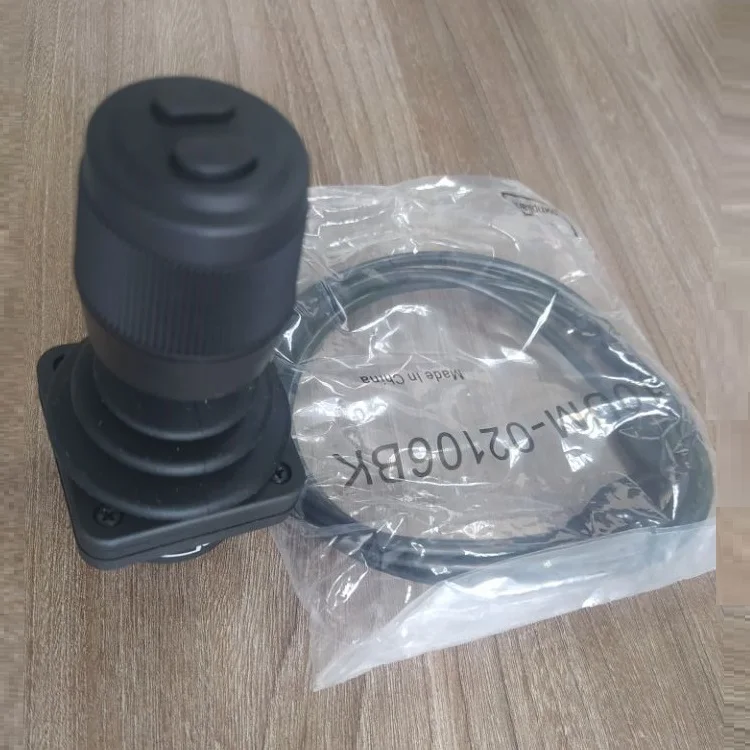

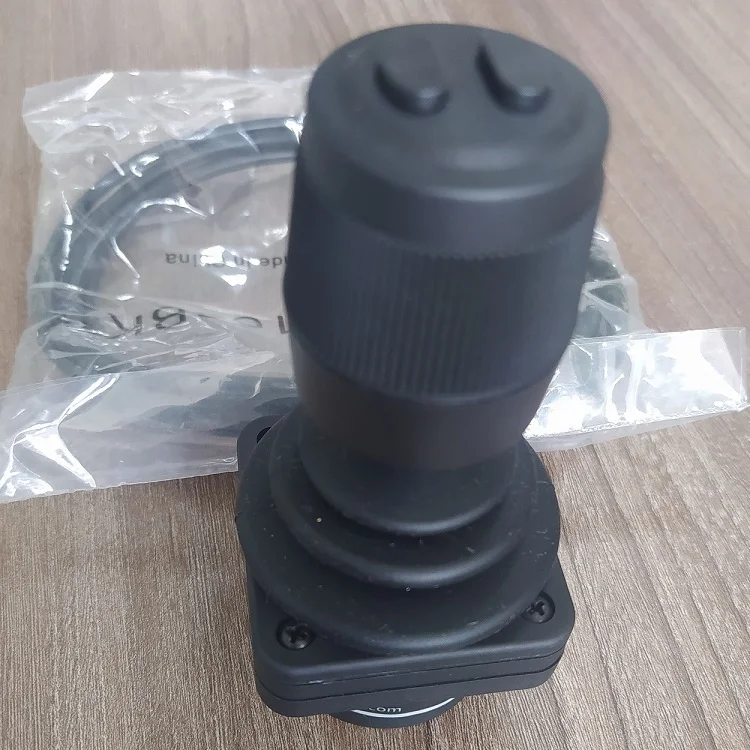

HF45R10U : 2 Buttons (3 axis), PLUS LIMITER, 0V-5V USB
Materials
Material: Glass filled nylon
HFX45R00 in stock
HF45R10-U in stock
HF45R00
HF45R10
