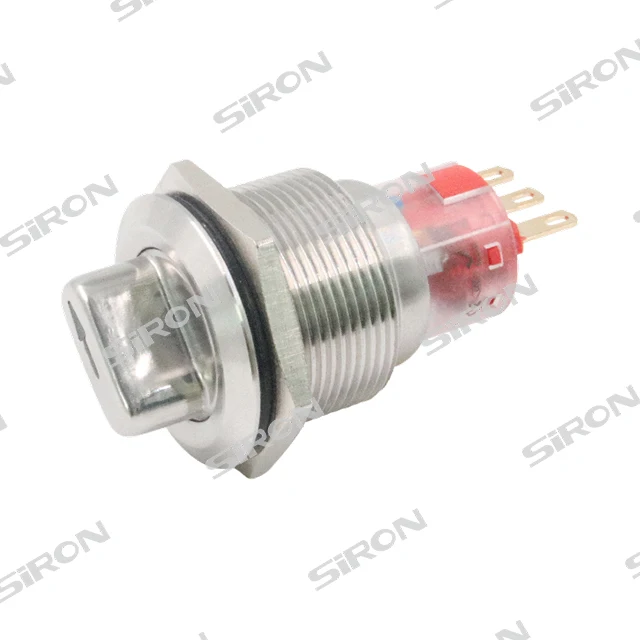

SiRON H023(S) metal buttons New style rotary 2 position 19mm 1ON 1NC select push button IP65 IK08 Rotary Switch
- Category: >>>
- Supplier: Shenzhen Siron Electrical Co. Ltd.
Share on (11000005476487):
Product Overview
Description
Our company's product categories are very rich
Features
*The metal button switch shell is made of metal material to enhance the aesthetics, and the appearance color can be diversified;
*The head has dustproof and waterproof performance, explosion-proof performance and anti-corrosion performance, its waterproof performance is IP65, and its explosion-proof performance is IK08;
*If using soldering connection, it is recommended to choose a suitable electric soldering iron to speed up the soldering speed, and use a 30W-lower electric soldering iron to complete the soldering within 2 seconds at 320°C;
*The head has dustproof and waterproof performance, explosion-proof performance and anti-corrosion performance, its waterproof performance is IP65, and its explosion-proof performance is IK08;
*If using soldering connection, it is recommended to choose a suitable electric soldering iron to speed up the soldering speed, and use a 30W-lower electric soldering iron to complete the soldering within 2 seconds at 320°C;
Specifications

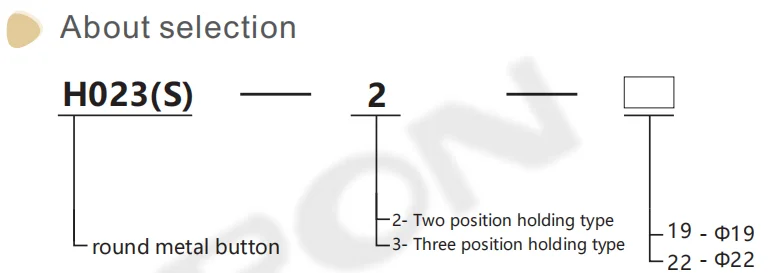

Model | H023-2-19/22 | H023-3-19/22 | |
Operation type | self-locking | ||
Operating position | Two-position, hold | Three-position, hold | |
Switch rating | AC;5A/250V | ||
Environment temperature | -40℃～+80℃ | ||
Contact resistance | ≤50MΩ | ||
Insulation resistance | ≥1000MΩ | ||
Dielectric strength | AC1780V | ||
Mechanical life | ≥1000,000 times | ||
Electrical life | ≥50,000 times | ||
Switch structure | Single break point snap-action contact | ||
Switch combination | 1NO 1NC | ||
Surface explosion-proof grade | IK08 (for metal materials) | ||
Operating pressure | 3～5N | ||
Operating stroke | 3MM | ||
Nut torque | 5～14N | ||
Shell material | Brass Nickel Plated/Stainless Steel | ||
Key material | Stainless steel | ||
Base material | plastic base | ||
Contact material | Aluminum alloy | ||
Lamp bead type | Bidirectional LED lamp beads (AC and DC common) | ||
Lamp bead rated voltage | 24V | ||
Lamp bead rated current | About 15mA | ||
Life | 50000 hours (reference value) | ||
Products Description
Company Profile
Certifications
Delivery
FAQ
1.What type of company are you?
We are a manufacturer, we have stock of most of products and we support customization.
2.What can you buy from us?
Terminal Block Module, Relay Module, Cable, LED Light, Sensor,
Control Power Box Body, Push Button, Switch, and Auxiliary
Equipment, Human Machine Interface, Frequency Converter, Servo
Motor, Module, Reducer and Other Industrial Automation Control Products.
We are a manufacturer, we have stock of most of products and we support customization.
2.What can you buy from us?
Terminal Block Module, Relay Module, Cable, LED Light, Sensor,
Control Power Box Body, Push Button, Switch, and Auxiliary
Equipment, Human Machine Interface, Frequency Converter, Servo
Motor, Module, Reducer and Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the
certification of CE, CCC, UL, and RoHs etc.
we could send the certification test of our company to you.
4.How do you make our business long-term and good relationship?
We have agents in Thailand, Japan, Singapore, Vietnam and South
Kore.a... and we do hope you become our agent in the future,
welcome to discuss the deep details with us.
3.How about the quality of the products?
We can provide one year warranty for you and we have the
certification of CE, CCC, UL, and RoHs etc.
we could send the certification test of our company to you.
4.How do you make our business long-term and good relationship?
We have agents in Thailand, Japan, Singapore, Vietnam and South
Kore.a... and we do hope you become our agent in the future,
welcome to discuss the deep details with us.
