3 axis 2 pushbutton Industrial joystick HFX45R00 non contact Hall effect APEM finger tip controller

Product Overview

Description

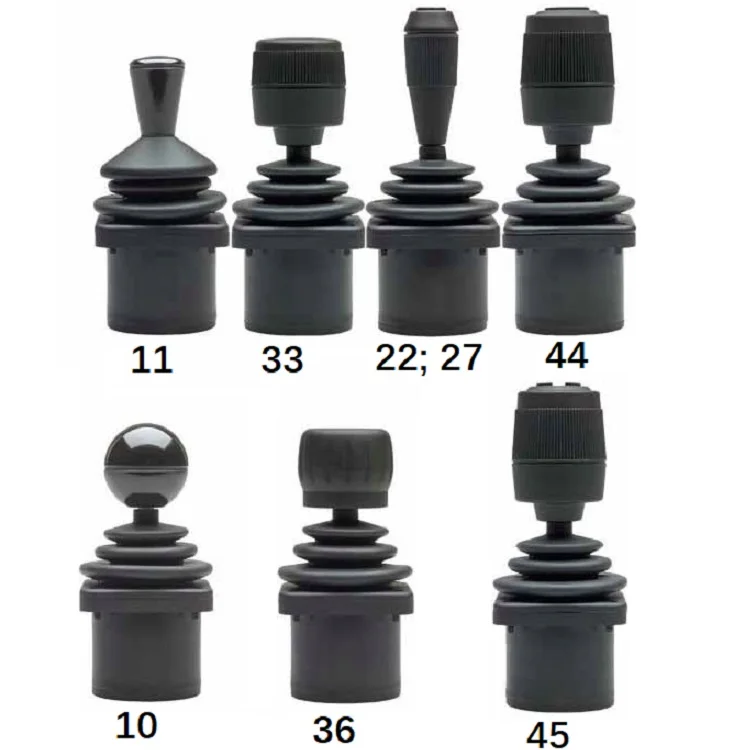

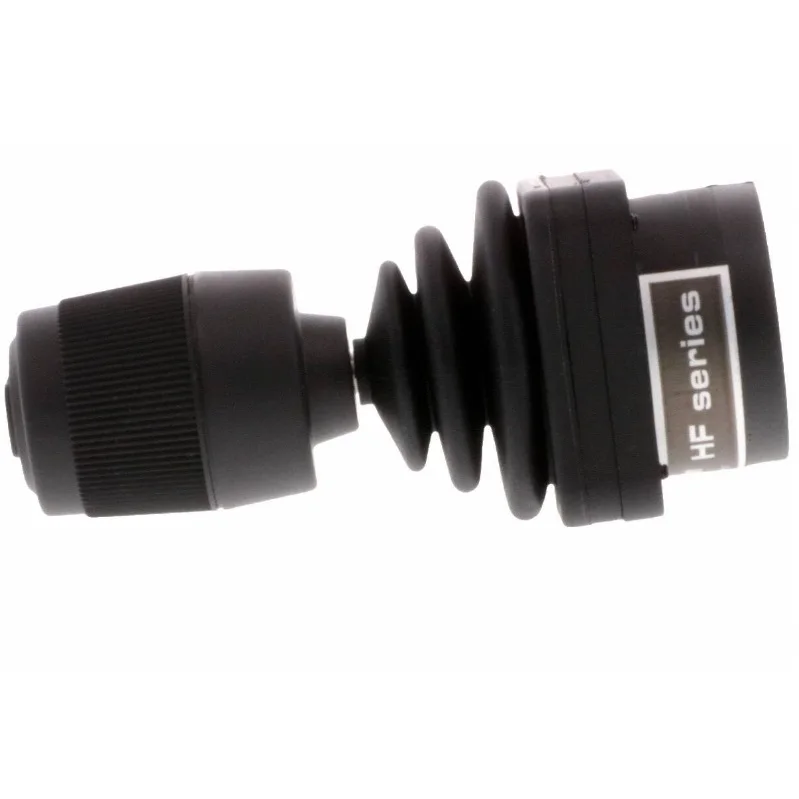

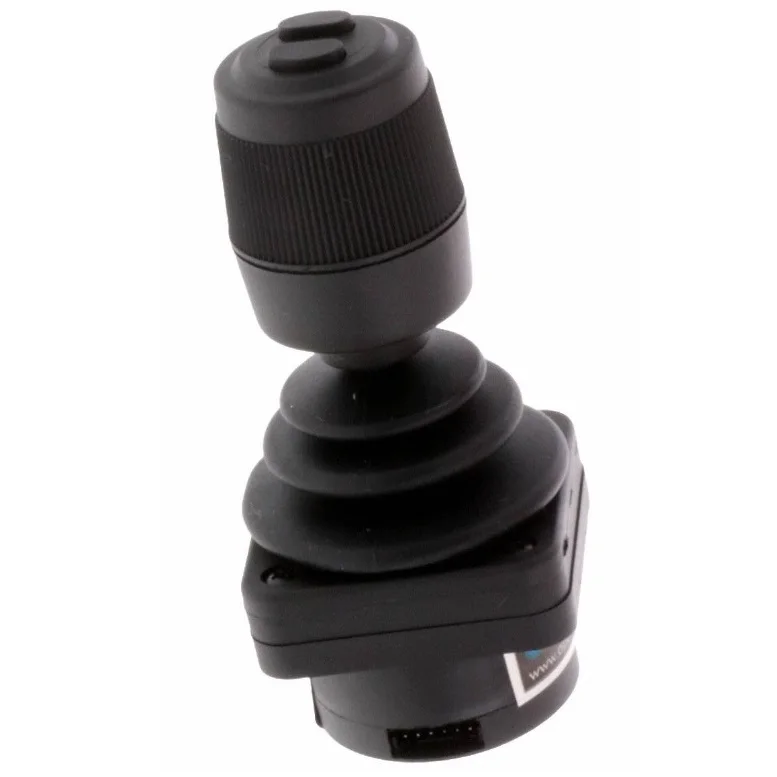

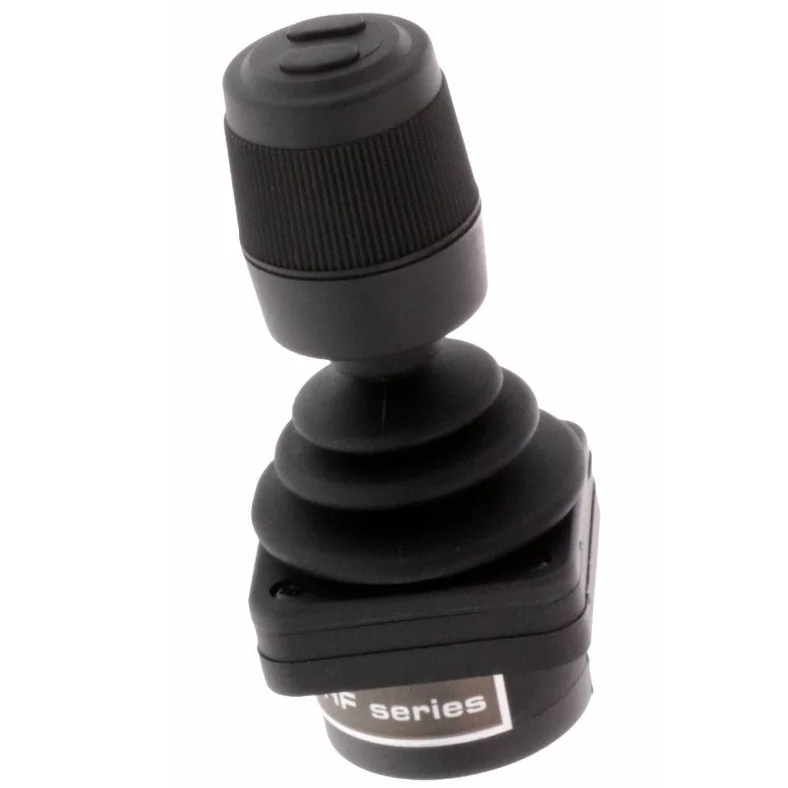

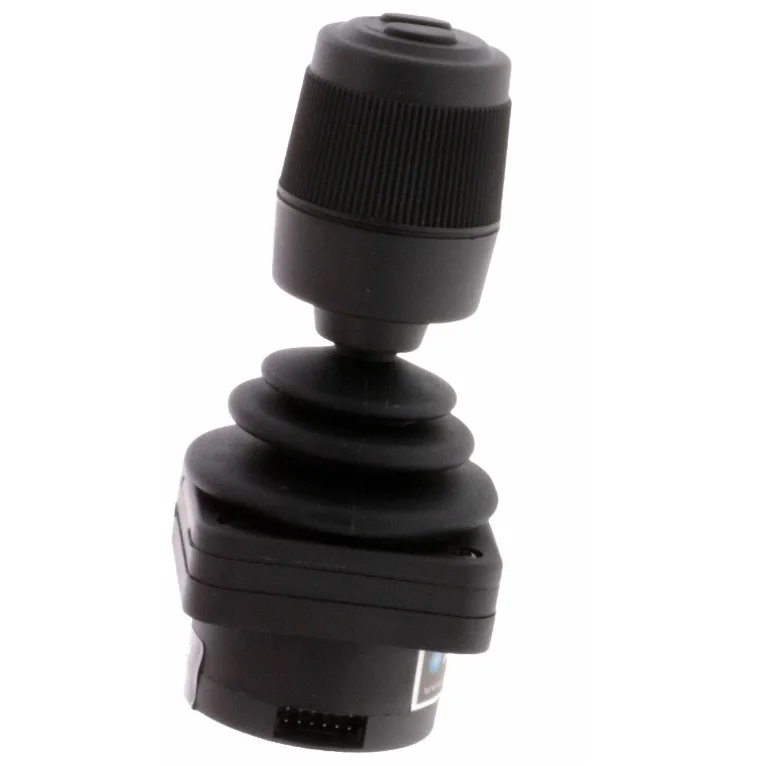

3 axis 2 pushbutton Industrial joystick HFX45R00 non-contact Hall effect APEM finger tip controller
Designed for precision finger operated applications requiring proportional control and long trouble-free life.
Featuring non-contacting Hall effect technology for three million lifecycle performance,
the HFX Series I may be specified as a one, two, or three axes joystick.
Featuring APEM core Hall effect technology and patented joystick mechanism,
the HFX Series I has been field tested and proven for more than a dozen years.
The HFX Series I joystick compact size, low operational force and high reliability make it ideally suited
for clean environment applications including coordinate measuring machines, CCTV equipment and broadcast camera control.
MECHANICAL (FOR X, Y AXES)
Break Out Force : 1.3N (0.3lbf)
Operating Force : 2.8N (0.63lbf)
Maximum Applied Force robust : 200N (45.00lbf)
Mechanical Angle of Movement : 36° (±18 °)
Expected Life : 3 million cycles
Material : Glass filled nylon
Lever Action : Single spring omnidirectional
MECHANICAL (FOR Z AXIS)
Break Out Torque : 0.09N·m (0.80lbf·in)
Operating Torque : 0.121N·m (1.07lbf·in)
Maximum Allowable Torque : 0.150N·m (1.33lbf·in)
Hand Mechanical Angle : 60° (±30° )
Handle Action : Spring centering, rotational
Expected Life : 3 million cycles
ENVIRONMENTAL
Operating Temperature : -25 °C ~ +70 °C
Storage Temperature : -40 °C ~ +70 °C
Sealing (IP) : IP65 to IP68
EMC Immunity Level (V/M) : IEC 61000-4-3: 2006
EMC Emissions Level : IEC 61000-4-8: 1993/A1: 2000
ESD : IEC 61000-4-2: 2008
ELECTRICAL
Sensor : Hall effect
Resolution : Infinite
Supply Voltage Operating : 5.00VDC
Reverse Polarity Max : -14.5 V
Overvoltage Max : 18VDC
Output Voltage : 0V to 5V
Output Impedance : 6 Ω
Current Consumption Max : 10mA per axis
Return to Center Voltage (No Load) : ±200mV

HF45R00
HF45R00U HF45R00-U
HF45R10
HF45R10U HF45R10-U
HFX45R00
HFX45R00U HFX45R00-U
HFX45R10 recommend 3150RL600
HFX45R10U HFX45R10-U
