ARM DI08P 4S Autonics 8 DI Modbus RTU protocol TCP Digital Remote IO module

Product Overview

Description

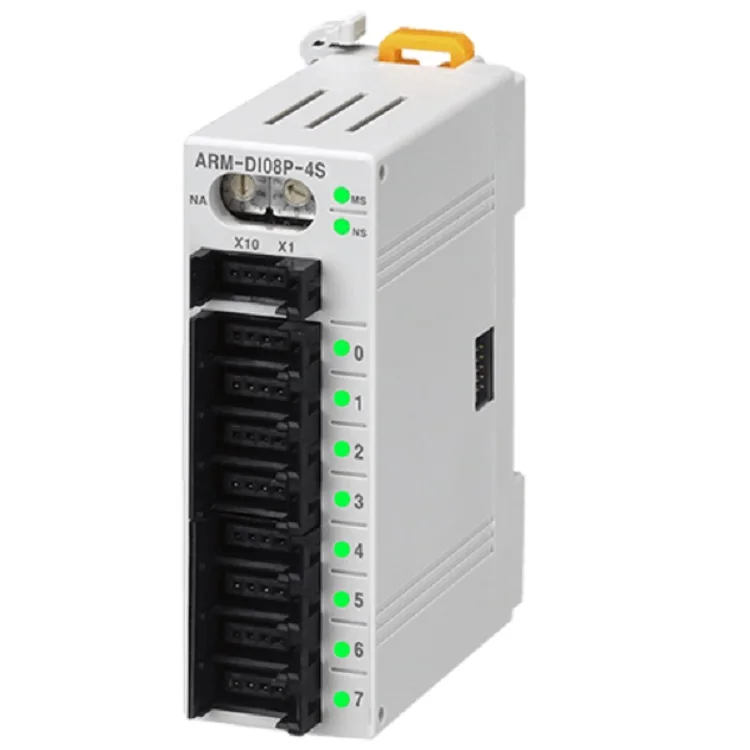

ARM-DI08P-4S Autonics 8 DI Modbus RTU protocol TCP Digital Remote IO module
Modbus RTU Digital Remote I/O (Sensor Connector Type)
The ARM series digital remote I/O units provide input and output expansion for PCs, PLCs, and Autonics logic panels using standard Modbus RTU protocols.
The sensor connector type I/O units are compatible with e-CON sensor connectors for easy wiring and connection.
The compact, space-saving design and simple mounting methods allow flexible application in diverse settings.
Modbus RTU protocol digital remote I/O
Input and output expansion for PCs, PLCs, and Autonics logic panels (LP)
Compatible with e-CON sensor connectors for easy wiring and connection (CNE series sensor connectors sold separately)
Additional expansion - Expand up to 63 base units per master unit
- Expand up to 7 expansion units per base unit (control up to 64 input/output points)
- Various types of input/output units are available for flexible customization
- Build power and communication systems using communication lines"
Various functions and real-time monitoring
- Communication speed auto-recognition, network power supply monitoring, count number of expansion units, read specifications and model names, single byte and multibyte input/output, status flag monitoring
Space-saving design - Compact size ;
- DIN rail mount and screw mount methods
Built-in surge protection, short-circuit protection, overheat protection, reverse power polarity protection, and static protection circuits
Network : Modbus
Type : Digital
Number Of I/O s Input : 8-point (PNP)
Number of connected : expansion unit ≤ 7 units
I/O points : ≤ 64-point
Control I/O Voltage: 10-28VDC input
Current: 10mA/point(sensor supplied current: 150mA/point)
Module type : Basic unit
Power supply : 24VDC
Insulation resistance : ≥ 200 MΩ (500 VDC megger)
Dielectric strength : 1,000 VAC at 50/60 Hz for 1 min
Protection structure : IP20
Approval : CE EAC
Insulation type : I/O and inner circuit: photocoupler insulation
Modbus to internal bus and inner circuit: insulation
Unit power: non-insulation
Material : Front case: PC, Body case: PC
Environment Ambient temperature : -10 to +55℃, storage: -25 to +75℃
Environment Ambient humidity : 35 to 85% RH, storage: 35 to 85% RH
Mounting method : DIN rail or panel mounting

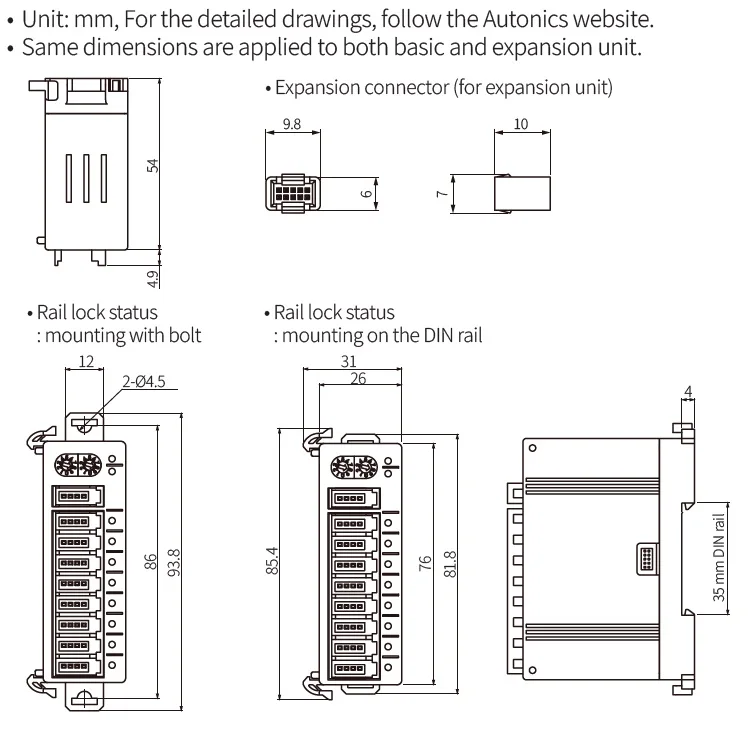

Dimensions : W26×H76×L54mm
Weight : Approx. 123.3g (approx. 61.8g)
Expansion units (ARX-D ***-4S) of ARM Series (digital, sensor connector type) are available to order separately.
This weight is with packaging and the weight in parentheses is only unit weight.
Environment resistance is rated at no freezing or condensation.

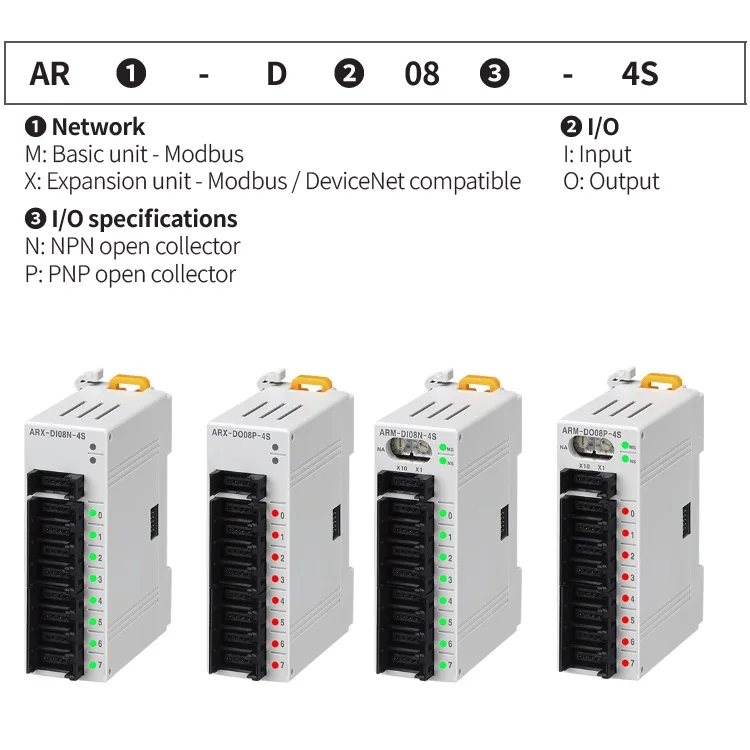

Expansion unit (Use in DeviceNet/Modbus)
ARX-DI08N-4S; ARX-DI08P-4S;
ARX-DO08N-4S; ARX-DO08P-4S;
Basic unit(Modbus RTU type)
ARM-DI08N-4S; ARM-DI08P-4S;

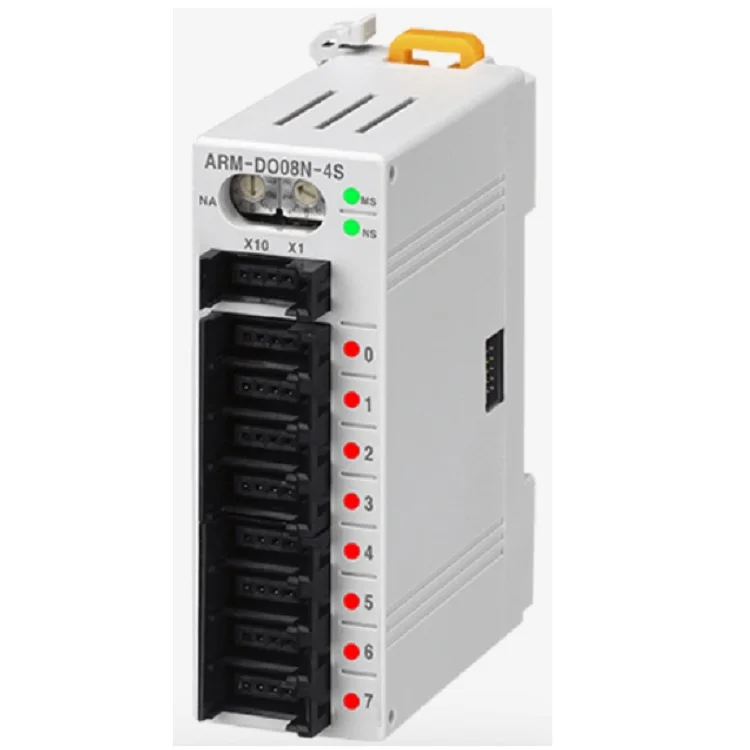

ARM-DO08N-4S; ARM-DO08P-4S;
