Signal Converter
Description
A Signal Converter is a device that converts signals from sensors to industrial current signals, converts analog input signals to analog output signals, normalizes signals, or isolates signals.
The electronic signals that are detected by a detector are different in nature because of differences in the data that was measured (e.g., temperatures, pressures, and voltage).
This makes it difficult to input the data directly into control circuits. Therefore, it is necessary to covert or normalize the data to a signal form that is easy to use.
The electronic signals that are detected by a detector are different in nature because of differences in the data that was measured (e.g., temperatures, pressures, and voltage).
This makes it difficult to input the data directly into control circuits. Therefore, it is necessary to covert or normalize the data to a signal form that is easy to use.

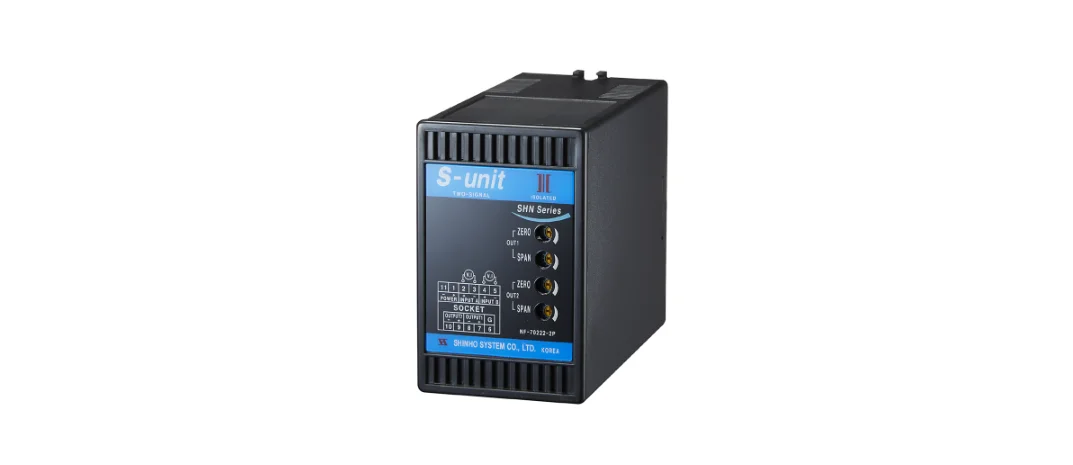

S-unit (SHN-PDB)
Products Detail
| INPUT | OUTPUT | POWER |
| DC 12V (4~20mA) | 1~5V | AC110V |
| DC 24V (4~20mA) | 4~20mA | AC110V |
| Only Power : 200mA | 1~5V 2 Point Output | DC24V |
| DC 12V (4~20mA) 2 Point input | 4~20mA 2 Point Output | |
| DC 24V (4~20mA) 2 Point input | DC 12V | |
| Other | DC 24V | |
| DC 12V 2 Point Output | ||
| DC 24V 2 Point Output | ||
| Other |
Technical Data
| Model | SHN-Series | Function | Transmit DC signal in isolated conditon |
| Input | mA, RTD, 2-Wire, Potentiometer, T/C, Pulse, CT, PT | Output | DC Siganl (4-20mA, 1-5V) Max : 2ch |
| Power | DC 24V, AC 110V or AC 220V | Accuracy | 0.1% / Full scale |
| Display | None | Response Time | 0.5 sec (0~90%) |
| Front Adjustment | Zero and Span 5% | Weight | About 400g |
| Mounting | DIN Rail mounting | Dimensions(mm) | W50 * H85 * D 122/133 (8PIN / 11PIN) |
