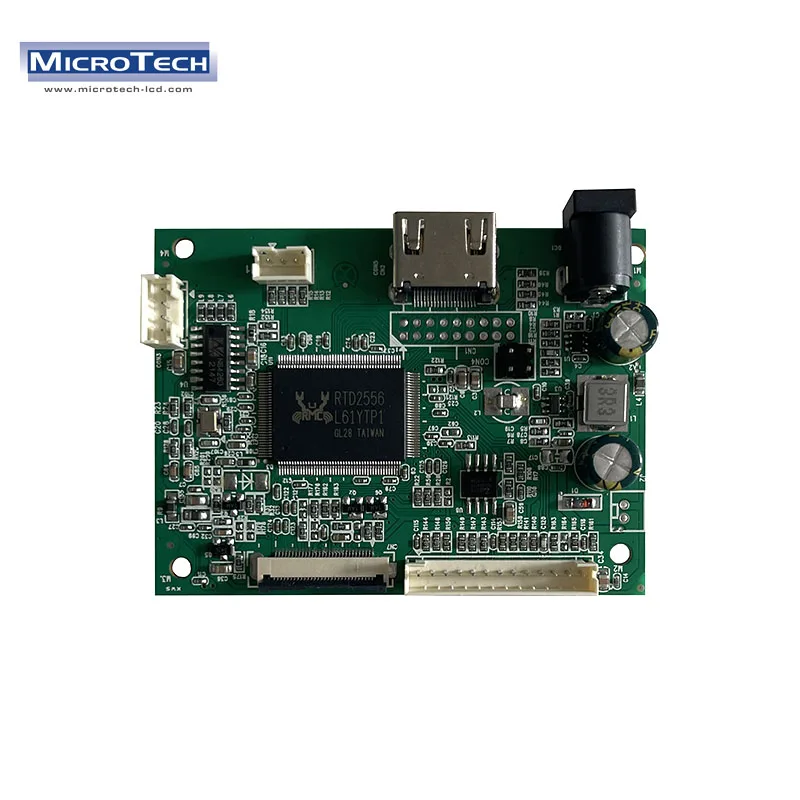

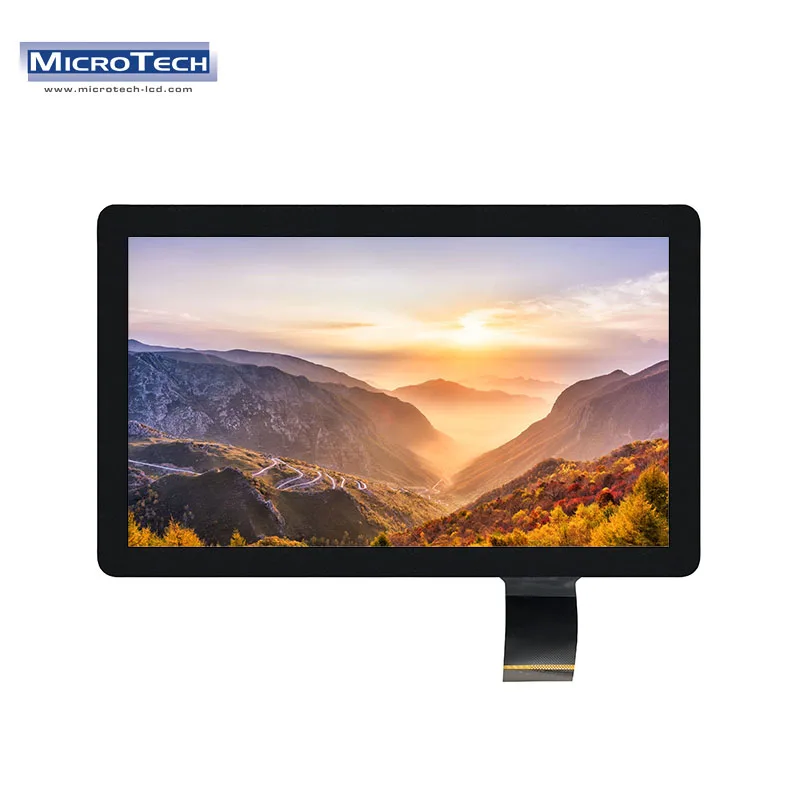

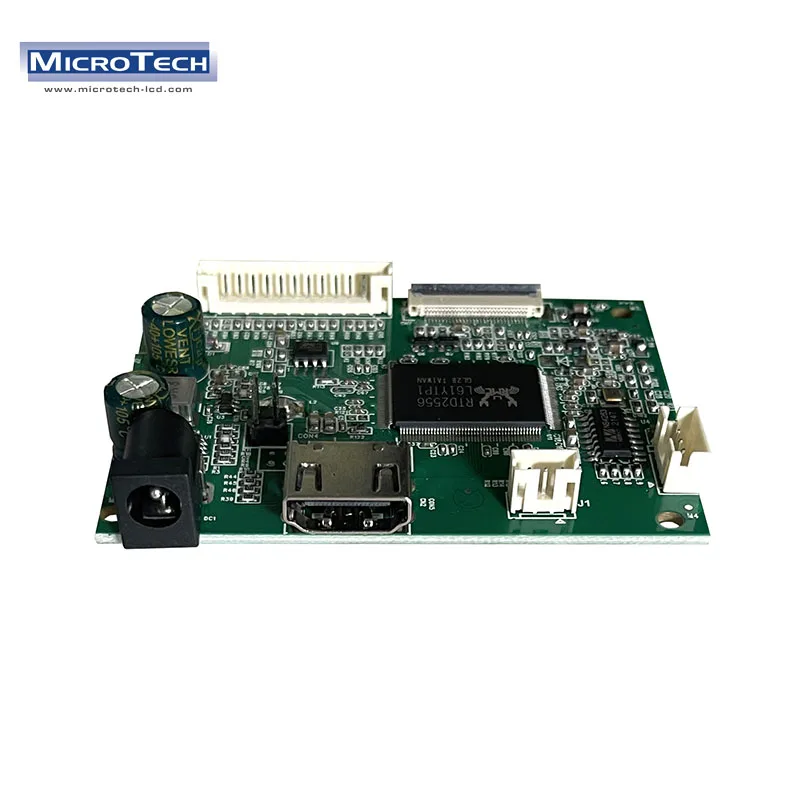

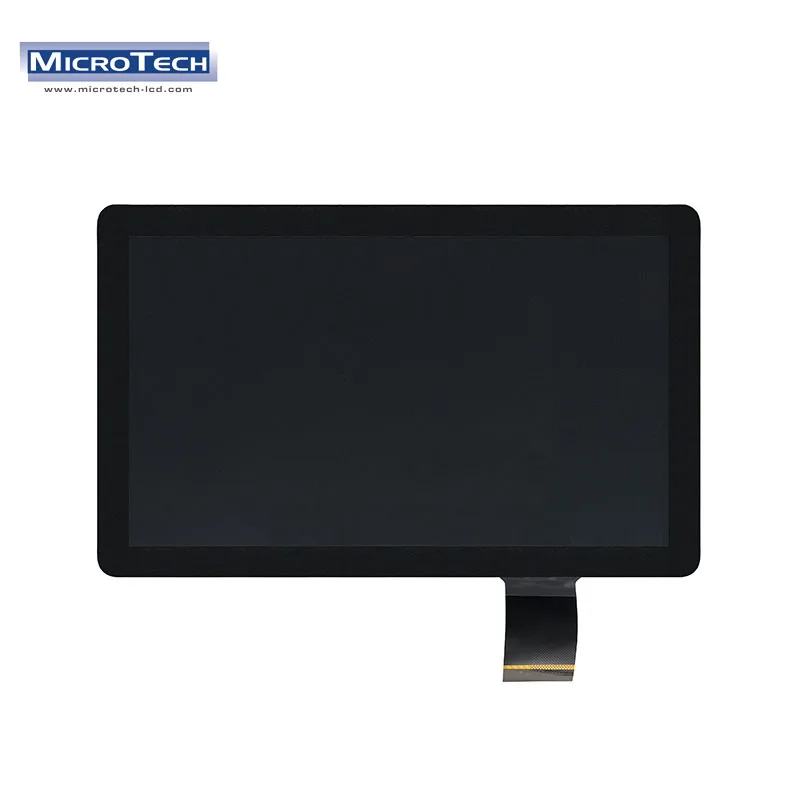

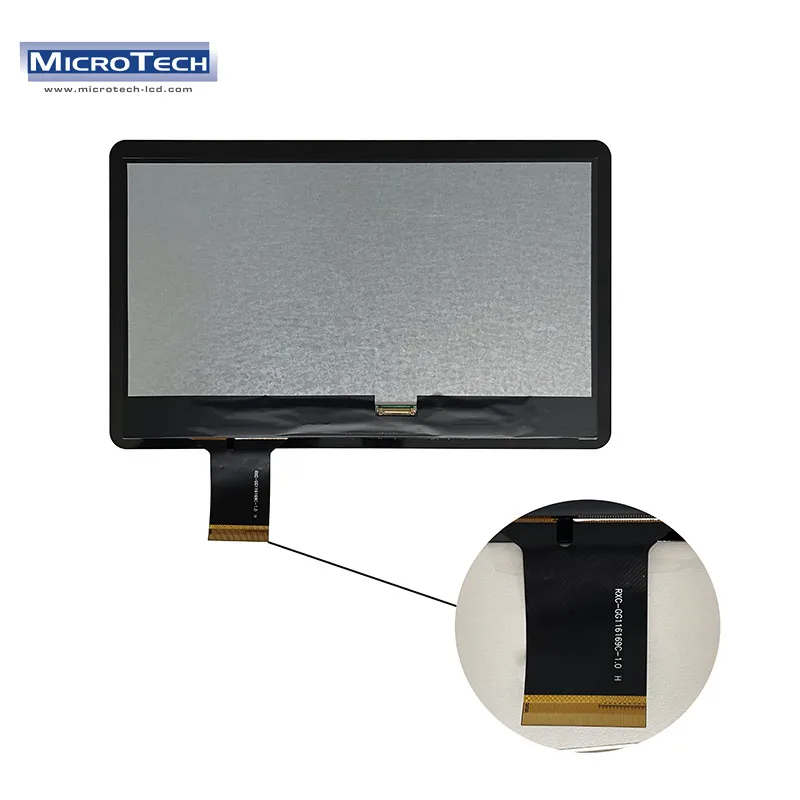

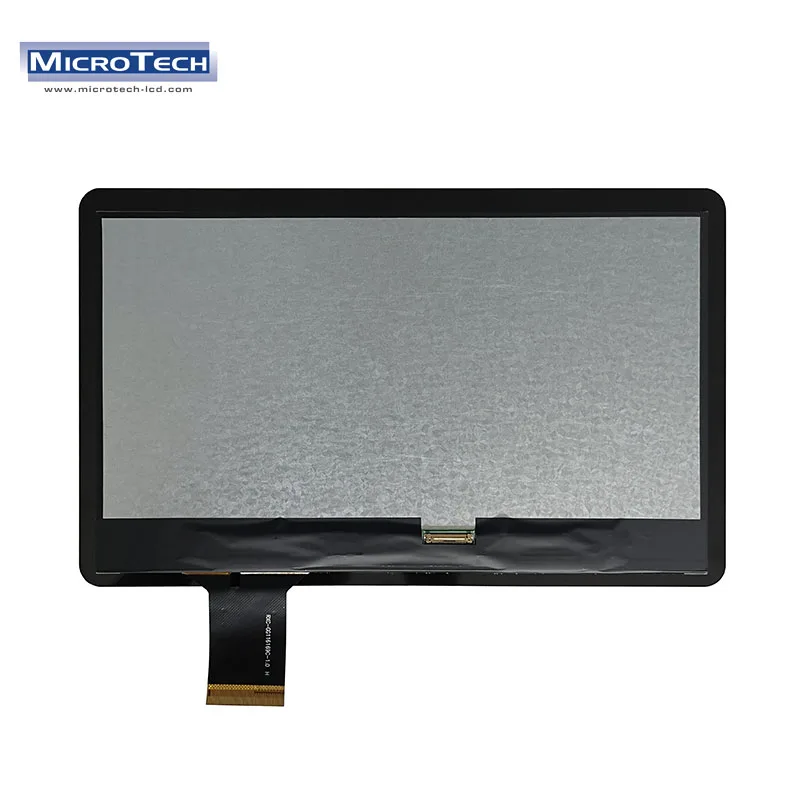

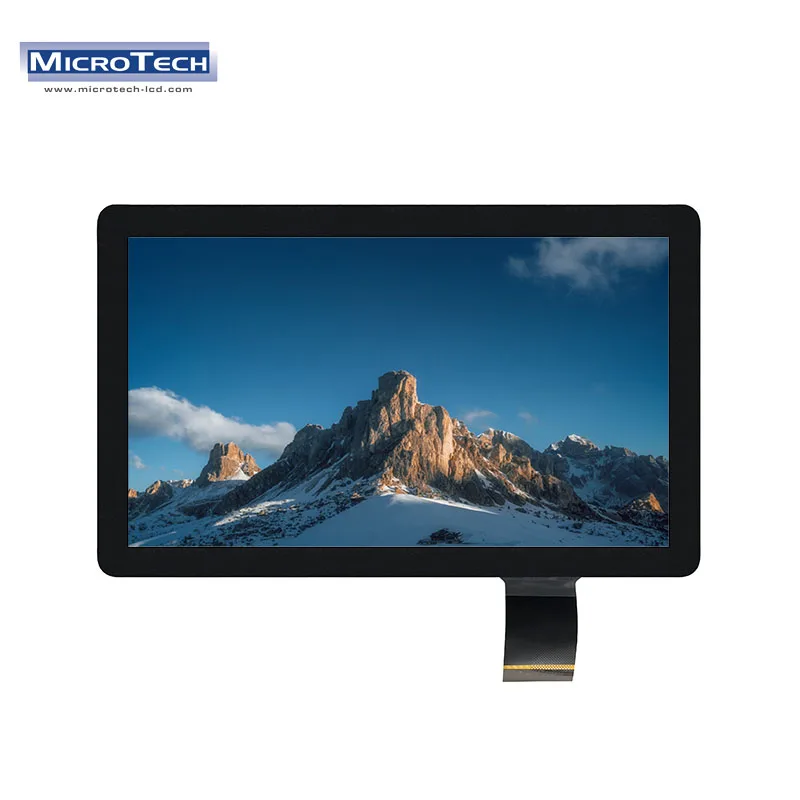

LCD capacitive touch screen 11.6 inch 1366*768 30pin eDP interface TFT LCD screen can bring Adapter board
MTF116WF05A-V1 is a 11.6” (11.6” diagonal) TFT Liquid Crystal Display NB module with LED Backlight unit and 30 pins eDP interface. This module supports 1366 x 768 WH mode and can display 16,777,216 colors.
Specification
Item | Specification | Unit | Note |
Screen Size | 11.6 diagonal | ||
Driver Element | a-si TFT active matrix | - | - |
Pixel Number | 1366 x R.G.B. x 768 | pixel | - |
Pixel Pitch | 0.1875(H) x 0.1875(V) | mm | - |
Pixel Arrangement | RGB vertical stripe | - | - |
Display Colors | 16,777,216 | color | - |
Transmissive Mode | Normally black | - | - |
Surface Treatment | Hard coating (H), Anti-Glare | - | - |
Luminance, White | 220 | Cd/m2 | |
Color Gamut | 72% | NTSC | |
Power Consumption | Total 3.5 W (Max.) @ cell 1.1W(Max.), BL 24W (Max.) | W | (1) |
Note (1) The specified power consumption (with converter efficiency) is under the conditions at VCCS = 3.3 V, fv = 60 Hz, LED_VCCS = Typ, fPWM = 200 Hz, Duty=100% and Ta = 25 ± 2 ºC, whereas Mosaic pattern is displayed.
Note (2) Display port interface signals should follow VESA DisplayPort Standard Version1. Revision 1a and VESA Embedded DisplayPortTM Standard Version 1.2 (eDP1.2). There are many optional items described in eDP1.2. If some optional item is requested, please contact us.
Note (2) Display port interface signals should follow VESA DisplayPort Standard Version1. Revision 1a and VESA Embedded DisplayPortTM Standard Version 1.2 (eDP1.2). There are many optional items described in eDP1.2. If some optional item is requested, please contact us.
Item | Min. | Typ. | Max. | Unit | Note | ||
Module Size | Horizontal (H) | 267.42 | 267.92 | 268.42 | mm | (1)(2) | |
Vertical (V) (with PCB) | 156.77 | 157.27 | 157.77 | mm | |||
Thickness (T) | 2.6 | 2.8 | 3 | mm | |||
Active Area | Horizontal | 256.13 | 256.13 | 256.13 | mm | ||
Vertical | 144.00 | 144.00 | 144.00 | mm | |||
Weight | 205 | 220 | g | ||||
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
(2) Dimensions are measured by caliper.
(2) Dimensions are measured by caliper.
