Autonics TNS 2 DOF Two degree of freedom intelligent Programmable PID temperature controller TNS P42SS NS 006

Product Overview

Description

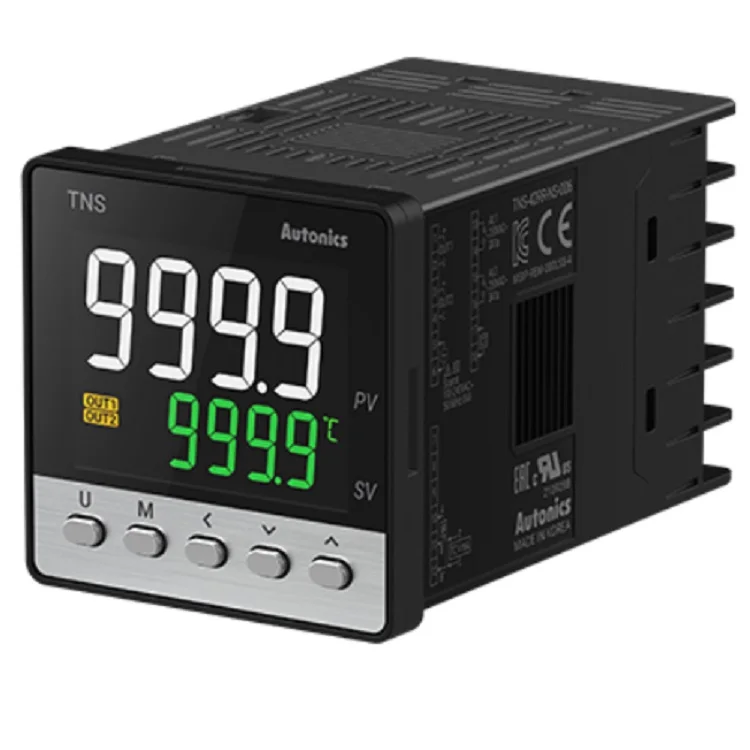

Autonics TNS 2-DOF Two degree of freedom intelligent Programmable PID temperature controller TNS-P42SS-NS-006

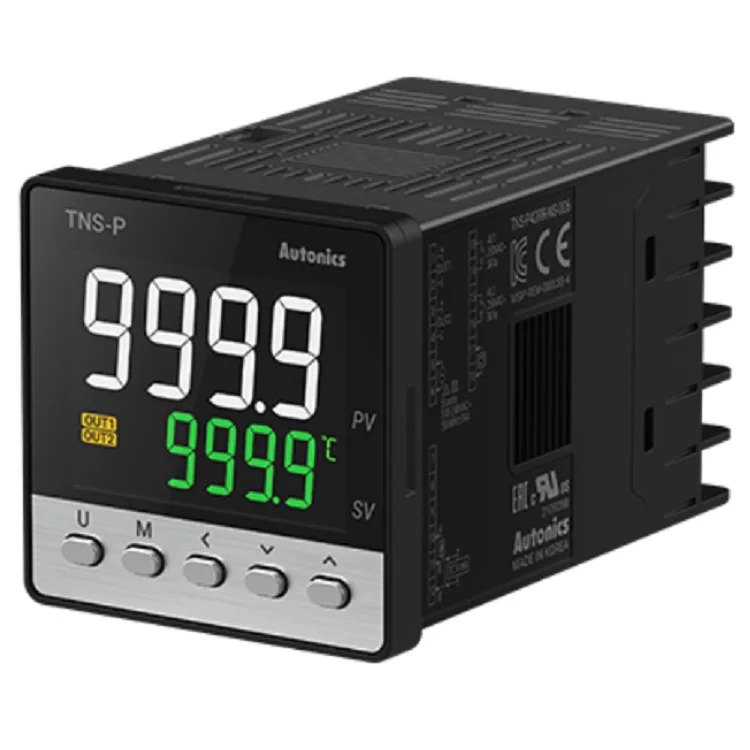

The TNS-P series temperature controllers offer high precision temperature control with two-degree- of-freedom PID algorithm, high-speed sampling speed of 50 ms and ±0.2% measurement accuracy.
The temperature controllers feature simultaneous heating and cooling control, group PID, zone PID control and anti-reset windup functions for optimal temperature control in various applications.
2-DOF PID algorithm optimized for various control applications
Two-degree-of-freedom (2-DOF) PID controllers include setpoint weighting on the proportional and derivative terms.
A 2-DOF PID controller is capable of fast disturbance rejection without significant increase of overshoot in setpoint tracking.
2-DOF PID controllers are also useful to mitigate the influence of changes in the reference signal on the control signal.
You can represent PID controllers using the specialized model objects pid2 and pidstd2.
50ms high-speed sampling rate and ±0.2% display accuracy
Program control and fixed control models available
- Up to 10 patterns x 20 steps program setting (program control model)
- Timer function for preset operation (fixed control model)
Simultaneous heating/cooling and automatic/manual control function
Control functions: Group PID, Zone PID, Anti Reset Windup (ARW)
Control status monitoring of up to 10 events
RS485 communication output model available
- Communication protocols: Modbus RTU/ASCII, PLC ladder-less, Sync-Master
- Communication speed: up to 115,200bps
Heater burnout alarm function (CT input)
Parameter setting via PC
- Comprehensive Device Management Software (DAQMaster) provided
- Communication converter connection with front loader port (TNH, TNL only)
Shortcut key setting with front user key button (U)
Easy maintenance with detachable terminal blocks
Power supply : 100-240VAC~ 50/60Hz
Power consumption : Max. 8VA
Display method : 11 segment dual 2 row
Sampling cycle : 50 / 100 / 250 ms (parameter)
Option input CT input : 0.0-50.0 A (primary current measurement range) ; CT ratio: 1/1
Input Type and Using Range : Max. C (TT) , G (TT) 0 to +2,300 ℃ 32 ℉ to 4,172 ℉
K(CA) -200 ℃ to +1,350 ℃ -328 ℉ to +2,463℉
-199.9 ℃ to +999.9 ℃ -199.9℉ to +999.9℉
Control output SSR : 12 VDC ±2 V, ≤ 20 mA
Option output Alarm : 250VAC~ 3A 1a
Control type : ON/OFF, P, PI, PD, PID
Control type Multi SV : ≤ 4 SV
Control type Group PID : ≤ 8 group
Control type : Zone PID : 4 zones
Control type : ARW : 50 to 200 %
Program control : ≤ 10 patterns
Program control Step : ≤ 200 steps (1 pattern: ≤ 20 steps)
Program control Setting type : Time setting
Hysteresis : Thermocouple, RTD: 1 to 100 (0.1 to 100.0) ℃/℉ ; Analog: 1 to 100 digit
Dielectric strength : Between primary terminal and case: 3,000 VAC~ 50/60 Hz for 1 min
Vibration : 0.75 mm amplitude at frequency of 5 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours
Relay life cycle Mechanical : OUT1/2: ≥ 5,000,000 operations
AL1/2/3/4/5/6: ≥ 20,000,000 operations
Relay life cycle Electrical : OUT1/2: ≥ 200,000 operations
AL1/2/3/4/5/6: ≥ 100,000 operations
Insulation resistance : ≥ 100 MΩ (500 VDC megger)
Insulation type : Double insulation or reinforced insulation (mark: , dielectric strength between the measuring input part and the power part: 3 kV)
Noise immunity : ±2 kV square shaped noise by noise simulator (pulse width: 1 ) R-phase, S-phase
Memory Protection : ≈ 10 years (non-volatile semiconductor memory type)
Ambient temperature : -10 to +50 ℃, storage: -20 to +60 ℃ (no freezing or condensation)
Ambient humidity : 35 to 85%RH
Protection structure : IP65 (Front panel, IEC standards)
Loader port : Front side
Accessories : Bracket
panel size: 48 x 48 mm
Panel cut dimensions : 45 x 45 mm
Weight : 128 g
Approval : CE
TNH ; TNH-P ; panel size: 48 x 96 mm
TNL ; TNL-P ; panel size: 96 x 96 mm
TNS ; TNS-P ; panel size: 48 x 48 mm

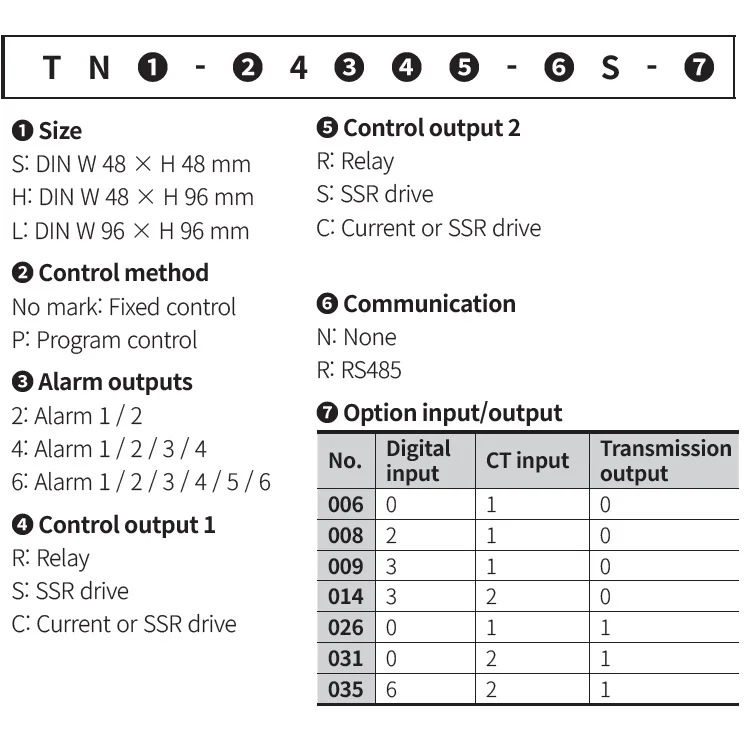

TNS-P42SS-NS-006
TNS-P42SS-NS-026
TNS-P42SS-NS-008
TNS-P42RR-NS-006
TNS-P42CC-NS-006
TNS-P42SR-NS-006
TNS-P42CR-NS-008
TNS-P42CC-NS-026
TNS-P42SR-NS-026
TNS-P42CR-NS-026
TNS-P42CR-NS-006
TNS-P42RR-NS-008
TNS-P42CC-NS-008
TNS-P42SR-NS-008
TNS-P42RR-NS-026
TNS-P42SS-RS-006
TNS-P42RR-RS-006
TNS-P42CR-RS-006
TNS-P42SR-RS-006
TNS-P42CC-RS-006
Power supply : 100-240VAC~ 50/60Hz, Control output_Relay : Option output Alarm : 250VAC~ 3A 1a, Control output SSR , Control output_Current : DC 0 - 20 mA or DC 4 - 20 mA (parameter), Load resistance: ≤ 500 Ω, Option output_Trans. : -, Option output_Comm. : RS485, Program control_Program : ≤ 10 patterns, Loader port : Top side...
TNS-42RR-NS-006
TNS-42SS-NS-006
TNS-42CC-NS-006
TNS-42SR-NS-006
TNS-42SS-NS-026
TNS-42CC-NS-026
TNS-42SR-NS-026
TNS-42CR-NS-026
TNS-42RR-RS-006
TNS-42RR-NS-026
TNS-42CR-NS-006
TNS-42RR-NS-008
TNS-42SS-NS-008
TNS-42CC-NS-008
TNS-42SR-NS-008
TNS-42CR-NS-008
TNS-42SS-RS-006
TNS-42CC-RS-006
TNS-42SR-RS-006
TNS-42CR-RS-006
Power supply : 100-240VAC~ 50/60Hz, Control output_Relay : 250VAC~ 3A 1a, Option output_Alarm : 250VAC~ 3A 1a, Control output_SSR : -, Control output_Current : DC 0 - 20 mA or DC 4 - 20 mA (parameter), Load resistance: ≤ 500 Ω, Option output_Trans. : -, Option output_Comm. : RS485, Program control_Program : -, Loader port : Top side...
