Product Overview
Description

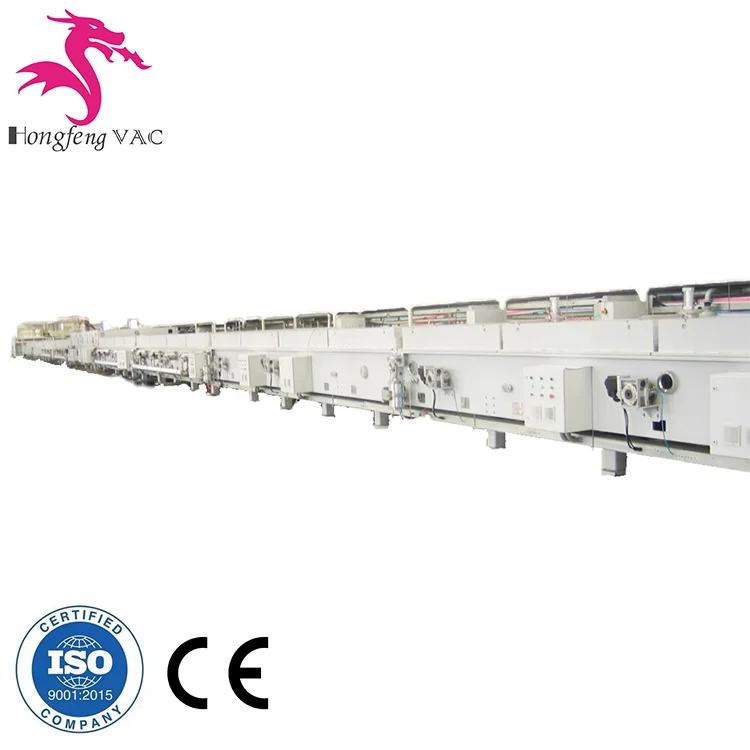

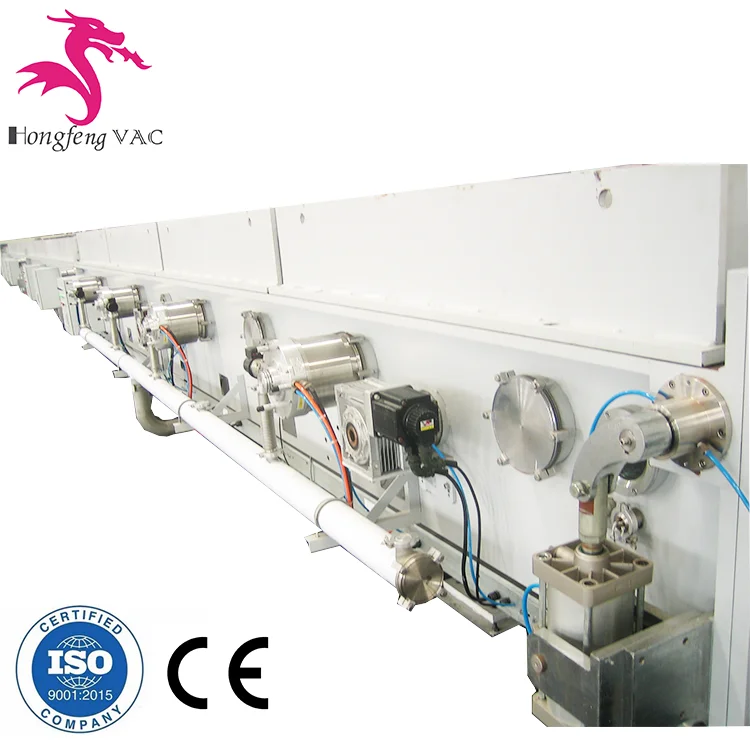

Sputtering Aluminum Mirror Glass Coating Production Line
EV Series

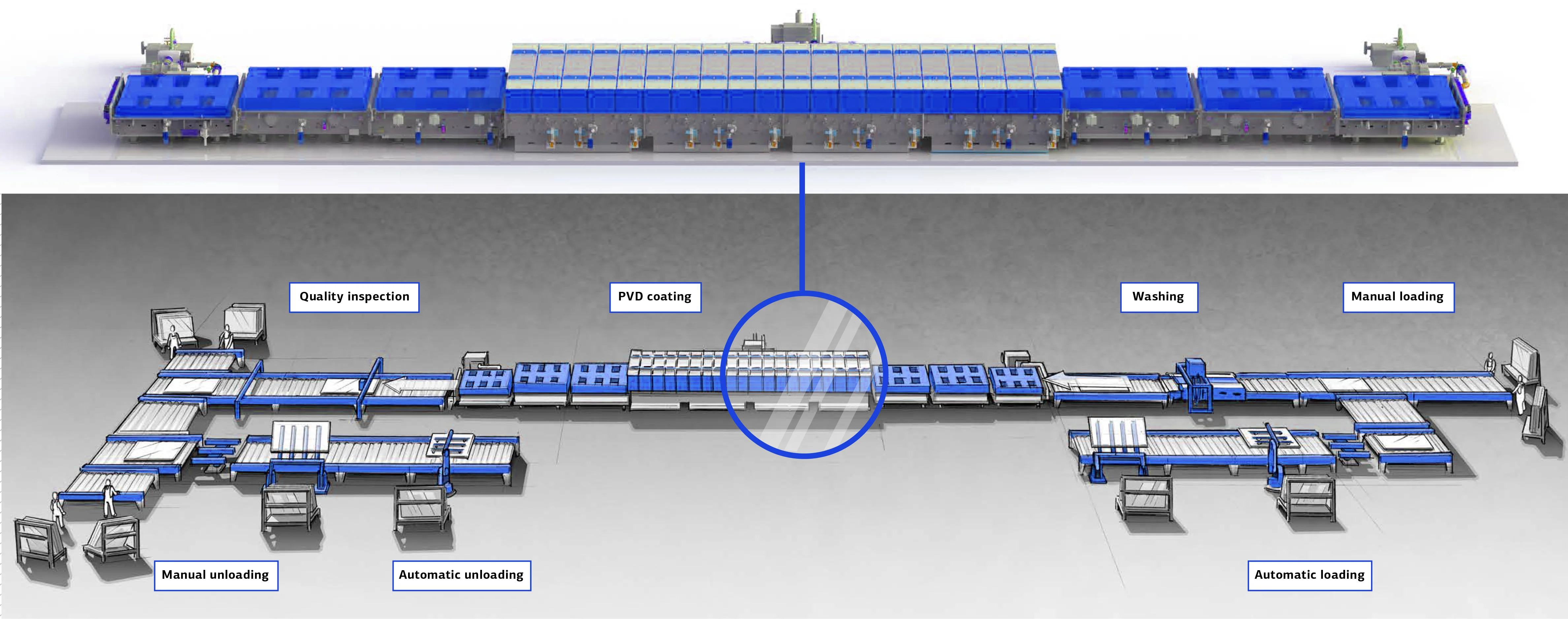

The vacuum coating production line is usually connected by more than three vacuum chambers to form a continuous working vacuum coating machine.
- Advantages of this vacuum coating line are:
- Extremely high vacuum, high film quality
- Coating film quality is stable
- High productivity
- High degree of automation, fewer operator requirements
Hongfeng VAC uses advanced magnetron sputtering coating technology in Europe and America, combined with the actual situation, the development of innovation and introduction of high-grade aluminum mirror coating production line, allowing users to comprehensively improve the competitiveness of many in the variety, quality, efficiency, scale, high technology, and automation. The line is equipped with PLC and touch screen or industrial computer to achieve automatic control, to provide customers with high-quality low -cost products.
Our company can provide design according to user requirements, provide a full set of equipment, responsible for the process, according to "turnkey" engineering services.

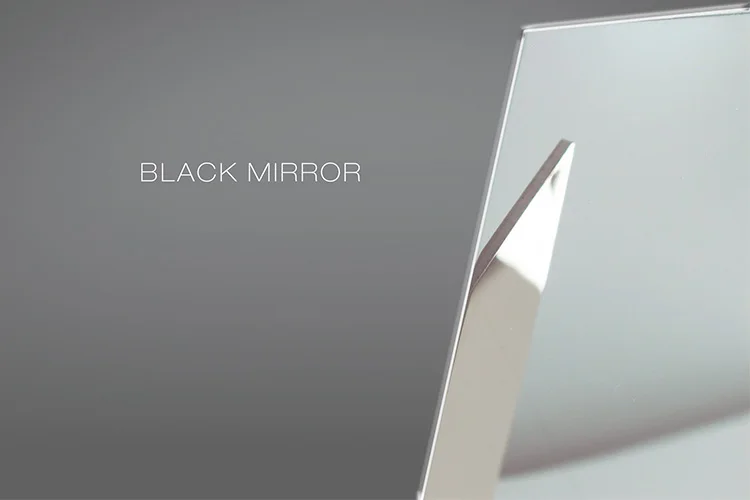

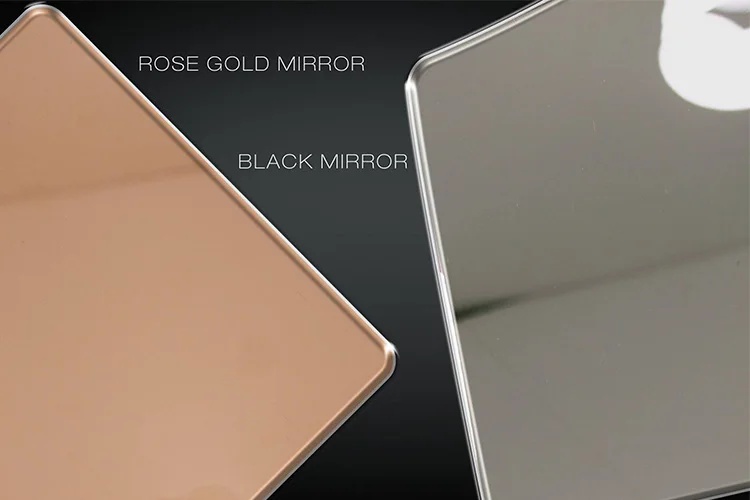

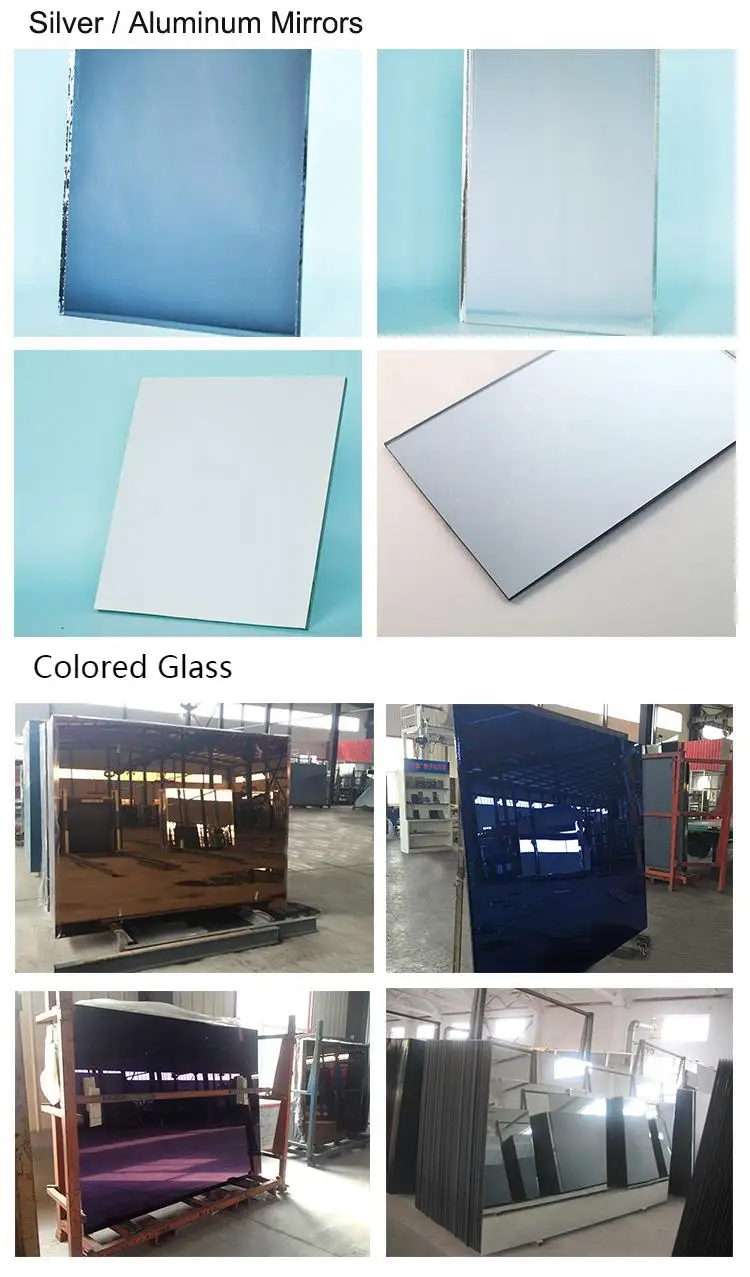

Samples photos of glass mirrors:
Accorinf to different technical requirements of each customers, we can design different types of magnetron sputtering cathodes for the machine. This is the coating system of the machine. You can load different raw material to the cathodes for different coatings.
Technical Spcifications |
| Chamber type | Vertical and horizontal method of multi-chamber | |
| Applied material | Glass and Wafer, other plastic, metal materials | |
| Substrate size | Vertical type | According to the size of customer's glass sheet |
| Horizontal type | According to the size of customer's glass sheet | |
| Tact time | 120 sec or less (Static method) 90 sec or less (Dynamic method) | |
| Coating source | Sputter source | Rotary cathode, Planar cathode |
| Coating material | Metal material | Al, Ti, Cr, Cu, NiCr, Ni, Ag, other metal material |
| Reactive material | TiO2, Nb2O5, SiO2, TIO, SiAlOx, MoOx, other nitride / oxide material | |
| Power supply | DC, Pulse DC, MF | |
| Thickness uniformity | ±10% or less (Static film) ±5% or less (Moving film) | |
| Measuring instrument | Sheet resistance, optic (Transmittance, reflectance, color-difference meter), | |
| plasma emission monitor, RGA | ||
| Household appliances field | Decorative coating on household products and exterior of mobile devices | |
| Energy field | Silver & aluminum mirror manufacturing industry | |
Packaging & Shipping
Company Information
As a manufacturer of PVD coating systems, Hongfeng VAC responds to your wishes and supply you with a tailor-made system that meets your needs. To improve profitability, we build on our proven cylindrical standard recipients, but any other type of vacuum chamber is also possible. Contact us!
