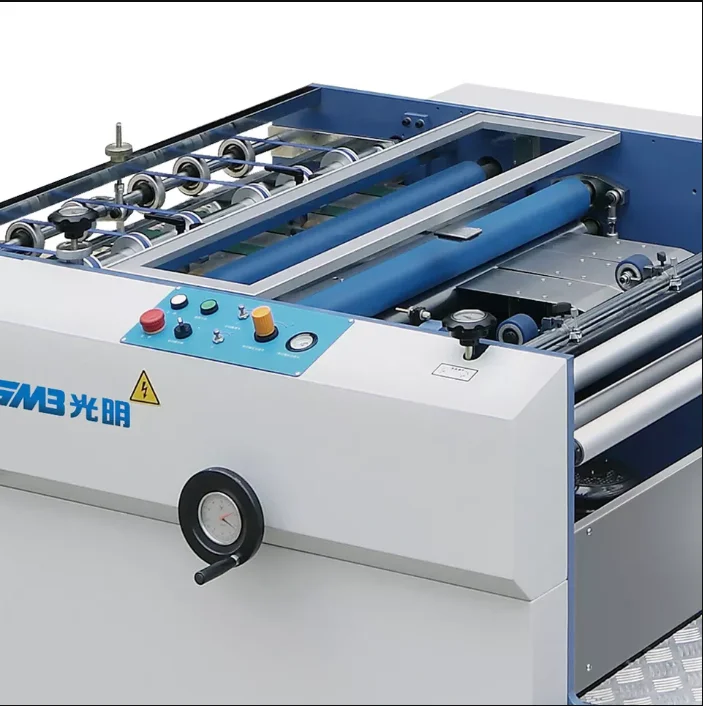

Semi Automatic Thermal Laminating Machine For Paper Bookcover And Poster SF 720C/ 920C/ 1100C

Product Overview

Description

Technical Parameters



Model	SF-720C	SF-920C	SF-1100C
Max Sheet Size (mm)	720 (width)	920 (width)	1100 (width)
Laminating Speed (m/min)	0-30	0-30	0-30
Sheet Thickness (g/m2)	100-500	100-500	100-500
Gross Power (KW)	18	19	20
Total Weight (kg)	1700	1900	2100
Overall Dimensions (mm)	4600*1560*1500	4600*1760*1500	4600*1950*1500
Laminating Temperature (°C)	80-110℃	80-110℃	80-110℃



Product Description  & Details



Feeding

lThe operator replenishes sheets on the run to provide a continuous feed

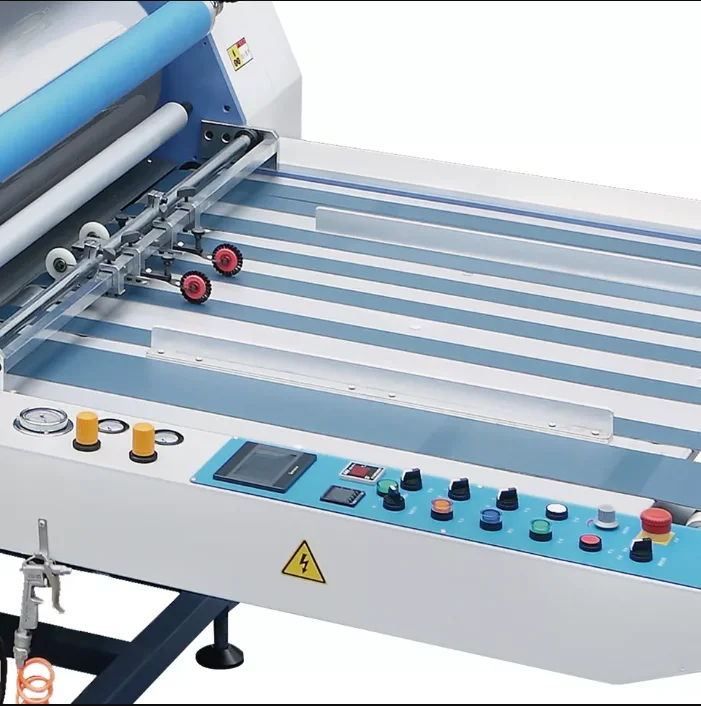

lMagnetic regulating plates fit manual feed

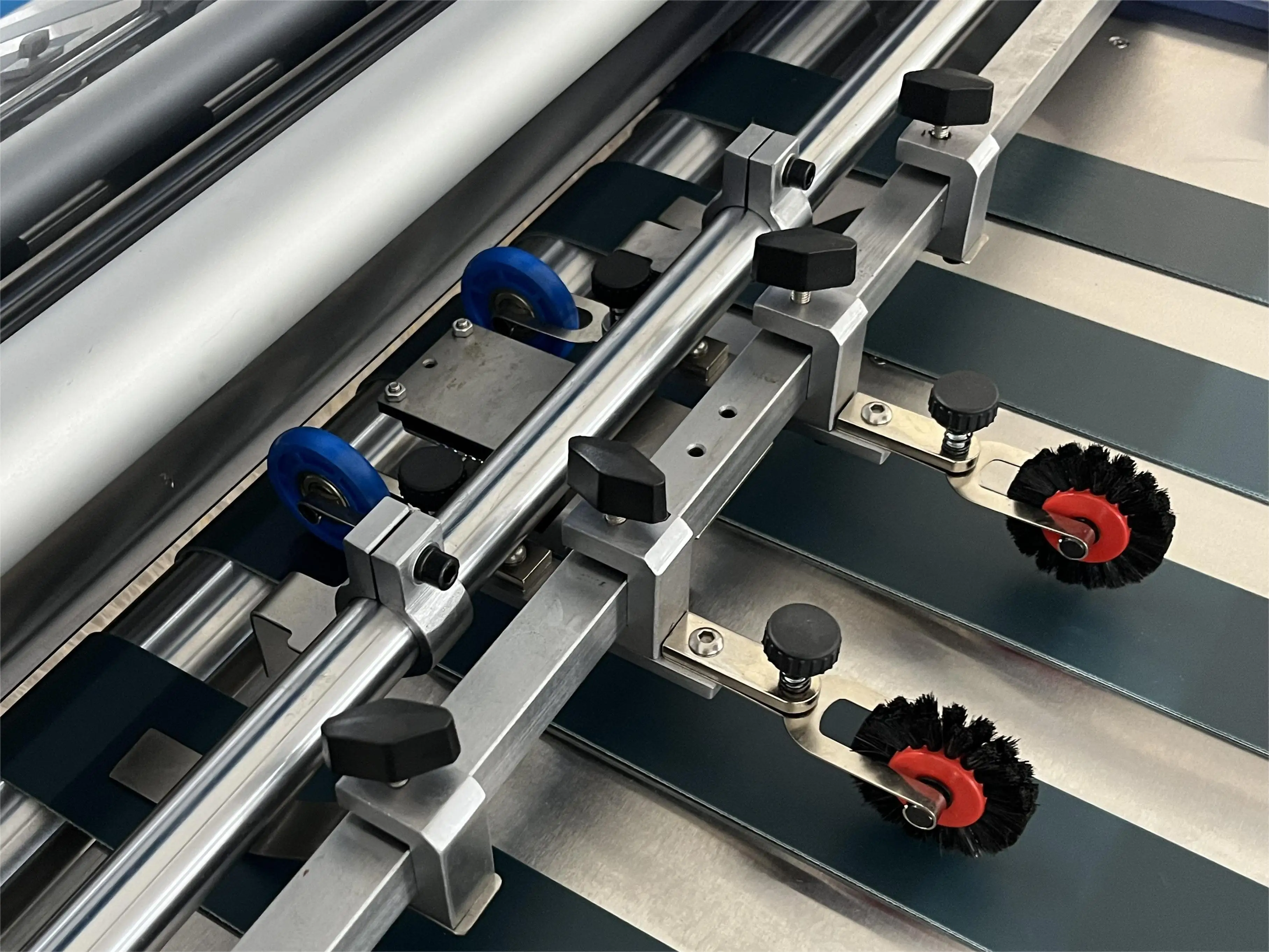

lThe overlap regulator adjusts the sheets overlapped length



Laminator

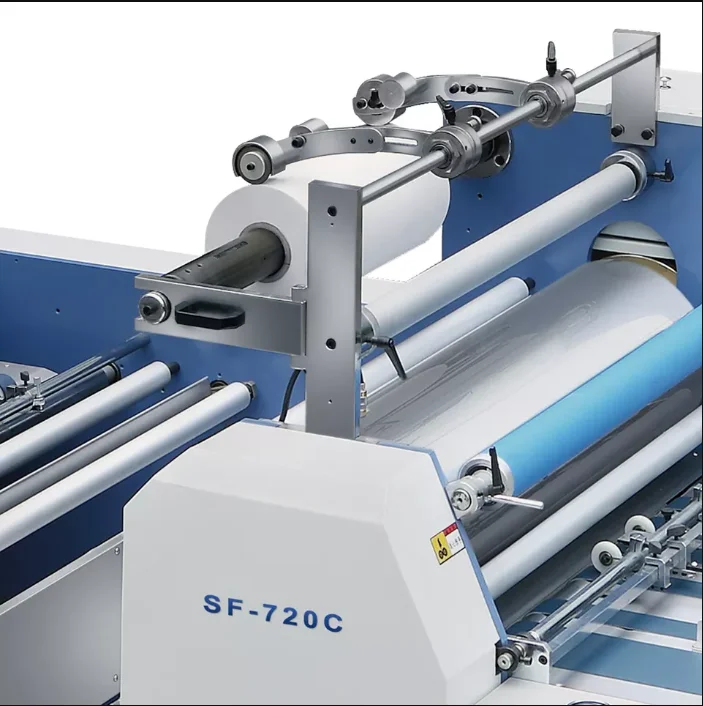

lOil-heated, chrome laminating roller (Φ320 large diameter)

lHydraulic pressure system exerts constant and steady pressure

lFilm mounted on a quick-change inflatable air-shaft

lAir-shaft ensures precise film release tension and speed

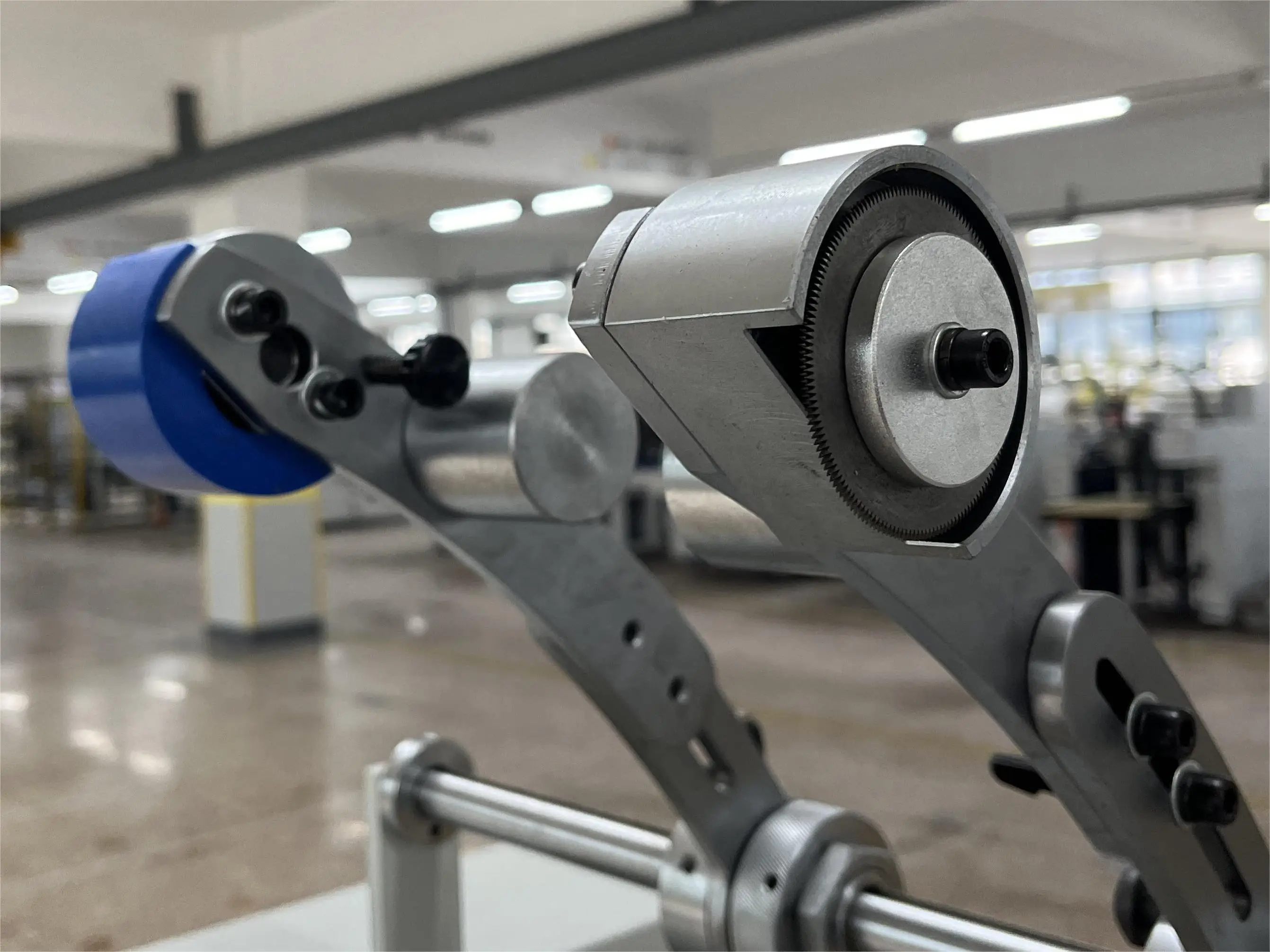

lFilm roll slitting and perforating mechanisms



Sheeter

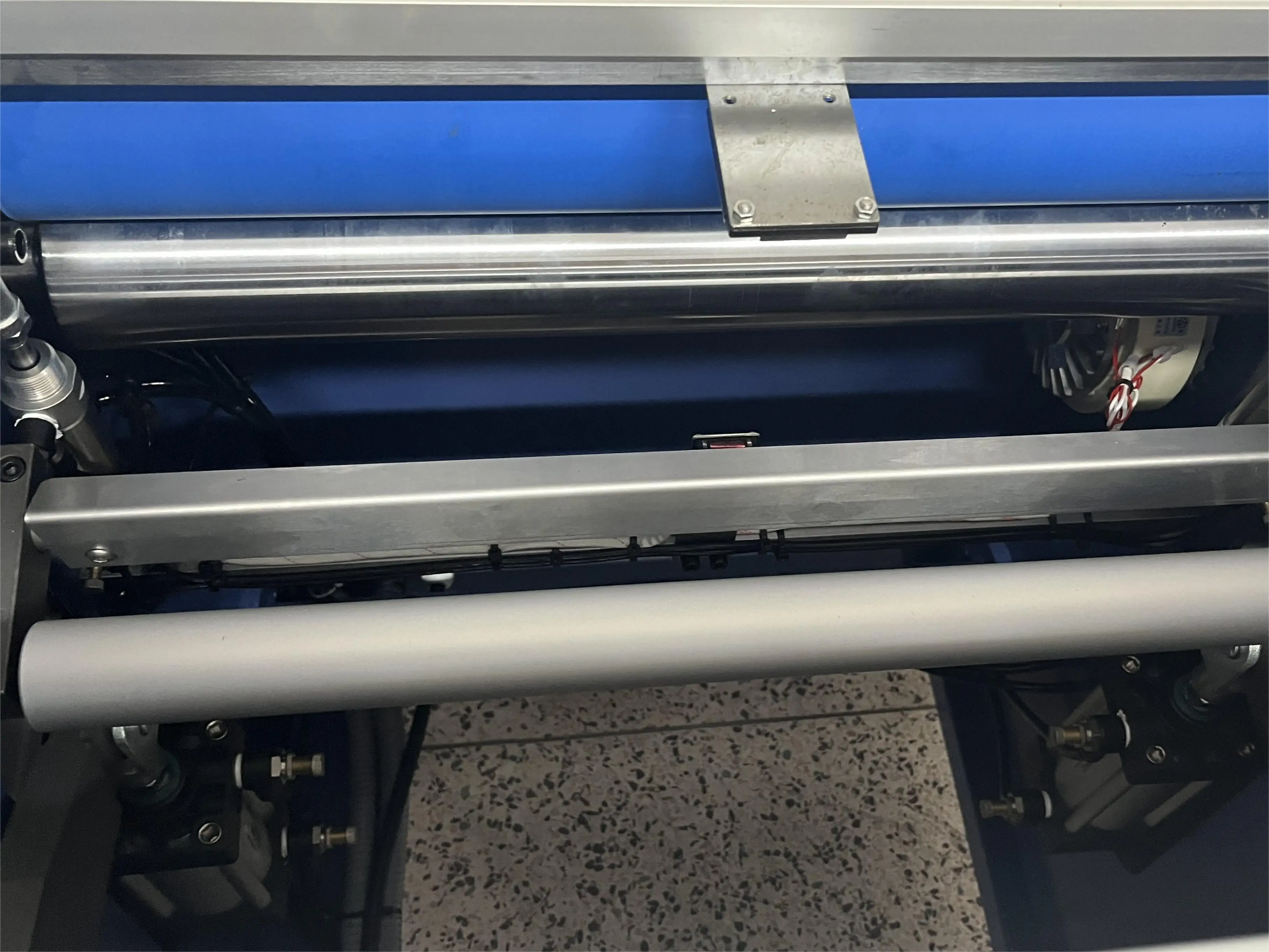

lAdjustable pro-active, anti-curl assembly takes the curl out of laminated sheets

lRotatory knives (secondary perforating mechanism) make a short slit at the overlapped joint of sheets web

lStable and efficient pneumatic sheeting system





Stacker

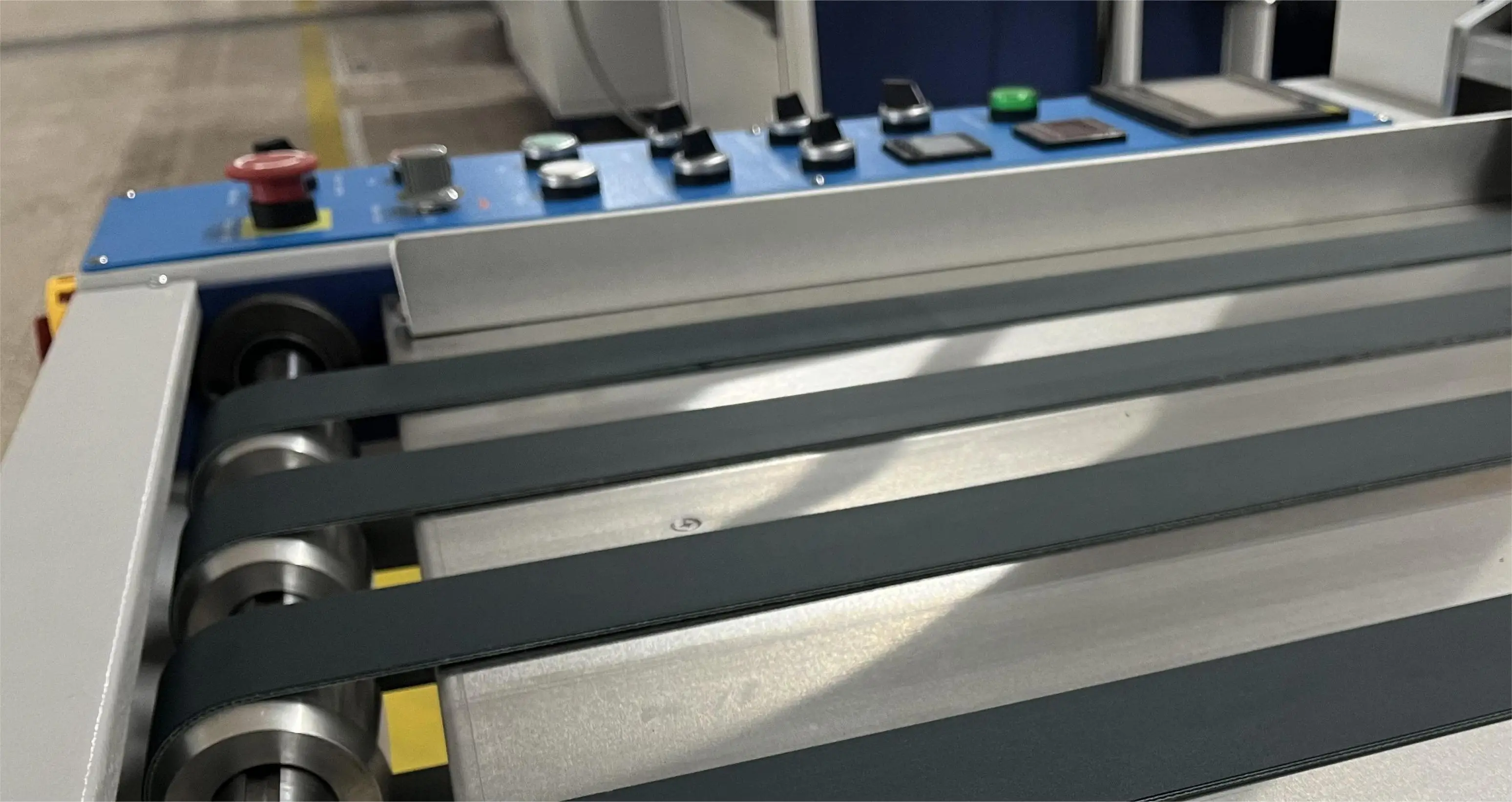

lCorrugated delivery system flattens and delivers sheets

lVibrating jogger table



Others

lSeparate structure convenient for machine maintenance and repair

lTouch screen

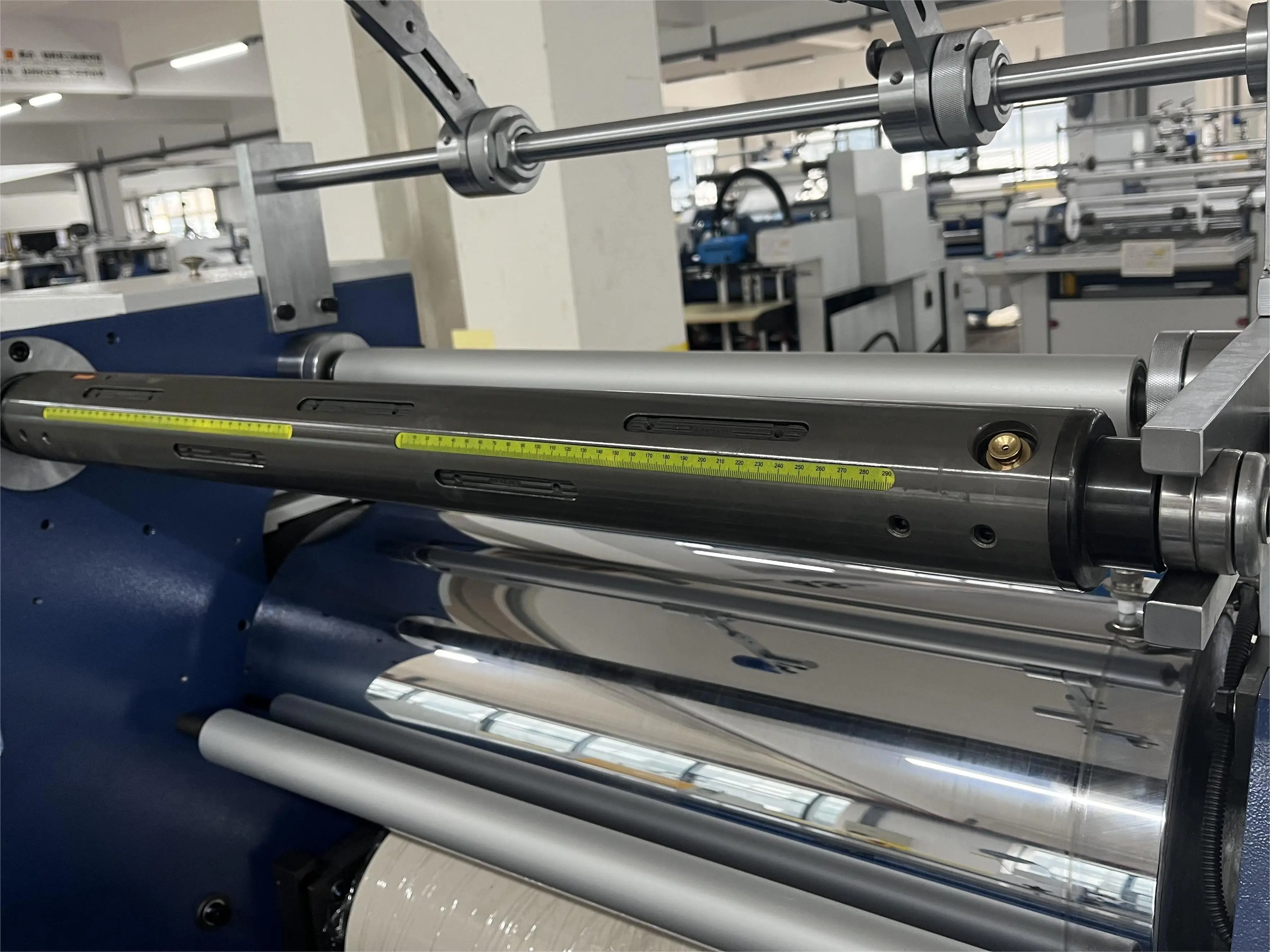

separate structure	magnetic regulating plate & control panel	sheets overlap regulator	airshaft & large chrome heating roller
film slitting & perforating mechanisms	anti-curl assembly	vibrating jogger table
