Digital Weighing Indicator_MI 2000 Series (4 stage weight control)
- Category: >>>
- Supplier: NICE D&B CO. LTD.
Share on (11000005513989):
Product Overview
Description

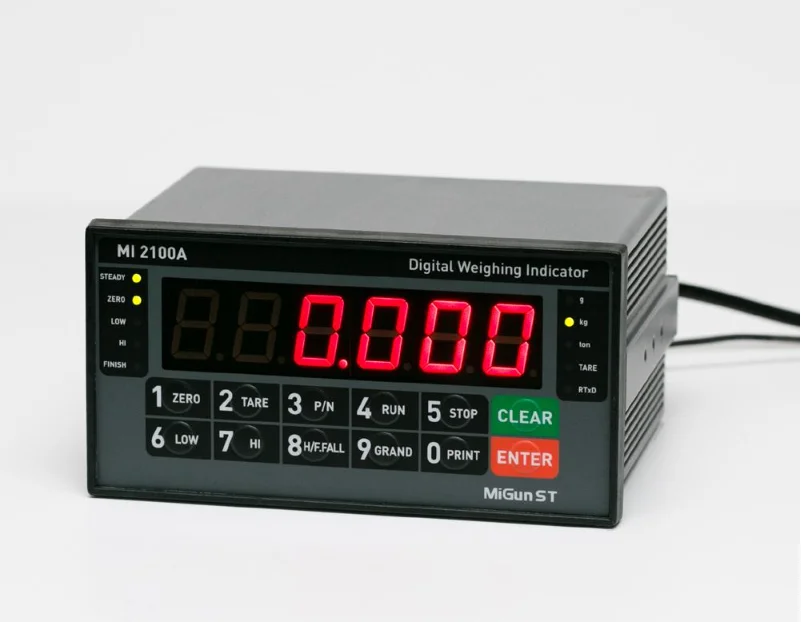

Digital Weighing Indicator_MI 2000 Series (4-stage weight control)
Product Features
• Multi-Futional Control Purpose Indicator
• Limit/Packer/Checker/Testing Weighing Modes

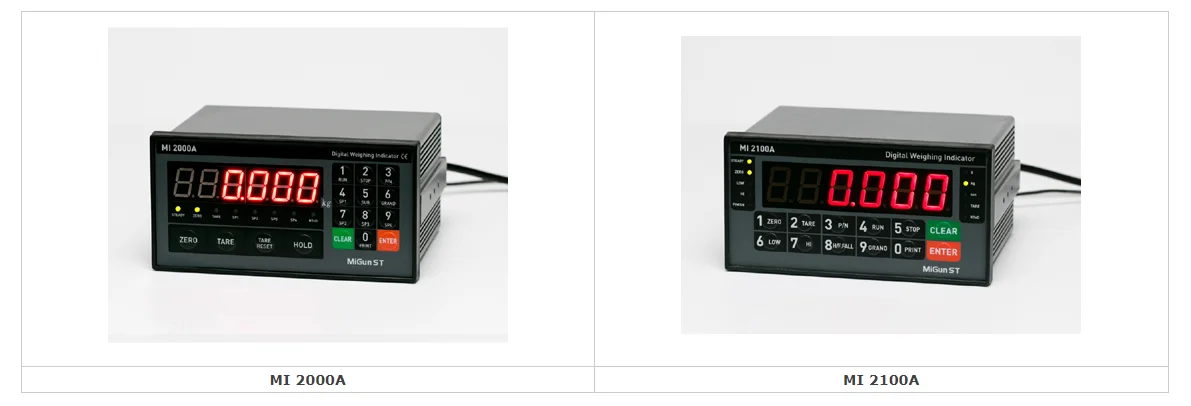

• MI-2000A 6pcs Relay Built in - 4set Point
• MI-2100A 4pcs Relay Built in - 2set Point
• Option : RS422/485, 0-10V/4-20mA (Analogue Output), BCD IN/OUT (only MI-2000A)
• Limit/Packer/Checker/Testing Weighing Modes
• MI-2000A 6pcs Relay Built in - 4set Point
• MI-2100A 4pcs Relay Built in - 2set Point
• Option : RS422/485, 0-10V/4-20mA (Analogue Output), BCD IN/OUT (only MI-2000A)
Specification
relay mode (MI-2100A)
| OUT1 | OUT2 | OUT3 | OUT4 | OUT5 | OUT6 | |
| Limit (“A”Dry) | SP1 | SP2 | SP3 | SP4 | SP5 | SP6 |
| Packer (“B”Dry) | SP1 | SP2 | SP3 | SP4 | SP5 | SP6 |
| Checker (Stable Mode) | SP1 | SP2 | SP3 | SP4 | SP5 | SP6 |
| Checker (Range Mode) | SP1 | SP1 < SP2 | SP2 < SP3 | SP3 < SP4 | SP4 < SP5 | SP5 < SP6 |
relay mode (MI-2100A)
| OUT1 | OUT2 | OUT3 | OUT4 | |
| Limit (“A”Dry) | SP1(Low) | SP2(High) | Finish | Zero |
| Packer (“B”Dry) | SP1(Low) | SP2(High) | NC | NC |
