Product Overview
Description

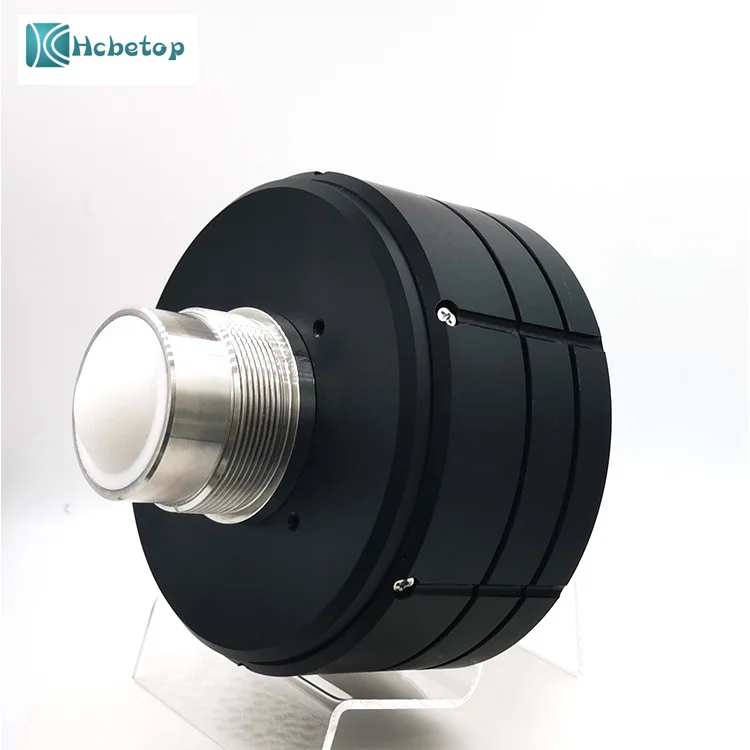

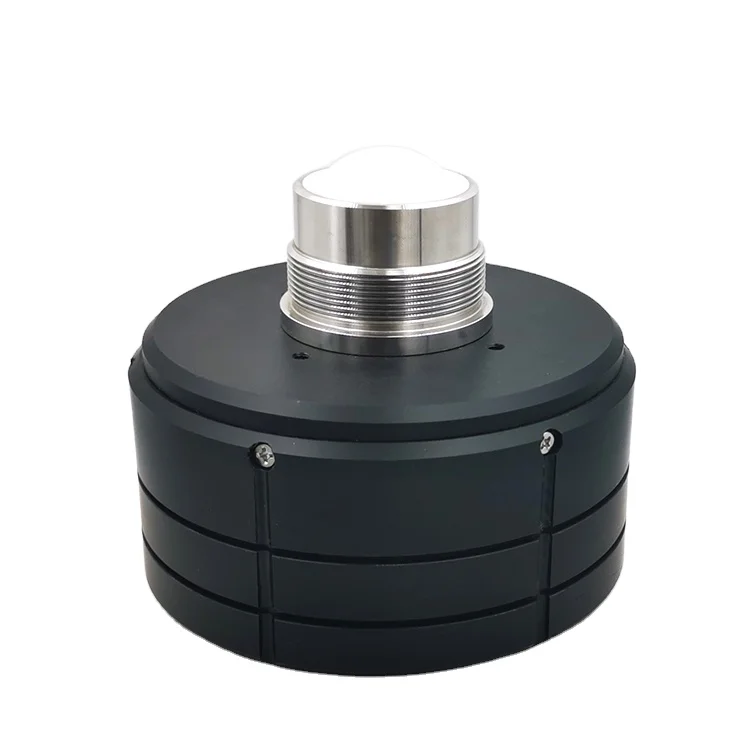

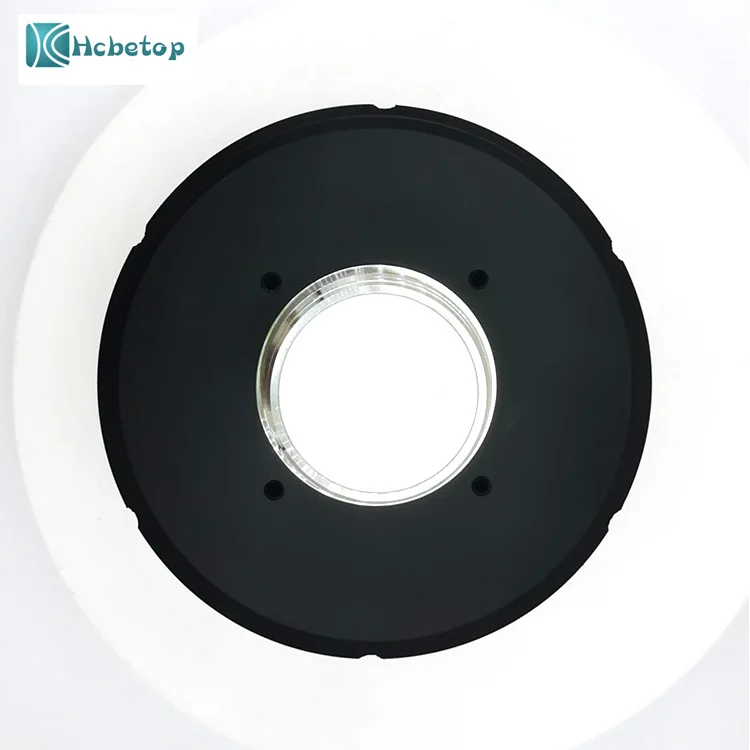

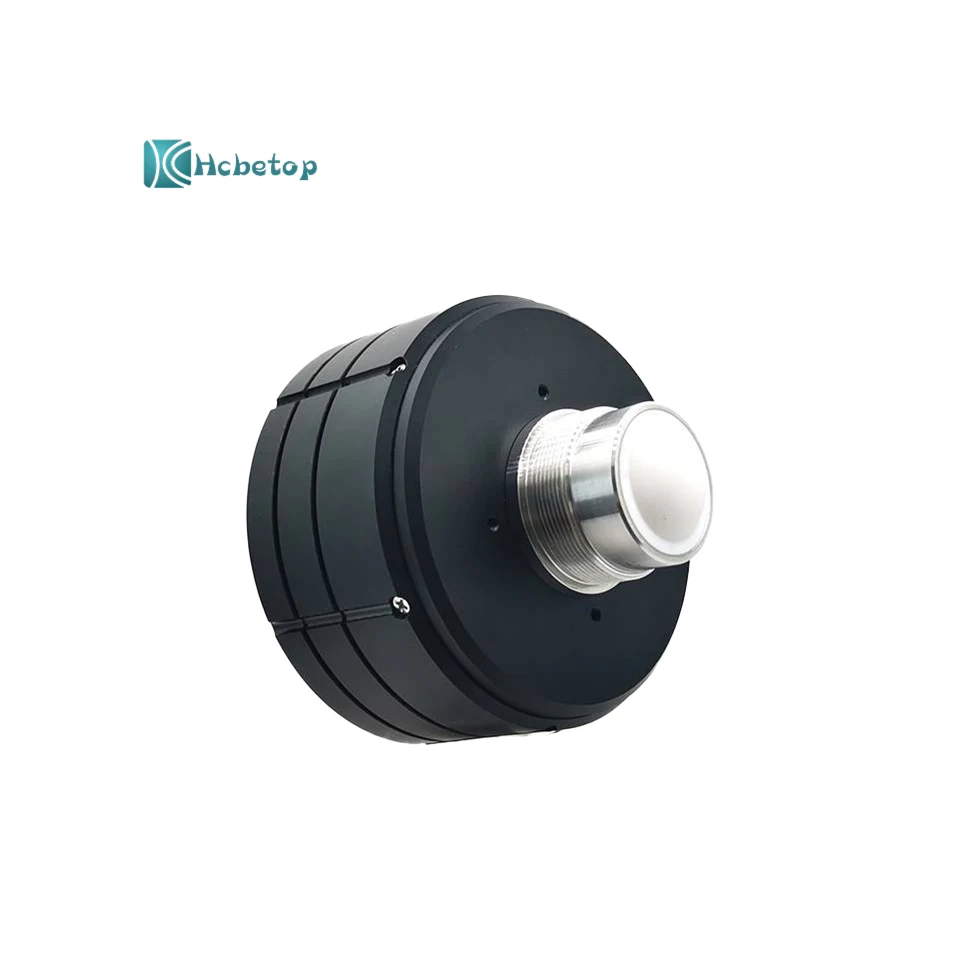

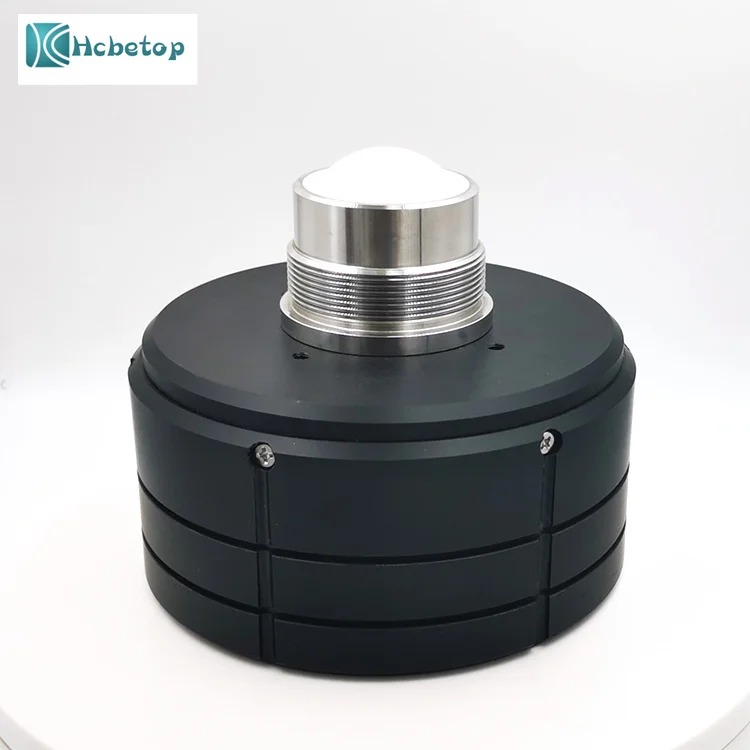

Radar Water Level Gauge
(60Ghz integrated Radar level sensor with RTU/datalogger)
Introduction
\tHC.WLX(60Ghz) is a high-precision, low-power radar level gauge, which can be used for non-contact level measurement of surface water and underground pipe networks. It uses pulse coherent radar (PCR) technology and 60G the millimeter radar wave is used asthe carrier signal, and the millimeter-level measurement accuracy is realized through the optimized signal recognition algorithm.The optimized wave elimination filter design makes the measurement result more accurate and stable.
\tHC.WLX(60Ghz) is a high-precision, low-power radar level gauge, which can be used for non-contact level measurement of surface water and underground pipe networks. It uses pulse coherent radar (PCR) technology and 60G the millimeter radar wave is used asthe carrier signal, and the millimeter-level measurement accuracy is realized through the optimized signal recognition algorithm.The optimized wave elimination filter design makes the measurement result more accurate and stable.
The RTU/datalogger function is integrated internally to facilitate wireless data upload; the PC or mobile phone APP can be used to adjust and set parameters through Bluetooth on site, which improves the efficiency of project implementation.
Feature:
1. High-frequency emission up to 60GHZ adopted. Small size and easy to install, less civil works;
2. Non-contact measurement，no need stop water; not affected by temperature, humidity, water vapor, pollutants and sediments in
the water;
3. Built-in RTU/datalogger reduces the complexity of system integration;
4. High precision, up to millimeter level;
5. Short measuring cycle. ultra-low blind zone less than 20cm.
6. Low system power consumption. suitable for various dataloggers and PLC equipment.
2. Non-contact measurement，no need stop water; not affected by temperature, humidity, water vapor, pollutants and sediments in
the water;
3. Built-in RTU/datalogger reduces the complexity of system integration;
4. High precision, up to millimeter level;
5. Short measuring cycle. ultra-low blind zone less than 20cm.
6. Low system power consumption. suitable for various dataloggers and PLC equipment.

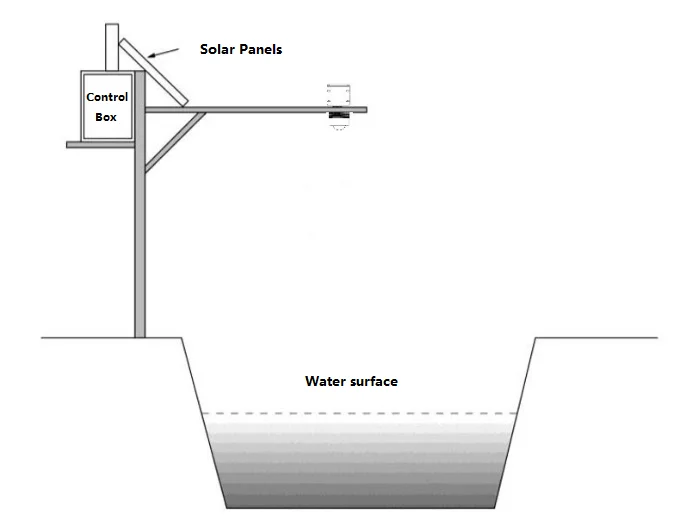

Application range
◆Water level monitoring for city flood and waterlogging in flood season,like lowland and waterspout.
◆Auxiliary water treatment working,like urban water supply and drainage monitoring.
Specification
Item | Description | |||
Measuring range | 0~3m; 5m; 7m | |||
Accuracy tolerance | 1cm | |||
Resolution | 1mm | |||
Respond Time | 2s, changeable | |||
Antenna | 8°(Angle can customize) | |||
Measuring temp. | .- 40 degree to 70degree | |||
Emission frequency | 60GHz | |||
Emission power input (EIRP) | 20dBm | |||
Signal port | RS-485(default)/RS232/4-20mA | |||
Data format | 9600 (default),8,n,1; (baud rate can be adjusted) | |||
Wireless transmission | 4G/NB-IoT/433MHZ (optional) | |||
Working voltage | 6 ~ 24V DC | |||
Working currency | Max.22.5mA | |||
Lighting protection | Lightning protection level 6KV | |||
Level of Protection | IP67/IP68 |
