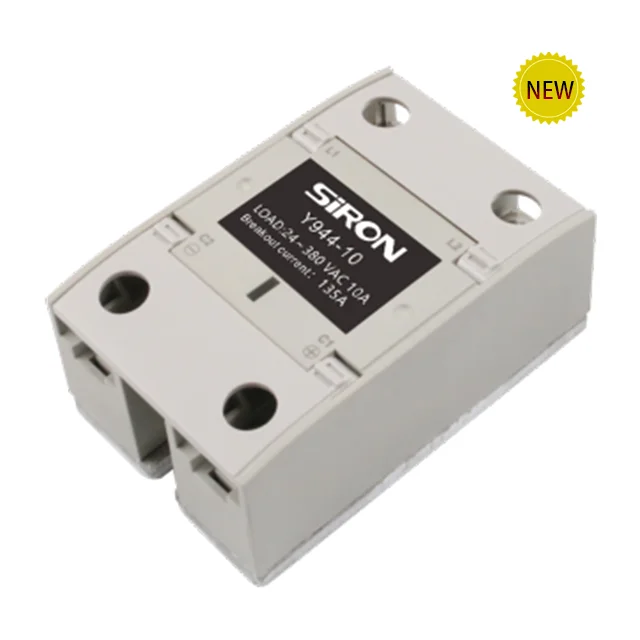

SiRON Y944~Y945 10A 25A 40A Solid state Relay Module
- Category: >>>
- Supplier: Shenzhen Siron Electrical Co. Ltd.
Share on (11000005527428):
Product Overview
Description
Our company's product categories are very rich
Features
*Impact resistance, strong shock resistance;
*Low noise andquiet, high safety factor;
*Maintain heat when energized.
*The lower the temperature of the hot plate and the ambient temperature, the longer the service life.
Product Parameters
Specifications | ||||||||||||
Model | Y944 series (variable resistor) | Y945 series (analog) | ||||||||||
Rated current | 10A max | 25A max | 40A max | 10A max | 25A max | 40A max | ||||||
A fuse | 144A2S | 259A2S | 664A2S | 144A2S | 259A2S | 664A2S | ||||||
Breakout current | 135A | 275A | 410A | 135A | 275A | 410A | ||||||
Breakout voltage | 1200VAC min | 1200VAC min | ||||||||||
The output voltage | 24～380VAC | 90～250VAC | ||||||||||
The input voltage | Variable resistor | / | ||||||||||
Input mode | / | 4～20mA | ||||||||||
The input impedance | 250KΩ/110VAC；500KΩ/220VAC；1MΩ/380VAC | about 1.2KΩ | ||||||||||
VR power | 1/4W min | / | ||||||||||
The control mode | Phase control | Phase control | ||||||||||
Leakage current | 5.0mA max | 0.5% of maximum full load | ||||||||||
The reaction time | 1.0ms max | 1.0ms max | ||||||||||
Input surge resistance | 2KV (EN61000-4-4) | 4KVrms(EN60950/VDE0805) | ||||||||||
Dielectric strength | 4KVrms(EN60950/VDE0805) | 100MΩ/500VDC(EN60950/VDE0805) | ||||||||||
Dielectric strength | 100MΩ/500VDC(EN60950/VDE0805) | 100MΩ/500VDC(EN60950/VDE0805) | ||||||||||
Shell material | / | Fireproof ABS (UL: 94V0) | ||||||||||
The work environment | -40℃～+80℃；35～85%RH | -40℃～+80℃；35～85%RH | ||||||||||
Products Description
Notice:

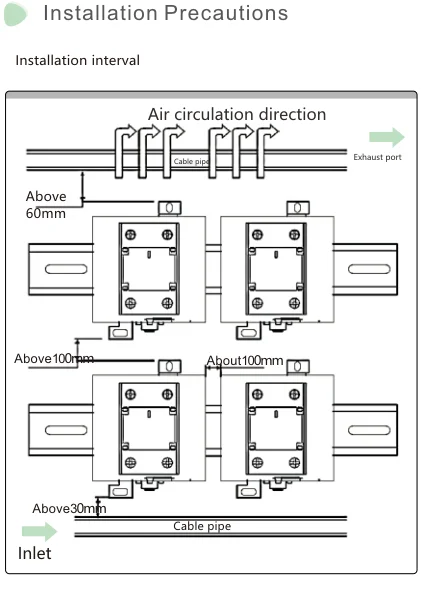

● As shown in the figure, the distance between the product and the product is required when installing the product.
● Wiring ducts to avoid blocking the air flow, it is recommended to install at the height of the radiator
Half of it.
● As the ambient temperature of our Y94 is below 40℃, please always use
The ambient temperature below the guaranteed temperature.
● When installing Y94, be sure to install the radiator vertically.
● Horizontal installation is inevitable, and product performance will drop to 50%.
● As shown in the figure, the distance between the product and the product is required when installing the product.
● Wiring ducts to avoid blocking the air flow, it is recommended to install at the height of the radiator
Half of it.
● As the ambient temperature of our Y94 is below 40℃, please always use
The ambient temperature below the guaranteed temperature.
● When installing Y94, be sure to install the radiator vertically.
● Horizontal installation is inevitable, and product performance will drop to 50%.
Notice:
● Please be sure to use standard heat sink and thermal silica gel on this product.
● Even if a standard radiator is used, due to the increase in ambient temperature and poor ventilation,
It may cause damage to Y94. (Ambient temperature: above 40°)
● Generally, the maximum temperature of Y94 components is 125°. The radiator temperature reaches below 85°
When the temperature of the component has reached 125°, the radiator is often measured during use
temperature.
● To ensure that the thermal contact of the radiator Y94 is successfully completed, please use thermal silica.
● Use bolts to complete tightening to avoid vibration and looseness.
● Do not use heat insulation (wooden board, plastic, rubber), make sure to use standard heat dissipation. Apply thermal silica gel on the contact surface as shown in the figure above.
● Even if a standard radiator is used, due to the increase in ambient temperature and poor ventilation,
It may cause damage to Y94. (Ambient temperature: above 40°)
● Generally, the maximum temperature of Y94 components is 125°. The radiator temperature reaches below 85°
When the temperature of the component has reached 125°, the radiator is often measured during use
temperature.
● To ensure that the thermal contact of the radiator Y94 is successfully completed, please use thermal silica.
● Use bolts to complete tightening to avoid vibration and looseness.
● Do not use heat insulation (wooden board, plastic, rubber), make sure to use standard heat dissipation. Apply thermal silica gel on the contact surface as shown in the figure above.

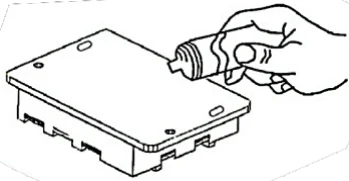

● As shown in the figure above, after the thermal silica gel is evenly distributed on the bottom of the radiator and solid state relay,
Fix the device up and down with the radiator hook.
Fix the device up and down with the radiator hook.
