16bar High Pressure Laser Cutter Screw Air Compressor 15 hp Screw Air Compressor with Dryer
- Category: >>>
- Supplier: Dehaha Compressor Jiangsu Co. Ltd.
Share on (11000005527967):
Product Overview
Description
Product Description
16bar High Pressure Laser Cutter Screw Air Compressor 15 hp Screw Air Compressor with Dryer

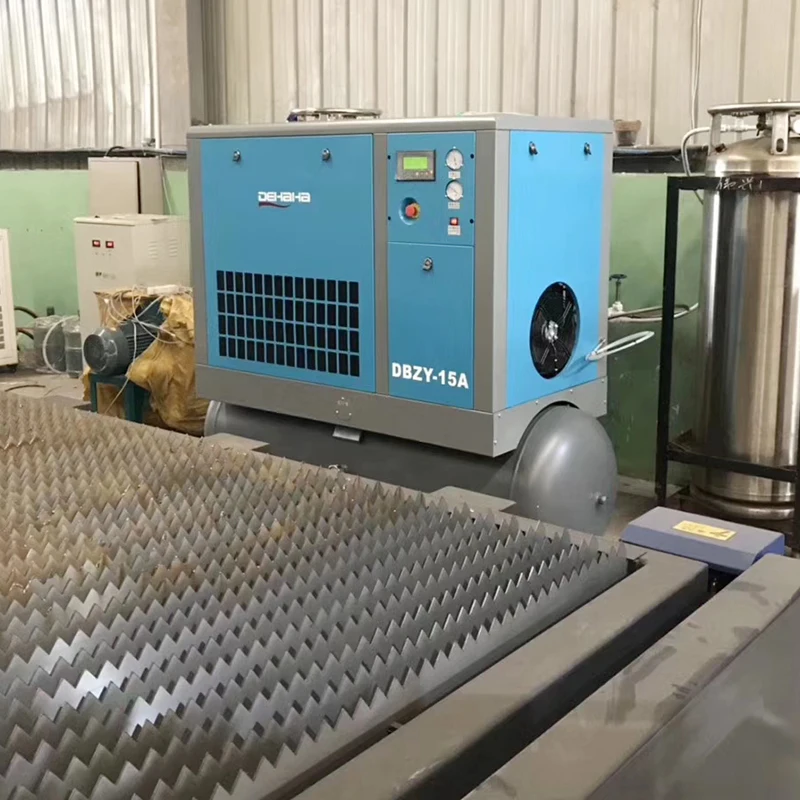

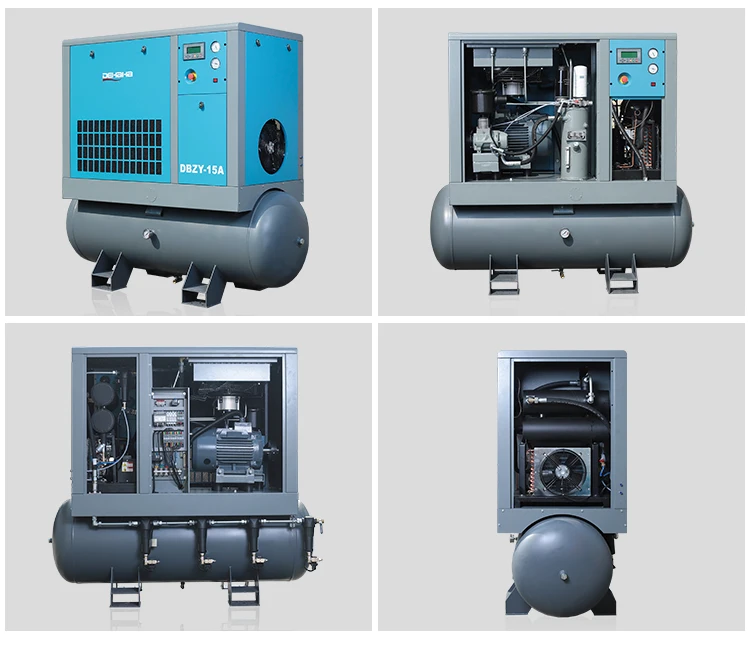

The Air Compressor for Fiber Laser Cutting Machine

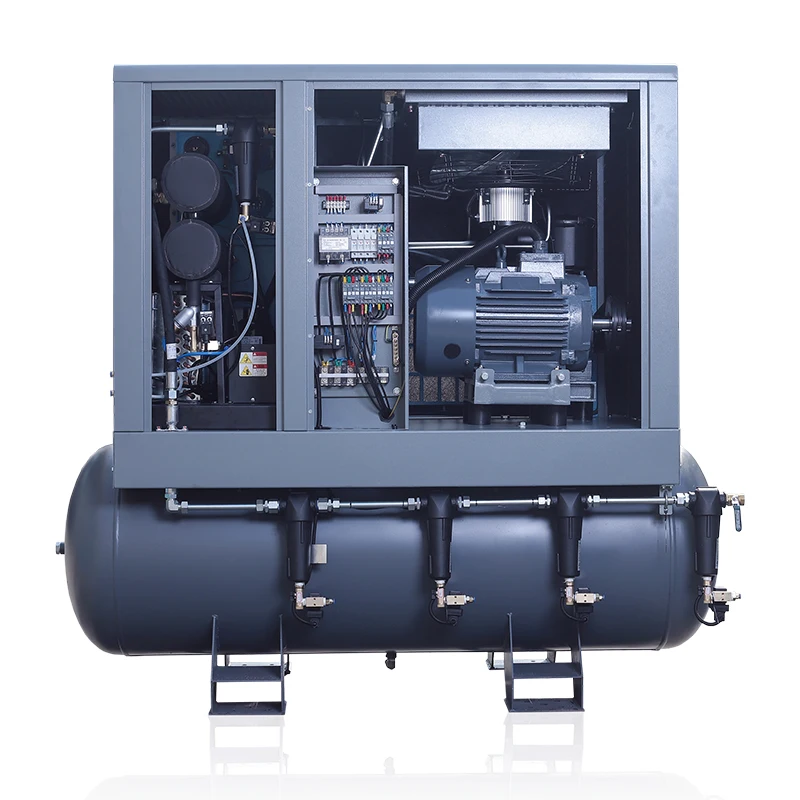

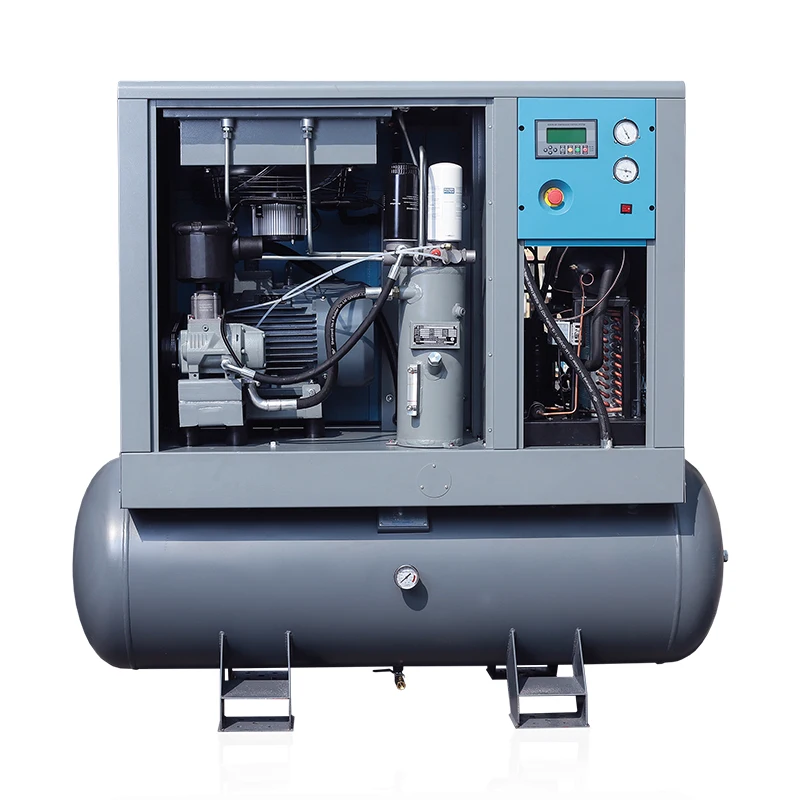

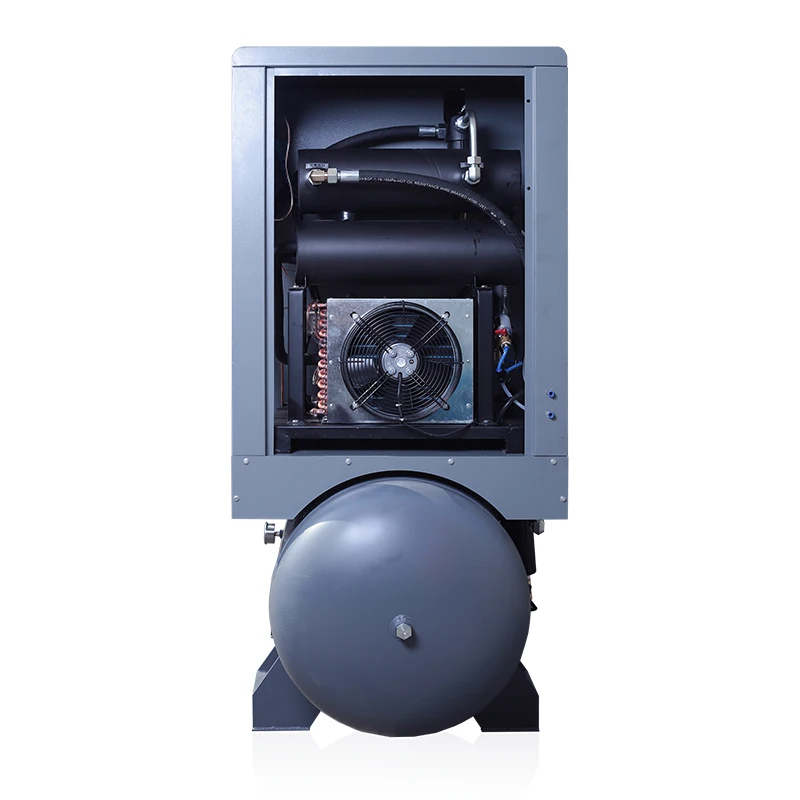

Integrated compressed air system includes screw compressor, refrigerated air dryer, tank specialized for fiber laser cutting
machine.
Integrated compressed air system includes screw compressor, refrigerated air dryer, tank specialized for fiber laser cutting
machine.
More Convenient
Integration of air compressor, air tank, and air dryer. It avoids the trouble of customers purchasing additional pipes and
fittings. Use directly after installation, saving space.
More Reliable
Modular design, durable components, low noise and vibration, and easy maintenance.
Energy Efficiency
Using permanent magnet variable speed motor, specialized for laser cutting machine, reducing pressure leakage and more
energy-saving.
Pure Compressed Air
High efficiency refrigerated dryer, multi-stage precision filter, oil content of gas is lower than 0.001 PPM, ensuring the purity of compressed air.
Integration of air compressor, air tank, and air dryer. It avoids the trouble of customers purchasing additional pipes and
fittings. Use directly after installation, saving space.
More Reliable
Modular design, durable components, low noise and vibration, and easy maintenance.
Energy Efficiency
Using permanent magnet variable speed motor, specialized for laser cutting machine, reducing pressure leakage and more
energy-saving.
Pure Compressed Air
High efficiency refrigerated dryer, multi-stage precision filter, oil content of gas is lower than 0.001 PPM, ensuring the purity of compressed air.

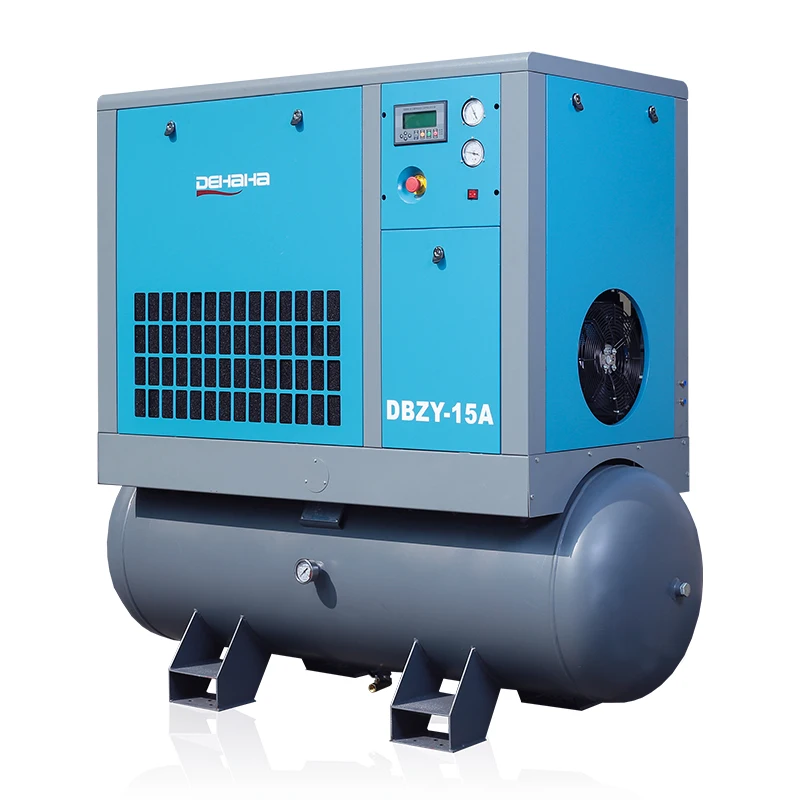

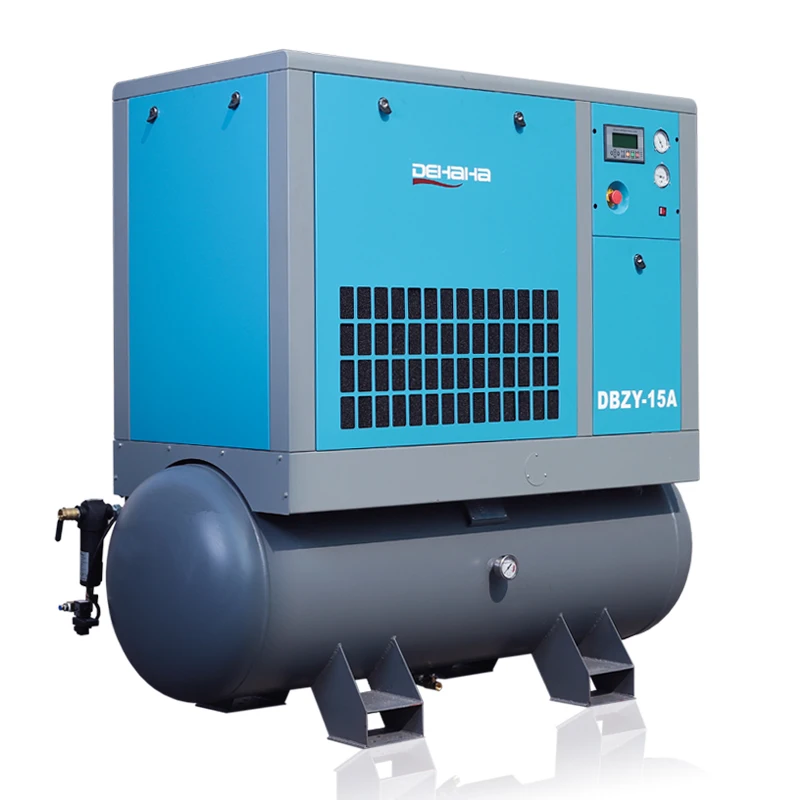

Model:DBZY-15A
Capacity: 1.05m3/min
Working pressure: 16 bar
Head: Hanbell AB+
Transmission mode: belt drive
Cooling method: air cooling
Motor: 380v/50hz/3phase, IP54
Exhaust temperature: ambient temperature +8℃
Noise: ≤ 65 dB(A)
Outlet size: G3/4”
Gas tank: 500L
Cold dryer voltage: 220v/50/1phase
Air dryer: 16bar/1.2m3/2-10℃
Filter: 16bar/1.5m3/4 pcs, particle content≤0.01μm，oil content≤0.003PPM
Dimensions: 1882*790*1731mm
Weight: 560kg
Working pressure: 16 bar
Head: Hanbell AB+
Transmission mode: belt drive
Cooling method: air cooling
Motor: 380v/50hz/3phase, IP54
Exhaust temperature: ambient temperature +8℃
Noise: ≤ 65 dB(A)
Outlet size: G3/4”
Gas tank: 500L
Cold dryer voltage: 220v/50/1phase
Air dryer: 16bar/1.2m3/2-10℃
Filter: 16bar/1.5m3/4 pcs, particle content≤0.01μm，oil content≤0.003PPM
Dimensions: 1882*790*1731mm
Weight: 560kg
Technical Parameters
Model | Capacity (m3/min) | Pressure(Bar ) | Power(kw) | Noise(DB) | Outlet diameter | Dimension(mm) | Weight(kg) | Air tank(L) | Exhaust oil content(ppm) |
DBZY-10A | 0.55 | 1.58 | 7.5 | 65 | G3/4 | 1418*700*1500 | 395 | 260 | 0.01 |
DBZY-15A | 1.05 | 1.58 | 11 | 65 | G3/4 | 1882*790*1731 | 560 | 500 | 0.01 |
DBZY-20A | 1.51 | 1.58 | 15 | 65 | G3/4 | 1882*790*1731 | 572 | 500 | 0.01 |
DMZY-15A | 1.05 | 1.58 | 11 | 65 | G3/4 | 1882*790*1731 | 560 | 500 | 0.01 |
DMZY-20A | 1.52 | 1.58 | 15 | 65 | G3/4 | 1882*790*1731 | 572 | 500 | 0.01 |
DMZY-30A | 2.41 | 1.58 | 22 | 68 | G3/4 | 1882*1081*1801 | 630 | 500 | 0.01 |
DCZY-30A | 2.21 | 1.58 | 22 | 68 | G3/4 | 1882*1081*1801 | 630 | 500 | 0.01 |
Application Industry

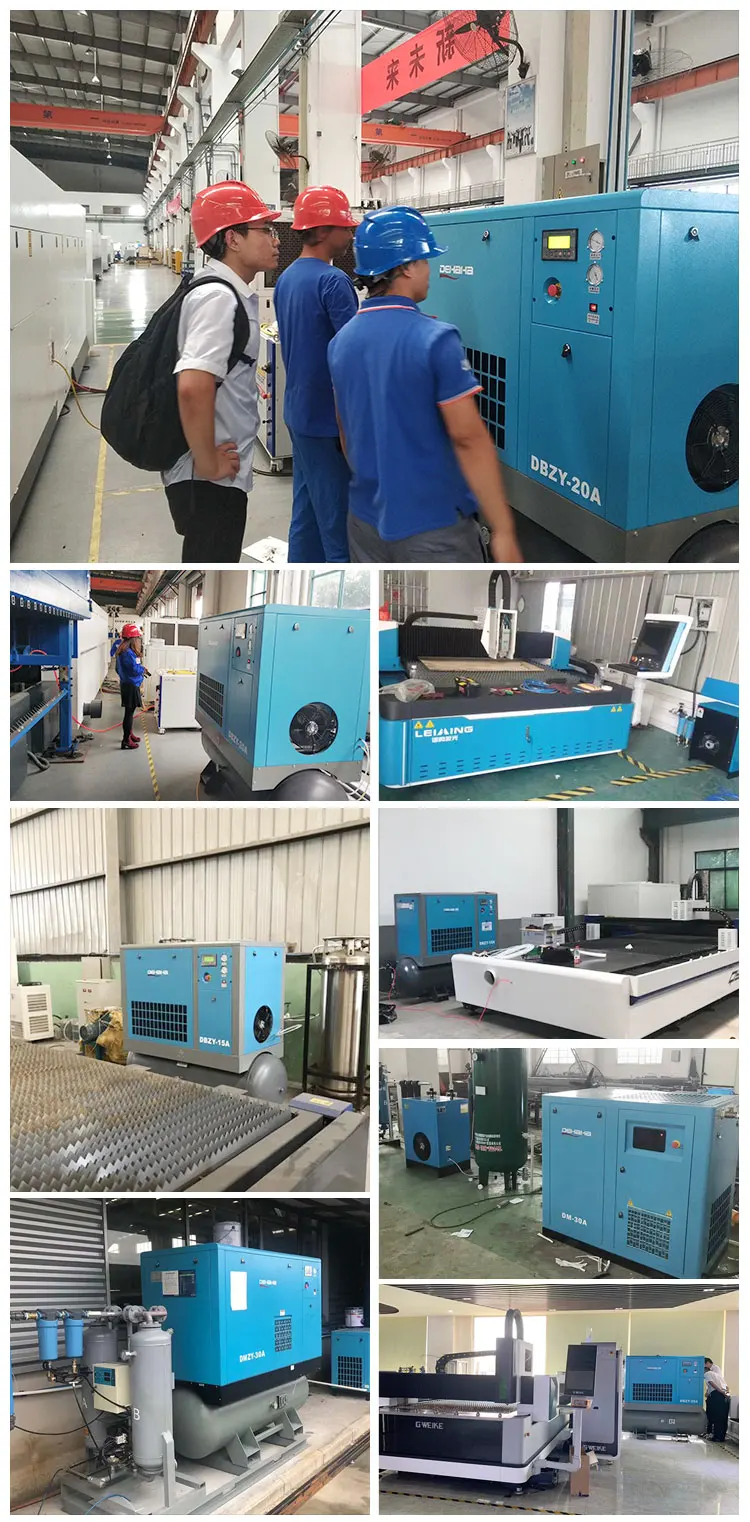

Project Case
