New product logistics robots Best patented Pallet Inverter, Pallet flipper for food and beverages shops and factories
- Category: Transporting >>>
- Supplier: Toppy srl
Share on (11000005560081):
Product Overview
Description
Inverter Hands Free
Inverter Hands Free
Revolutionary pallet inverter;
Performance up to 80 pallets / h;
Maximum capacity of 1500 kg;
The operator never touches the pallet;
Suitable for GMA, Europallet, CHEP, Plastic pallets or any other pallet;
Safe pressure of the products.
Performance up to 80 pallets / h;
Maximum capacity of 1500 kg;
The operator never touches the pallet;
Suitable for GMA, Europallet, CHEP, Plastic pallets or any other pallet;
Safe pressure of the products.
Product Description

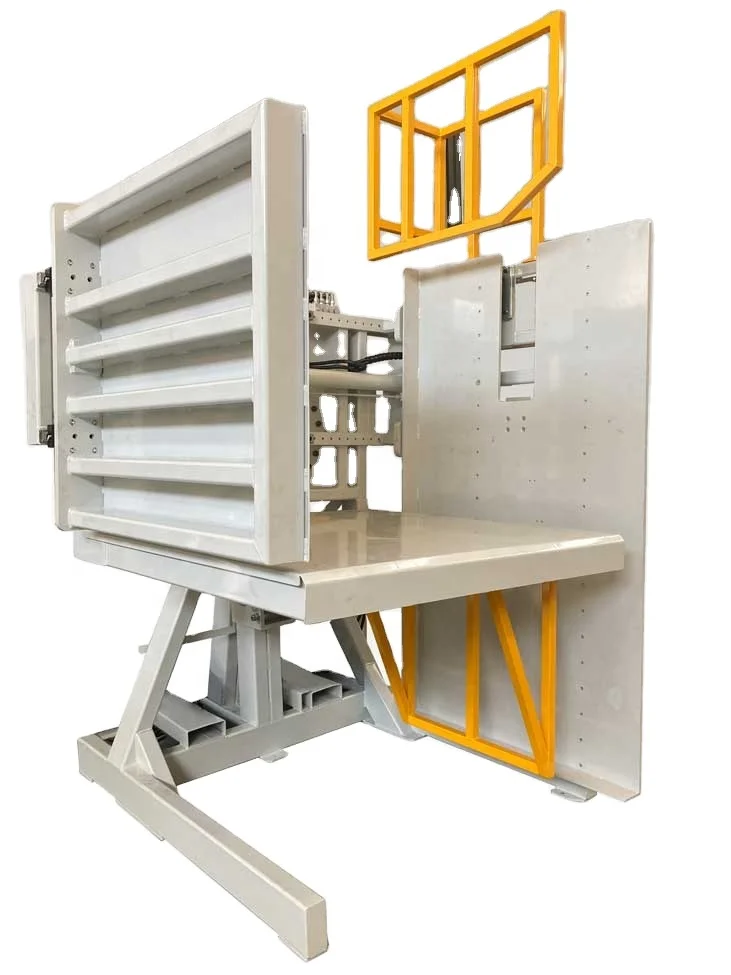

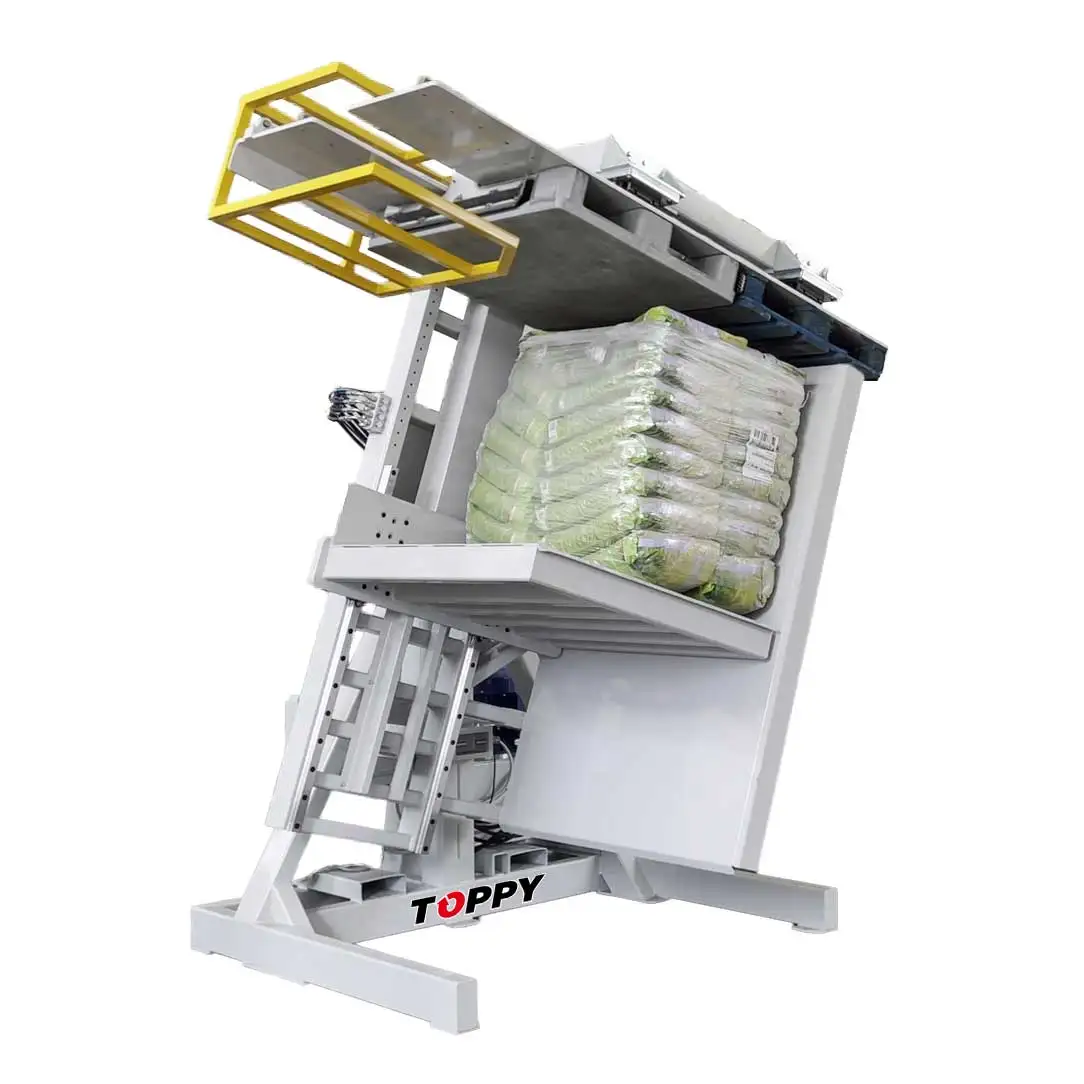

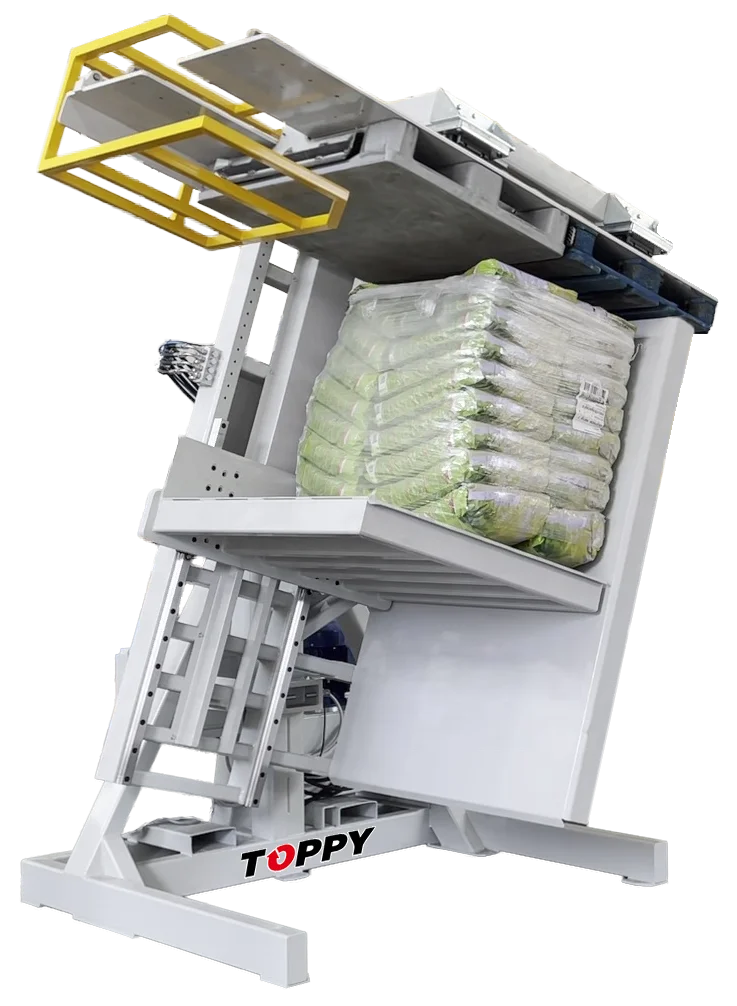

Stationary pallet changer TOPPY INVERTER HAND FREE
This solution is a new revolutionary and innovative pallet inverter.
This stationary pallet Inverter is able to handle loads up to 2000 kg with a maximum height up to 2090 mm. This pallet inverter
model differs compared to the others on the market because the pallet replacement system is extremely innovative and rapid,
allowing a performance of 80 pallets / h. The pallet inverter is available in the manual version, with button panel or in the
automatic version by PLC. This model is a extremely versatile device suitable for several industrial sectors such as the
pharmaceutical, food and beverage, cosmetic, ceramic sectors, etc.
SAFETY
All the Toppy machinery are equipped with safety measurements to avoid work injuries, with an eye to GMP norms to ensure the
appropriate quality standards.
Our stationary pallet inverter systems are supplied with safety system that do not allow access to the operators in the area in
front of the machine. These are optional systems such as metal perimeter protection nets and safety photocells to limit access.
This stationary pallet Inverter is able to handle loads up to 2000 kg with a maximum height up to 2090 mm. This pallet inverter
model differs compared to the others on the market because the pallet replacement system is extremely innovative and rapid,
allowing a performance of 80 pallets / h. The pallet inverter is available in the manual version, with button panel or in the
automatic version by PLC. This model is a extremely versatile device suitable for several industrial sectors such as the
pharmaceutical, food and beverage, cosmetic, ceramic sectors, etc.
SAFETY
All the Toppy machinery are equipped with safety measurements to avoid work injuries, with an eye to GMP norms to ensure the
appropriate quality standards.
Our stationary pallet inverter systems are supplied with safety system that do not allow access to the operators in the area in
front of the machine. These are optional systems such as metal perimeter protection nets and safety photocells to limit access.
What products does it move?
It’s a pallet inverter able to move many types of products. Please find below some examples of products able to handle: boxes,
vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper barrels, buckets, cans, reels, large cartons,paper rolls, plywood etc.
vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper barrels, buckets, cans, reels, large cartons,paper rolls, plywood etc.
How does the pallet change operation take place?

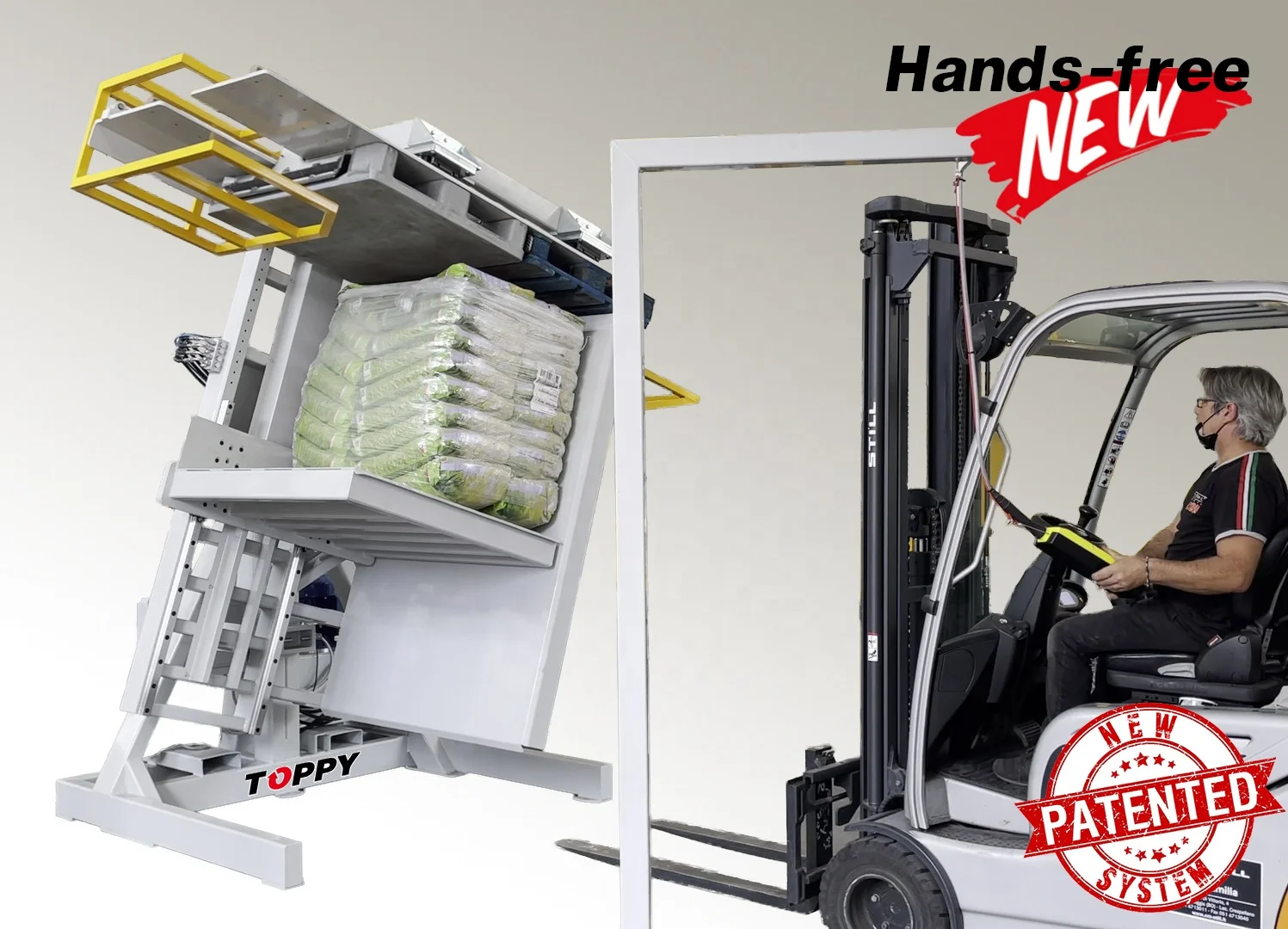

The pallet change operation begins with the placement of the load, through a forklift, on the lower platform of the machine. The
operator, through the push button control panel, starts the automatic pallet change cycle. This pallet Inverter solution is
innovative and grants the performance of 80 pallet x hour.

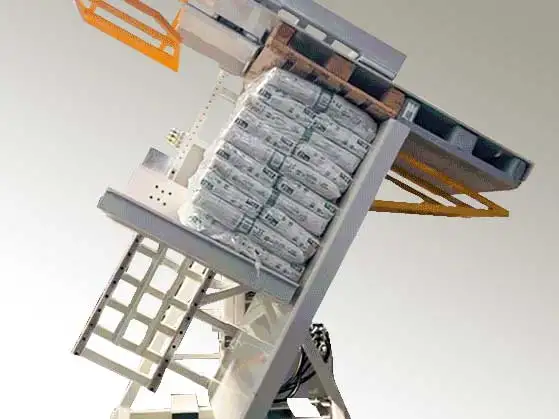

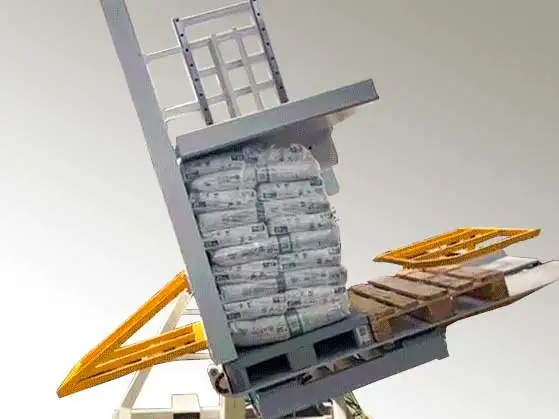

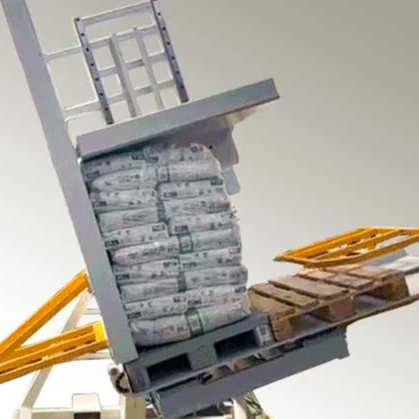

The load is placed on the platform and next to the operator place the new pallet in position, ready for the change. The operator,
through the push button control panel, operates the upper platform in order to hold safety the products. The machine start
rotating by 120°in order to have the load upside down, in this position the platforms are opened. This operation allows the
separation of the old pallet from the products, in order to facilitate the translation of the new pallet that will take the place
of the old one. At this point, the pallet is changed, the new pallet is under the product and the old pallet is placed alongside.
The pallet change operation ends with the closing of the platform and the turning of the machine back to 0°, in order to return to
the starting position.
Some products like bags grants the possibility to do the pallet change operation without inverting the machine by 120°, the change
operation of the pallet is possible also from the start position.
operator, through the push button control panel, starts the automatic pallet change cycle. This pallet Inverter solution is
innovative and grants the performance of 80 pallet x hour.
The load is placed on the platform and next to the operator place the new pallet in position, ready for the change. The operator,
through the push button control panel, operates the upper platform in order to hold safety the products. The machine start
rotating by 120°in order to have the load upside down, in this position the platforms are opened. This operation allows the
separation of the old pallet from the products, in order to facilitate the translation of the new pallet that will take the place
of the old one. At this point, the pallet is changed, the new pallet is under the product and the old pallet is placed alongside.
The pallet change operation ends with the closing of the platform and the turning of the machine back to 0°, in order to return to
the starting position.
Some products like bags grants the possibility to do the pallet change operation without inverting the machine by 120°, the change
operation of the pallet is possible also from the start position.
Specification
item | value |
Condition | New |
Applicable Industries | Food & Beverage Factory, warehouse, Pharmaceutical Industry, Food |
Showroom Location | Italy |
Place of Origin | Italy |
Warranty | 1 Year |
FAQ
1. Can “TOPPY INVERTER” be customized for special applications?
Yes, absolutely, we are able to customize the machines according to the customer’s needs.
2. Which products are suitable for this device?
This pallet inverter is able to work with many products, boxes, vials, flasks, trays, bottles, packs, big bags, big boxes,
barrels, paper barrels, buckets, cans, reels, large containers, paper rolls, plywood, battery etc.
3.What type of pallet it’s able to operate with?
It can operate with any pallet size, from standard to special ones. It is possible to use pallets of many materials (wood ,
plastic, aluminium, iron, etc.)
4. How are the products loaded or unloaded from the pallet changer devices?
They can be loaded and unloaded by forklift or forklift truck.
5. How does it operates with fragile products?
Even the most fragile products are securely locked by the upper platform in order to safe the product. The upper platform locks the products with a light pression managed by a shock absorber system and limit-switches that prevent the products to be crushed.
Yes, absolutely, we are able to customize the machines according to the customer’s needs.
2. Which products are suitable for this device?
This pallet inverter is able to work with many products, boxes, vials, flasks, trays, bottles, packs, big bags, big boxes,
barrels, paper barrels, buckets, cans, reels, large containers, paper rolls, plywood, battery etc.
3.What type of pallet it’s able to operate with?
It can operate with any pallet size, from standard to special ones. It is possible to use pallets of many materials (wood ,
plastic, aluminium, iron, etc.)
4. How are the products loaded or unloaded from the pallet changer devices?
They can be loaded and unloaded by forklift or forklift truck.
5. How does it operates with fragile products?
Even the most fragile products are securely locked by the upper platform in order to safe the product. The upper platform locks the products with a light pression managed by a shock absorber system and limit-switches that prevent the products to be crushed.
6.What’s the difference between “mobile” and “stationary” pallet?
The mobile pallet changers are really versatile systems as they do not need to dedicate a specific area for the operation so can be performed in any production area. The stationary pallet changers partially compensate the use of the transpallet as it allows the transport of the loads inside the dispenser.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a dedicated area dedicated for the pallet change operation.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a dedicated area dedicated for the pallet change operation.
