Customized Laminar Flow Hood Air Purifier FFU Clean Room Hepa Fan Filter Unit
- Category: >>>
- Supplier: Henan Lipu Machinery Co. Ltd.
Share on (11000005604906):
Product Overview
Description
Products Description

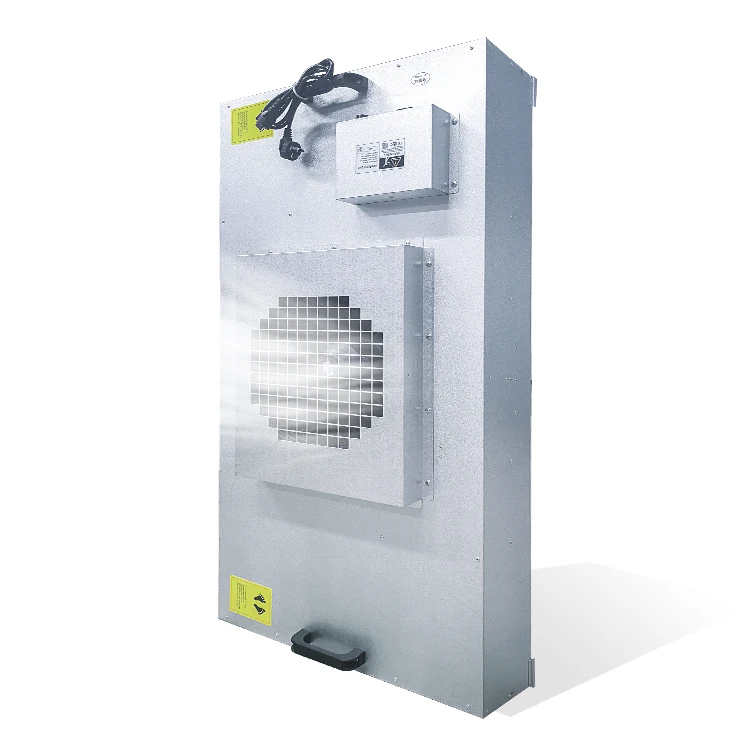

Fan Filter Units is a self-contained air blower with filtration.
The fan draws in air from the top of the FFU and filters it through HEPA filter. The filtered clean air is evenly sent out over the entire wind surface at a wind speed of 0.45 m/s ± 20%. Cleanroom FFU can be used in modular connection, making Cleanroom FFU，widely used in clean rooms, dust-free operating tables, dust-free production lines, assembled clean rooms and local 100-level applications.
The fan draws in air from the top of the FFU and filters it through HEPA filter. The filtered clean air is evenly sent out over the entire wind surface at a wind speed of 0.45 m/s ± 20%. Cleanroom FFU can be used in modular connection, making Cleanroom FFU，widely used in clean rooms, dust-free operating tables, dust-free production lines, assembled clean rooms and local 100-level applications.

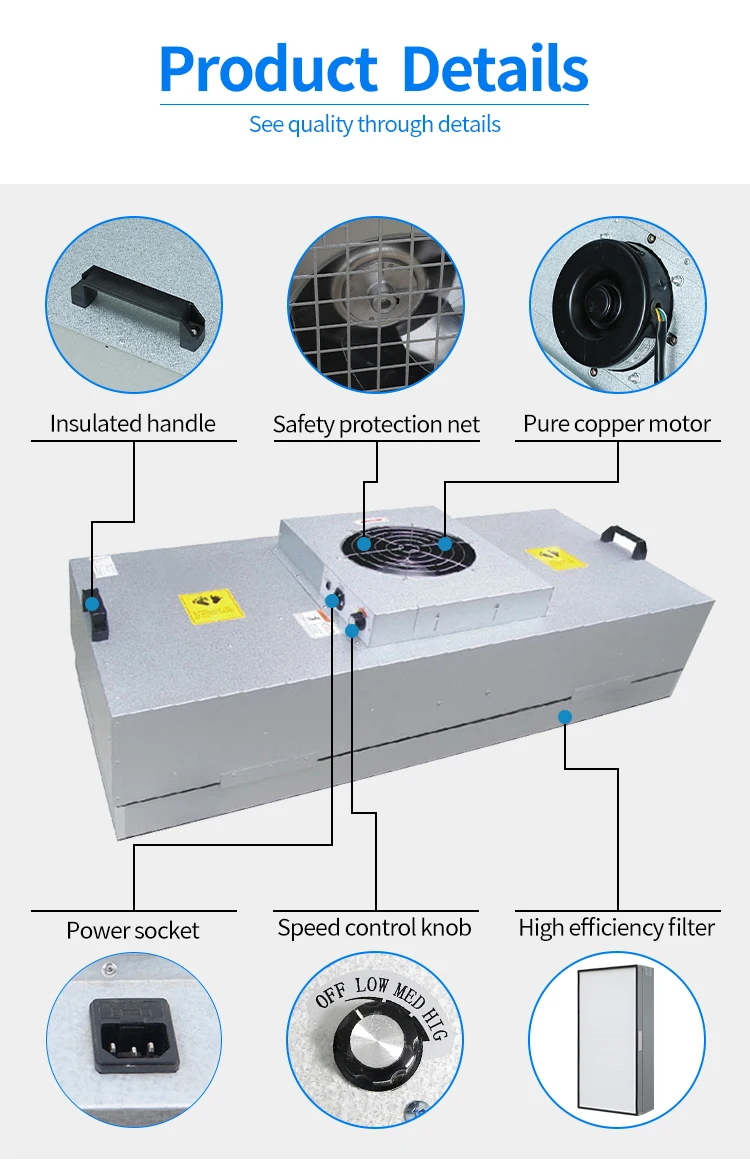

FAN FILTER UNIT (FFU) Features:
1. Several ways to control the speed of fan filter units
2. Very low running irrigation surface consumes power, reduces costs and microcomputer control.
3. The built-in air duct diversion system reduces noise and pressure loss and improves fan efficiency.
4. Easily matched with a variety of high-efficiency filters and HEPA, ULPA.
5. The rear-tilt centrifugal fan provides high air volume. High static pressure conditions, long working life.
6. Suitable for clean room Class 1-1000 clean room.
7. It is especially suitable for assembly into a super-clean production line, which can be arranged as a single unit according to the process requirements, or multiple units can be connected in series into a 100-stage flow assembly line.
1. Several ways to control the speed of fan filter units
2. Very low running irrigation surface consumes power, reduces costs and microcomputer control.
3. The built-in air duct diversion system reduces noise and pressure loss and improves fan efficiency.
4. Easily matched with a variety of high-efficiency filters and HEPA, ULPA.
5. The rear-tilt centrifugal fan provides high air volume. High static pressure conditions, long working life.
6. Suitable for clean room Class 1-1000 clean room.
7. It is especially suitable for assembly into a super-clean production line, which can be arranged as a single unit according to the process requirements, or multiple units can be connected in series into a 100-stage flow assembly line.

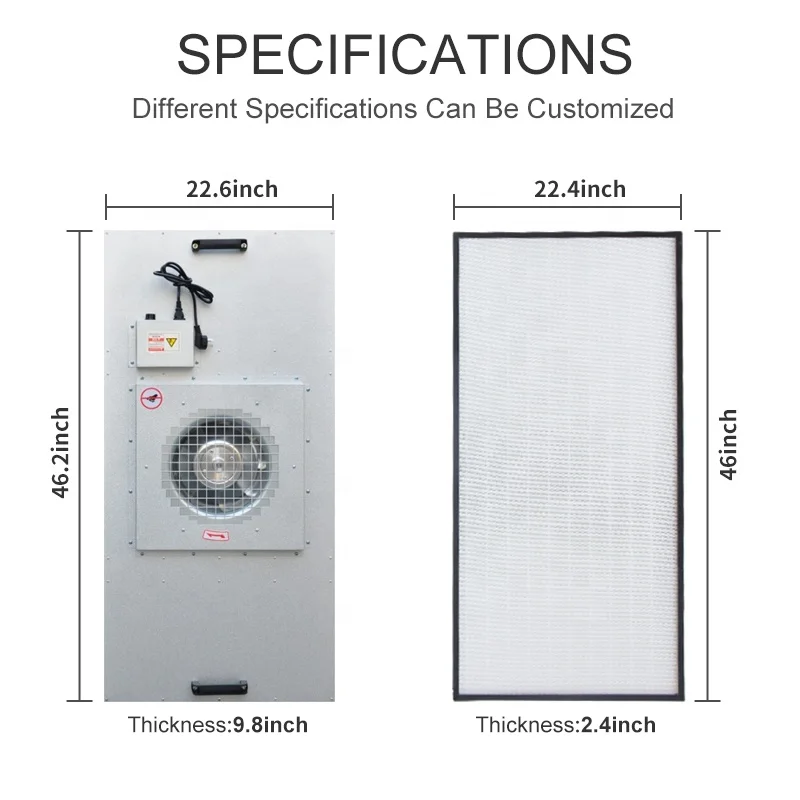

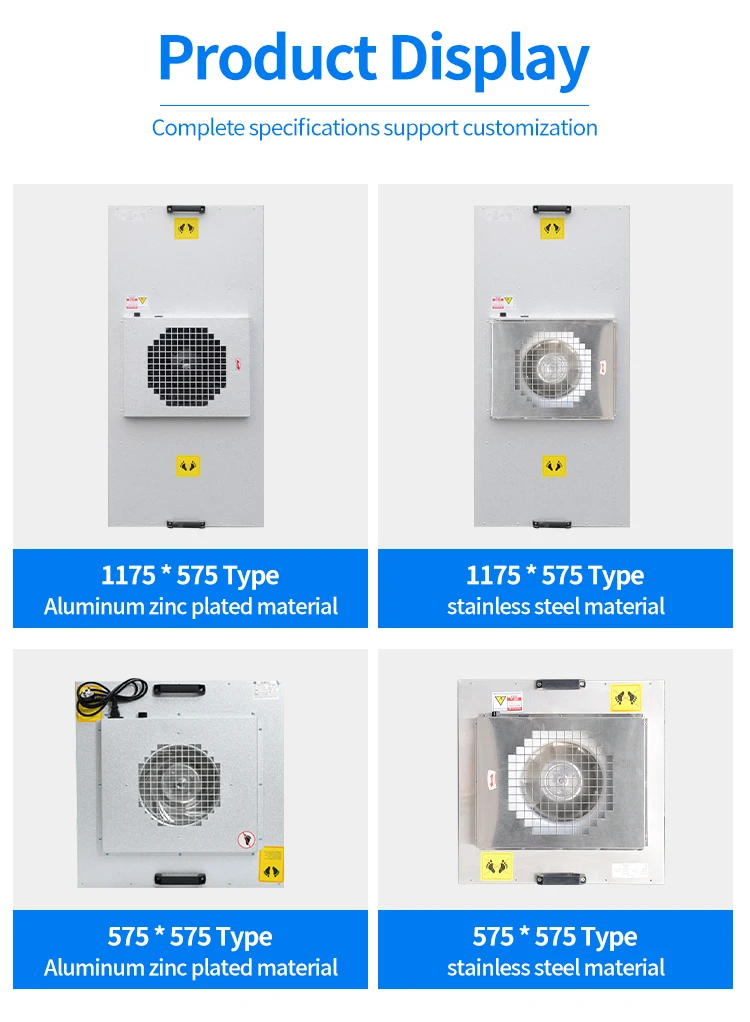

Supports various styles, sizes and materials | ||||||
Product Number | LPFFU-1 | LPFFU-2 | LPFFU-3 | |||
Size | 1175*575*250 | 575*575*250 | 1175*1175*250 | |||
Filter Size | 1175*575*69 | 570*570*69 | 1175*1175*69 | |||
Material | Aluminum coated zinc | Aluminum coated zinc | Aluminum coated zinc | |||
Air flow | 1500m³/h | 800m³/h | 2000m³/h | |||
HEPA Filter Efficiency | ≥99.99% 0.5um | ≥99.99% 0.5um | ≥99.99% 0.5um | |||
Wind noise | 60db±3db | 60db±3db | 68db±3db | |||

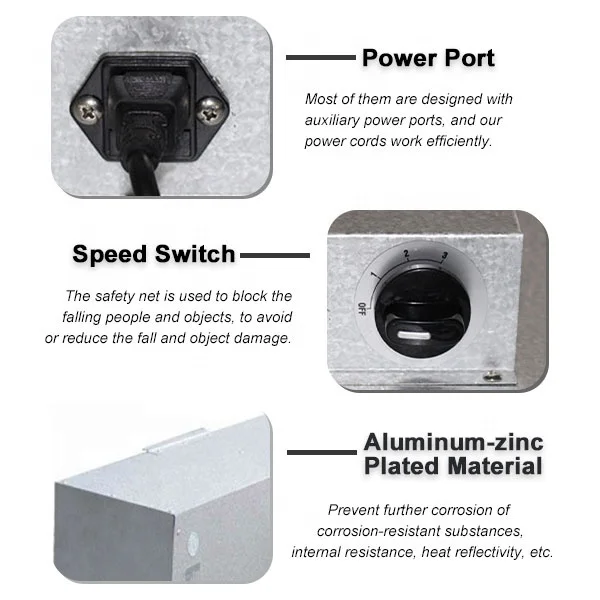

Switch | Rotary three-speed speed regulation | Rotary three-speed speed regulation | Rotary three-speed speed regulation | |||
Power | 125W-175W | 125W-175W | 240W-320W | |||
Power supply | 220V 50Hz | 220V 50Hz | 220V 50Hz | |||
Application | clean room ceiling, clean shed clean workbench, clean wardrobe assembled air purifier | |||||
Our Advantages

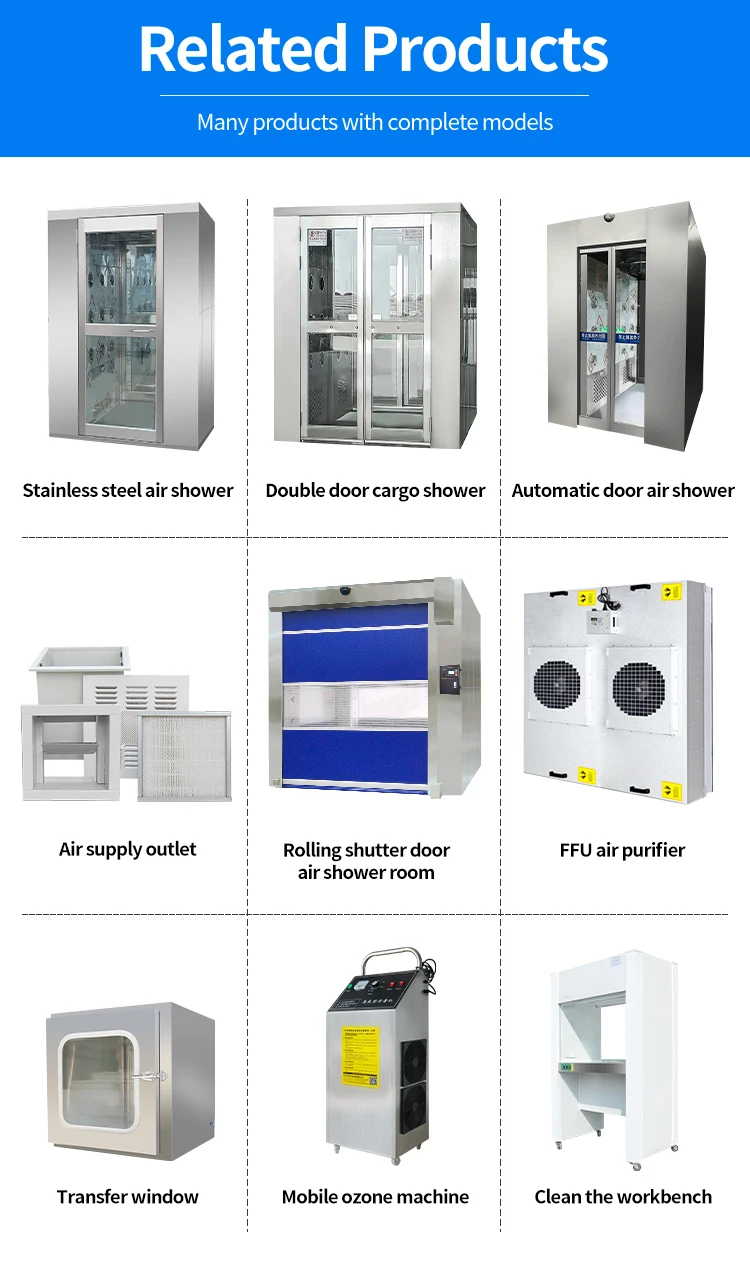

Related Products

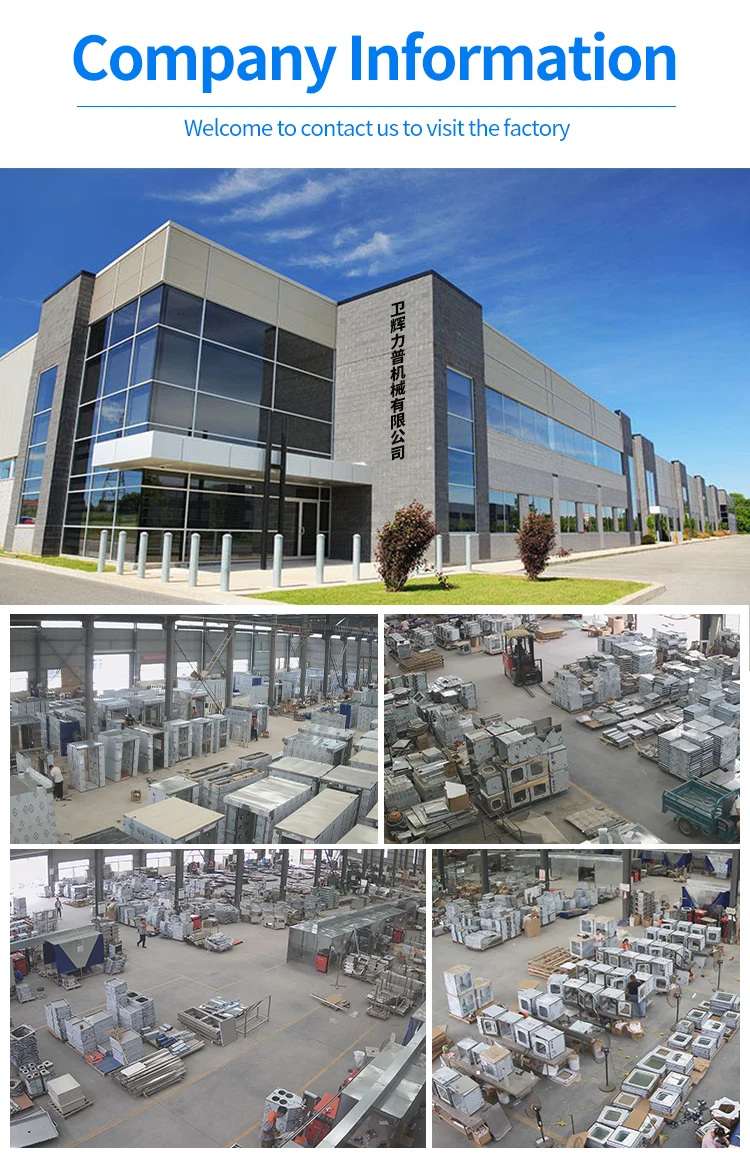

Company Profile
Weihui Lipu Machinery Co., Ltd. is a professional air shower production manufacturer,entered the industry for 15 years by the users of the trust and support.The main product air shower is exported to all over the world,with EU CE certification,quality
assurance and the best price.
assurance and the best price.
The company's main products are module clean room,air shower, fan filter unit,pass box,and other cleaning equipment. Accept customers' non-standard customized. We are willing to strengthen cooperation with all industries with first-class technical strength and first-class after-sales service. We sincerely welcome overseas customers to patronize and negotiate business.
Certificate Display
Packing & Delivery
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are direct manufacturer , and welcome to visit our factory anytime you like.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production; Always final Inspection before
shipment.
shipment.
Q3: Can you produce according to the samples?
A3: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. And we have 100% rigorous test before delivery.
Q4: How long is your warranty? Can we extend?
A4: 12 months after installation and commissioning. Warranty can be extended with extra charge.
Q5: How about your after sale service?
A5: We will reply you within 24 hours by email or phone. If we have local agent,we will arrange him to your site within 24 hours to assist you to shoot the problem
A5: We will reply you within 24 hours by email or phone. If we have local agent,we will arrange him to your site within 24 hours to assist you to shoot the problem
