Professional Full Color LED Display Screen All in One Controller LED Video Processor
- Category: >>>
- Supplier: Zhengzhou Zhonghang Software Development Co. Ltd.
Share on (11000005609280):
Product Overview
Description
Product Description

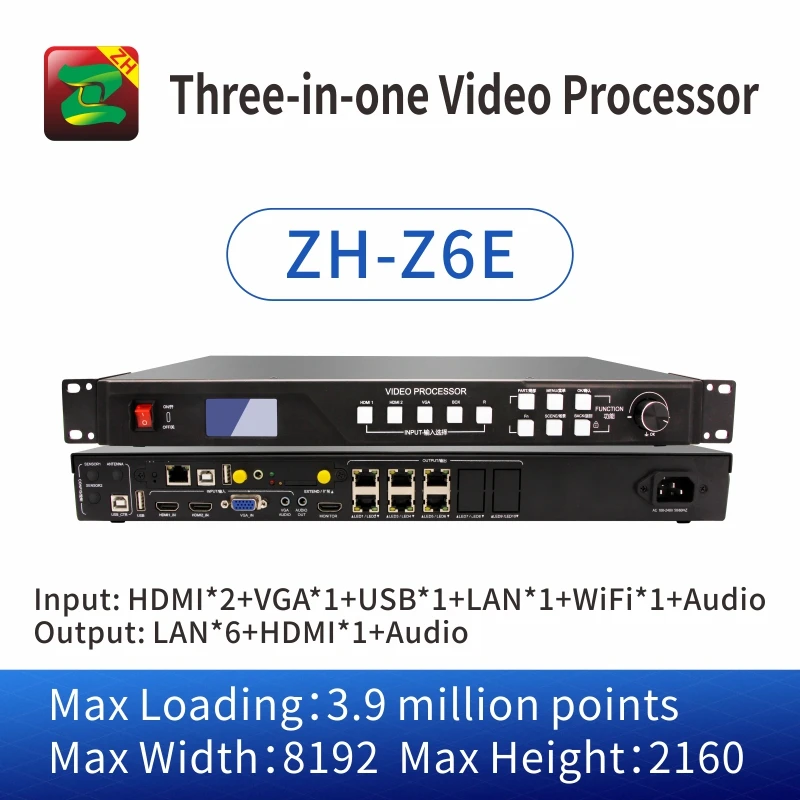

All-in-one Video Processor
Both asynchronous and synchronous dual mode
Both online and offline dual mode
Input signal: HDMI*2+VGA+AUDIO+USB+WIFI+LAN
Output port: LAN*6+HDMI+AUDIO
Once plug and play
Program software both Mobile App and computer
Specification

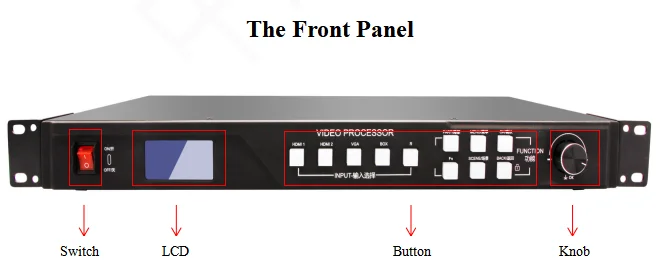

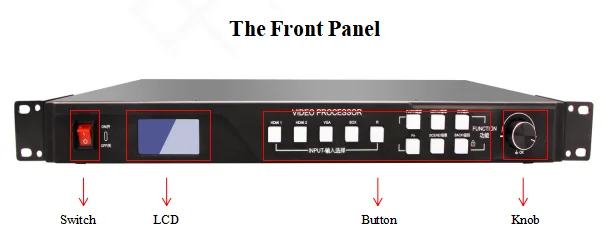

Switch | The power switch | |||||
LCD | Displays detailed prompts for user | |||||
Knob | Adjust the LED screen resolution and confirm | |||||
Button Part Manual | ||||||
INPUT | FUNCTION | |||||
HDMI 1 | HDMI 1 signal input button | PART/局部 | Partial/full screen switching | |||
HDMI 2 | HDMI 2 signal input button | MENU/菜单 | Enter advanced settings mode | |||
VGA | VGA signal input button | OK/确认 | Select conform button | |||
BOX | Async play selection key | Fn | Compound key | |||
R | Reserved button | SCENE/场景 | The call button for default scenes | |||
BACK/back | Back to the previous menu/lock function | |||||

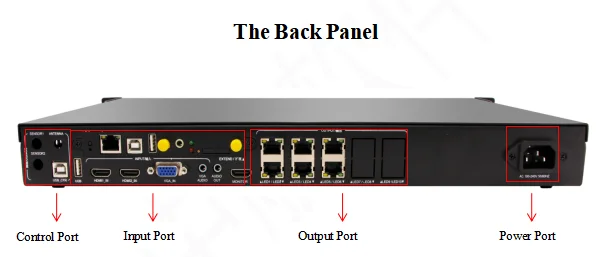

CONFIG/Control Port | INPUT/Signal Input Port | OUTPUT/Signal Output Port | ||||||

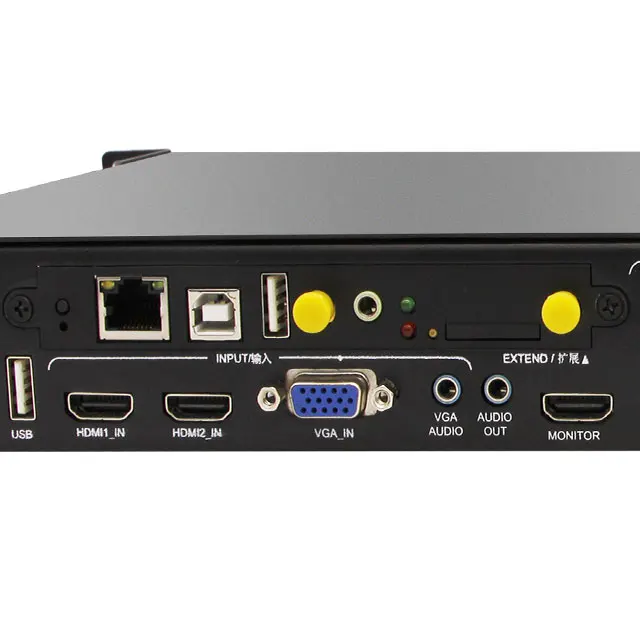

SENSOR1 | Extended sensor interface 1 | USB | Update content, expand memory | AUDIO | Audio output port | |||
SENSOR2 | Extended sensor interface 2 | HDMI 1_IN | HDMI input port | MONITOR | HDMI output port | |||

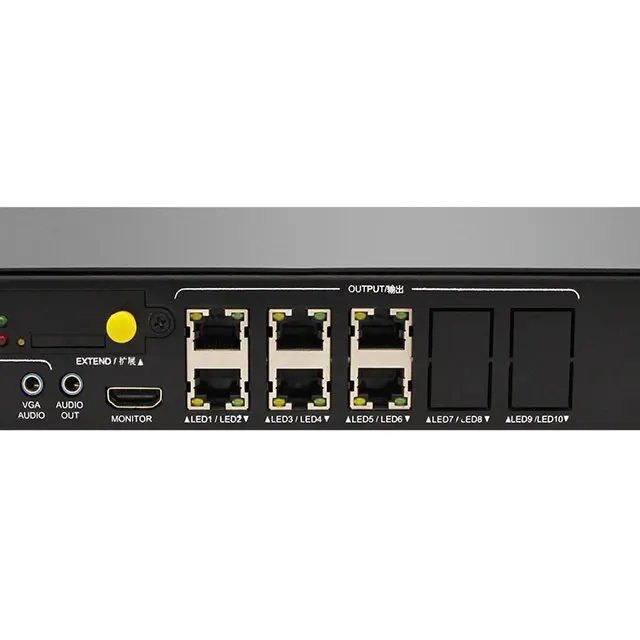

ANTENNA | Remote controller antenna port | HDMI 2_IN | HDMI input port | LED1/LED2LED3/LED4LED5/LED6 | Output network port | |||
USB_CTR | System test port | VGA_IN | VGA input port | |||||
VGA AUDIO | VGA audio input port | |||||||
Play Effect:
Video and picture much more lively and beautiful
Packing & Delivery
Company Profile
Zhengzhou Zhonghang Software Development Co., LTD is located in Hi-tech District of Zhengzhou City. Our company is a Hi-tech enterprise which focuses on LED display control card system research and development, production, sale, and service.
Our senior research and development team, professional management personnel, strong production ability, high quality products, excellent after-service make our company rapidly develop into the professional manufacturer and main supplier of LED control system field. In the future, our company will insist on technical innovation, management improvement and product update, and try our best to provide the best service.
Zhonghang people always firmly believe that: there is no best, only better!
Zhonghang people always firmly believe that: there is no best, only better!
