SANGSolar SDC10 Box5(15S) SDC10 Box5(16S) backup LiFe Battery Module Lithium ion Battery 1kwh System for Energy storage
- Category: >>>
- Supplier: Beijing Shan Hu International Technology Co. Ltd.
Share on (11000005609803):
Product Overview
Description
Product Application
Product Details

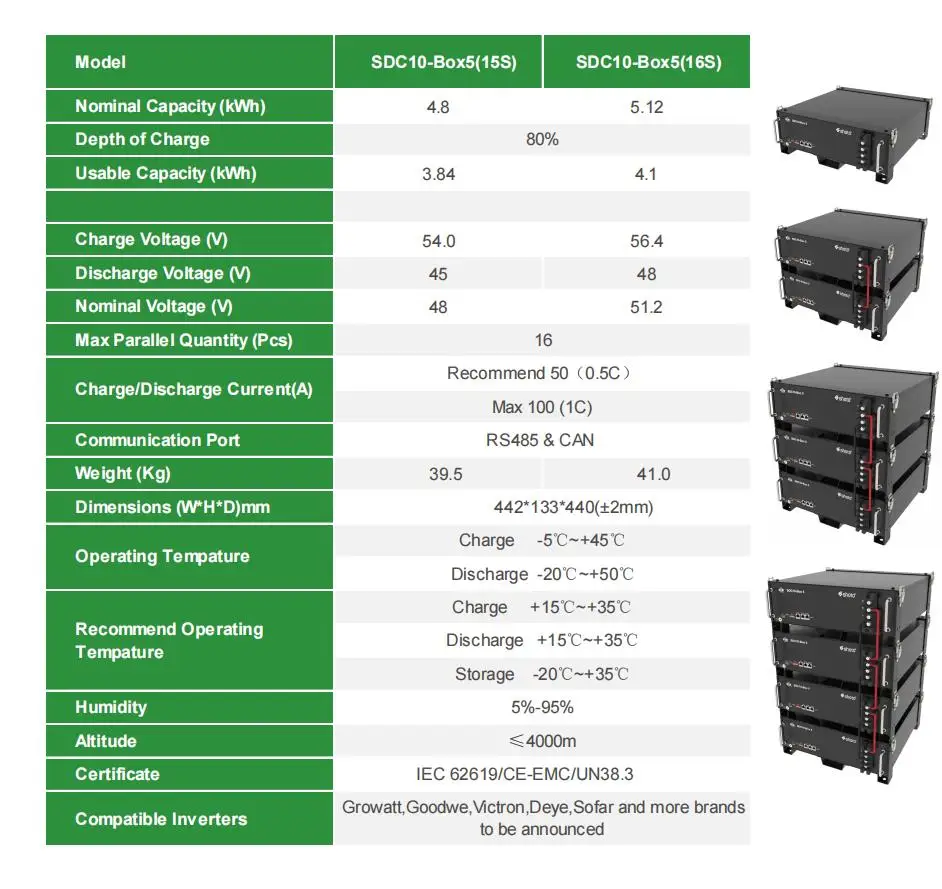

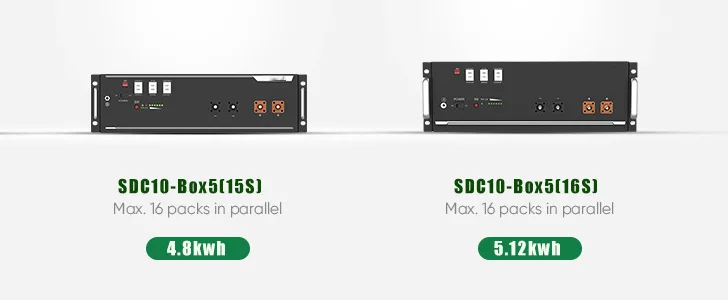

Model | SDC10-Box5(15S) | SDC10-Box5(16S) | |
Nominal Capacity(kWh) | 4.8 | 5.12 | |
Depth of Charge | 80% | ||
Usable Capacity(kWh) | 3.84 | 4.1 | |
Charge Voltage (V) | 54.0 | 56.4 | |
Discharge Voltage (V) | 45 | 48 | |
Nominal Voltage (V) | 48 | 51.2 | |
Max Parallel Quantity(Pcs) | 16 | ||
Charge/Discharge Current(A) | Recommend 50（0.5C） | ||
Communication Port | RS485 & CAN | ||
Weight (Kg) | 442*133*440(±2mm) | ||
Operating Tempature | Charge -5℃~+45℃ | ||
Humidity | 5%-95% | ||
Altitude | ≤4000m | ||
Certificate | IEC 62619/CE-EMC/UN38.3 | ||

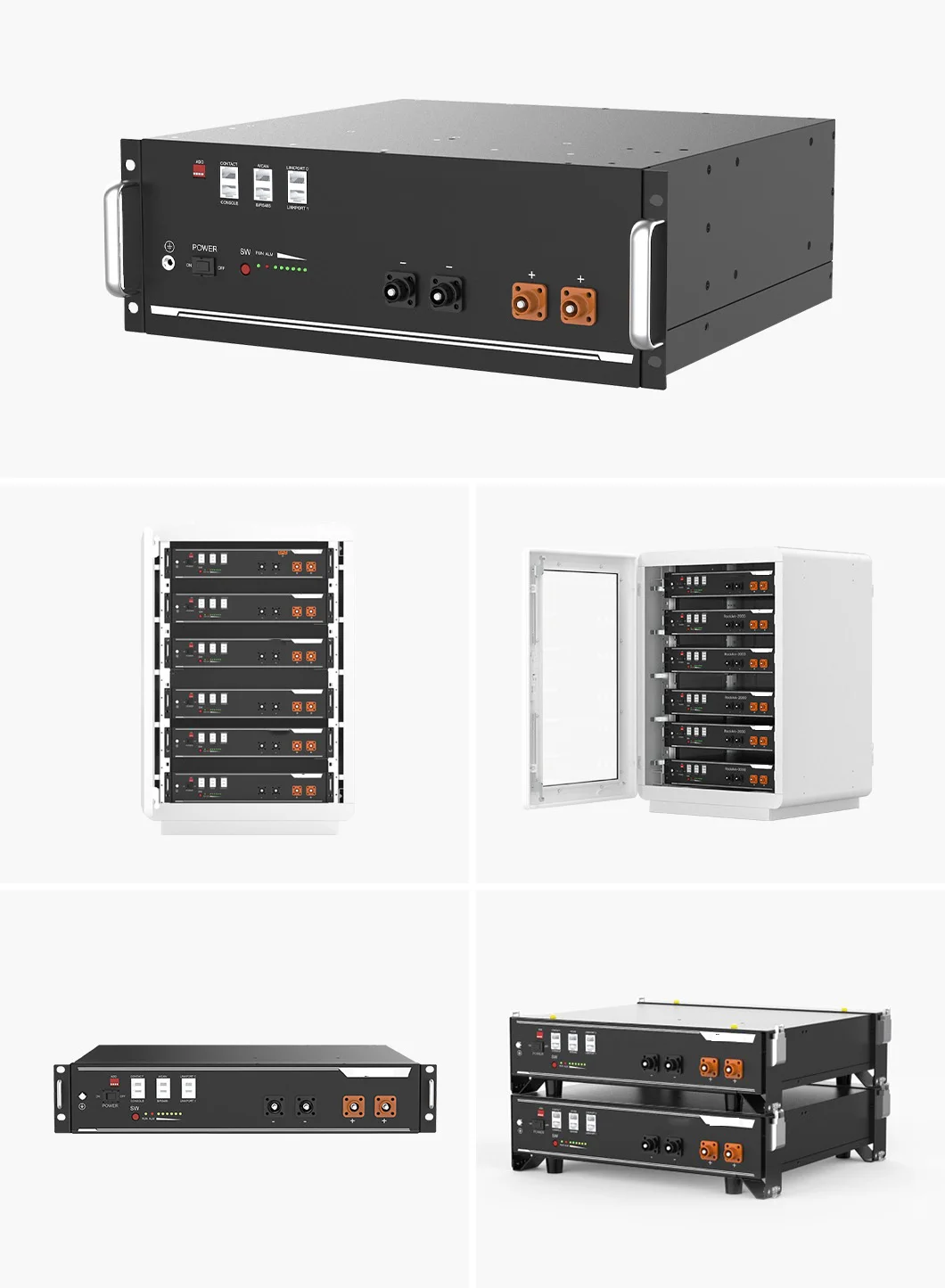

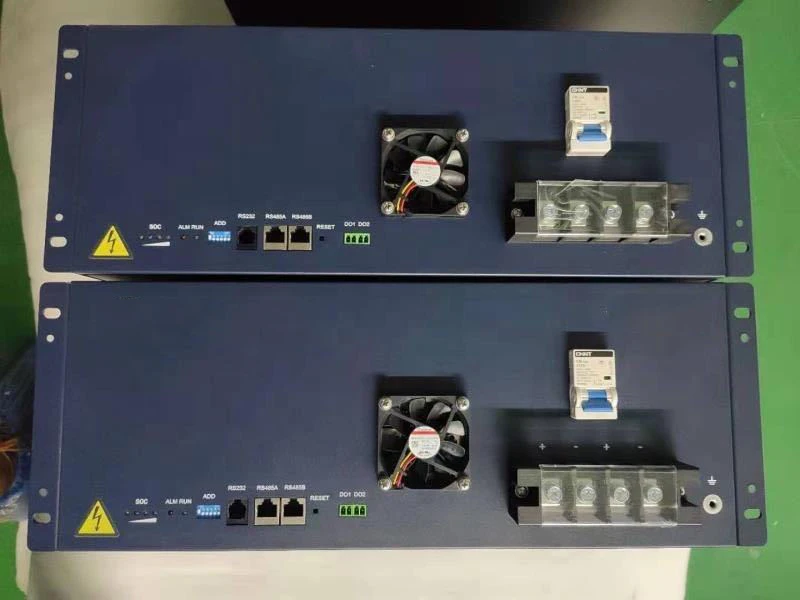

Details Images
Certificates

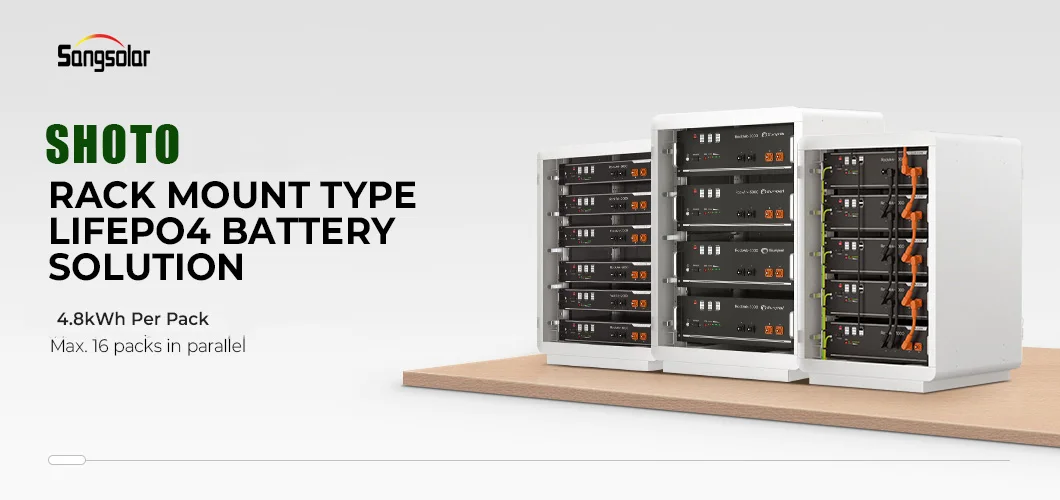

Battery matching solution
48V 50ah /48 100ah 51.2V 100ah

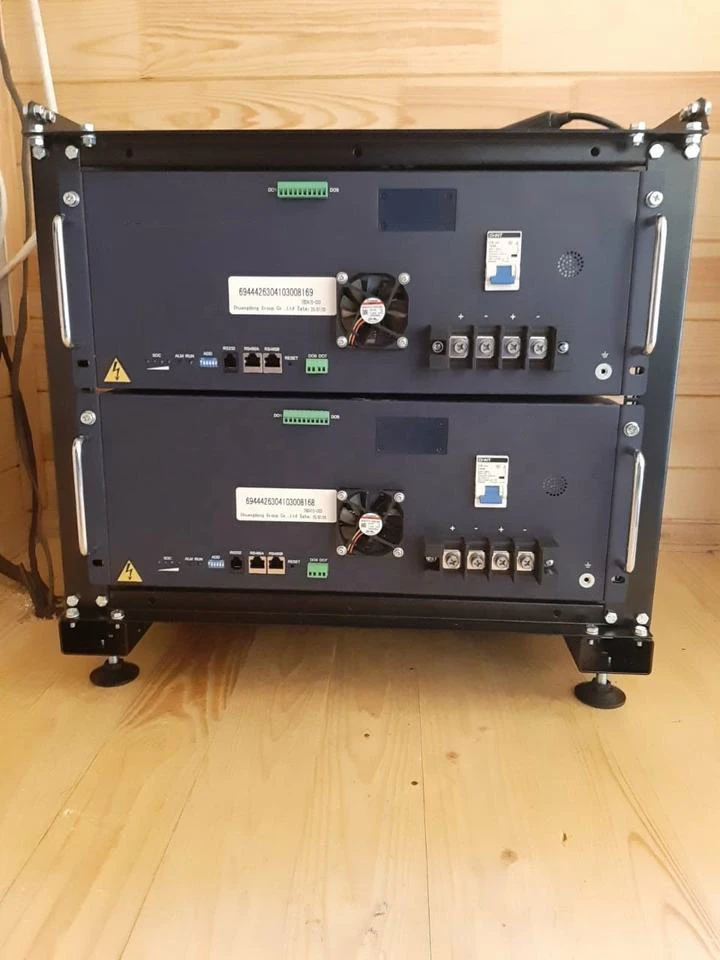

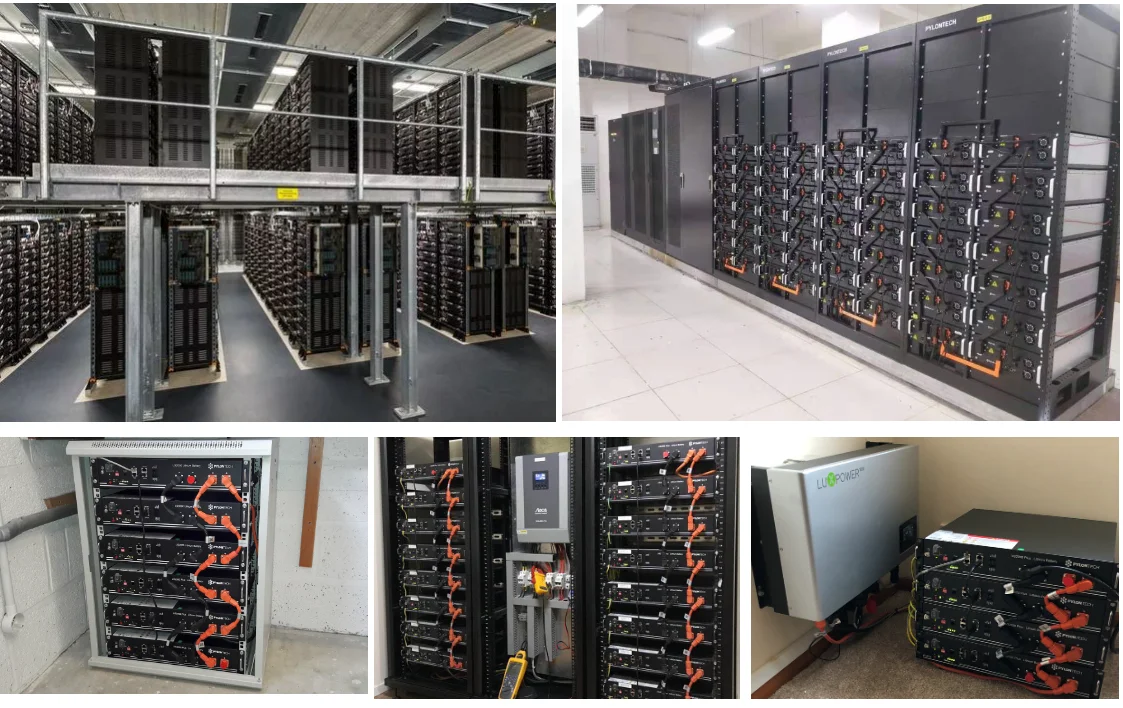

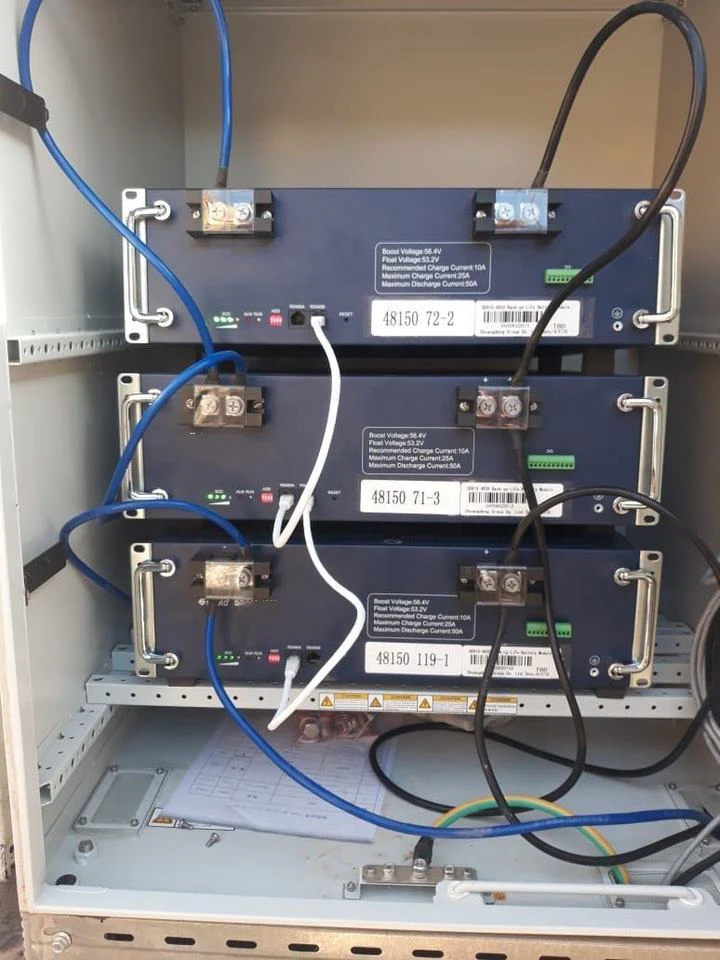

Case presentation
