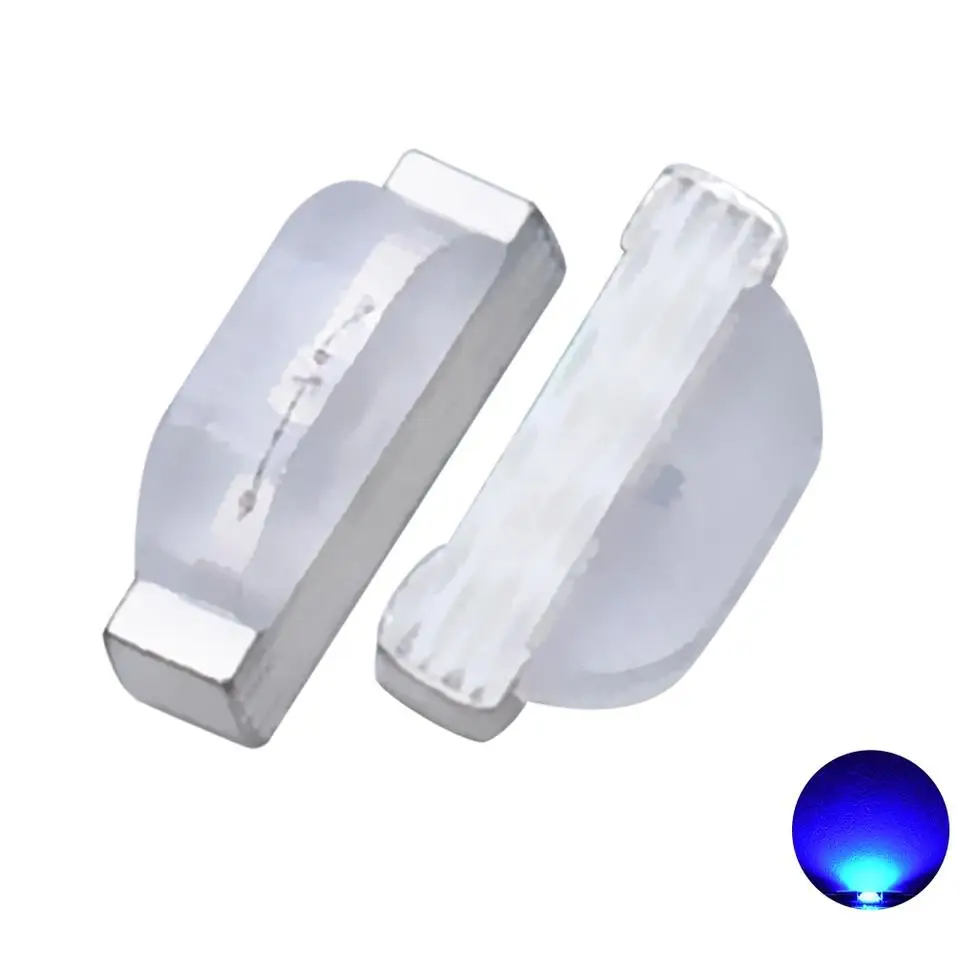

Competitive Price High Quality Led Lights Smd Led Diode 0805 Blue Color Side View Led Chip
- Category: >>>
- Supplier: Shenzhen Hongying Technology Co. Ltd.
Share on (11000005626287):
Product Overview
Description
Products Description
Applications
1, Indoor lighting applications
2, Flat backlight for LCD switch and symbol
3, Indicator and backlighting for all consumer electronics
4, Automotive electronics
Maximum Rating (Ta=25℃)
Parameter | Symbol | Typical | Unit | |||
DC forward current | IF | 30 | mA | |||
Pulse forward current | IPF*3 | 100 | mA | |||
Reverse voltage | VR | 5 | V | |||
Junction temperature | TJ | 125 | ℃ | |||
Operating temperature range | TOP | -40~105 | ℃ | |||
Storage temperature range | TSTG | -40~105 | ℃ | |||
Soldering temperature | TSD*2 | 260 | ℃ | |||
Thermal resistance junction/ solder point | RTHJ-S | 130 | ℃/W | |||
Thermal Resistance Junction/ Ambient Point | RTHJ-A | 260 | ℃/W | |||
Electrostatic Discharge (HBM) | ESD | 6000 | V | |||
Notes: 1, There is no maximum or typical voltage parameter. 2, For other ambient, limited setting of current will be depended on de-rating curves. 3, Duty 1/10, pulse width 0.1ms 4, The maximum of soldering time is 5 seconds in TSD | ||||||
Typical Product Characteristics (Ta=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition | ||||||
Forward Voltage | VF | 2.8 | - | 3.6 | V | IF= 20mA | ||||||
Luminous Intensity | Iv | 320 | 560 | - | mcd | IF= 20mA | ||||||
Color Coordinate | X | - | 0.38 | - | - | IF= 150mA | ||||||
Y | - | 0.38 | - | - | IF= 150mA | |||||||
Color Temperature | CCT | 3710 | 4000 | 4260 | K | IF= 150mA | ||||||
Color Tolerance | - | 0 | - | 6 | SDCM | IF= 150mA | ||||||
Color Rendering Index | CRI | 80 | - | - | - | IF= 150mA | ||||||
Reverse Current | IR | - | - | 10 | uA | VR= 5V | ||||||
View Angle | 2θ1/2 | - | 120 | - | Deg | IF= 30mA | ||||||
Notes: 1, Measurement error: forward volatge±0.1；view angle(2θ1/2): ±5%. 2, Electrical-optical characteristics (Ta= 25℃). | ||||||||||||

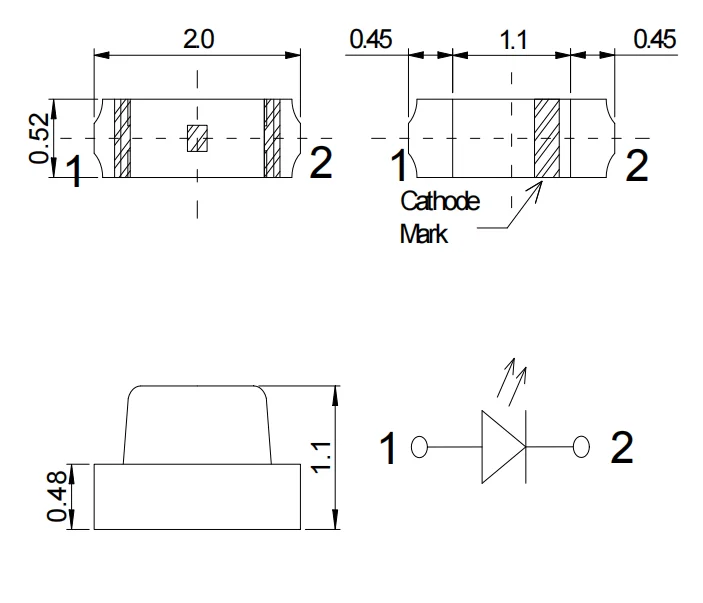

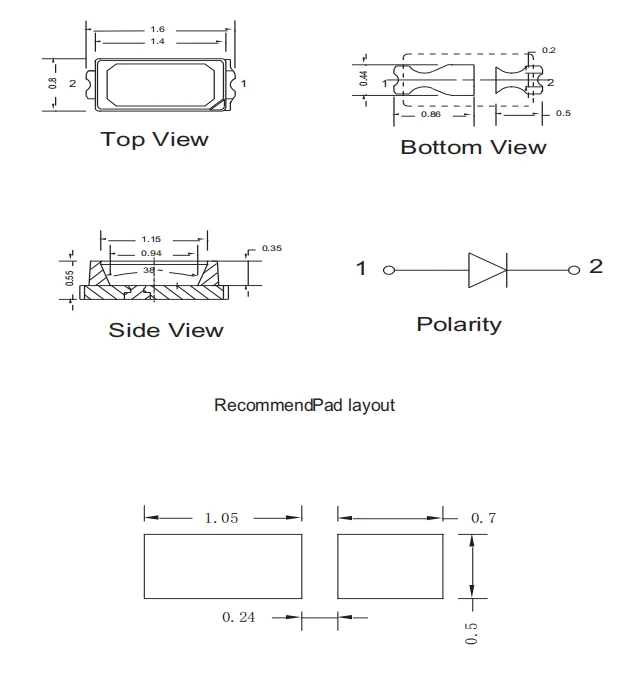

Dimensional Drawing
Notes:
1, All dimensions are in millimeters
2, Tolerance is ±0.1mm unless otherwise noted.
3, Specification are subject to change without notice.
