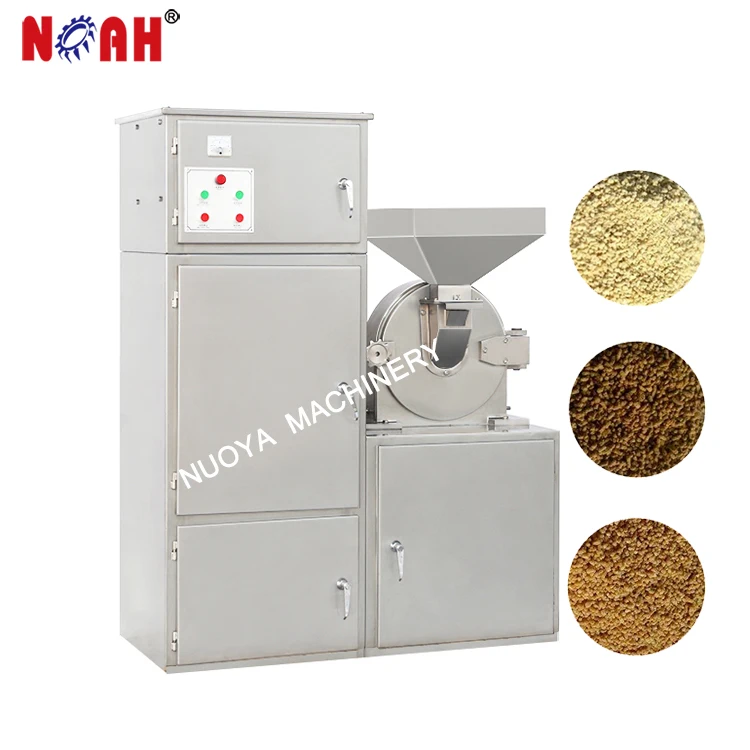

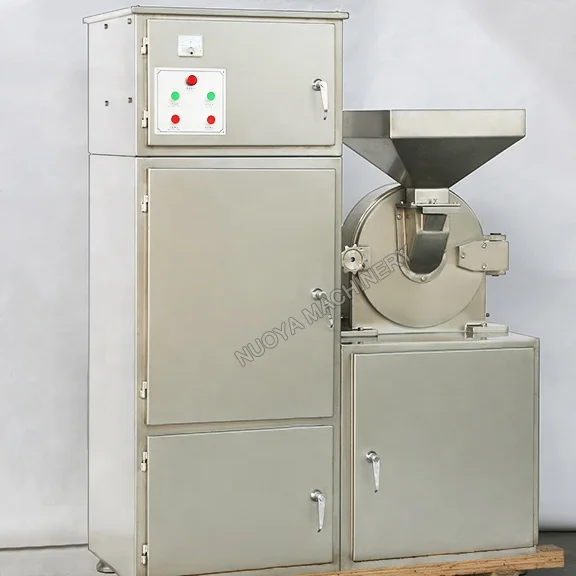

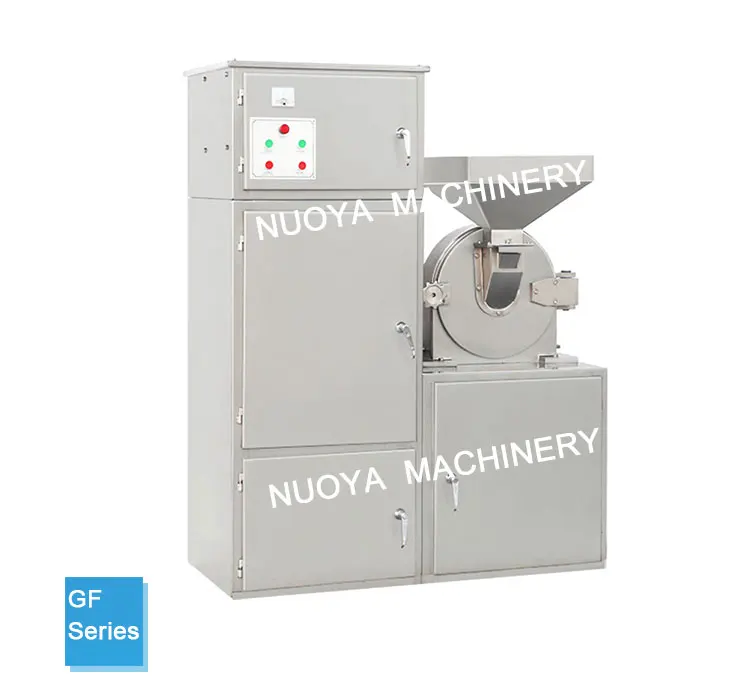

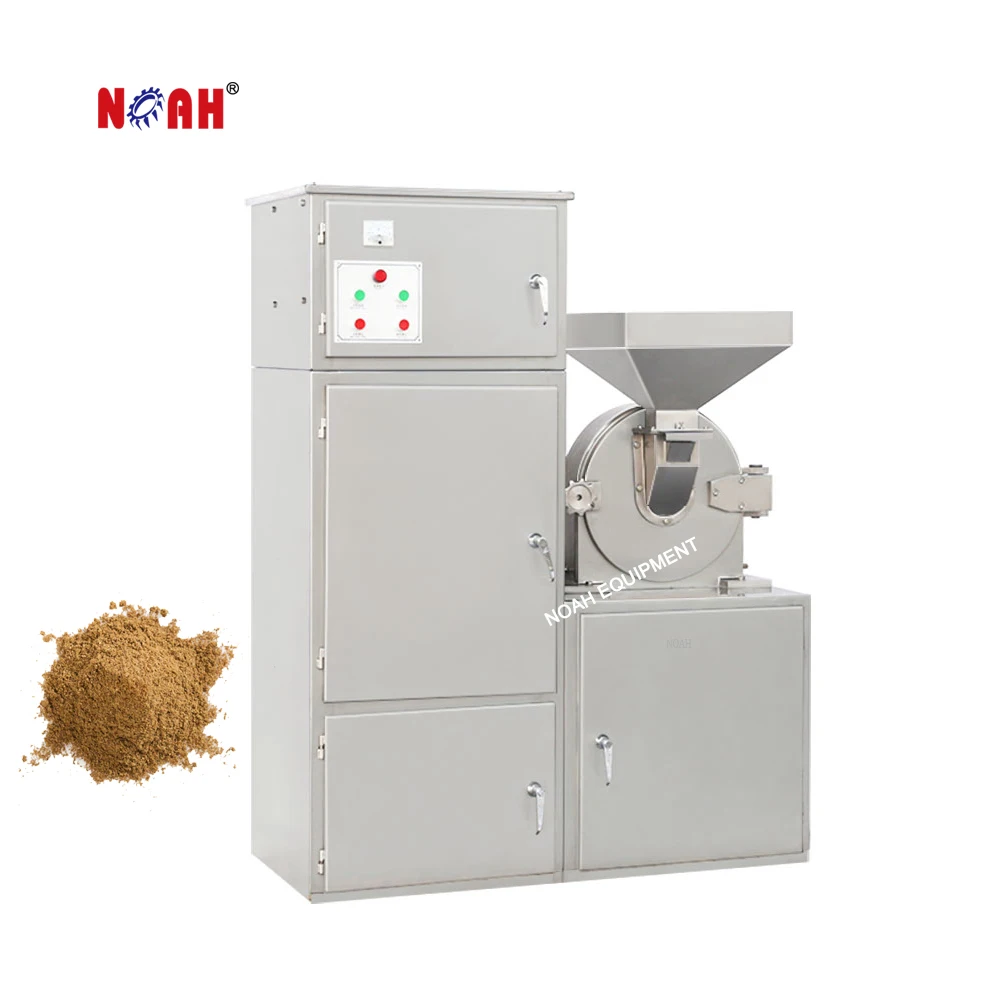

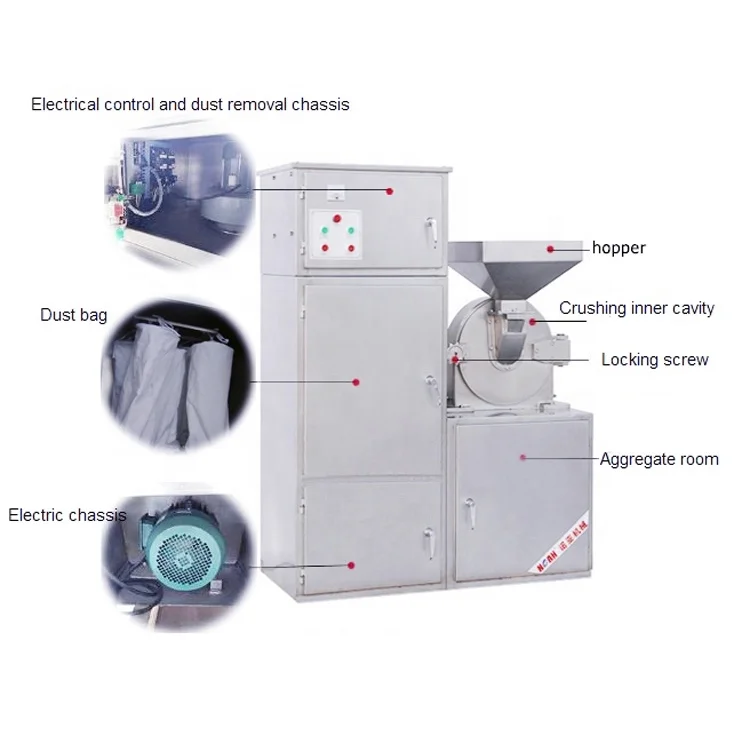

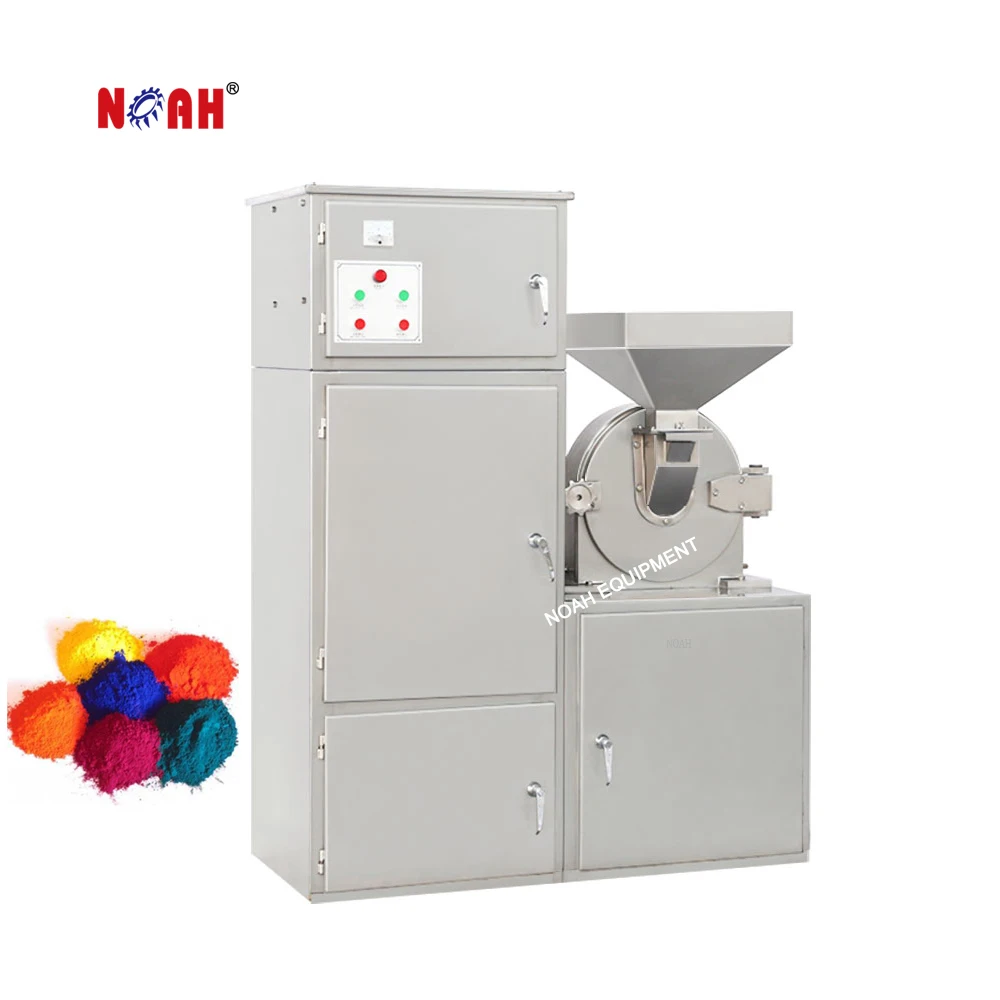

GF 40B peanut and melon seeds high efficiency grinding unit
- Category: >>>
- Supplier: Yangzhou Nuoya Machinery Co. Ltd.
Share on (11000005636742):
Product Overview
Description
Products Description
GF-30B Peanut Broad Bean Pea No Powder Crushing Unit
Model | GF20B | GF30B | GF40B |
Capacity | 60-150 kg/h | 100-300 kg/h | 160-800 kg/h |
Spindle Rotating Speed | 4500 rpm | 3800 rpm | 3400 rpm |
Powder Fineness | 20-120 mesh | 20-120 mesh | 20-120 mesh |
Feeding Size | <6mm | < 10 mm | <12 mm |
Pulverizer Motor | 4 kw | 5.5 kw | 7.5 kw |
Overall Dimensions | 550*600*1250mm | 600*700*1450mm | 800*900*1550mm |
Net Weight | 250kg | 320kg | 550kg |
Our machine is a new type equipment combining smashing and dust collection as a whole, widely used for pharmaceutical industry, chemical industry, pesticide industry foodstuff industry, grain industry and so on.
Characteristic
1, It adapts the vertical low raw material discharging equipment. The machine makes some raw materials with poor fluidity after broken can be dischanged unblocked and no the phenomenon of accumulated powder.
2, The machine are made of qualified stainless steel. Its inner wall of the housing is smooth and level being processed
Characteristic
1, It adapts the vertical low raw material discharging equipment. The machine makes some raw materials with poor fluidity after broken can be dischanged unblocked and no the phenomenon of accumulated powder.
2, The machine are made of qualified stainless steel. Its inner wall of the housing is smooth and level being processed
through superior technology, make the powder discharging more flowing and is benefit to the work of clean too.
3, The gear disk of high speed and movable teeth are welded through well welding, it makes the teeth is durable, safety
3, The gear disk of high speed and movable teeth are welded through well welding, it makes the teeth is durable, safety
and reliable.
4, It's in conformity with the requirements of "GMP".
5, According to customer needs, may increase water cooling device, and conveyer screw.
4, It's in conformity with the requirements of "GMP".
5, According to customer needs, may increase water cooling device, and conveyer screw.
