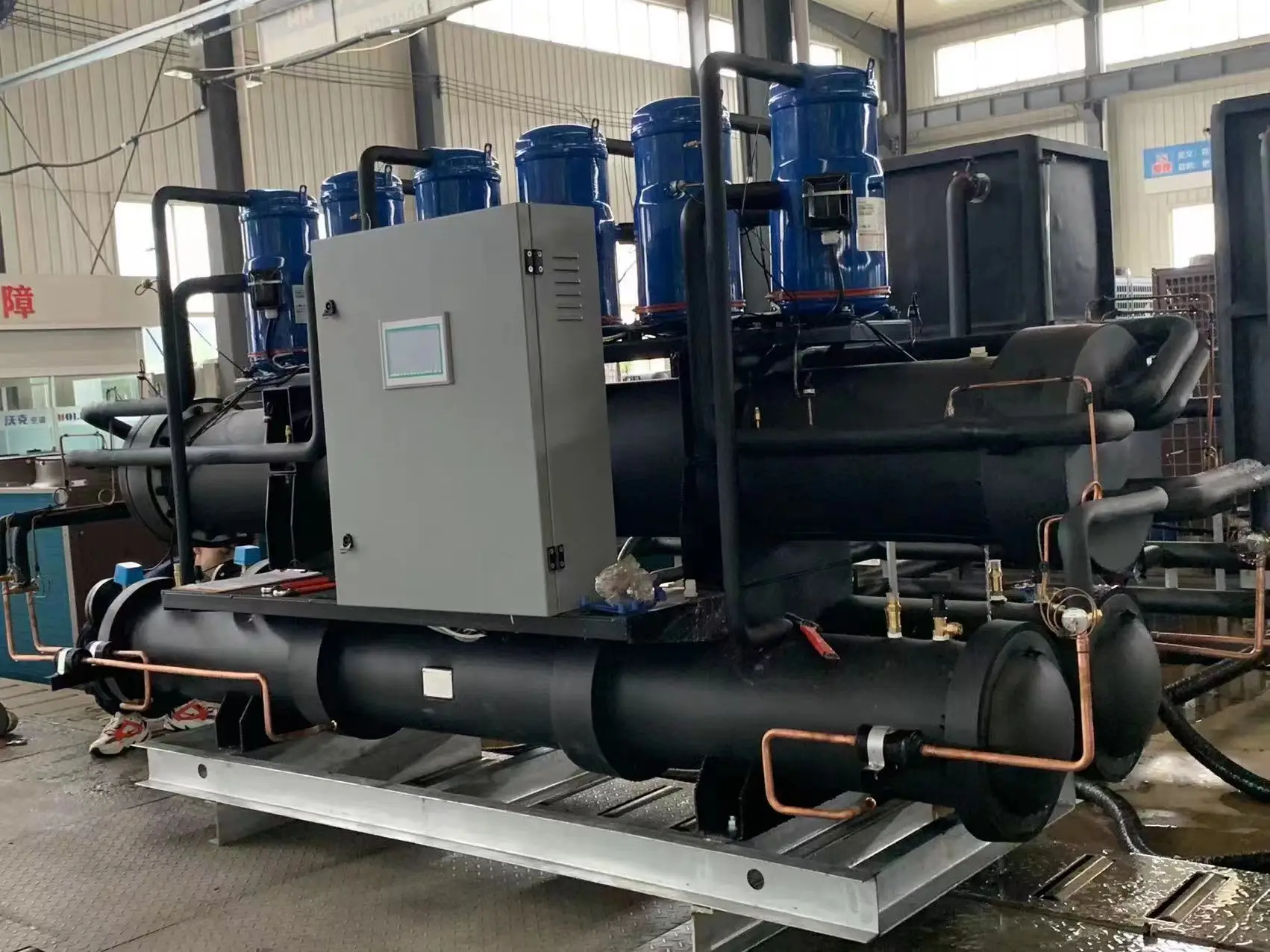

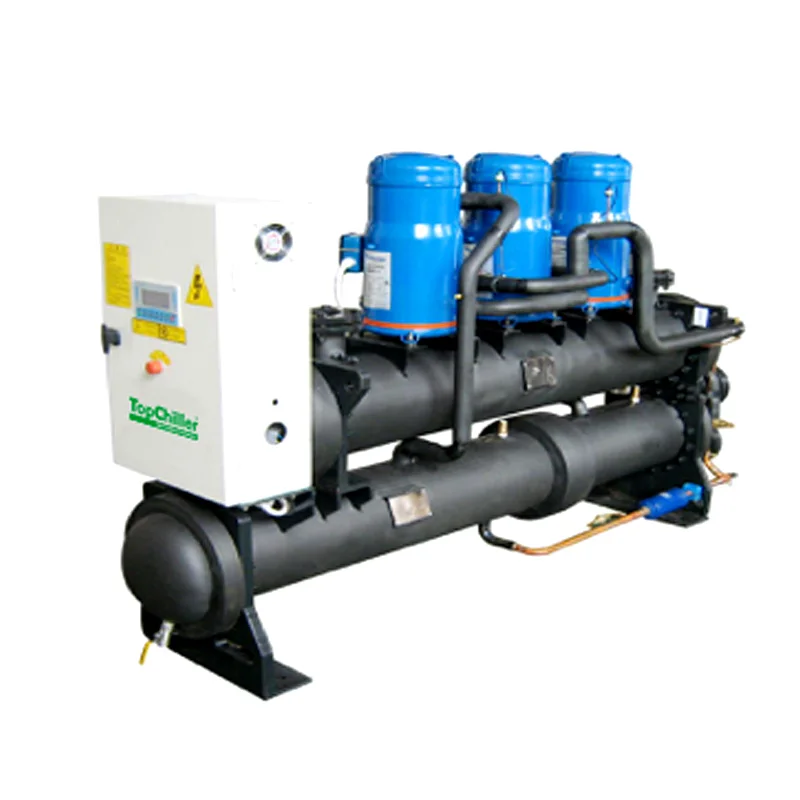

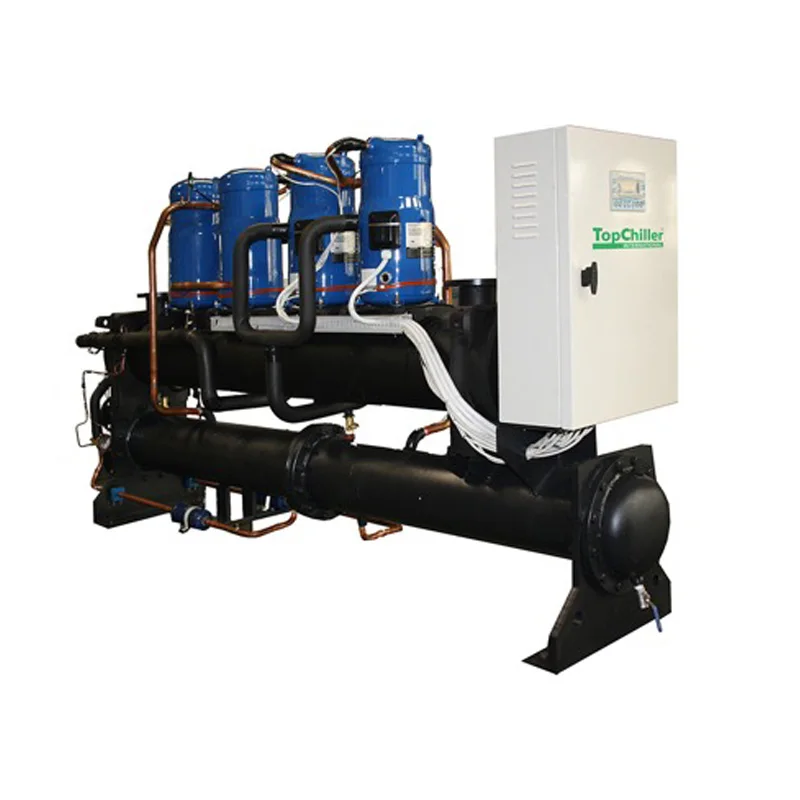

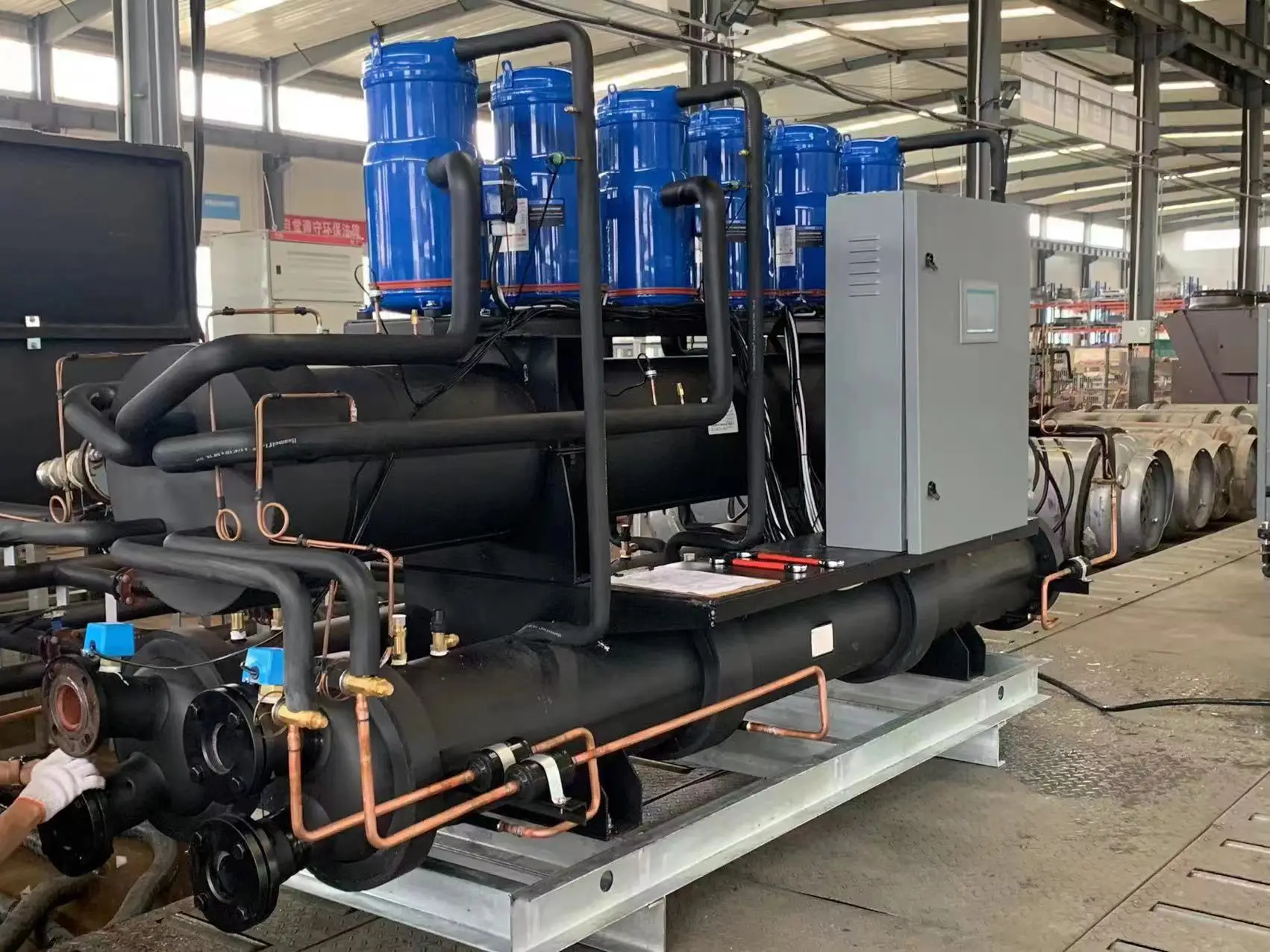

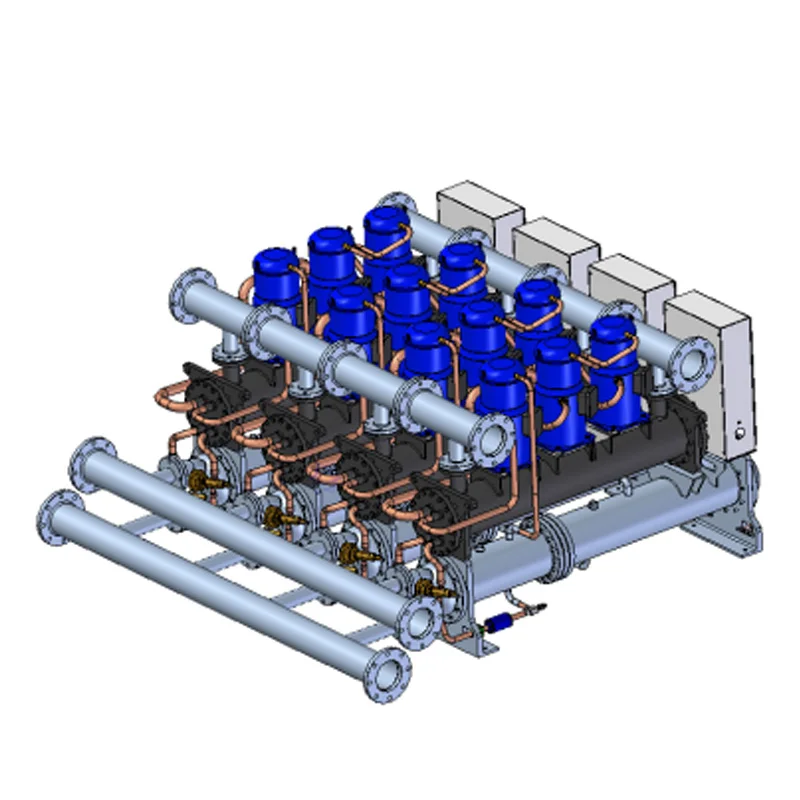

Cheap Factory Price 25TR Industrial Cooling System 100kw 30HP Water Cooled Chiller Model With Shell and Tube Heat Exchange
- Category: >>>
- Supplier: Shenzhen Topchiller Co. Ltd.
Share on (11000005646153):
Product Overview
Description
Cheap Factory Price 25TR Industrial Cooling System 100kw 30HP Water Cooled Chiller Model With Shell and Tube Heat Exchange
Product Description
A industrial cooling system is used to reject heat from a process or plant. There are many types of cooling systems available that are used indifferent industries.
Industrial cooling systems are composed of a heat exchanger and cooling unit or chiller. Both industrial air chiller and industrial water chiller are kinds of industrial cooling systems.
Topchiller can provide a wide range of industrial cooling system to meet your process needs. Industrial cooling sysyems available include packaged chillers, water cooled chiller, once through cooling, portable chillers, glycol chillers, and custom cooling systems.
Industrial Cooling System Features and Advantages:
(1).Cooling capacity from 1.65 KW to 700KW;
(2).Temperature control range 5°C to +30°C;
(3).Built-in SS water tank and water pump;
(4).Powerful scroll type compressor or screw compressors;
(5)Industrial air chiller and industrial water chiller available;
(6).Cooling effective heat exchange;
(7).environmental Friendly R410a/R407c/R134a refrigerant;
(8).Customized 220v 60hhz 3ph/460V 60HZ 3PH/380V 60HZ 3PH power supply;
30Ton Industrial Cooling System Specification
Model | AW-30WTG | ||
nominal cooling capacity | 85140 kcal/h | ||
99 kw | |||
Max power consumption (kw) | 26.63 | ||
Full load(Amp) | 74.8 | ||
power source | 3PH -380V -50HZ | ||
refrigerant | type | R22/R410A/R407c/R134a | |
control | external balance of thermal expansion valve | ||
compressor | type | hermetic scroll type | |
power(kw) | 8.96*3 | ||
condenser | type | Shell and tube | |
Coolng Water(m3/h) | 21.7 | ||
Inlet/Outlet Pipe(Inch) | 2''-1/2 | ||
evaporator | type | shell and tube | |
Chilled Water(M3/h) | 17.02 | ||
Inlet/Outlet Pipe(Inch) | 2-1/2 | ||
safety devices | Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection | ||
dimension | mm | 2420*680*1650 | |
weight | kg | 780 | |

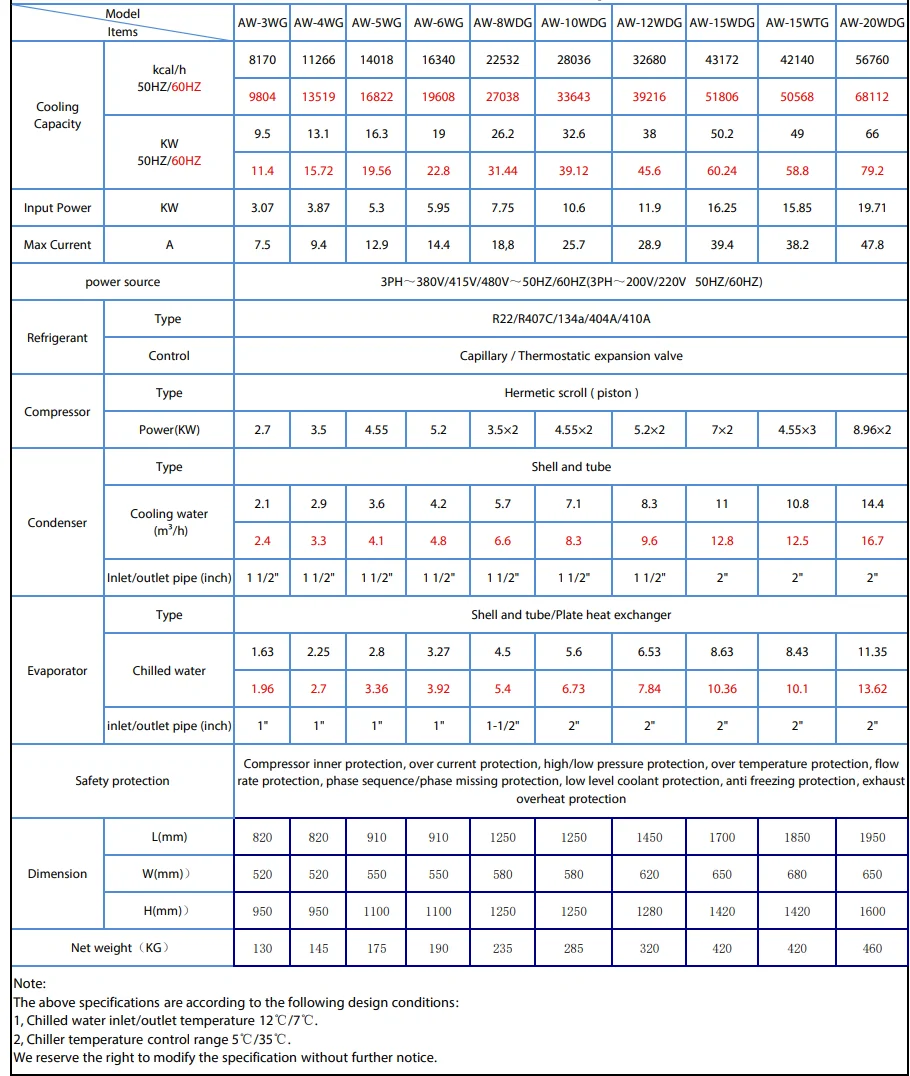

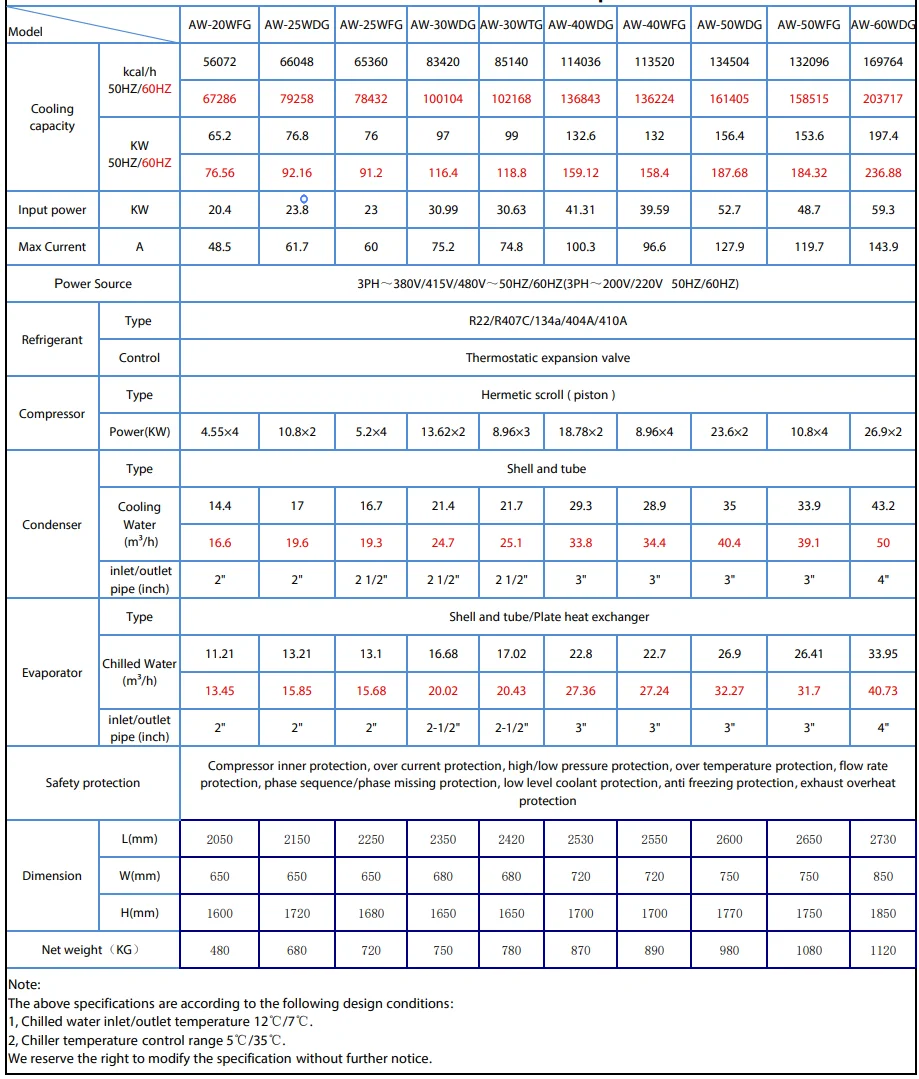

All Industrial Cooling System Models Specification

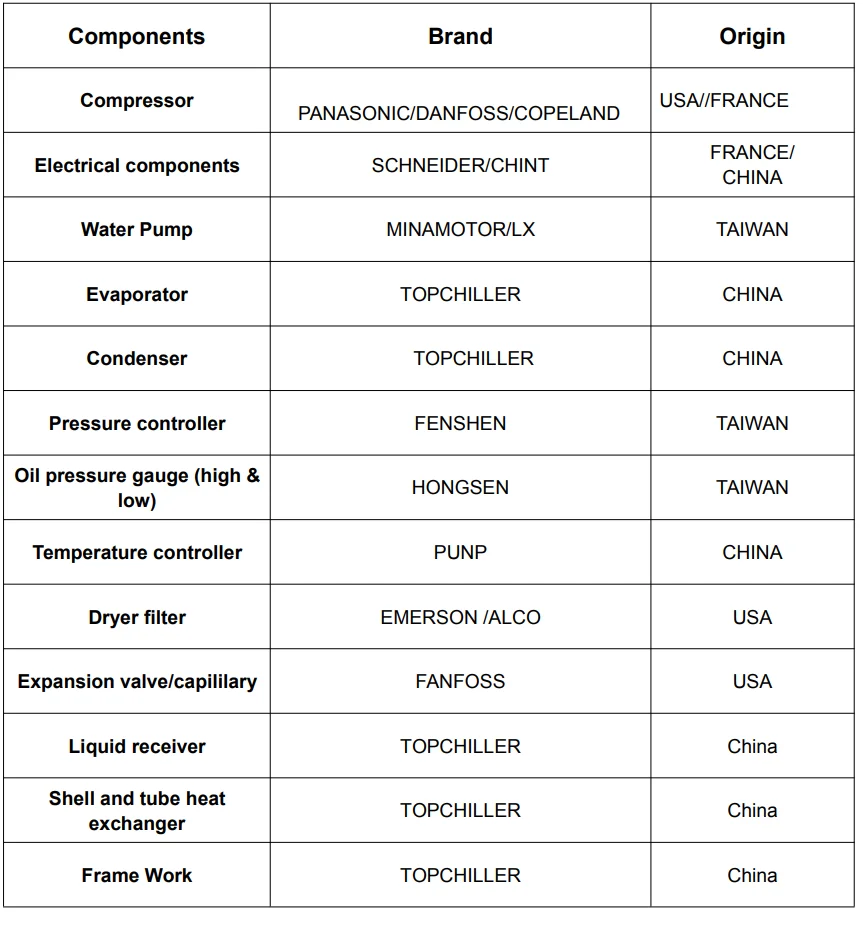

Industrial Cooling System Main Refrigeration Configuration Table

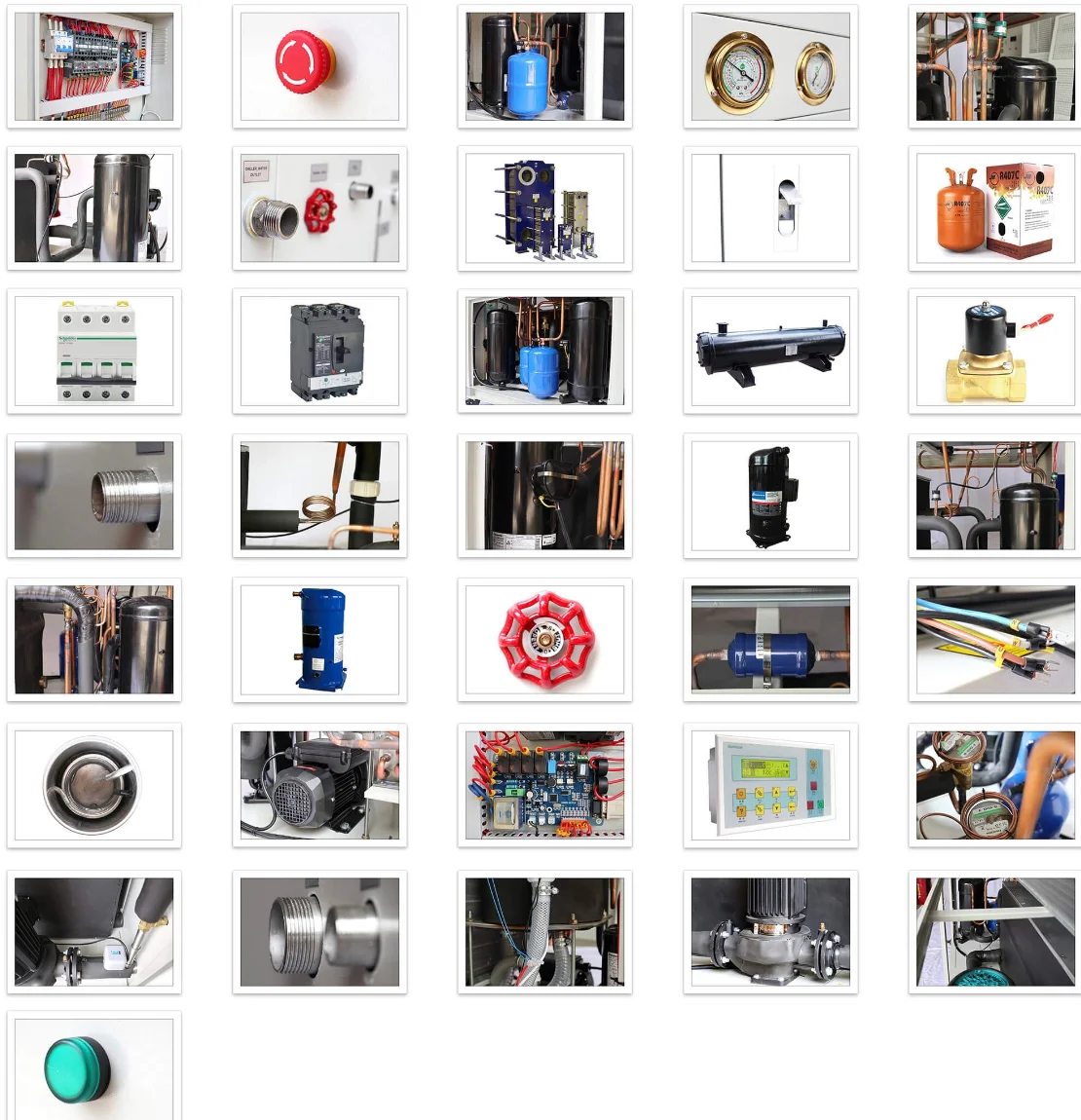

Industrial Cooling System Main Part
Our Services
TopChiller Free Service and Technical Support
As a professional chiller manufacturer for over 20 years, TopChiller is always happy to provide our free service and technical support accessible to our clients before, during, and after-sales. If you need any help, welcome to call us or send your inquiry to our email. These free services and technical support include;
(1).Listening to your detailed chiller requirements and giving your best chiller solution for your applications based on our rich experience.
(2).If you have no idea about how to size your chiller model or cooling capacity, it’s not a big issue, Just tell us your specific cooling demands, we will guide you to select the right economical chiller model.
(3).7*24 online service, If you have any problem with the chiller, you may call us or send an email, we are always here to support you.
TopChiller Standard Warranty Time
After purchasing the TopChiller product, you are our valued customers in the TopChiller ERP system.
We will do regular tracking service and Your chiller has up to 24 months warranty time after installation and commissioning,
If your chiller is down, you can contact TopChiller for support to solve your problem…Once we received your message, Our service technician on duty will contact you as soon as possible.
TopChiller Start-up & Commissioning
TopChiller also provides the additional service of start-up or commissioning of your chiller. You’d better before scheduling your start-up, it is important that the proper installation procedures have been followed and the chiller is ready.
TopChiller technician will guide you on how to start up your chiller when your chiller is ready, besides this, we have full sets of paper works including the Chiller installation manual, operation manual, electrical drawing for you.
Free Replacement Spare Parts
Providing free replacement spare parts for TopChiller is the best customer service in the industry to support you when you are sourcing replacement parts.
We have most parts are in stock and available for next-day shipment for your chillers.
If you want to have some replacement spare parts, just provide us with your chiller serial number and model number to expedite the sourcing process.
Better to have the nameplate and pictures of your chiller for our reference. This will help us find the proper replacements at the earliest time.
Company Information
TopChiller is Your Premier Air Chiller Unit Manufacturer In China
TopChiller is rich experience in chiller design and manufacturing for 20 years, having 2 factories both Shenzhen South China and DeZhou North China.

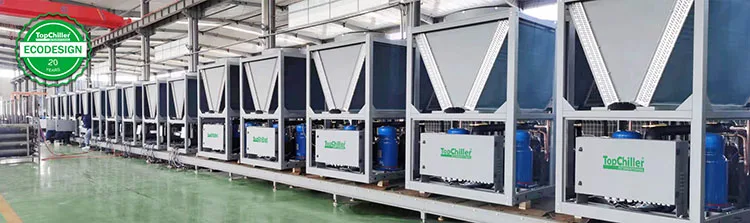

With a modern factory building of 18000 square meters and related supporting facilities, TopChiller has a large number of experienced and well-trained engineers and technical workers, as well as experienced technical experts.
We are using the most advanced manufacturing equipment and testing methods, including automatic sheet metal flexible production line, AMADA digital bending machine, high-speed laser cutting machine, automatic refrigerant leakage testing line, a full set of cooper fin production line, Fully automatic fluorine pipeline production equipment.
These full sets of production facilities are the guarantee of our high-quality products.
The main products are a full range of industrial chillers including air-cooled chillers, water-cooled chillers, glycol chillers, screw chillers that can meet your process cooling demands in welding machines, plastic processing, laser machine, brewery glycol cooling, semiconductor industry, MRI machine, and other industrial applications.
TopChiller engaged in the chiller and refrigeration business for decade years, we are supplying primer quality of all types of chillers to our customers, gaining a high reputation from the market and our end-users in return.
Let us know your detailed chiller requirements, we have confidence TopChiller is your best chiller supplier here
Look At TopChiller Happy Customers Throughout World
Look at TopChiller International Certification and Awards
Chiller Related Exhibition & Fairs
FAQ
FAQ of Industrial Cooling System:
1. How to get my industrial cooling system design and quotation fromTopChiller?
Firstly we promise you will get a professional solution for your industrial cooling system free of charge, but please provide below important points:
- What’s your electrical power supply?-V-Hz-Phase?
- Do you an idea of the cooling capacity of a industrial cooling system?
- the refrigerant for industrial cooling system is R22/R407c/R134a?
- What’s the required chiller inlet and outlet water temperature? and the water flow rate?
- Your country name and destination seaport.
2. What are your payment terms?
TopChiller insists T/T payment – 30% deposit before production once quotation confirmed, and 70% balance before delivery, also can accept 100% irrevocable letter of credit.
3. What’s the warranty time of the TopChiller products?
TopChiller providing 12 months to 24 months warranty time covered all products as clients’ requirements.
4.Can TopChiller provide OEM and ODM service ?
Yes,As a professional air chiller unit supplier ,we do OEM and ODM services for clients.
But First please let us know all your chiller requirements and drawing prior,also indicate the order QTY and volume.
5. Does TopChiller provide any on-site installation and commission service?
Yes, We have a professional engineering team with a rich experience that can do your water-cooled chiller on-site installation and commission. Please contact TopChiller sales for more information.
