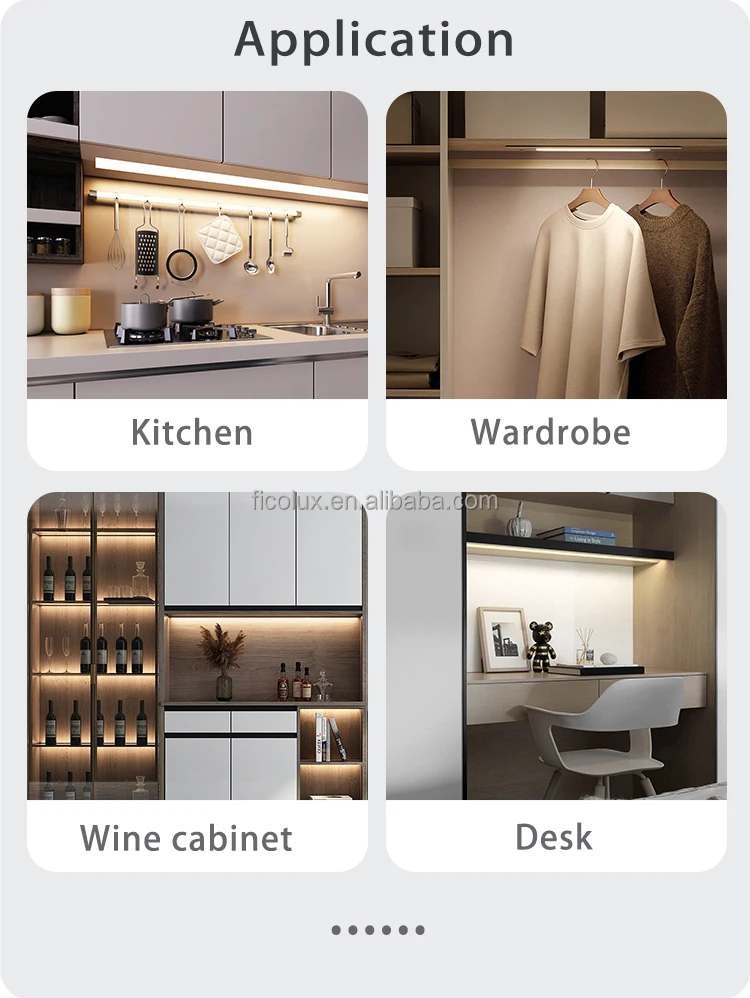

DC 5V 12V 24V Hand Wave Activated IR Sensor Switch Applicable to cabinet and wardrobe led lamp
- Category: >>>
- Supplier: Shenzhen Dejurenhe Industrial Technology Co. Ltd.
Share on (11000005651985):
Product Overview
Description
*The VD01 series hand sweep contactless sensor is designed for switching on / off and dimming 12/24 V LED strips installed in an aluminum profile. The device is controlled without direct physical contact using a palm movement. The display is carried out using an LED with a color temperature of 3000K in the OFF state.
*To function properly the IR sensor must be open and exposed with no plastic cover over top.
Brief description and functionality of VD01:
* small dimensions, high sensitivity sensor, with stable operation through the diffuser at a distance of up to 8 cm. (Need to drill the diffuser)
* very easy installation of the switch on an adhesive base on a profile;

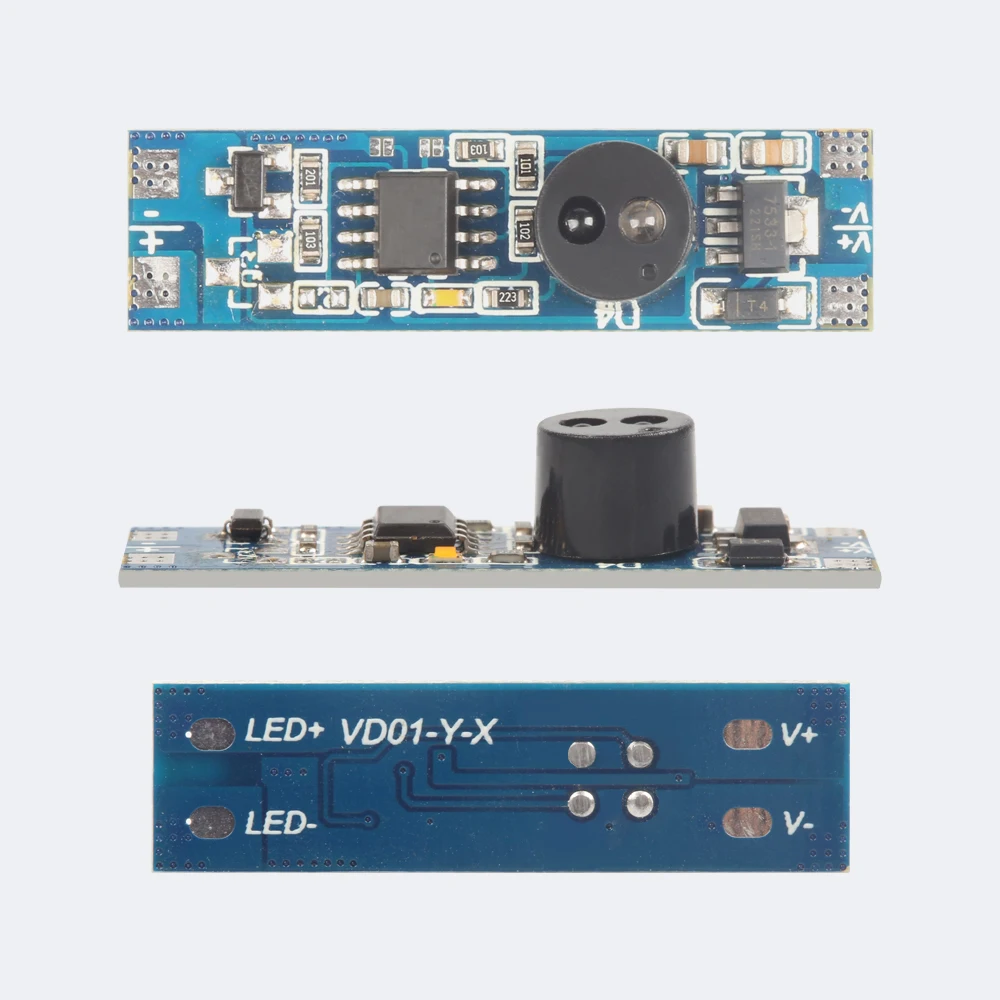

* wide contact pads for soldering;

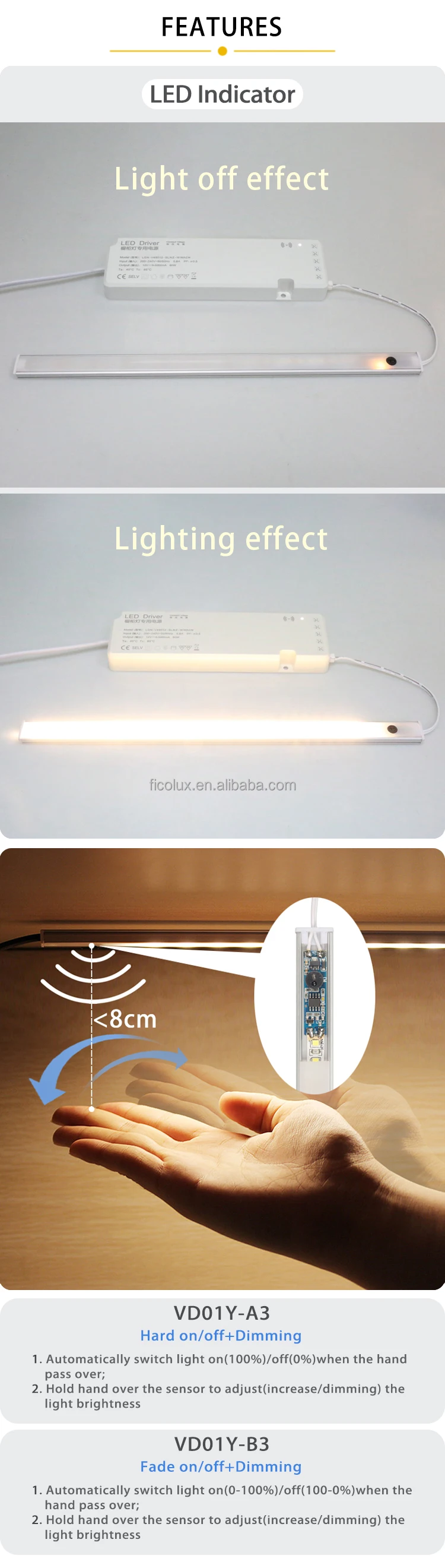

* LED light indicator that indicates the device status, color temperature no indicator-light on, 3000K-off;
* dimming function with last state memory.
When the voltage is applied, the device is set to standby mode. The lighting is turned off, and the indicator LED glows warm white.

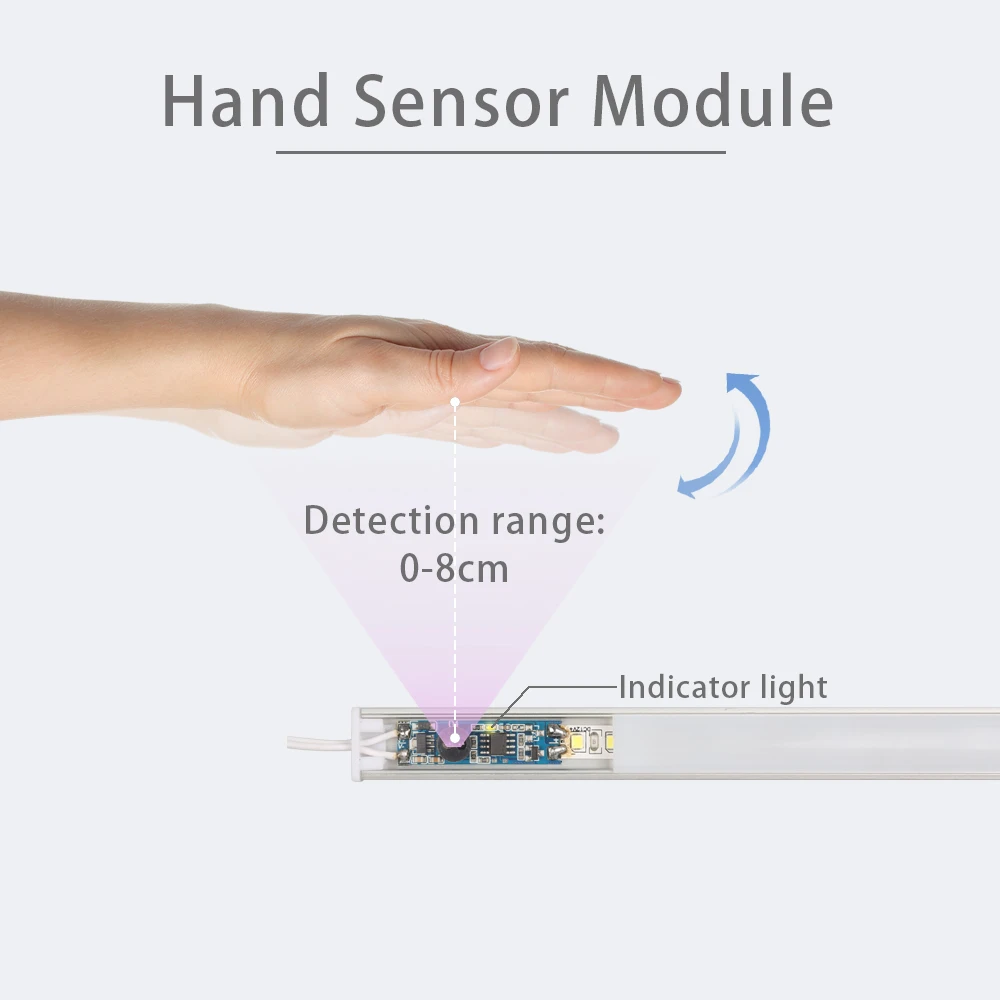

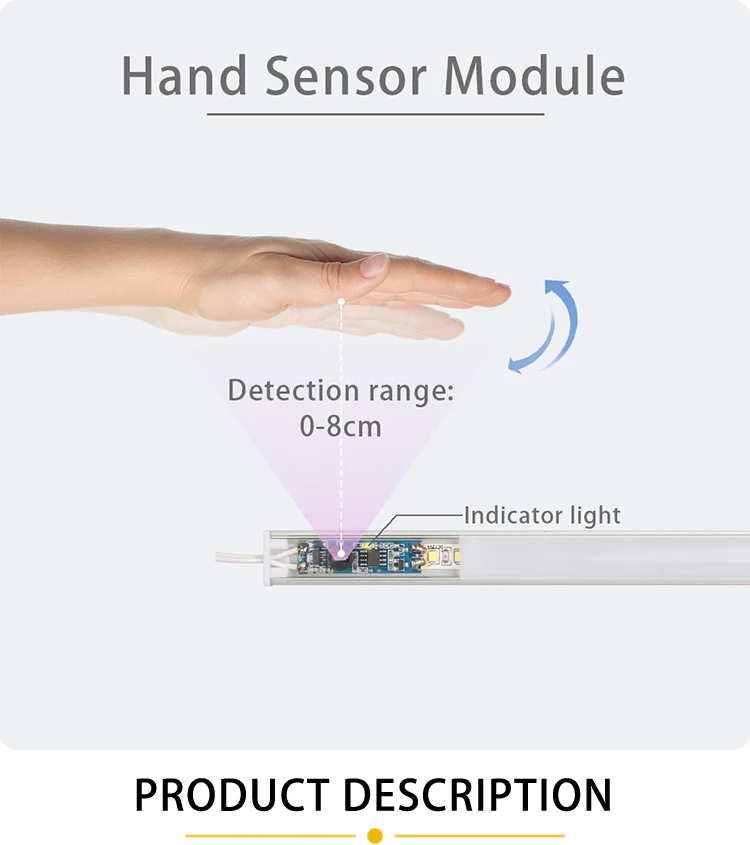

Switching on and off is carried out by a single raising of the hand to the place of installation of the switch in the area of the indicator. Dimming of lighting occurs when you hold your hand in the glow area of the switch indicator.
Attention! Do not use acidic fluxes for soldering! This puts the device out of service and is not a warranty case!
* small dimensions, high sensitivity sensor, with stable operation through the diffuser at a distance of up to 8 cm. (Need to drill the diffuser)
* very easy installation of the switch on an adhesive base on a profile;
* wide contact pads for soldering;
* LED light indicator that indicates the device status, color temperature no indicator-light on, 3000K-off;
* dimming function with last state memory.
When the voltage is applied, the device is set to standby mode. The lighting is turned off, and the indicator LED glows warm white.
Switching on and off is carried out by a single raising of the hand to the place of installation of the switch in the area of the indicator. Dimming of lighting occurs when you hold your hand in the glow area of the switch indicator.
Attention! Do not use acidic fluxes for soldering! This puts the device out of service and is not a warranty case!

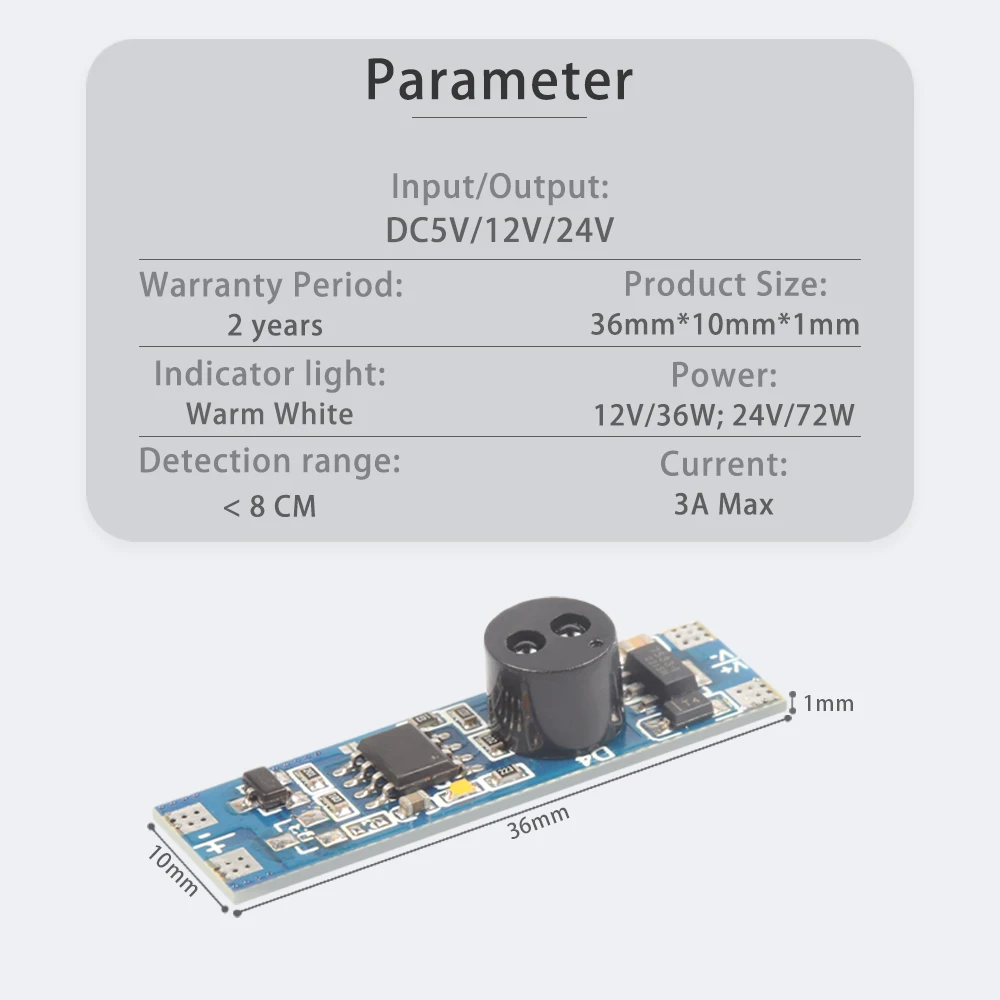

Product Name | Hand Sensor Module | ||
Model No | VD01Y-A3 | VD01Y-B3 | |
Function | Hard on/off+ Dimming | Fade on/off +Dimming | |
Input/Output | DC5V/12V/24V | ||
Power | 12V/36W;24V/72W | ||
Current | 3A Max | ||

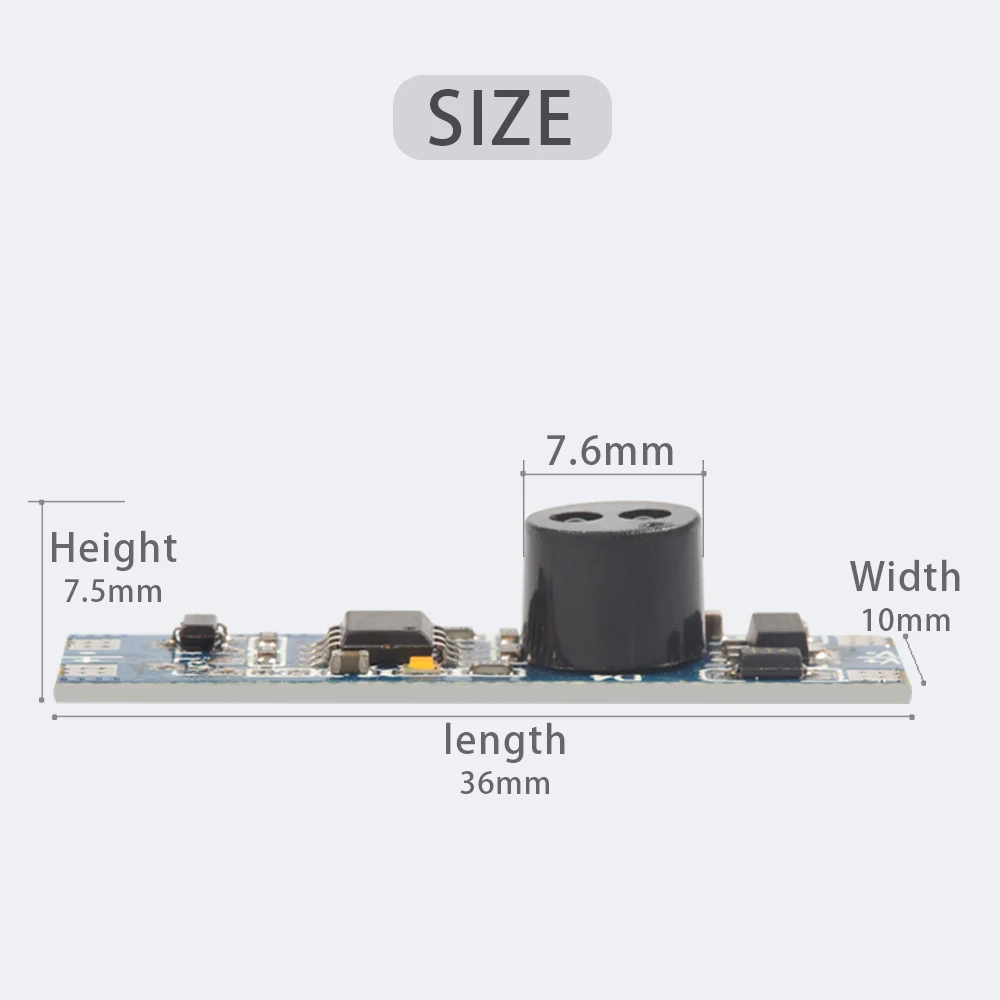

Product Size | 36*10*1.0mm | ||
Detection range | < 8cm | ||
Indicator light | Warm White | ||
Warranty Period | 2years | ||
ATTENTION!
Install, connect, and maintain the switch only when the power is turned off.
ATTENTION!
Do not use acidic fluxes for soldering! This puts the device out of service and is not a warranty case!
