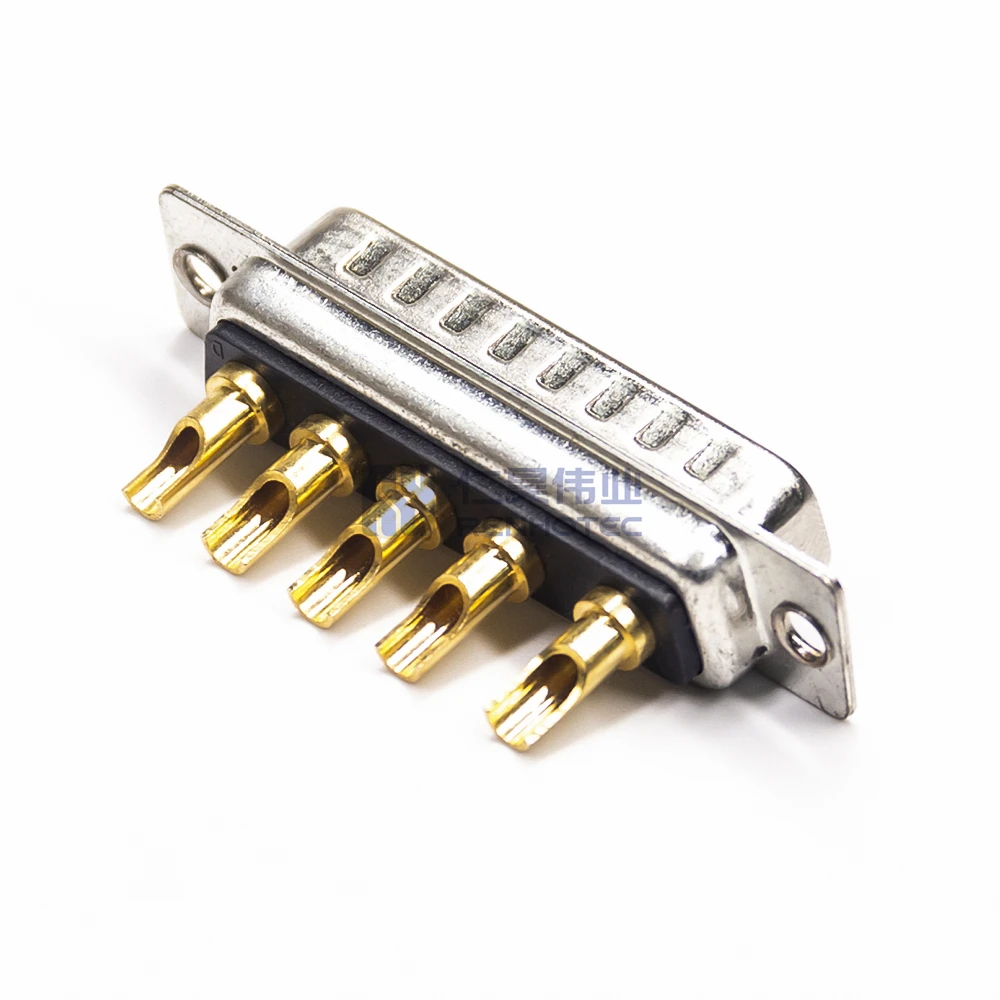

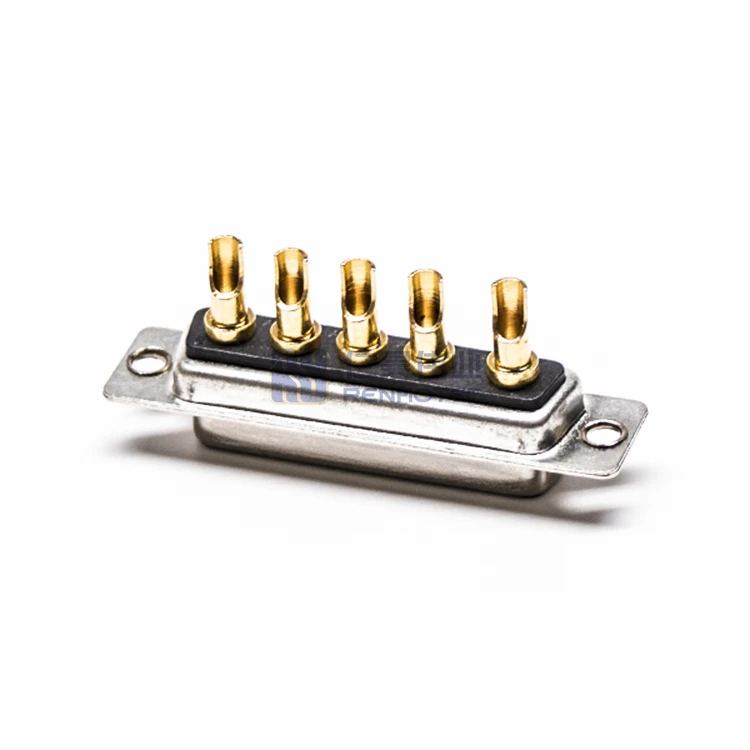

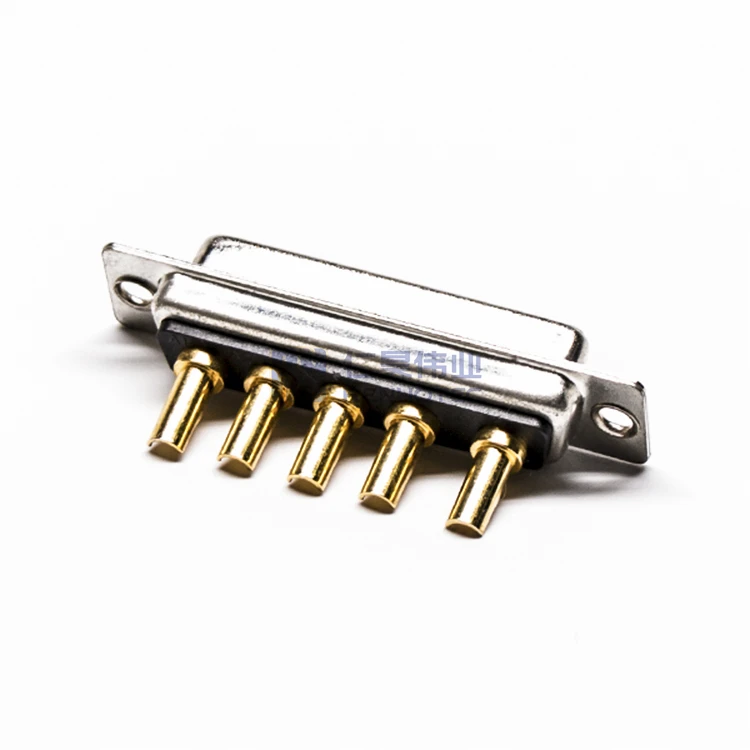

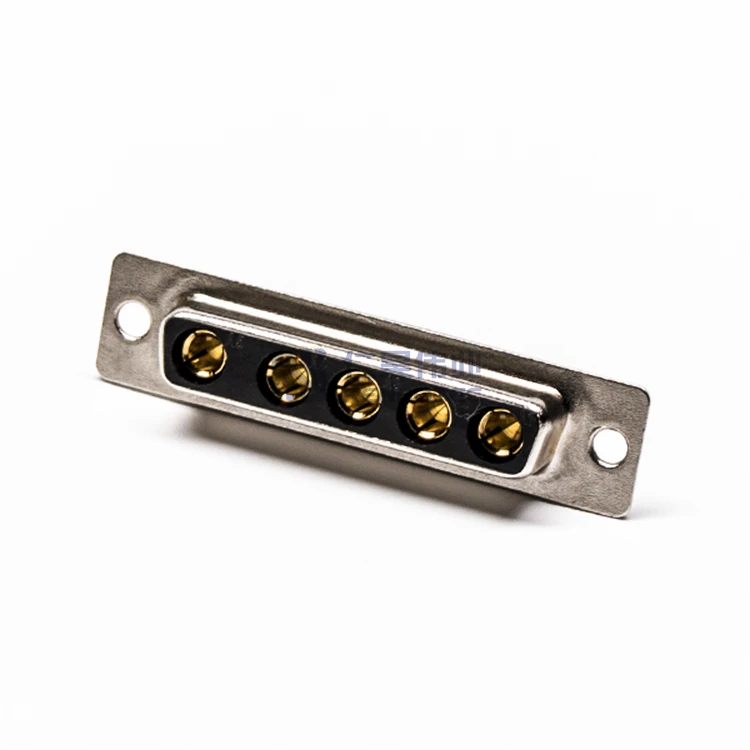

Dsub Connectors Female Socket D sub 5P 5W5 Pin Solder Cup Cable
- Category: >>>
- Supplier: Renhao Weiye Technology (wuhan) Co. Ltd.
Share on (11000005658301):
Product Overview
Description
Welcome to Renhotec Group Ltd! Our Slogan is Make Connection Easier……
Products Description

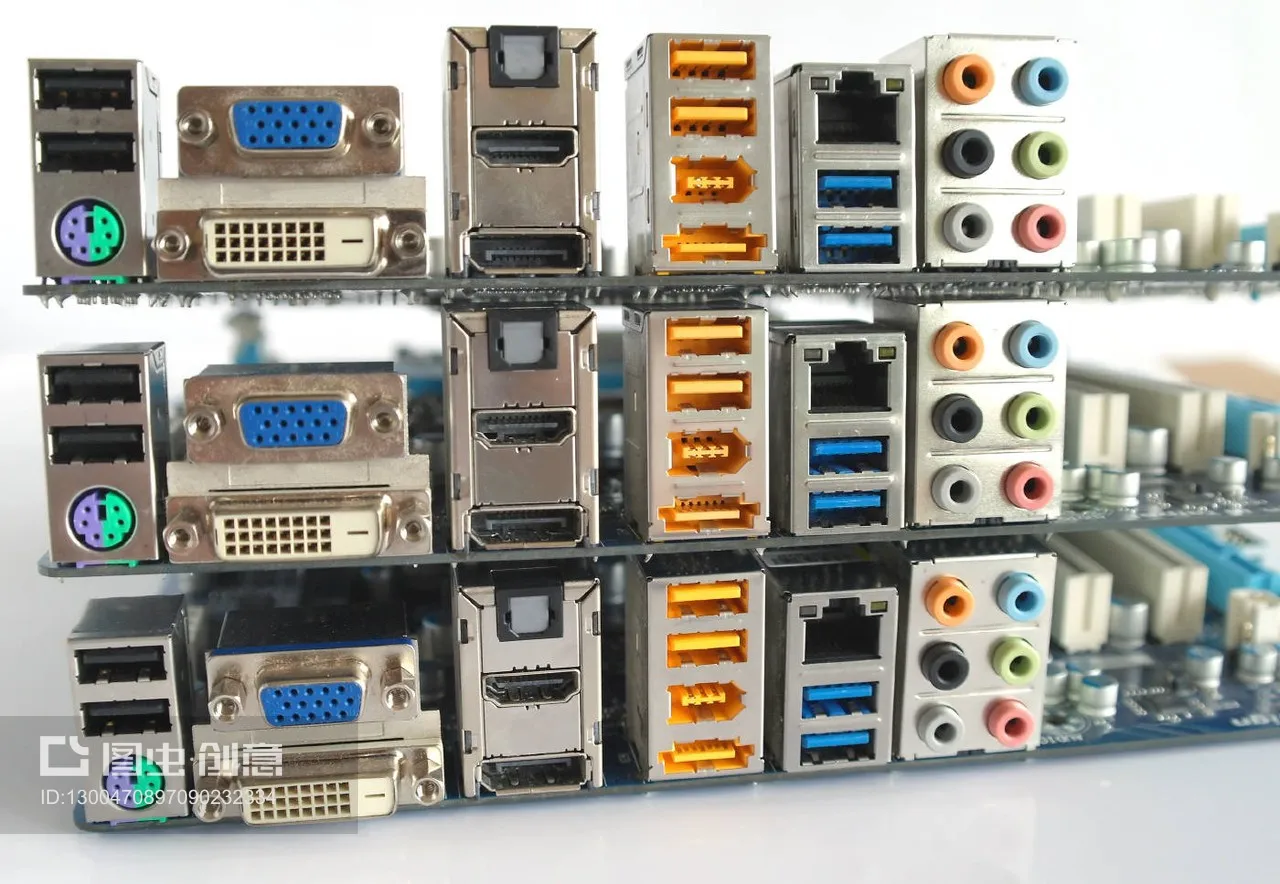

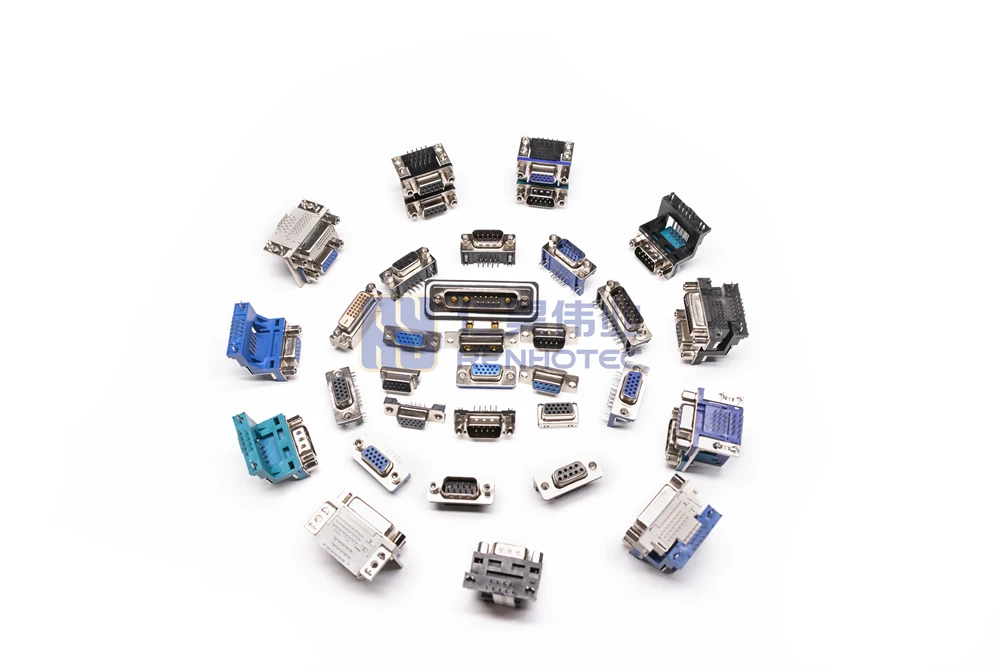

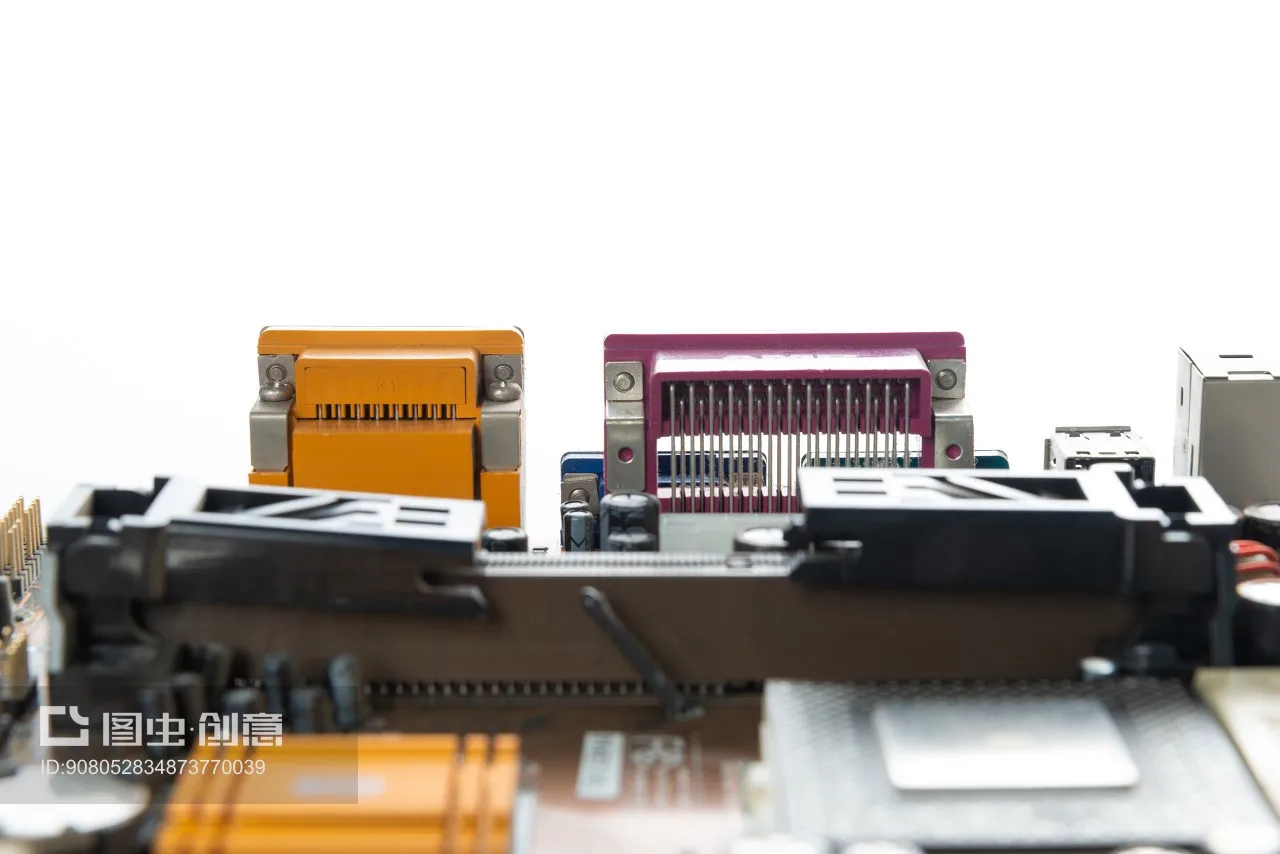

D-subminiature connectors are basic input/output connectors, with two or more rows of contacts within a "D" shaped shield. They got the name from, these D shaped shields, and these were the smallest communication connectors back when they were introduced and hence were called D-Subminiature connectors in general. They are also called as DB and D-Sub.Common types of D-sub connectors are DB9 and DB25, used on PCs for serial and parallel ports. Addressing a wide variety of applications in telecommunications, data, consumer, industrial, military, instrumentation and medical. RENHOTEC offers a wide range of D-Sub connectors to meet various design requirements including those in harsh environment.
Features:
-Most popular Rugged and sturdy I/O connector
-Has a D-shaped shell design
-Supports the need for polarisation
-Interchangable and intermateable with other makes
-Available in Solder Bucket, Crimp terminations
-Support all Cable mounting requirements
-Various PCB and Panel mounting accessory options available
-Wide variety of choices for secure connection
-Meets environmental, health and safety requirements
-Has a D-shaped shell design
-Supports the need for polarisation
-Interchangable and intermateable with other makes
-Available in Solder Bucket, Crimp terminations
-Support all Cable mounting requirements
-Various PCB and Panel mounting accessory options available
-Wide variety of choices for secure connection
-Meets environmental, health and safety requirements

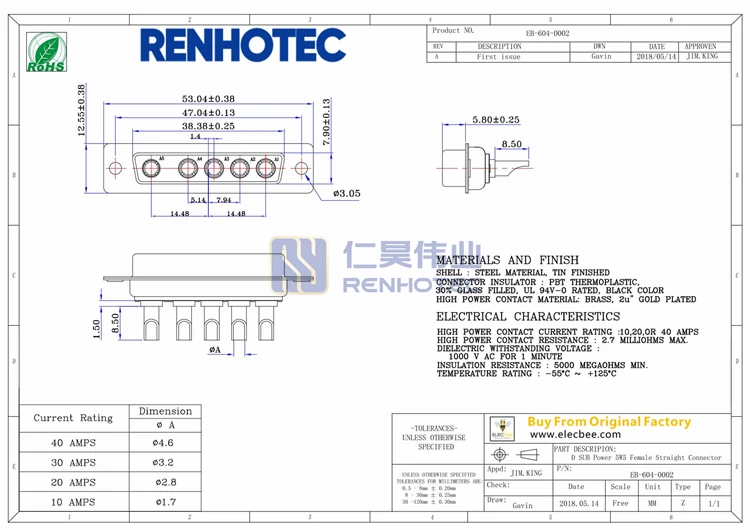

Gender | Plug / Socket |
Orientation | Straight / Right Angle |
Housing Material | Plastic / Steel / Zinc / Metal |
Contact Body Material | Brass / Phosphor Bronze |
Number of Pins | A=15 Pin / B=25 Pin / C=37 Pin / D=50 Pin / E=9 Pin |
Operating Temperature | -55℃~125℃ |
Voltage Rating | 300V AC/ rms 50Hz |
Withstanding Voltage | 1000V AC/ rms 50Hz for one minute |
Insulation Resistance | 1000MΩ at 500V DC |
Contact Resistance | 20 MΩ max. |
Single Contact Insertion Force | 1.19 lb. (0.54 kg.) max. |
Single Contact Withdrawal Force | 0.13 lb. (0.06 kg.) min. |

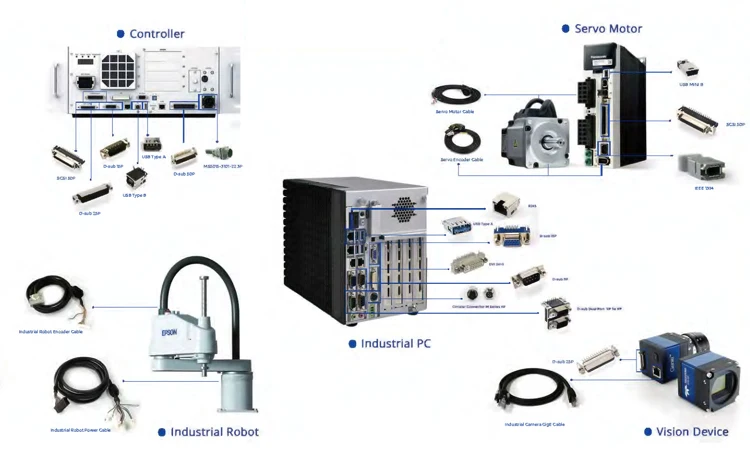

Industry Application
-Communications:Asymmetric Digital Subscriber Line (ADSL),Base Station,Switching,Transmission
-Data:Desktop and Laptop,Storage System,Router and Server
-Consumers:Set-Top Box
-Medical:Medical Instrument
-Industrial & Instrumentation:Automotive Diagnostics,Control Drives,Energy Meter
-Gaming Machine,Test Equipment,Office Automation,POS & Handheld terminal,Power Supplies,Parking Meter,Printer and Copier,Renewable Energy,Robotics,Surveillance Camera
-Military:Avionics,Military Equipment
-Data:Desktop and Laptop,Storage System,Router and Server
-Consumers:Set-Top Box
-Medical:Medical Instrument
-Industrial & Instrumentation:Automotive Diagnostics,Control Drives,Energy Meter
-Gaming Machine,Test Equipment,Office Automation,POS & Handheld terminal,Power Supplies,Parking Meter,Printer and Copier,Renewable Energy,Robotics,Surveillance Camera
-Military:Avionics,Military Equipment
Company Profile
Renhao Weiye Technology (Wuhan) Co., Ltd.
RENHOTEC is a full-service leading global supplier of a wide variety of standard and custom RF coaxial connectors, cable assemblies and unique solutions for today’s cutting edge applications.
RENHOTEC is fully committed to meeting the needs of our customers, we offer a wide range of RF connector interface types and are able to produce custom products for specific applications.
Our team is always focused on designing, developing and taking pride in custom innovative solutions to meet our customers' needs.
- Acquired ISO9001, ISO14001, QC080000 and TS16949 certification.
- All items are in line with EU ROHS and REACH environmental requirements.
- Markets supported include military, automotive, medical, instrumentation, telecom and wireless etc.
Production Process
Mould Design
Precision Zinc Alloy, Aluminum Alloy and plastic mold design
Die Casting & Injection
Alloy die casting and plastic injection molding production
Metal Lathe Processing
Metal parts drilling, tapping and lathe processing
Assembly Line
Automated, semi-automatic connector production line
Inspection Equipment
Test electrical, mechanical and environmental performance
Why Choose Us
Professional engineer team help you with drawing design and provide you suggestions based on your special electrical and environmental performance requirements.
Technology Improvement
Establish and optimize the process of the production line. Continuous improvement to make sure the targeted quality and yield achieved and maintain
.
With professional inspection center to test the electrical, mechanical and environmental performance and ensure the high quality.
FAQ
Q :How can I get a sample to check your quality?
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.
