Automatic Paper Card Blister sealing Packaging Machine for Air blow Gun
- Category: >>>
- Supplier: Wenzhou Anchuang Machinery Technology Co. Ltd.
Share on (11000005685852):
Product Overview
Description
AC-400 High Speed Automatic Blister Paper Card Packing Machine

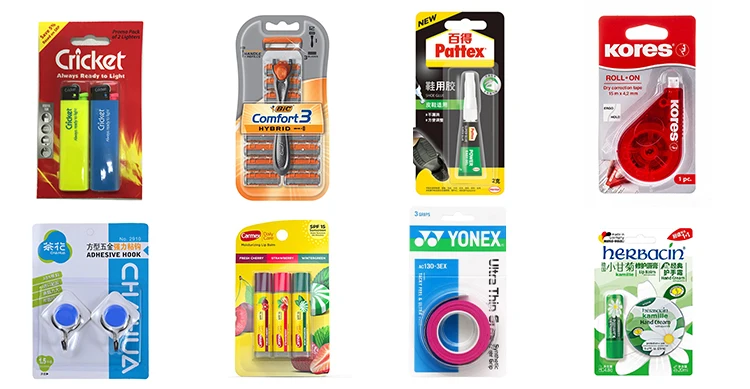

AC-400 is suitable for blister paper card package( half face sealing ), such as daily commodity ( razor, rubber,nipple,sticky hook),small hardware (battery, electronics, glue), stationery (pencil, eraser, correction fluid, solid glue) and so on.
Product Paramenters
Mode | AC-400 |
Production speed | 15-20 cycles/min |
Stroke range | 30mm-200mm |
Max forming area | 370mm*240mm |
Max standard forming depth | 50mm |
Forming heating power | 3.5kw(*2) |
Heat sealing power | 4.5kw |
Total power | 13.5kw |
Air consumption | consumption ≥0.5 m³/min |
Air Pressure | 0.5-0.8mpa |
Packing material（PVC）(PET) | thickness0.15mm-0.5mm内 |
Max paper dimension | 400mm*250mm*0.5mm |
Total Weight | 2500kg |
Machine dimension(L*W*H) | 4600mm*1550mm*1850mm |
Production Process
Working Principle

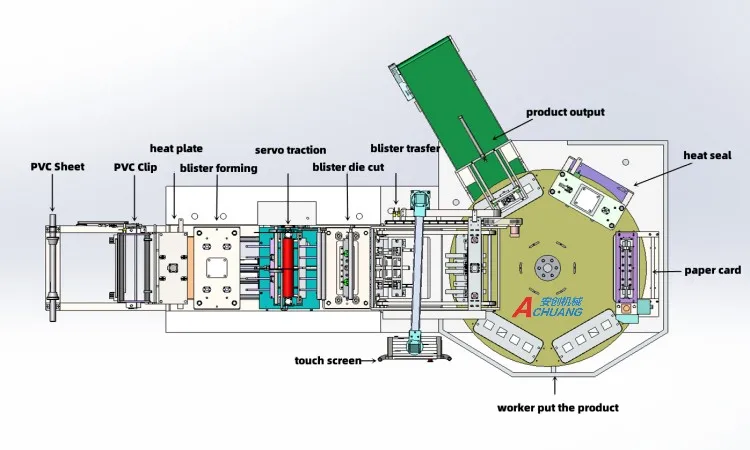

The production process is PVC heating---Blister card forming---servo motor traction---blister card cutting---scrap collection---blister card grab to the rotary plate by manipulator--manual place the product--- paper card lay down ----blister and paper card sealing----product output(Optional device: euro-hole machine, labelling machine,ink-jet printer)

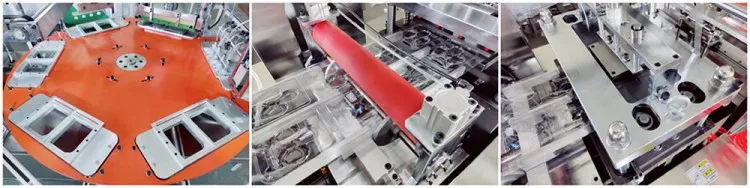

Machine Detail

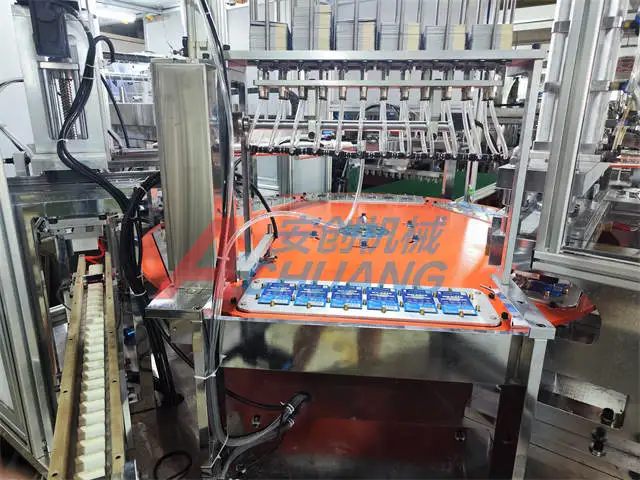

*six truntable station

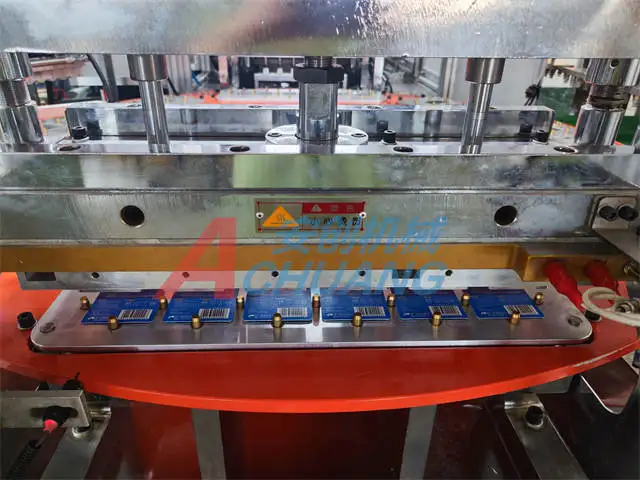

*from blister forming to paper -blister heat sealing
*Cam driven ,stable running

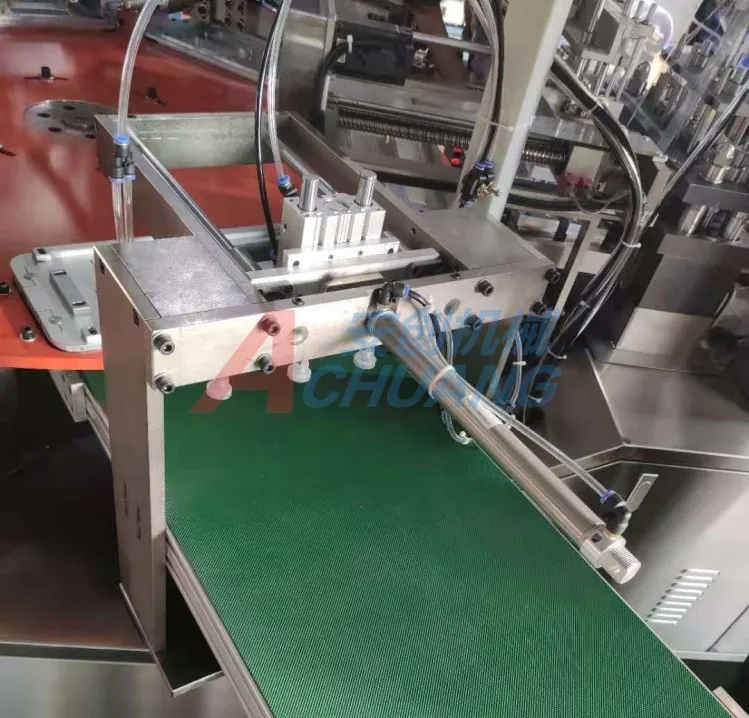

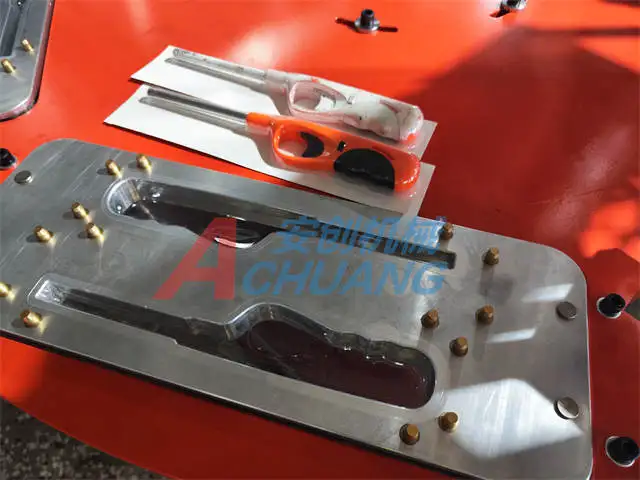

*can design feeder according to your product shape

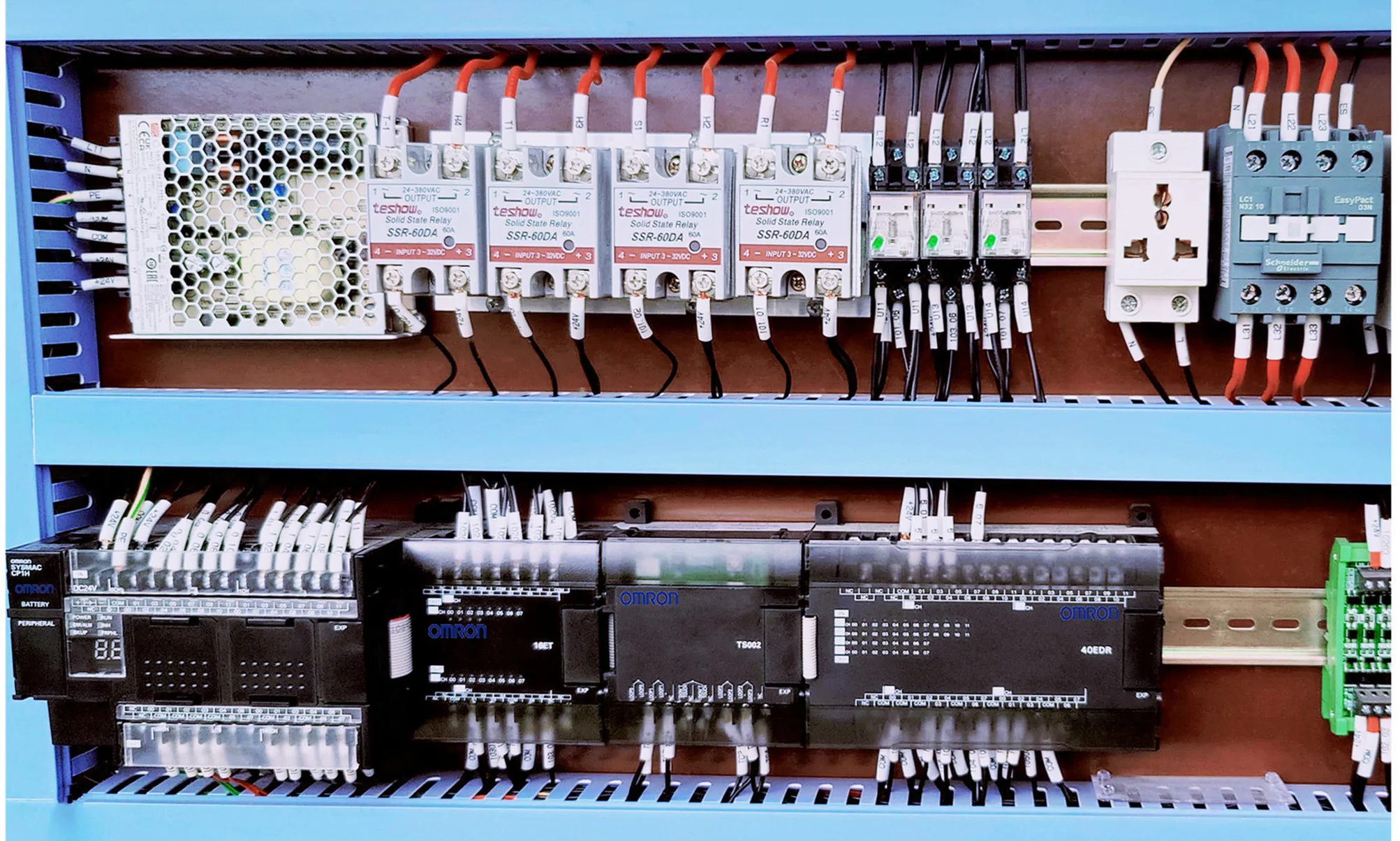

Electrical appliance brand guarantee
The electrical accessories we use are cooperated with many famous brand suppliersEnsure our equipment is more stable and reliable and our efficiency is higher.
