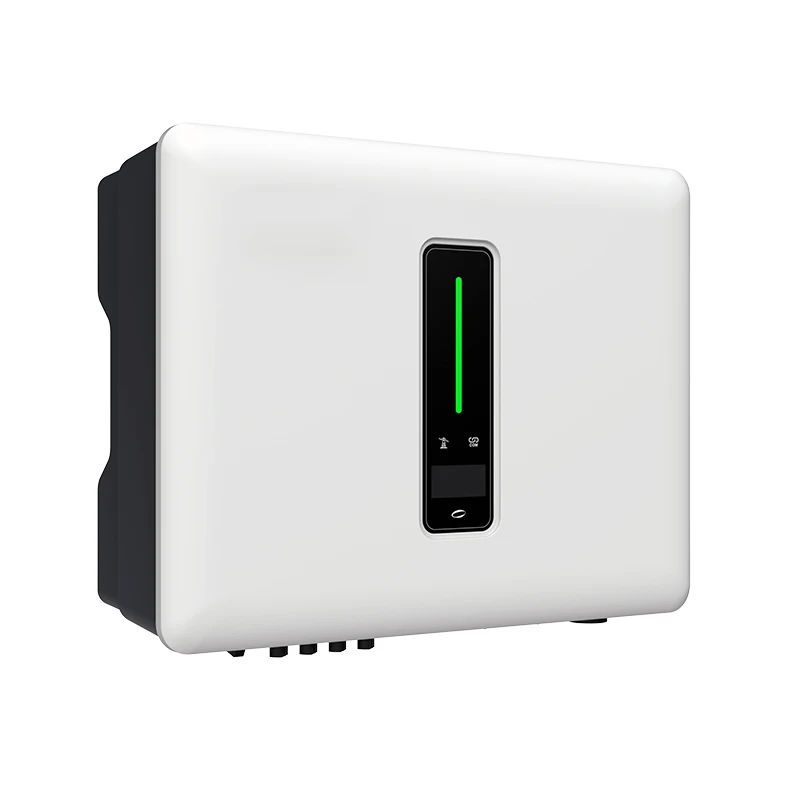

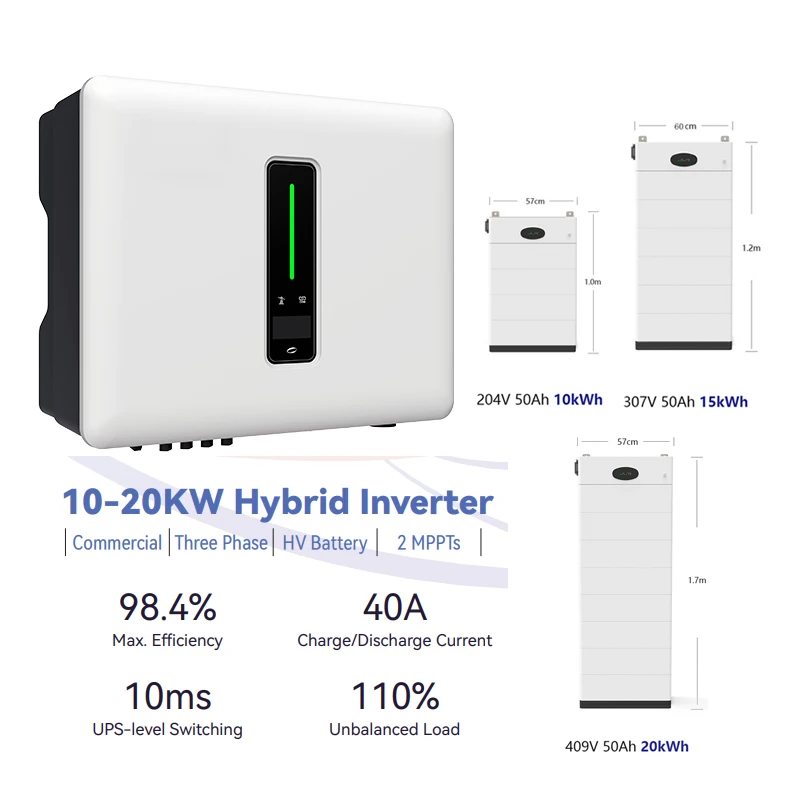

TUV CE IEC 150V 750V Solar Home Energy Storage System Power HV Inverter 10kW 20kW 3 Phase Solar Hybrid Inverter With Battery
- Category: >>>
- Supplier: Batterlution Ltd.
Share on (11000005701389):
Product Overview
Description
Product Introduction

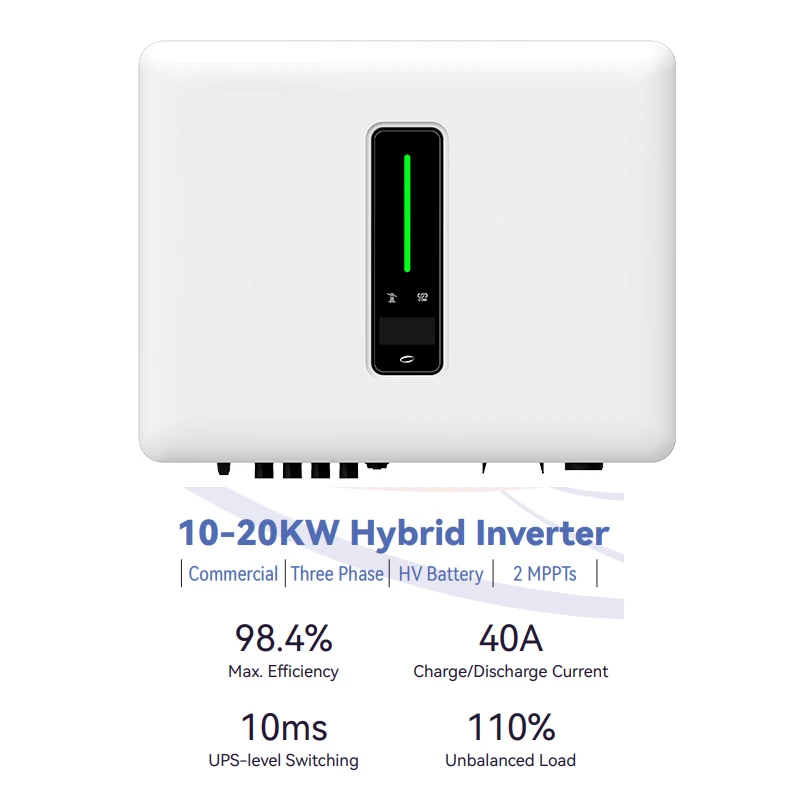

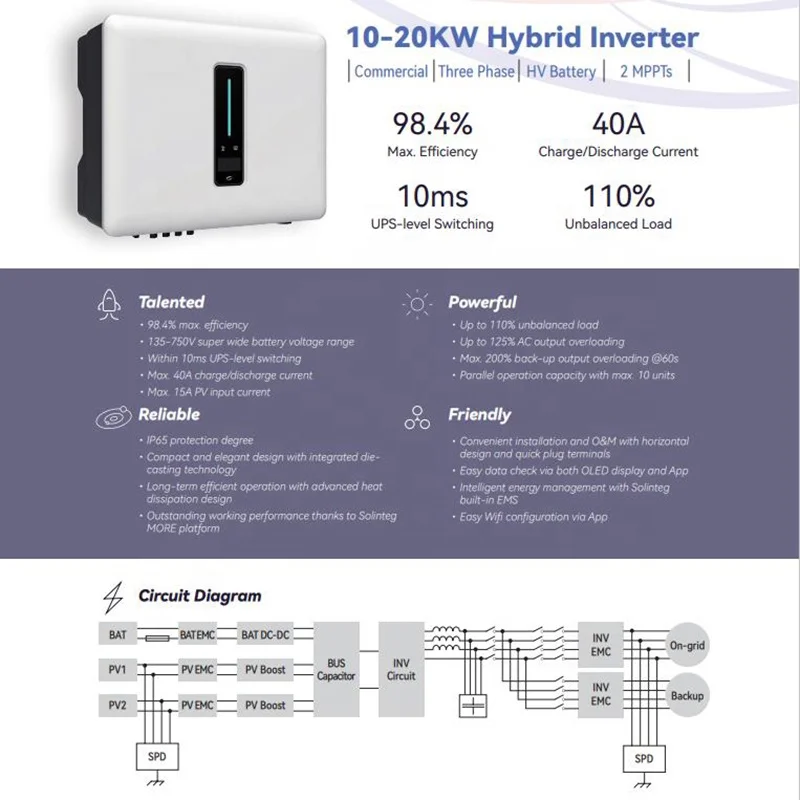

Three-Phase Hybrid Inverter Features
Talented
• 98.4% max. efficiency
• 135-750V super wide battery voltage range • Within 10ms UPS-level switching
• Max. 40A charge/discharge current
• Max. 15A PV input current
Powerful
• Up to 110% unbalanced load
• Up to 125% AC output overloading
• Max. 200% back-up output overloading @60s • Parallel operation capacity with max. 10 units
Reliable
• IP65 protection degree
• Compact and elegant design with integrated die- casting technology
• Long-term efficient operation with advanced heat dissipation design
• Outstanding working performance thanks to Solinteg MORE platform
Friendly
• Convenient installation and O&M with horizontal design and quick plug terminals

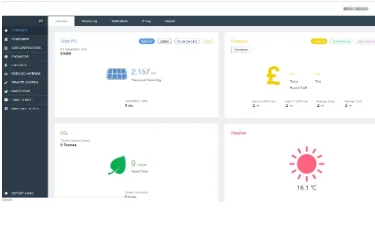

• Easy data check via both OLED display and App
• Intelligent energy management with Solinteg built-in EMS
• Easy Wifi configuration via App
• 98.4% max. efficiency
• 135-750V super wide battery voltage range • Within 10ms UPS-level switching
• Max. 40A charge/discharge current
• Max. 15A PV input current
Powerful
• Up to 110% unbalanced load
• Up to 125% AC output overloading
• Max. 200% back-up output overloading @60s • Parallel operation capacity with max. 10 units
Reliable
• IP65 protection degree
• Compact and elegant design with integrated die- casting technology
• Long-term efficient operation with advanced heat dissipation design
• Outstanding working performance thanks to Solinteg MORE platform
Friendly
• Convenient installation and O&M with horizontal design and quick plug terminals
• Easy data check via both OLED display and App
• Intelligent energy management with Solinteg built-in EMS
• Easy Wifi configuration via App
Certifications:
IEC/EN 62109, IEC/EN 61000, EN50549-1, TOR Generator Type A, VDE-AR-N-4105
SPECIFICATIONS
Type Designation | MHT-10K | MHT-12K | MHT-15K | MHT-20K | ||||
PV Input | ||||||||
Max.Input power(kW) | 15 | 18 | 22.5 | 30.0 | ||||
Start-up Voltage(V) | 135 | 135 | 135 | 135 | ||||
Max.DC Input Voltage(V) | 1000 | 1000 | 1000 | 1000 | ||||
Rated DC Input Voltage(V) | 620 | 620 | 620 | 620 | ||||
MPPT Voltage Range(V) | 200-950 | 200-950 | 200-950 | 200-950 | ||||
No.of MPP Trackers | 2 | 2 | 2 | 2 | ||||
No.of DC Inputs per MPPT | 2//2 | 2//2 | 2//2 | 2//2 | ||||
Max.Input Current(A) | 30/30 | 30/30 | 30/30 | 30/30 | ||||
Max.Short-circuit Current(A) | 40/40 | 40/40 | 40/40 | 40/40 | ||||
Battery | ||||||||
Battery Type | Lithium Battery（with BMS) | |||||||
Battery Voltage Range（V) | 135-750 | |||||||
Max.Charge/Discharge Current（A) | 40/40 | |||||||
Grid Side | ||||||||
Rared Output Power(kW) | 10.0 | 12.0 | 15.0 | 20.0 | ||||
Max.Output Apparent Power(kVA) | 11.0 | 13.2 | 16.5/15.0 | 22.0 | ||||
Max.Input Apparent Power(kVA)** | 20.0 | 24.0 | 30.0 | 30.0 | ||||
Max.Charging Power of Battery (KW) | 10.0 | 12.0 | 15.0 | 20.0 | ||||
Rarter AC Voltage(V) | 3L/N/PE；220/380V；230/400V;240/415V | |||||||
Rarter AC Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | ||||
Max.output Current（A） | 16.5 | 20.0 | 25.0/21.7 | 33.5 | ||||
Power Factor | 0.8 leading ...0.8 lagging | |||||||
Max.Total Harmonic Distortion | <3% @Rated output power | |||||||
DCI | <0.5%In | <0.5%In | <0.5%In | <0.5%In | ||||
Back-up Side | ||||||||
Rated Output Power (kW) | 10.0 | 12.0 | 15.0 | 20.0 | ||||
Max. Output Apparent Power (kVA) | 11.0 | 13.2 | 16.5 | 22.0 | ||||
Max. Output Current (A) | 16.5 | 20.0 | 25.0 | 33.5 | ||||
UPS Switching Time | <10ms | <10ms | <10ms | <10ms | ||||
Rated Output Voltage (V) | 3L/N/PE；220/380V；230/400V;240/415V | |||||||
Rated Output Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | ||||
Peak Output Apparent Power (kVA)*** | 20, 60s | 20, 60s | 20, 60s | 20, 60s | ||||
Voltage Harmonic Distortion | <3% @Linear load | |||||||
Efficiency | ||||||||
Max Efficiency | 98 4% | 98 4% | 98 4% | 98 4% | ||||
European Efficiency | 97.50% | 97.50% | 97.50% | 97.50% | ||||
Compliance | ||||||||
IEC/EN 62109, IEC/EN 61000, EN50549-1, TOR Generator Type A, VDE-AR-N-4105 | ||||||||
Protection | General Data | |||
DC Reverse Polarity Protection | Integrated | Over Voltage Categor | PV: Ⅱ；Main: Ⅲ | |
Batter Input Reverse Connection Protection | Integrated | Dimensions (W×H×D mm) | 534×418×210 | |
Insulation Resistance Protection | Integrated | Weight (KG) | 27 | |
Surge Protection | Integrated | Protection Degree | IP65 | |
Over-temperature Protection | Integrated | Standby Self-consumption (W) | <15 | |
Residual Current Protection | Integrated | Topology | Transformerless | |
Islanding Protection | Integrated (Frequency shift） | Operating Temperature Range (°C) | burden30~60 | |
AC Over-voltage Protection | Integrated | Relative Humidity (%) | 0-100 | |
Overload Protection | Integrated | Operating Altitude (m) | 3000 (>3000m derating) | |
AC Shor-circuit Protection | Integrated | Cooling | Smart Fan | |
Noise Level (dB) | <40 | |||
Display | OLED & LED | |||
Communication | CAN, RS485, WiFi/LAN (Optional) | |||
Pictures

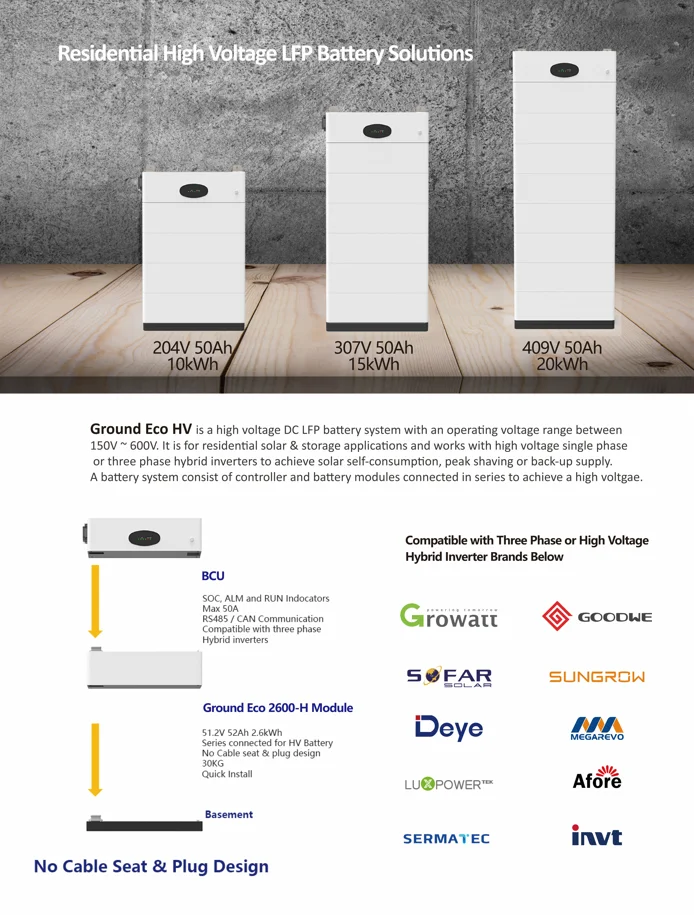

Battery Module | ||||||
Module Name | Ground Eco 2600-H | |||||
Energy Capacity | 2.6kWh | |||||
Typical Voltage | 51.2V | |||||
Ah | 52Ah | |||||
Battery Type | Prismatic LiFePO4 | |||||
Connection Method | Series connected for high voltage battery solution | |||||
Connector | No cable seat & plug | |||||
Weight | 30KG per module | |||||

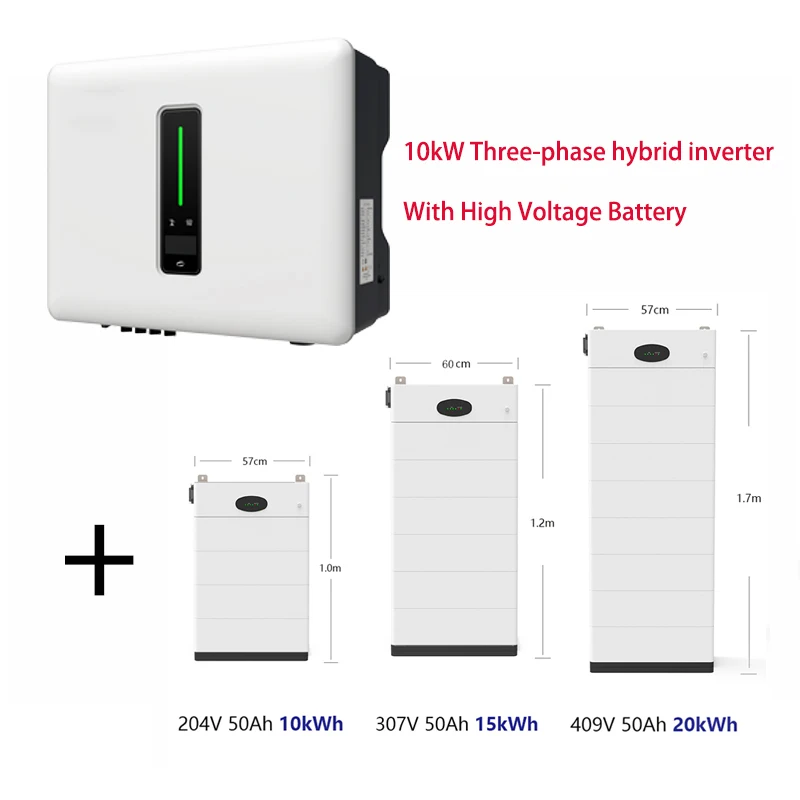

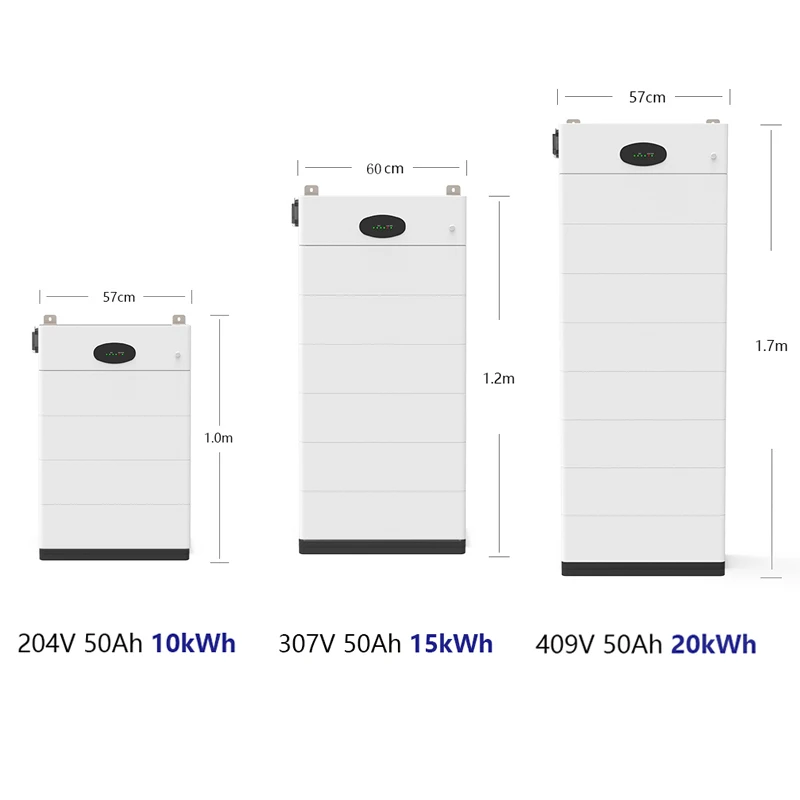

Battery System | ||||||
System Voltage | 204V | 307V | 409V | |||
Working Voltage Range | 168V~219V | 252V~328V | 336V~438V | |||
Rated Capacity | 10kWh | 15kWh | 20kWh | |||
Ah | 52Ah | |||||
Suggested SOC Range | 10% ~ 100% | |||||
Usable Energy | 9kWh | 13.5kWh | 18kWh | |||
Peak Charge Current | 50A | |||||
Rated Charge Current | 35A | |||||
Charge Temperature | 0℃ ~ 45℃ | |||||
Discharge Temperature | -10℃~ 45℃ | |||||
Cycle Life | 6000 cycles @ 0.5C/0.5C, 25℃ | |||||
Communication | CAN, RS485 | |||||

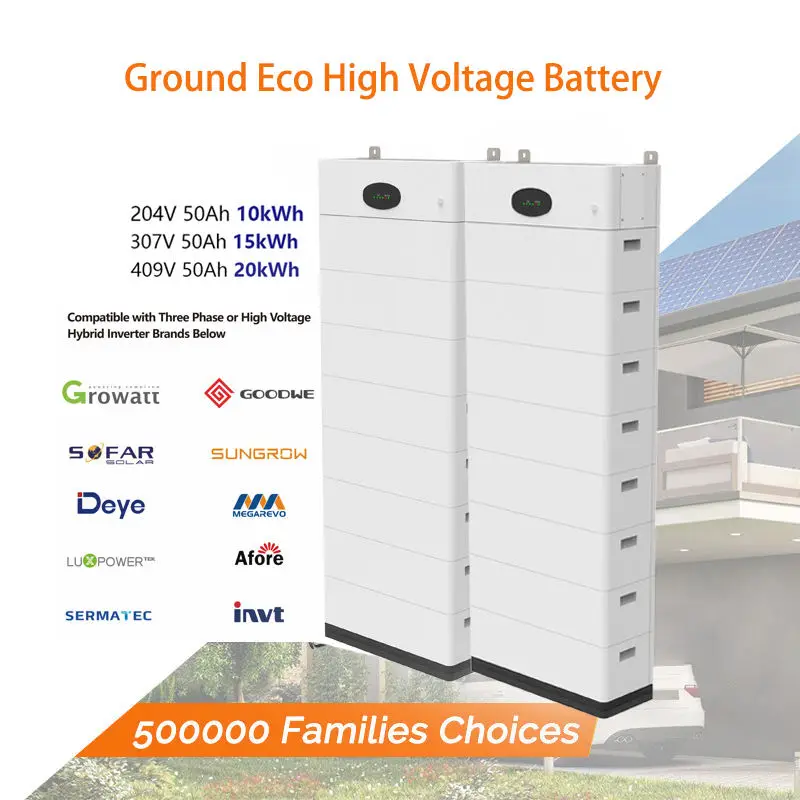

Compatible Inverters | Growatt, Sofarsolar, Deye, GoodWe, Luxpower | |||||
Design Life | 10 years | |||||
Dimensions | 100cm x 57cm x 22cm | 130cm x 57cm x 22cm | 165cm x 57cm x 22cm | |||
Display | Indicators | |||||
Product Packing

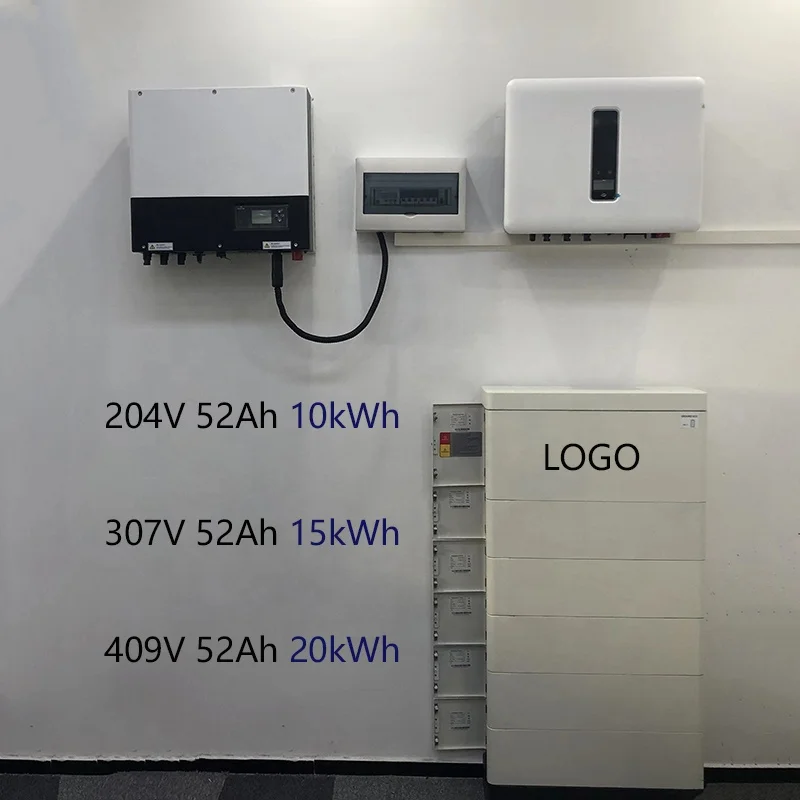

Case show
Why choose us
Factory introduction
Product Quality
FAQ
Battery Cell\t\t\t
\t1：\tWhat battery cell you are using?\t
\t1：\tWhat battery cell you are using?\t
We are using BYD or Gotion brand new prismatic cell. If necessary, please contact us for battery cell specifications.
\t2：\tHow many cycles can achieve for your battery cells?
\t2：\tHow many cycles can achieve for your battery cells?
\tBYD and GOTION brand new cells can achieve 6000 cycles @ 25℃, 0.5C conditions. Also please know usually 1C condition is about 3500 cycles.
Low Voltage Battery
1：Which hybrid inverter your battery BMS has been communicated\t
Low Voltage Battery
1：Which hybrid inverter your battery BMS has been communicated\t
Our BMS has built protocol communication with most of inverter brands in market. You can please find the brnad information above picture.
\t\t\t
High Voltage Battery\t
1：Which hybrid inverter your high voltage battery BMS has been communicated
\t\t\t
High Voltage Battery\t
1：Which hybrid inverter your high voltage battery BMS has been communicated
\tOur high voltage battery BMS has built protocol communication with Growatt, Sofarsolar, Goodwe, INVT, Megarevo etc brand three phase hybrid inverters.
\t2：\tWhy we use high voltage battery?\t
\t2：\tWhy we use high voltage battery?\t
High voltage battery always works with three phase hybrid inverters, which need a higher battery output. So we need high voltage battery solution to achieve a bigger kW power.
\t3：\tHow much total voltage I need?
\t3：\tHow much total voltage I need?
\tThis depends on inverter battery side specifications. For three hybrid inverter, it is always around 150V to 600V. We just need to consider this HV battery system volatge is in this range.
Warranty\t\t\t
\t1：What's your warranty years?
\t1：What's your warranty years?
\tWe offer standard factory warranty which is valid 10 years for battery product, from the date of installation or no more than 10 and a half years from the delivery date from factory. The battery capacity will be no less than 70% within 10 years or 10MWh battery through put per kWh of the initial installation date by conditions charge rate is no more than 0.5C, and environment temperature should be in the range of 0℃ to 30℃.
\t2：If battery has issues, how you proceed for warranty?
\t2：If battery has issues, how you proceed for warranty?
\tOur engineer will remotely check the issues by software, this need local installer assistance. If it is software issue, the battery can be repaired by firmware update. If it is battery hardware issue, we will send the battery module or BMS to customer as the replacement.
\t\t\t
Service\t\t\t
\t1：Can you offer OEM or ODM?
\t\t\t
Service\t\t\t
\t1：Can you offer OEM or ODM?
\tYes, we are LFP battery specialized solution provider mianly in energy storage field. You can please inform us your applications, inverter brand and model name. We will select or customize LFP battery system for you.
