Настенный светильник King Lanca, уличный современный стиль для дома, водонепроницаемый светодиодный светильник IP65
- Category: Outdoor Lighting >>>
- Supplier: Foshan King Lanca Lighting Technology Co. Ltd.
Share on (11000005710679):
Product Overview
Description
Product recommendation
Products Description
Product Name | King Lanca Wall Light Outdoor Modern Style For Home Waterproof IP65 Led Up And Down Lamp |
Voltage | 100-240V |
Color | black white gray |
IP Rating | IP65 |
Color Temperature (CCT) | 3000K/4000K/6000K |
CRI (Ra>) | >80 |

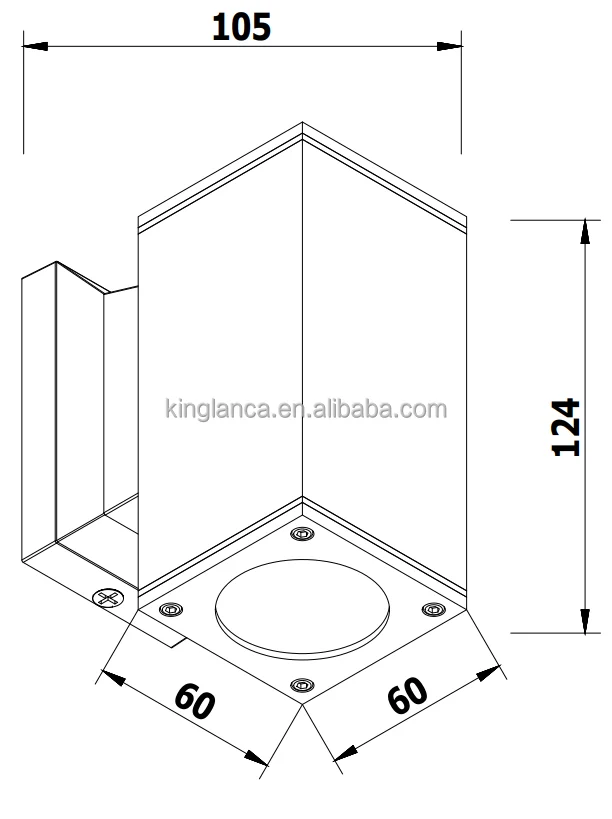

Dimension drawing

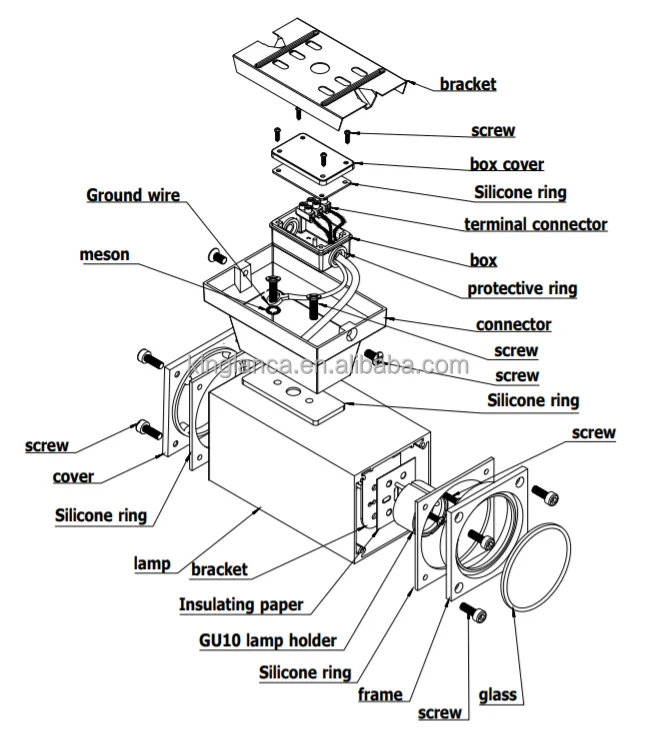

Exploded view
LCW0120S-3
CS53S-1 GU10
CS53S-1 G5.3
Exploded views
Installation Instructions

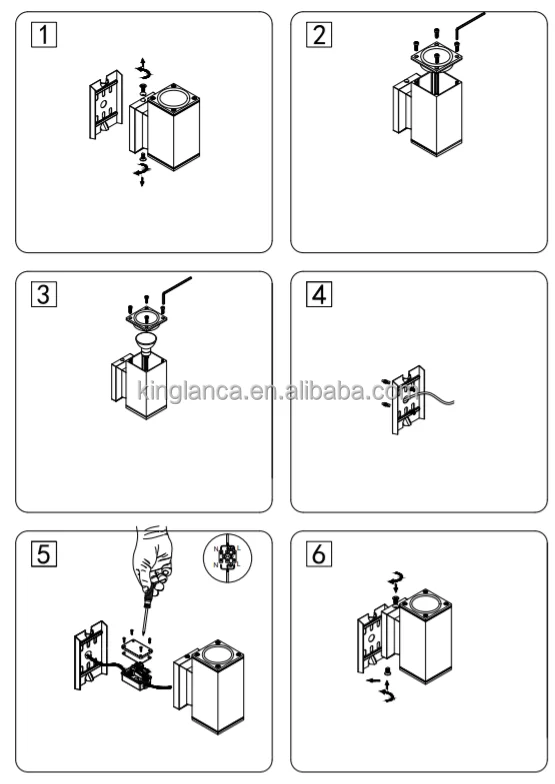

LCW0120S-3/CS53S-1 GU10/G5.3 Installation instructions
1. Screw out the lamp mounting cover (Fig. 1)
2. Twist out the front ring of the lamp body (Figure 2)
3. Install the GU10/G5.3 light source and tighten the front ring (Fig. 3)
4. On the wall, drill the appropriate size hole according to the installation cover, drive the capsule into the drilled hole, and fix the installation bracket with self tapping screws (Figure 4)
5. Turn off the power supply, unscrew the screws of the junction box, and connect the power supply (Figure 5)
6. Fix the lamp body to the ceiling, lock the mounting base screws, and then turn on the power switch to use it (Figure 6)
2. Twist out the front ring of the lamp body (Figure 2)
3. Install the GU10/G5.3 light source and tighten the front ring (Fig. 3)
4. On the wall, drill the appropriate size hole according to the installation cover, drive the capsule into the drilled hole, and fix the installation bracket with self tapping screws (Figure 4)
5. Turn off the power supply, unscrew the screws of the junction box, and connect the power supply (Figure 5)
6. Fix the lamp body to the ceiling, lock the mounting base screws, and then turn on the power switch to use it (Figure 6)
CERTIFICATE
All models are CE, TUV, ERP and RoHS approval to meet customers equirements, What's more,company is ISO9001and BSCI certified.
A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Sample time?
Existing items: Within 1-3 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo and help to design colour box .
D) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
E)How to proceed an order for our products?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
F)What is your terms of payment?
Usually,we accept T/T, L/C at sight.For regular orders, Terms of payment 30% deposit,full payment before delivery the goods.
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Sample time?
Existing items: Within 1-3 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo and help to design colour box .
D) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
E)How to proceed an order for our products?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
F)What is your terms of payment?
Usually,we accept T/T, L/C at sight.For regular orders, Terms of payment 30% deposit,full payment before delivery the goods.
