A10 GNSS/GPS Antenna and R30 GNSS Receiver 4G Fixed Network Station
- Category: >>>
- Supplier: SZFP (Shenzhen) Technology Limited
Share on (11000005753512):
Product Overview
Description
Option
Option 1：Login CORS Account which is provided by local CORS station.
Option 2：R23+D10、1-2km、RTK radio station.
Option 3：R23+D30+D10、10-20km、RTK radio station+external radio.Option 4：R30+A10、50km、4G fixed network station if 4G available on farm.
Option 5：R30+A10+D30+D10、20km、Radio station or 50km network station.
Product Description

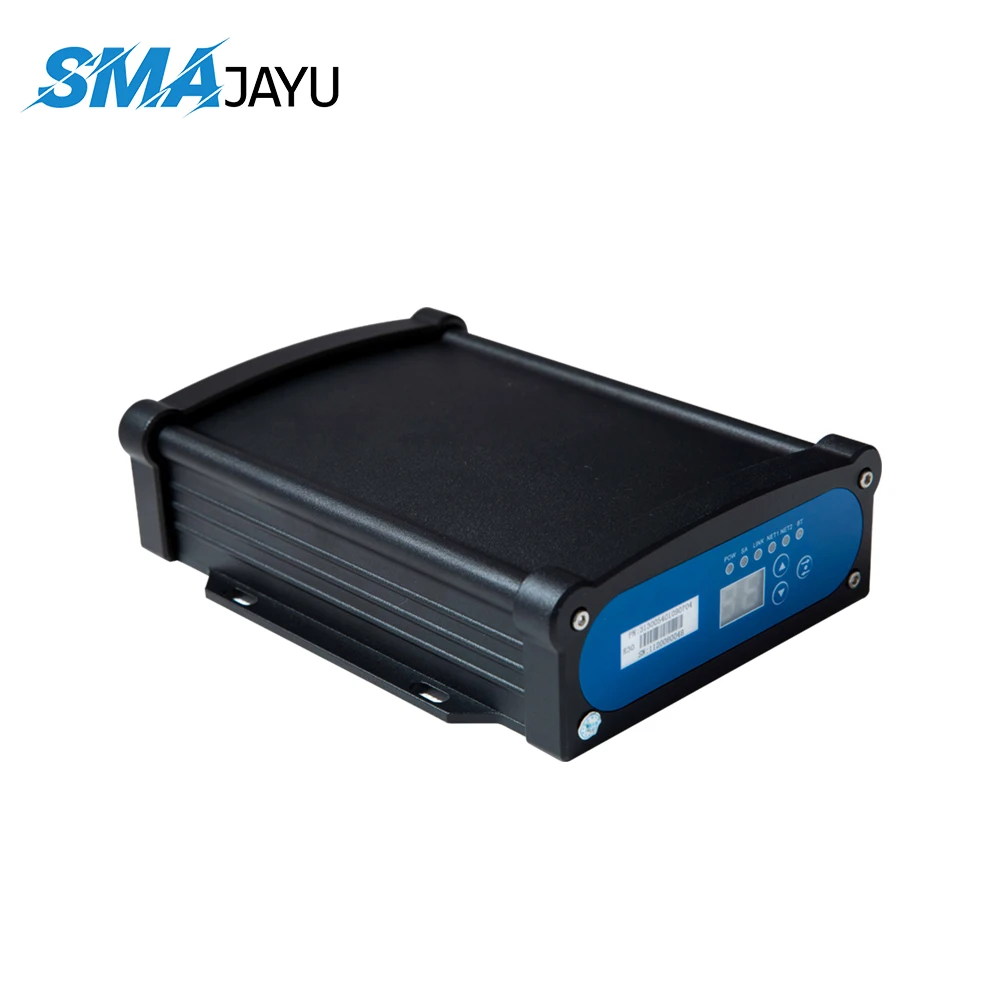

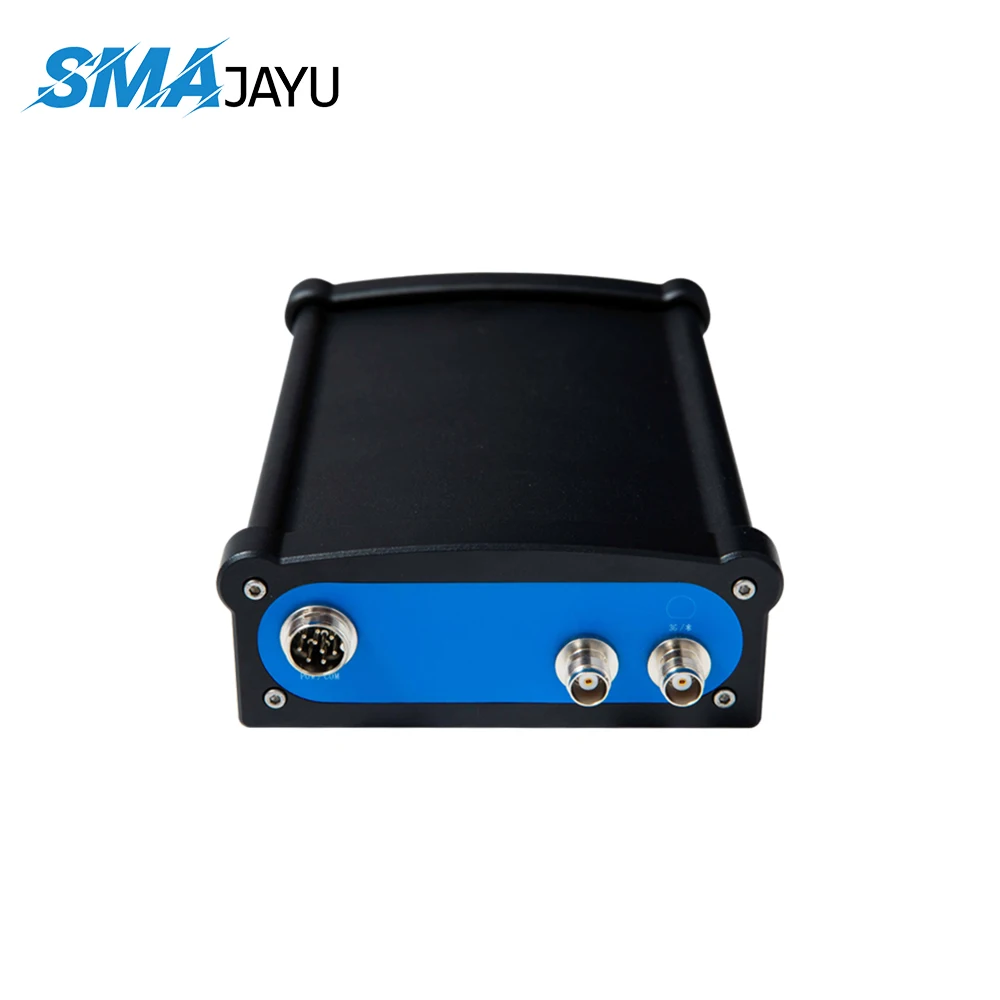

The R30 receiver is a GNSS receiver designed to provide Ag and MC professionals with maximum features and flexibility. The receiver’s compact form factor, powerful feature set make for an ideal combination supporting a wide range of high-accuracy positioning applications, including: RTK rover；mobile field base station；post processed data collection.

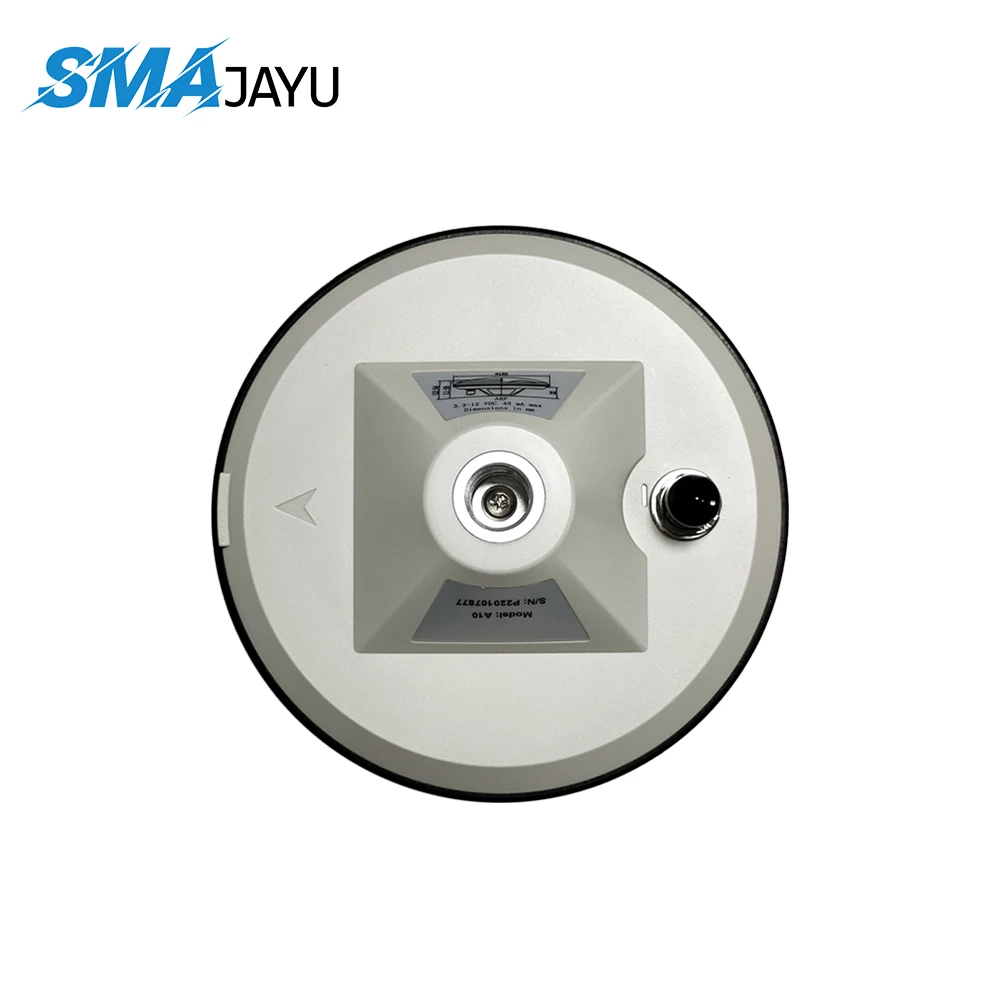

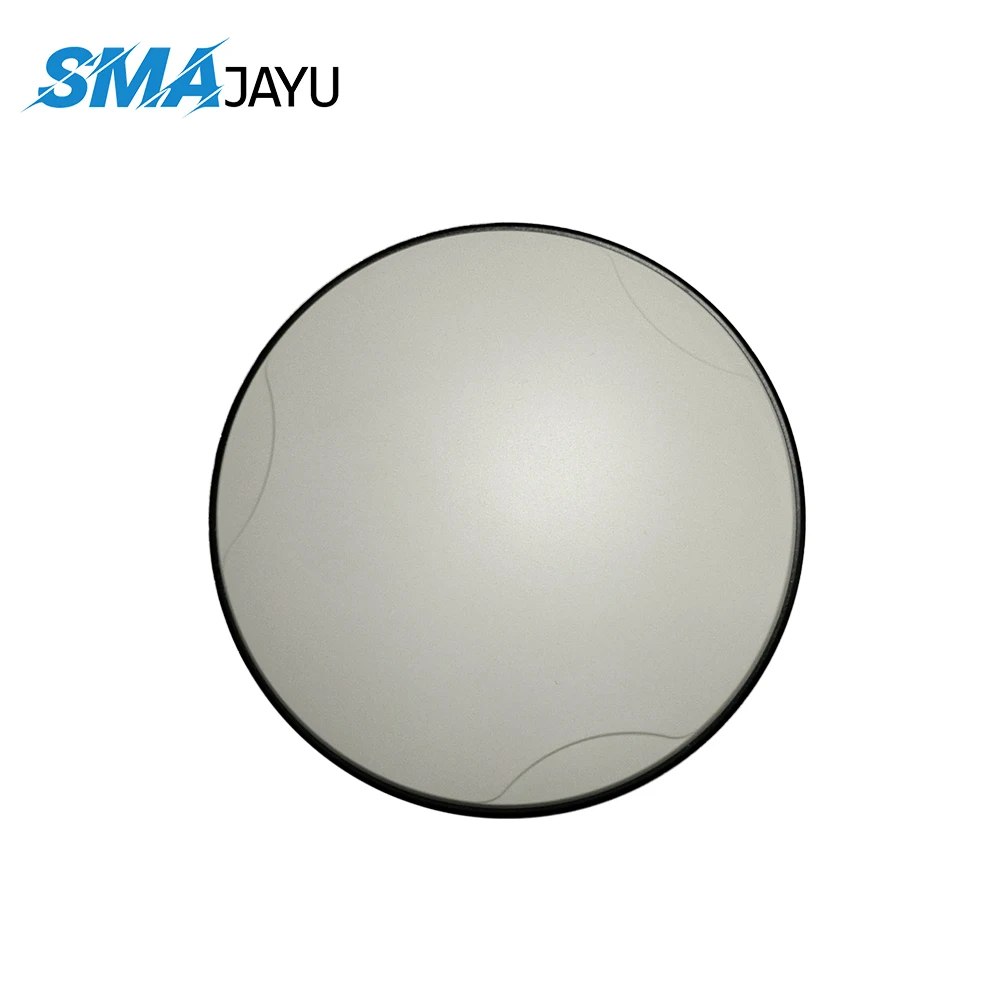

A10 is a four-system full-frequency external measurement antenna covering GPS, GLONASS, BDS, and GALILEO, which meets the multi-system compatibility requirements of current measurement equipment. It can be widely used in geodetic surveying, ocean surveying, channel surveying, dredging surveying, seismic monitoring, bridge deformation monitoring, landslide monitoring, terminal container operation and other occasions.
Specification
R30 | value | |
PERFORMANCE | ||
Channel Configuration | 384 channels | |
Signal Tracking | GPS： L1,L2,L2C,L2P,L5 | |
GLONASS： L1,L2 | ||
BDS： B1,B2,B3 | ||
SBAS | ||
Measurements： 1Hz, 2Hz, 5Hz, 10Hz, 20 Hz | ||
Position：1Hz, 2Hz, 5Hz, 10Hz, 20 Hz | ||
Horizontal Position Accuracy (RMS) | Single Point L1：1.5m | |
Single Point L1/L2： 1.2m | ||
Code differential GNSS positioning | SBAS： 0.6m DGPS： 0.4m | |
Static GNSS surveying | Horizontal： 5mm+1ppm Vertical：10mm+1ppm | |
Real Time Kinematic surveying | Horizontal： 10mm+1ppm Vertical： 20mm+1ppm | |
Time to First Fix | Cold start： <50 seconds Hot start： <35 seconds | |
Signal Reacquisition | L1： <0.5 seconds (typical) L2： <1.0 seconds (typical) | |
Time Accuracy | 20 ns RMS | |
Velocity Accuracy | 0.03 m/s RMS | |
PHYSICAL AND ELECTRICAL | ||
Dimensions | 182mm×52mm×134mm | |
Weight | 1.1Kg | |
Power | Input voltage： DC8V ~ 32V, with polarity reverse protection | |
Power consumption | ≤ 3.0W, in RTK base mode with internal radio in use | |
COMMUNICATION PORTS | ||
Full RS-232 serial (Dsub 9 pin) on Port 1 and Port 2 Ethernet | ||
Radio modem | frequency range from 410 MHz to 470 MHz | |
Cellular | GPRS and 3G | |
Blue-tooth | fully integrated, fully sealed 2.4 GHz communications port | |
Data storage | 8 GB external memory. | |
Data Formats | Data output； NMEA-0183, raw data | |
Differential data；RTCM2.3 / 3.0 / 3.1 / 3.2, CMR | ||
ENVIRONMENTAL | ||
Temperature | Operating -40 ℃ ~ +70 ℃ | |
Storage -45 ℃ ~ +80 ℃ | ||
Humidity 95% non-condensing | ||
Environment protection IP65 | ||
Shock | Designed to survive a 2 m (6.6 ft) pole drop onto concrete. | |
A10 | value | |
PERFORMANCE | ||
Signal Received | GPS L1/L2/L5/L-band GLONASS L1/L2/L3 BDS B1/B2/B3 Galileo E1/ E5a/E5b/E6 SBAS L1/L5 QZSS L1/L2/L5/L6 IRNSS L5 | |
Nominal Impedance | 50Ω | |
Polarization | RHCP | |
Axial Ratio | ≤3dB | |
Horizontal Plane Coverage Angle | 360° | |
Output VSWR | ≤2.0 | |
Highest Gain | 5.5dBi | |
Phase center error | ±2mm | |
Low Noise Amplifier Specifications | ||
Gain Noise Figure | L1 band：38±2dB L2 band：40±2dB ≤2dB | |
Output VSWR | ≤2.0 | |
In-band flatness | ±2dB | |
Operation Voltage | +3.3 to + 12VDC | |
Operation Current | 45mA | |
Group Delay Ripple | ＜5ns | |
MECHANICAL | ||
Dimensions | Φ152*62.2mm | |
Connector | TNC female | |
Weight | ≤400g | |
Mounting | BSW5/8''-11 screw, 12-14mm | |
ENVIRONMENTAL | ||
Operating | -40℃ to +85℃ | |
Storage | -55℃ to +85℃ | |
Humidity | 95% non-condensing | |
