  • Smart City Customizable Smart Bus System with Touchable Interactive Screen Bus Stop Digital Signage and Passenger Counting Box
Smart City Customizable Smart Bus System with Touchable Interactive Screen Bus Stop Digital Signage and Passenger Counting Box
Smart City Customizable Smart Bus System with Touchable Interactive Screen Bus Stop Digital Signage and Passenger Counting Box
Smart City Customizable Smart Bus System with Touchable Interactive Screen Bus Stop Digital Signage and Passenger Counting Box
Smart City Customizable Smart Bus System with Touchable Interactive Screen Bus Stop Digital Signage and Passenger Counting Box
Smart City Customizable Smart Bus System with Touchable Interactive Screen Bus Stop Digital Signage and Passenger Counting Box
Smart City Customizable Smart Bus System with Touchable Interactive Screen Bus Stop Digital Signage and Passenger Counting Box
Smart City Customizable Smart Bus System with Touchable Interactive Screen Bus Stop Digital Signage and Passenger Counting Box

Smart City Customizable Smart Bus System with Touchable Interactive Screen Bus Stop Digital Signage and Passenger Counting Box

Share on (11000005756008):


Price:

Quantity:


Product Overview

Description



Serial Number

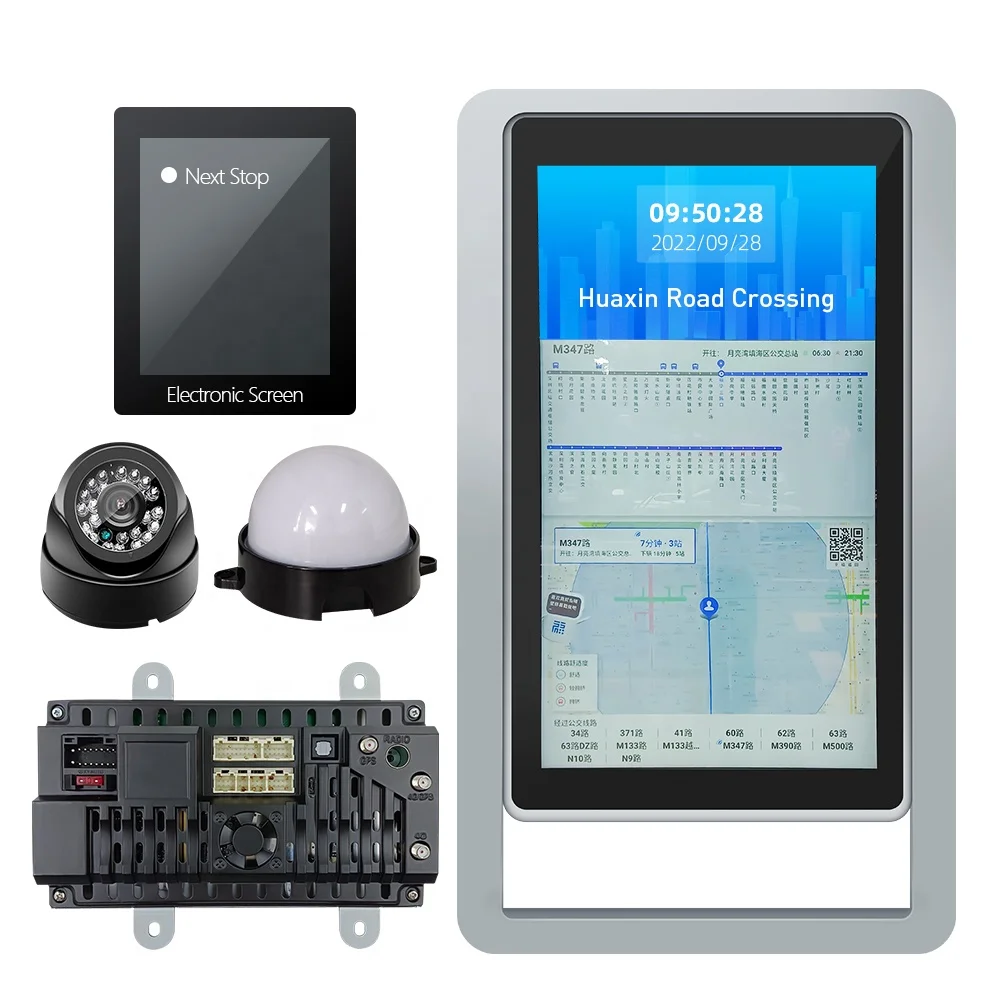

Smart Bus System Product Suite
1
Bus Passenger Counting System
2

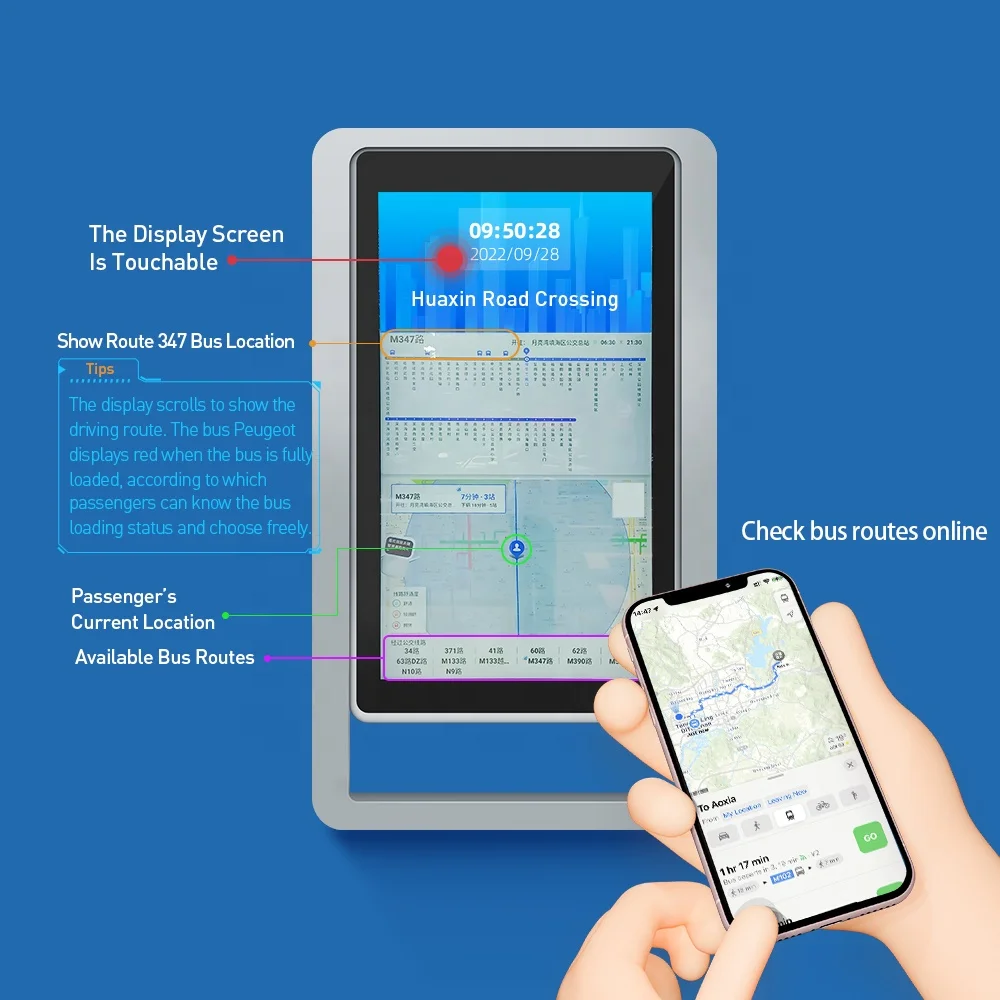

Solar Touchable Bus Stop Digital Signage
3

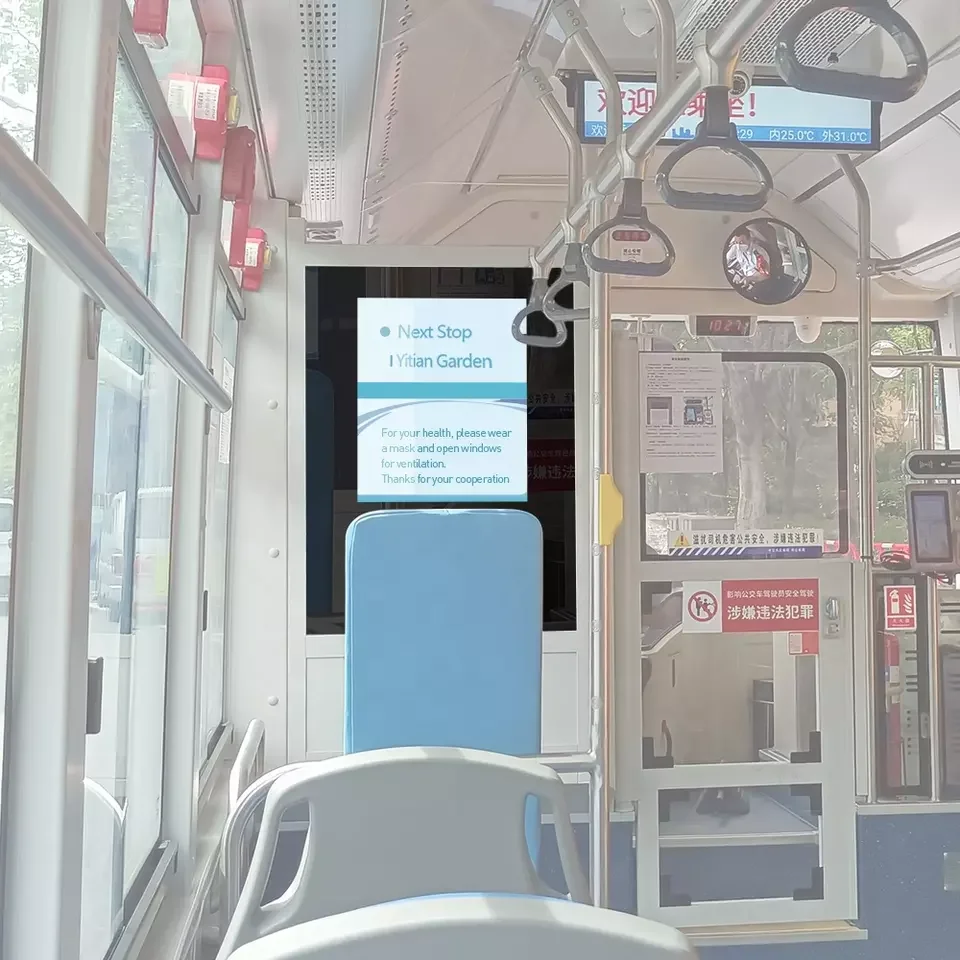

In-Bus Display with Voice Anouncement


Bus Passenger Counting System
Options
Parameter Description
Operating System
ANDROID 10 or above
Processor
Octa-Core A53 Processor
Running Memory
2GB/4GB/6GB/8GB
Storage Memory
32GB/64GB/128GB
Network
2G: GSM
3G: WCDMA, TDS-CDMA
4G: TDD-LTE/FDD-LTE
Wi-Fi
Wi-Fi 5 (a/b/g/n/ac) Protocol
Bluetooth
Bluetooth 5.0
Position
Beidou、GPS
The bus passenger flow data is connected to the electronic stop sign, so that the electronic stop sign shows the congestion of vehicles support
Support


Solar Bus Stop Digital Signage
Components
Specifications
Sheet Metal Enclosure
The sheet metal shell is made of 1.5mm SGCC galvanized steel plate, the inner layer is sprayed with zinc-rich base powder, and the surface layer is sprayed with DuPont outdoor plastic powder for protection, and the service life is more than 10 years.
Explosion-Proof Glass
When the glass is damaged by external force, the shards of 6mm tempered glass will become small honeycomb-like obtuse-angled small particles, which are not easy to cause serious harm to the human body. The impact strength of tempered glass is 3 to 5 times thatof ordinary glass, and the bending strength is 3 to 5 times that of ordinary glass.
Bright LCD Screen
The display area of the outdoor dedicated high-brightness LCD screen is 476.5*268mm, which is a direct-type backlight.
The resolution of the screen is HD 1920*1080.
The built-in automatic photosensitive probe can adjust the screen brightness according to the ambient light to save energy and reduce light pollution.
Playback System
The Android network information publishing system supports various mainstream audio and video formats such as pictures, videos,and texts, supports wired/wireless WiFi network transmission, and supports single-machine card playback.
Electronic Control System
Built-in leakage protection switch can provide leakage protection and overvoltage protection.
The built-in microcomputer timer switch can control the start and stop of the machine at different times.
The lightning protection level of the built-in lightning protection device is C level to prevent instantaneous lightning strikes.
The power supply adopts Taiwan's MEAN WELL industrial-grade power supply, and the power supply is stable and reliable.
Cooling System
The integrated temperature control of the intelligent fan ensures that the display screen does not blacken and works normally in the outdoor environment of -15-+50 degrees.
The imported axial flow fan is equipped with a fan speed control board, which can automatically sense the temperature and automatically adjust the fan speed to save energy and power, and prolong the service life.
The high-efficiency multi-layer filtration system can isolate harmful dust from entering the machine, so that the protection level of the whole machine reaches IP55.
Test System
Spray waterproof test.
High and low temperature test.
Solar radiation test.
Machine aging test;
