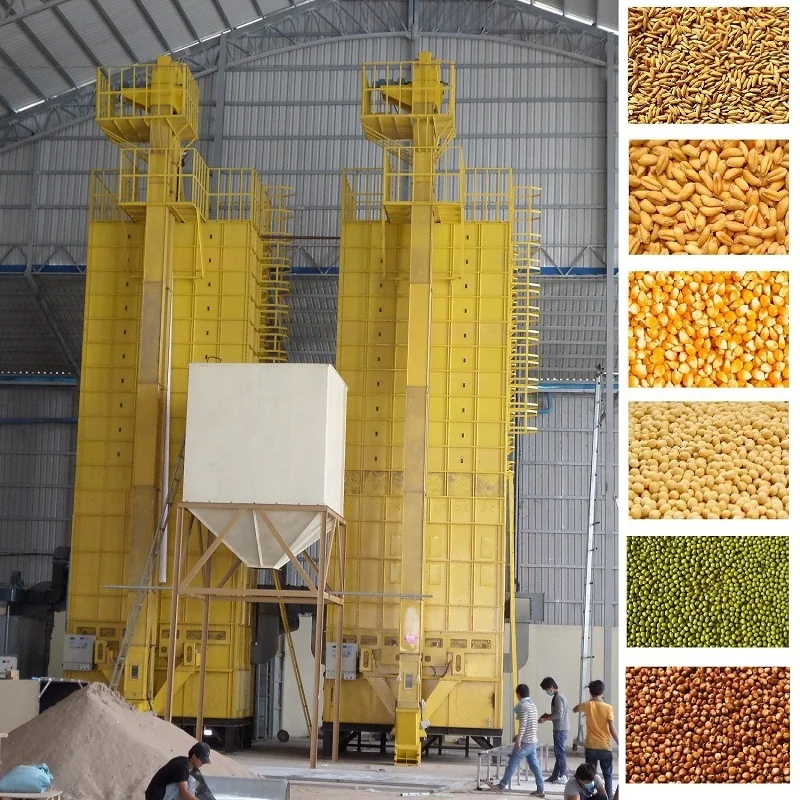

5HGM 30S Low Temperature Circulation Type Grain Dryer

Product Overview

Description

FOTMA is leading supplier for grain and oil processing equipment in China, grain dryer is our important product for grain processing.  Through years of scientific research and production practice, we have accumulated sufficient rice professional knowledge and practical experience, we can provide complete grain drying plant from 5t/batch to 300t/batch. Our paddy dryer can not only be used for drying operation of paddy rice, but also for drying the corn, wheat,cotton seed and other seed. They can either be used as a single machine or be used in assembling line of seed processing, say, the paddy processing industry. Our dryers are widely exporting to different countries like Nigeria, Myanmar, Guyana and other countries in Asia, South America, Africa, etc..

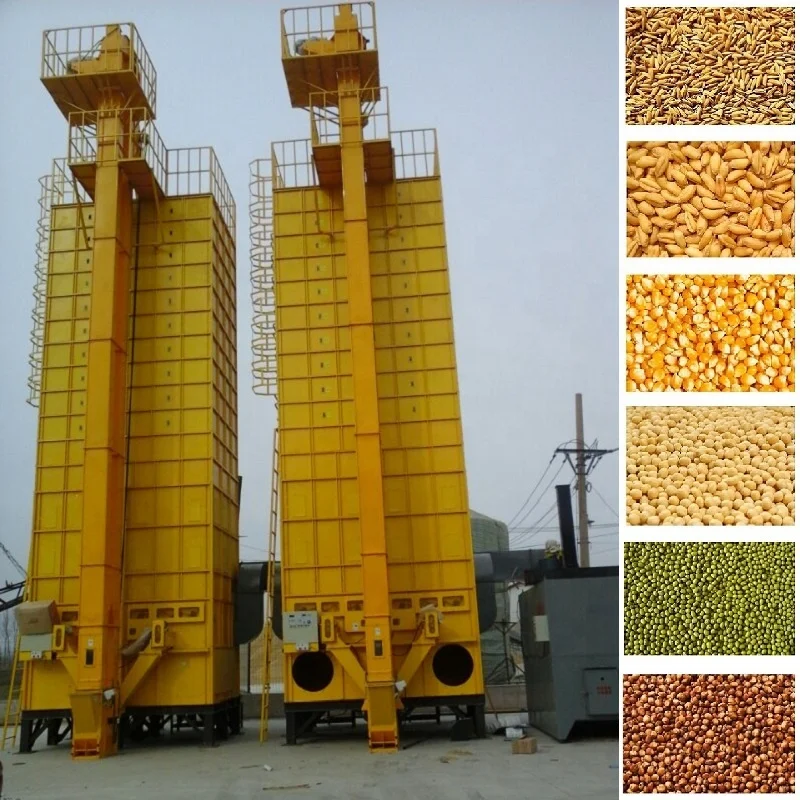

5HGM-30S Low Temperature Circulation Type Grain Dryer

1. Japanese drying technology, four drying parts, two blowers, higher drying efficiency;

2. Low temperature type, low broken rate;

3. Batched and circulation type grain dryer;

4. Indirect heating and clean hot air for drying material without any pollution.



1. Product description

The 5HGM series grain dryer is low temperature type circulation batch type grain dryer. The dryer machine is mainly used to dry rice, wheat, corn, soybean etc. The dryer machine is applicable to various combustion furnaces and coal, oil, firewood, straw of crops and husks can all be used as heat source. The machine is automatically controlled by computer. The drying process is dynamically automatic. Besides, the grain drying machine is equipped with automatic temperature measuring device and moisture detecting device, which greatly increase the automation and ensure the quality of the dried cereals. In addition to drying the paddy, wheat, it can also dry rapeseeds, buckwheat, corn, soybean, cottonseed, sunflower seeds, sorghum, mung bean and other seeds, as well as some rule grains and crops with good fluidity and moderate volume.



2. Advantages

1. Feeding and discharging grains from the top of dryer: Cancel the top auger, grain will directly flow to the drying part, avoid mechanical failure, lower power consumption and reduce the paddy broken rate.

2. Crosswise eight-groove drying technology: Thin drying layer, lower drying cost while higher drying efficiency.

3. Resistance-type online moisture meter: Error rate is ±0.5 only (Deviation for raw paddy moisture is within 3% only), very accurate and reliable moisture meter.

4. The dryer comes with fully automatic computer controlling system, easy on operation, high automation.

5. Double lower speed auger design could effectively reduce the auger failure rate and grain broken rate, also reduce the dryer height;

6. The elevator uses the large capacity polymer material bucket, higher reliability. The lower linear speed reduces the broken rate effectively during conveying process.

7. Equipped with four drying parts, double blowers, and the hot air enters the dryer from two sides, drying speed is fast and the quality of dry paddy is good.



3. Technical Parameters

Model		5HGM-30S
Type		Batch type, Circulation, Low temperature
Volume(t)		30.0 (Based on paddy 560kg/m3)
		31.5 (Based on wheat 680kg/m3)
Overall dimension(mm)(L×W×H)		6594×4108×14166
Structure weight(kg)		6350
Hot air source		Burner (diesel or natural gas); Hot air furnace (coal, husk, straw, biomass, etc.); Boiler (steam or thermal oil).
Blower motor(kw)		2*7.5
Total power of motors(kw)/ Voltage(v)		20.15/380
Time of feeding(min)	Paddy	55~70
	Wheat	57~72
Time of discharging(min)	Paddy	53~68
	Wheat	58~70
Moisture reduction rate	Paddy	0.4~1.0% per hour
	Wheat	0.4~1.0% per hour
Automatic control and safety device		Automatic moisture meter, automatic ignition, automatic stop, temperature control device, fault alarm device, full grain alarm device, electrical overload protection device, leakage protection device

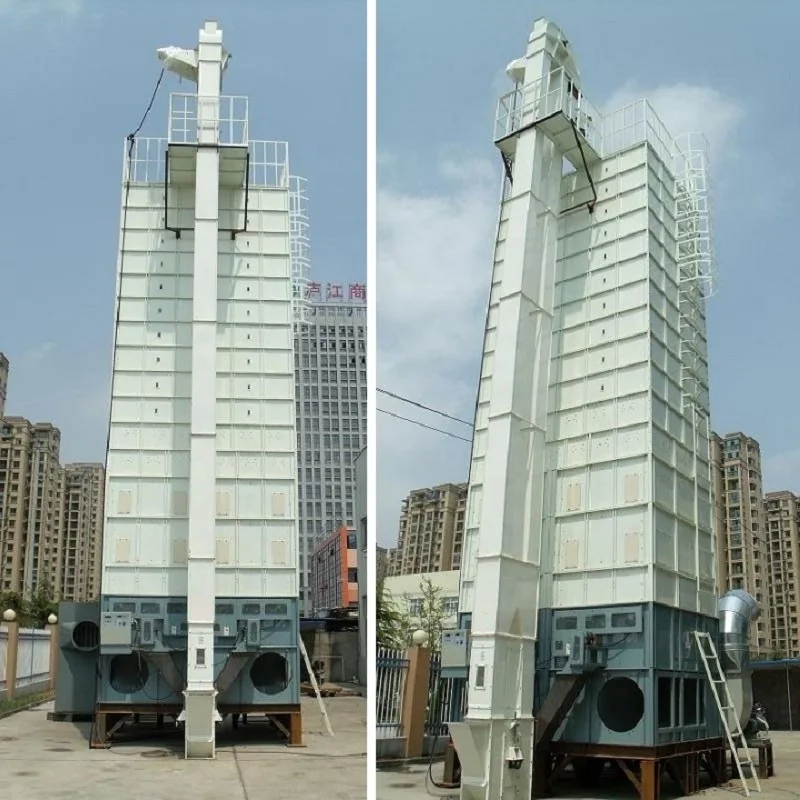

4. Photos



5. Packing and Shipping:
(1) Packing: Usually in the wooden cases for main machines and carton boxes for small parts.

(2) Delivery:
Usually in 5-45 days after payment, it depends on the model and order quantity. For small packages, we can choose delivery by air(Normal air or courier: DHL, TNT, UPS, FedEx, etc.). For large machines, we can arrange to ship by water( LCL or FCL, bulk cargo or RO/RO), train or truck.



6. Our Factory





7. Certificates





8. Customer Visiting

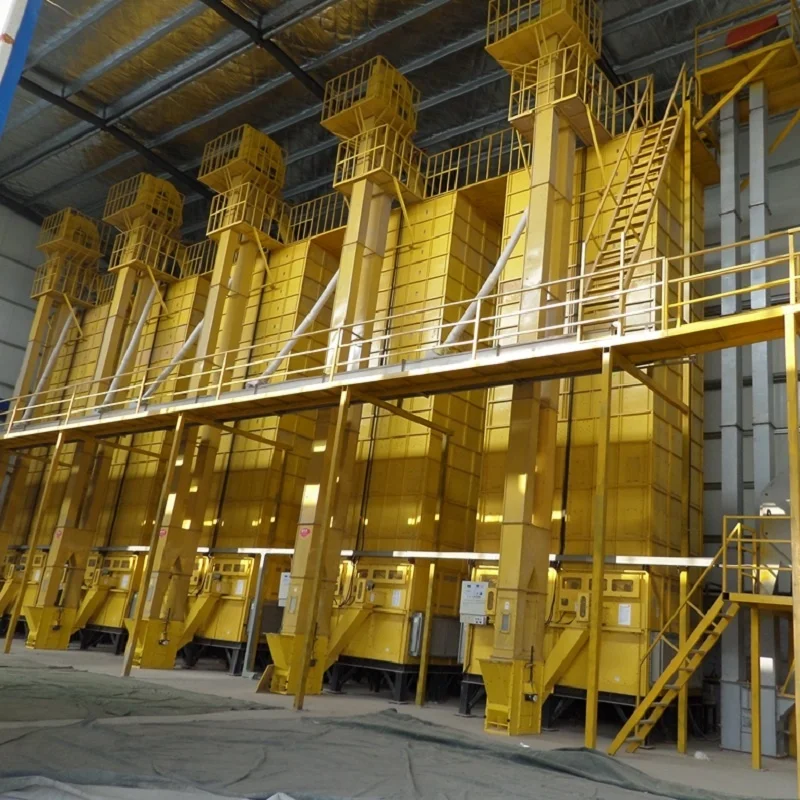

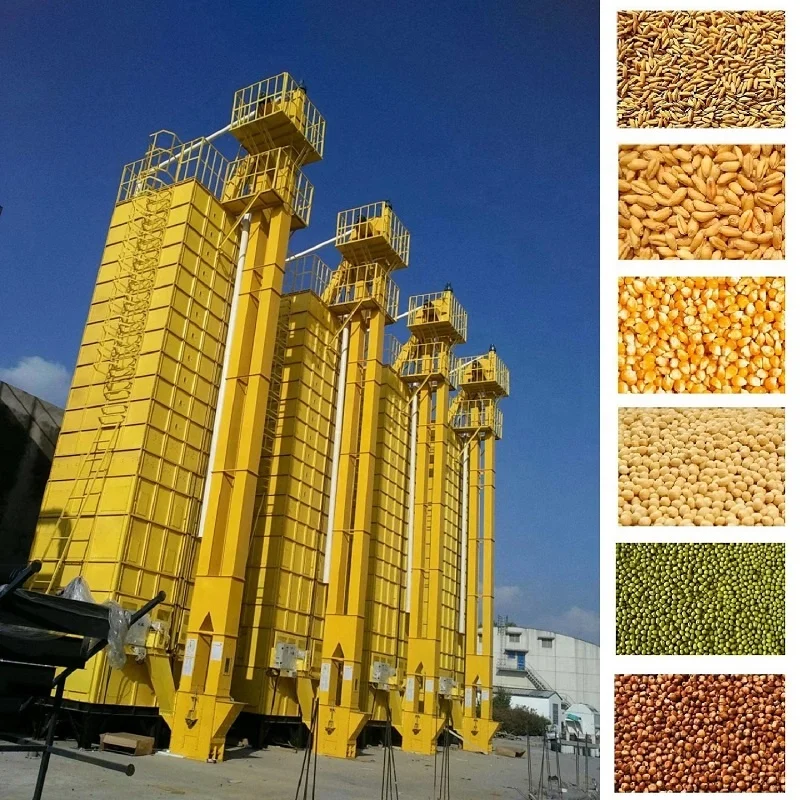

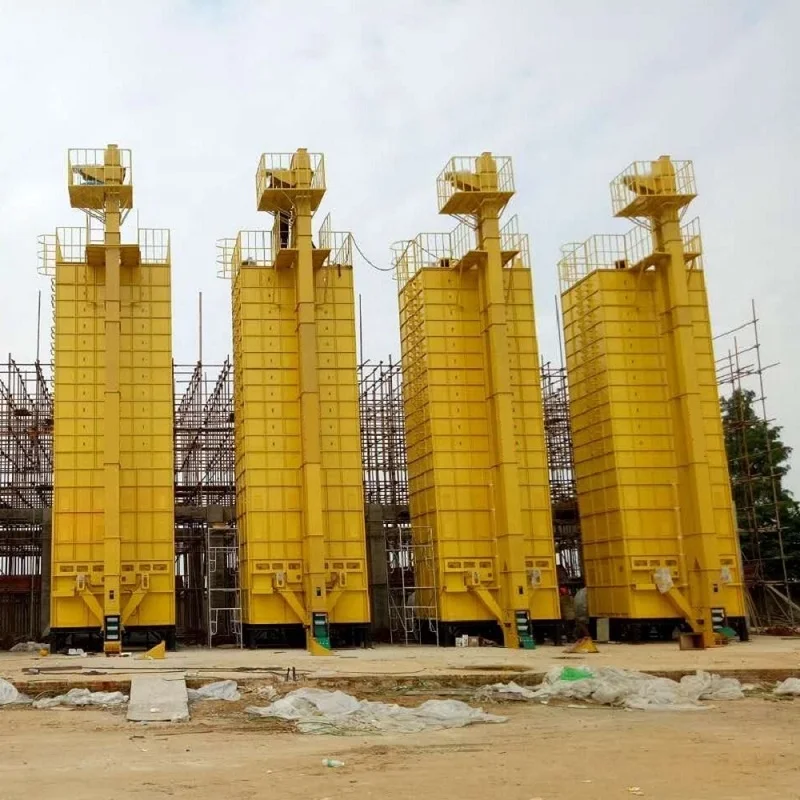

9. Installation site:



10.Why choose FOTMA?

11. Our Service:
---One year quality warranty for the machine and spare parts
--- Oversea engineers service for installation
--- Whole-life after-sales service and free consultation
---Customized requirements available
---Technician guide at the site.
---24Hr online service



12. FAQ
Q1:-What's your advantage? Why we choose you?
A:-Above 15 Years experience of design,manufacture and exporting the corn and grain processing machinery.We have the most professional techniques and team and more advantage in price.

Q2:- Can we mix different models and accessories together?
A:- You may mix different products or models in a single container but we would need to advise you on optimum loading and final capacity of your shipment.

Q3:- How do I visit you and the factory?
A:- You are welcomed to visit us and our factory at your convenience. We can pick you up at airport or train station and bring you to our factory . Let us know your schedule in details so we can arrange everything for you. Normally you need 3 days for an adequate visit to our factory.

Q4:- How can I become a dealer in my area?
A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.

Q5:- Can I get an exclusive right for your machines in some territories?
A:- It depends on which country you are in. We have exclusive agents at several countries at this time. Most countries you can sell freely.

Q6:- After payment, how long will it take to get the machines we order?
A:- Normally 30-90 days after your payment (15-45 days for manufacturing, 15 - 45 days for delivery and shipment on sea)

Q7:- How to order the spare parts?
A:- Some machines will come with some free spare parts. We also advise you purchase some wearing parts with the machines together to stock for urgent replacement, we can send you recommended parts list.
