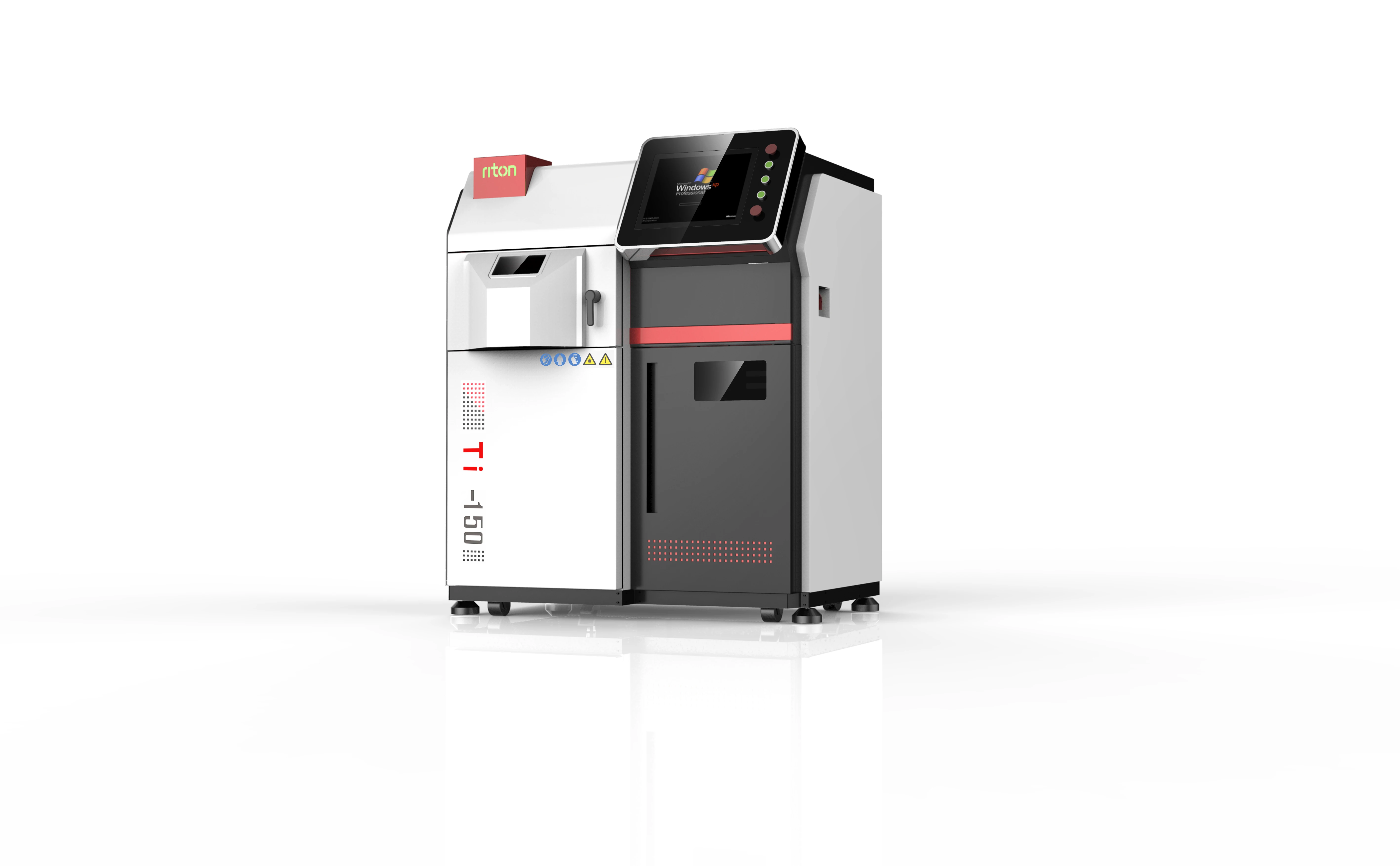

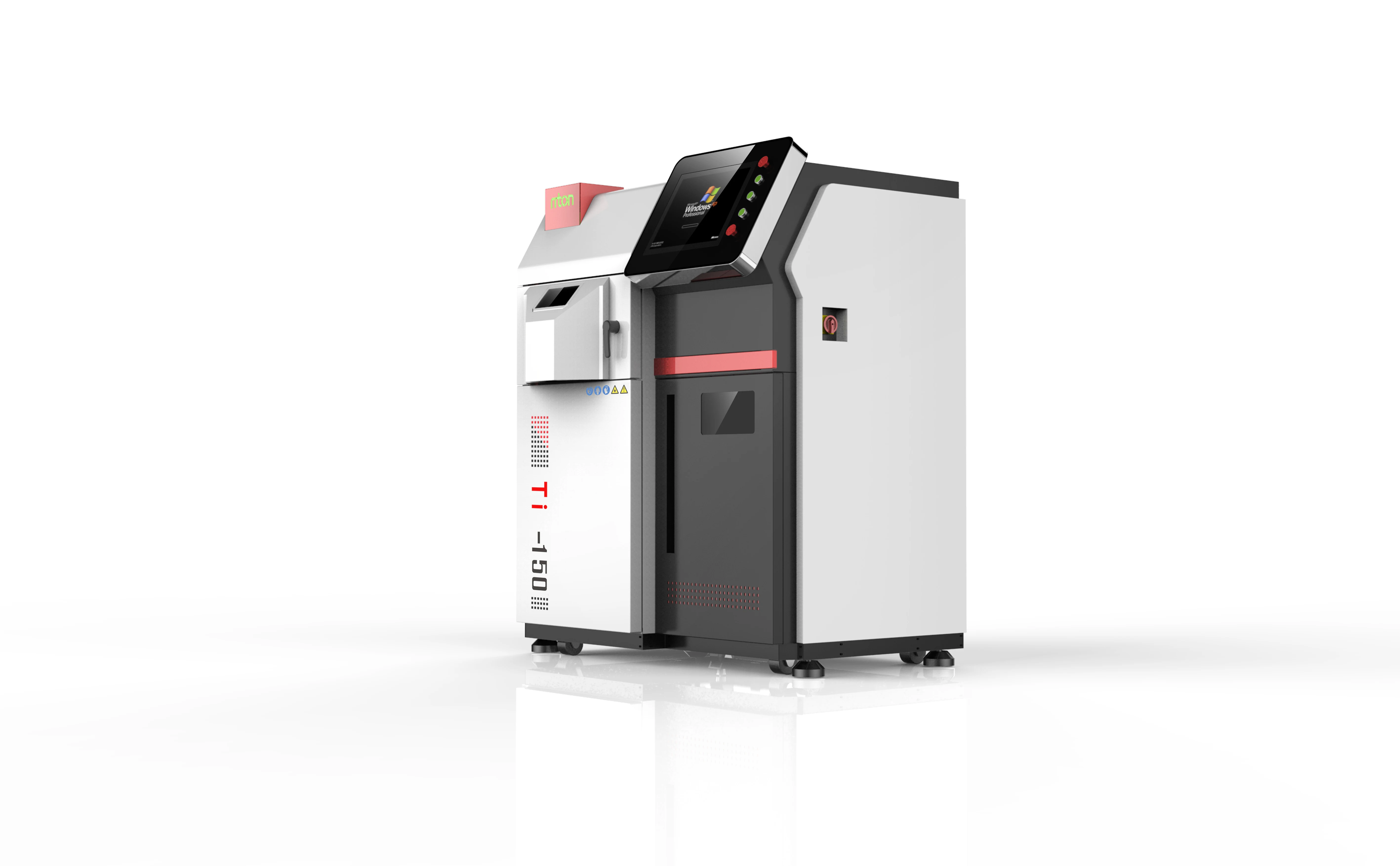

Wavelength 1.064 Laser Melting 3D Printer for Dentistry
- Category: >>>
- Supplier: Guangzhou Riton Additive Technology Co. Ltd.
Share on (11000005845221):
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | Riton |
Application | Dental |
Features | Multi-axis |
Warranty | 1.5 years |
Dimension(L*W*H) | 1300*1000*1650mm |
Voltage | 220V |
Applicable Industries | Dental Laboratory |
Usage | Metal Crown Printing |
Weight | 700KG |
Automatic Grade | Automatic |
Year | 2022 |
Condition | New |
Molding Technology | SLM |
Forming size | 150*150*110mm |
Key Selling Points | High-accuracy |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Laser |
Molding Technology
SLM - Selective Laser Melting

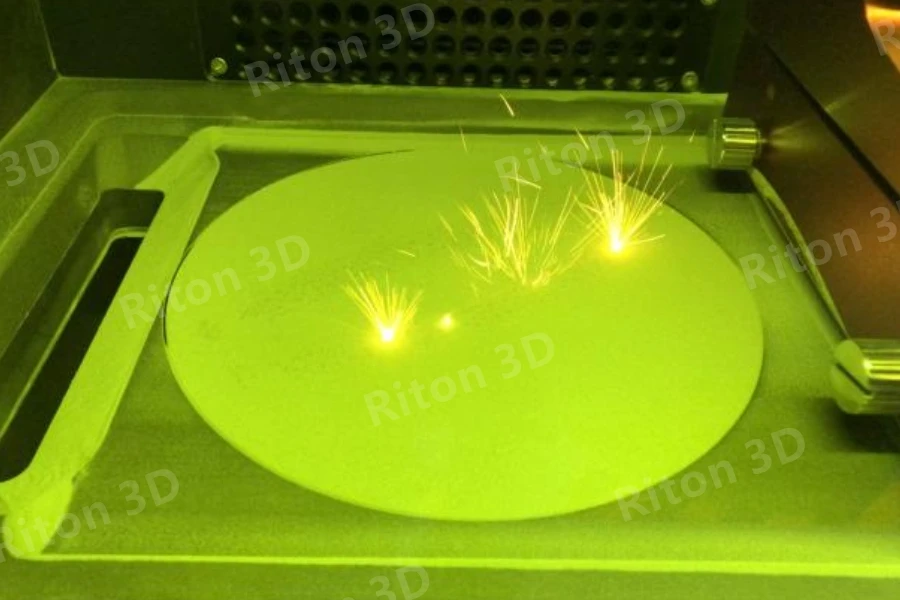

SLM is a technology in which metal powder is completely melted under the heat of laser beam and solidified after cooling.

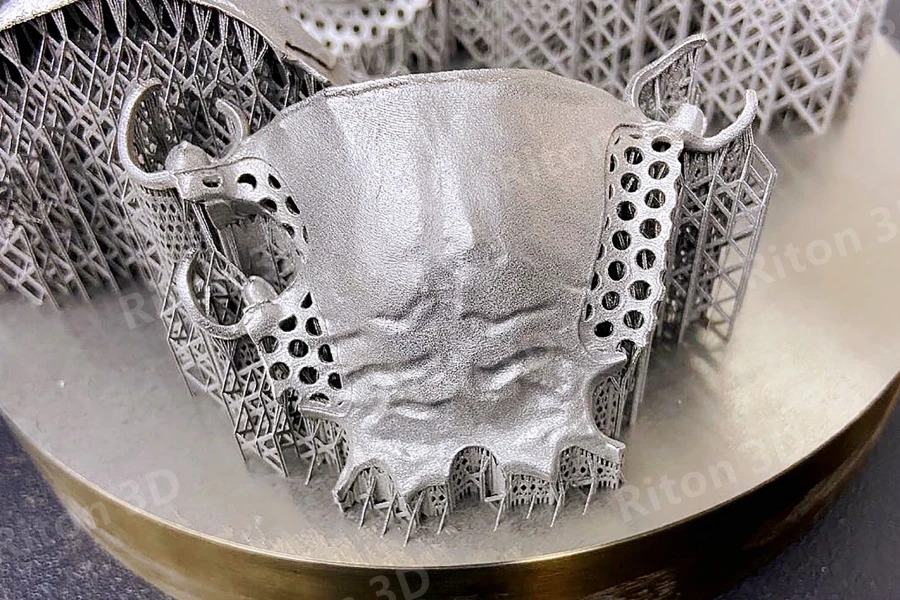

SLM process generally needs to add support structure, its main role is reflected in:
1) Undertake the next layer of unformed powder layer, to prevent laser scanning to the thick metal powder layer, collapse.
2) Due to the internal shrinkage stress after the powder is heated and melted and cooled in the molding process, the supporting structure connects the formed part with the unformed part, this kind of shrinkage can be effectively inhibited, and the forming parts can maintain stress balance.
1) Undertake the next layer of unformed powder layer, to prevent laser scanning to the thick metal powder layer, collapse.
2) Due to the internal shrinkage stress after the powder is heated and melted and cooled in the molding process, the supporting structure connects the formed part with the unformed part, this kind of shrinkage can be effectively inhibited, and the forming parts can maintain stress balance.
DLP - Digital Light Processing
The basic principle of DLP3D printing technology is that the digital light source projects layer upon layer on the surface of
liquid photosensitive resin in the form of surface light, and the layer is cured and formed .
liquid photosensitive resin in the form of surface light, and the layer is cured and formed .
The DLP projector creates an image of the layer by shining light through a lens onto the DMD, an assembly of thousands of micromirrors, which must then direct the light to the bottom of the resin tank.
Therefore, the light from the DLP projector must expand from a small source to cover a large area. Essentially, this means that wider models are more likely to have pixel deformations at their edges. In addition, the number of pixels on the DLP projector is the same regardless of the print size. This means that smaller and narrower prints can have higher accuracy compared to wider prints done on the same DLP printer.
LCD - Laser Cladding Deposition
LCD 3D printer working principle is to use the LCD screen LCD imaging principle, under the drive of the computer and display circuit, provided by the computer program image signal, the selective transparent area appears on the LCD screen, ultraviolet light through a transparent area, irradiation exposure curing resin groove of photosensitive resin consumable, the end of each layer of curing time, The platform tray lifts the cured part, allowing the resin liquid to replenish the reflux, the platform drops again, and the thin layer between the model and the release film is exposed to ultraviolet light again. From this layer-by-layer curing rise printing into a beautiful diorama.

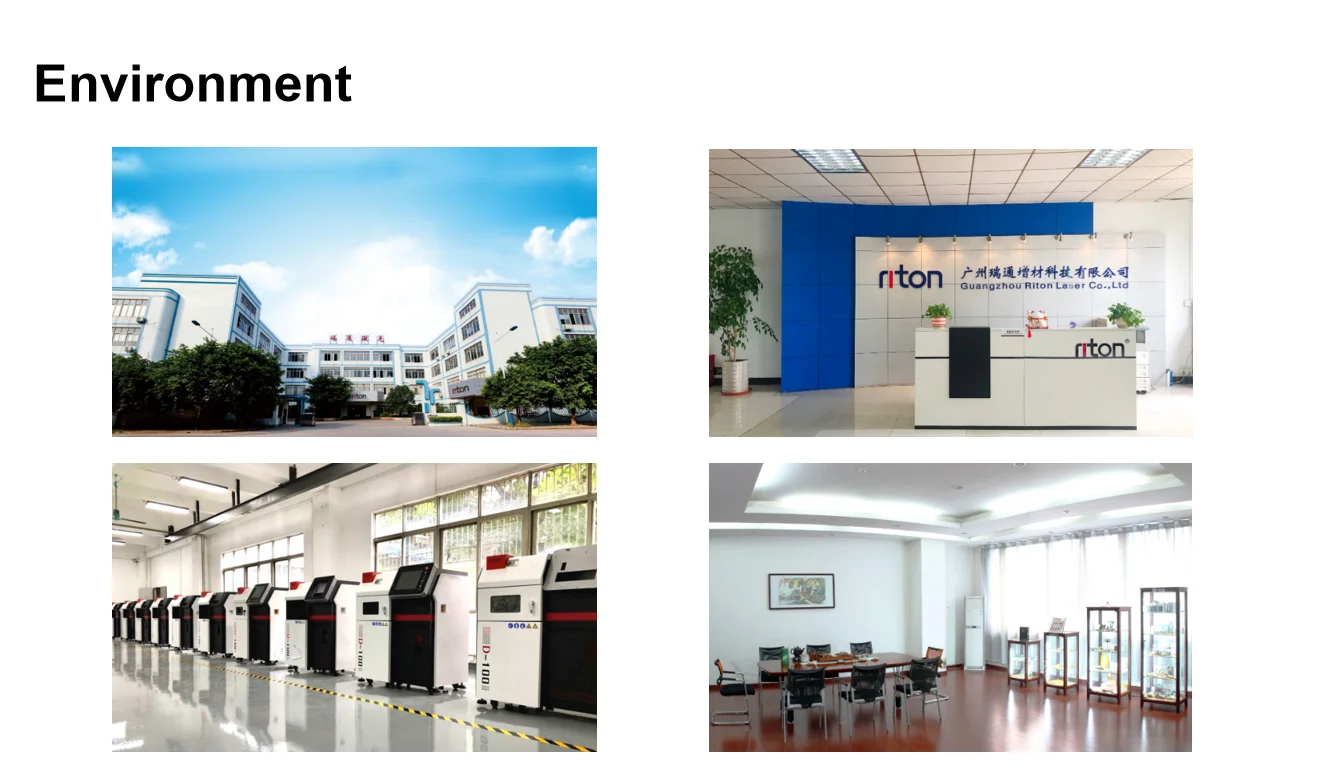

Company Profile
FAQ
Brief introduction
Riton is a high-tech enterprise focused on laser technology, 3D printing, and digital dental innovation. Set independent R&D, production, sales in one, 25 years dedicated to laser 3D printing technology application
Founded in 1997
Location in Guangzhou. China
Founded in 1997
Location in Guangzhou. China
Business cover
Selling 3D Metal Printer Equipment
Selling 3D Resin Printer Equipment
Selling Photosensitive Rebin Liquid & Metal Alloy Powder (Cobalt Chromium, Titanium, Stainless Silver, etc...)
Offering 3D Design & Printing Services
Certification
CE / RoHS / FCC / IC / ISO 9001 / ISO13485
For your info
Delivery Terms: FOB, EXW
Acceptable Currency: USD, CNY
Payment Method: T/T, L/C, Credit Card, Western Union, Cash
Communication
Email, Direct Chat, Phone call, Video Call
