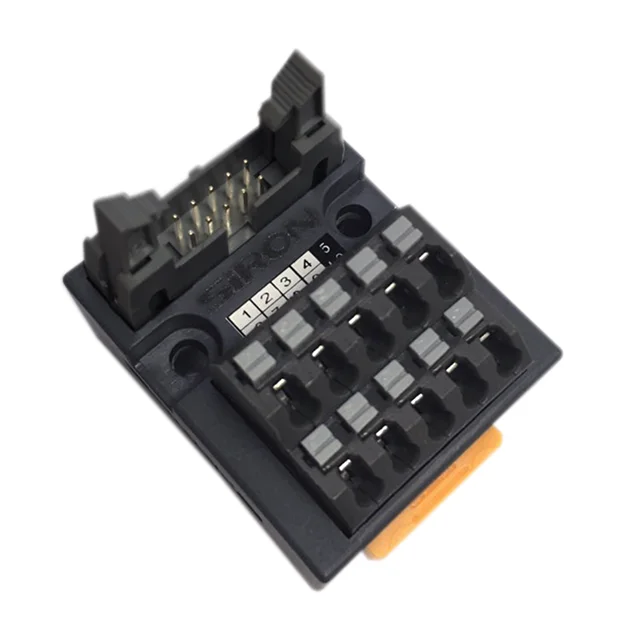

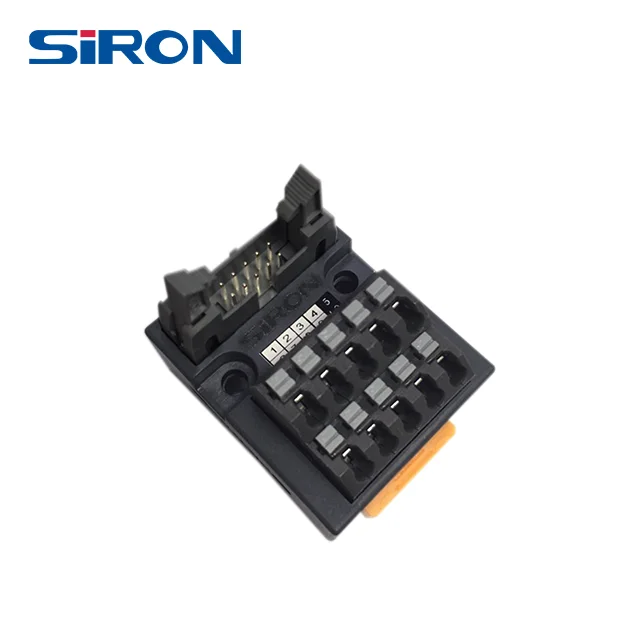

SiRON T055 Spring terminal block 10P connector general PLC terminal block
- Category: >>>
- Supplier: Shenzhen Siron Electrical Co. Ltd.
Share on (11000005847473):
Product Overview
Description
Specifications
input | Nominal operating current ：1A |
Nominal coil voltage：DC24V | |
Corresponding output Devices | Button Switch,Photoelectric Switch, Solenoid,Indicator,Stepping Servo Motor,etc. |
Installation method | DIN Rail |
Connection mode of terminal board | screw |
Suitable cable | X200-1 X210-1 X216-1 X216-2 (For detail ,please refer to the directory cable series |
Suitable PLC | KEYENCE： KV-B16XA/XC KV series of small PLC |
Panasonic： FP0-C16T/C16CT FP0-C1 6P/C16CP FPO-C32T/C32CT/T32CT FPO-C32P/C32CP/T32CP FPO-E16T/P FPO-E32T/P FPO-E8X FPO-E16X FPZ -C28. FP2-C32 FP0-C16T/C16CT FPO-C16P/C16CP FP0-C32T/C32CT/T32CT FPO-C32P/C32CP/T32CP FPO-E16T/P FPO-E32T/P FPO-E8YT FPO-E16YT FP≥-C32 FPZ -C28 | |
Suitable wire | 1m㎡Following /AWG17 |
weight | 120g |
Our company's product categories are very rich
Features

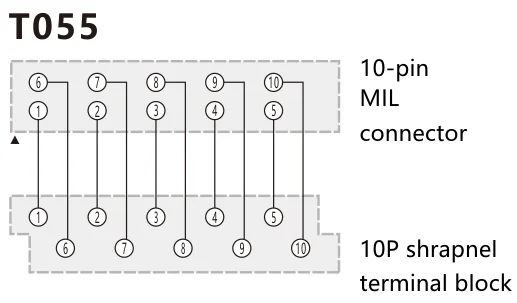

1.T055 use 10P MIL connectors to corresponding to 10P terminal block,
which can be used in two-way connecting regardless input and output;Interface panel is used to transfer and help to march SIRON other
products to realize high-effective wiring connection.
2.The product are minimum space design of the Intra-industry.
Precautions：
Before ordering，please confirm the PLC pin definition,choose the suitable terminal.When PLC connection,please be sure to use the company developed and the corresponding special cable.

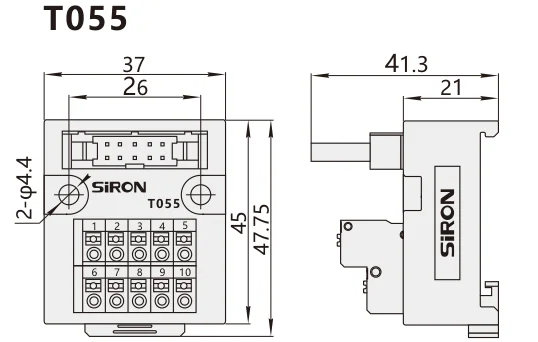

Screw Mounting:use M4*16 screw,screw hole depth≥3mm.
DIN Rail Mounting:Standard 35mm DIN RAIL.
Screw Mounting:use M4*16 screw,screw hole depth≥3mm.
DIN Rail Mounting:Standard 35mm DIN RAIL.
